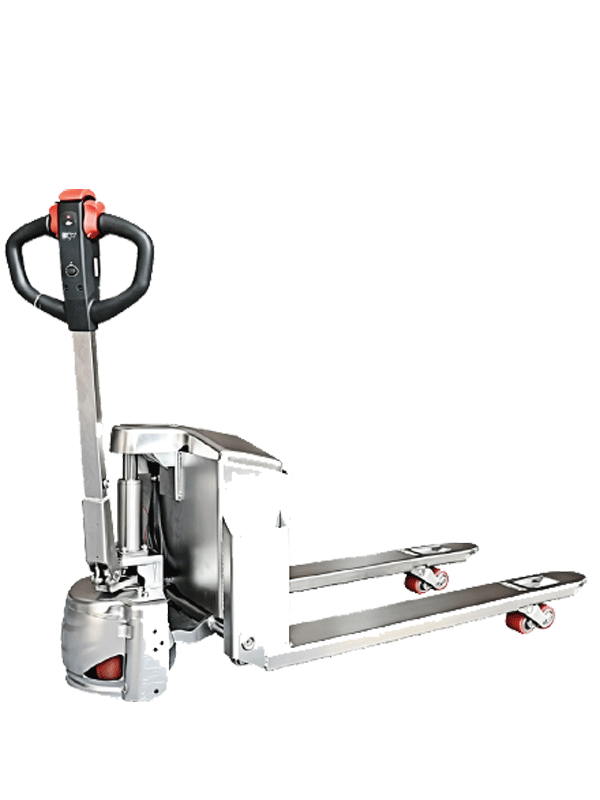

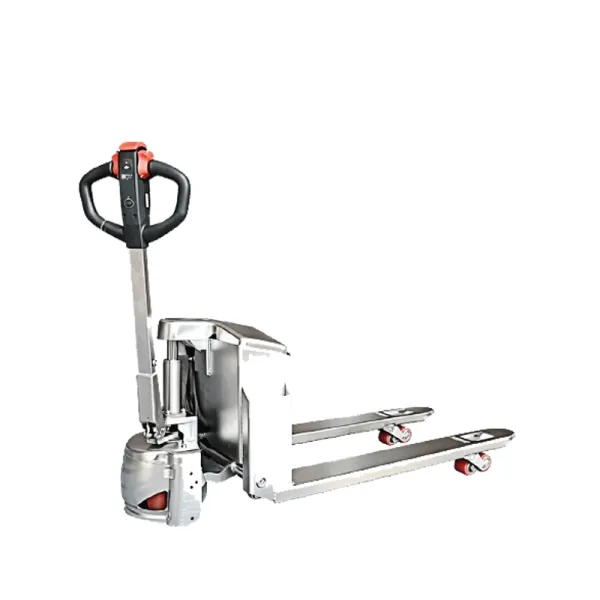

Stainless Steel Fully Electric Pallet Truck
The Stainless Steel Fully Electric Pallet Truck is designed for efficient pallet handling in food processing, cold storage, logistics, warehousing, and other environments where durable and easy-to-clean equipment is required.
With stainless steel forks, a protective cover for the drive motor, a large-capacity 24V battery, and a powerful electric drive system, the EPT series provides reliable pallet transportation with simple operation and stable power output.
The EPT1.5 and EPT2 models are available with rated capacities of 1,500 kg and 2,000 kg, making them suitable for different material handling requirements.
Key Features
Stainless Steel Forks
The pallet truck is equipped with 4 mm thick stainless steel forks, providing a robust structure for handling palletized goods. The stainless steel construction is suitable for applications where corrosion resistance, cleanliness, and durability are important.
For applications where stainless steel construction is not required, carbon steel material can be customized according to the operating environment and customer requirements.
Fully Electric Operation
The EPT series combines electric driving and lifting functions to reduce the physical effort required for manual pallet handling. The simple control system makes the electric pallet truck easy to operate for routine warehouse and material handling tasks.
One-Key Emergency Power-Off
A one-key emergency power-off function allows the operator to quickly cut electrical power in an emergency situation. This provides an additional operational safety feature during material handling.
Protective Motor Cover
A protective cover is installed at the bottom of the pallet truck to help protect the drive motor from accidental impact during operation. This design helps protect important components in demanding warehouse and industrial environments.
Large-Capacity Battery
The EPT series uses a 24V / 65Ah battery to provide stable electrical power for material handling operations. The battery system is designed to support consistent power output during normal operation.
Easy Cable Storage and Charging
The power cable can be quickly and flexibly stored after charging, helping keep the operating area organized and making routine charging more convenient.
Strong Drive System
The EPT1.5 uses a 750 W drive motor, while the EPT2 is equipped with an 800 W drive motor. Combined with the electric drive system and large drive wheel, the pallet truck provides stable traction for warehouse transportation.
EPT Stainless Steel Electric Pallet Truck Specifications
| Model | EPT1.5 | EPT2 |
|---|---|---|
| Rated Capacity | 1,500 kg | 2,000 kg |
| Minimum Fork Height H | 80 mm | 80 mm |
| Maximum Fork Height H1 | 195 mm | 195 mm |
| Right-Angle Stacking Aisle Width, 1000 × 1200 mm Pallet | 2,280 mm | 2,280 mm |
| Right-Angle Stacking Aisle Width, 1200 × 800 mm Pallet | 2,150 mm | 2,150 mm |
| Overall Fork Width B | 560 / 685 mm | 560 / 685 mm |
| Fork Section E | 160 mm | 160 mm |
| Load Center | 600 mm | 600 mm |
| Overall Length | 1,638 mm | 1,638 mm |
| Minimum Turning Radius | 1,475 mm | 1,475 mm |
| Gradeability, Loaded / Unloaded | 5% / 16% | 5% / 16% |
| Drive Wheel | Φ210 × 70 mm | Φ210 × 70 mm |
| Drive Motor | 750 W | 800 W |
| Battery Voltage / Rated Capacity | 24 V / 65 Ah | 24 V / 65 Ah |
| Travel Speed, Loaded / Unloaded | 4.5 / 5 km/h | 4 / 4.5 km/h |
| Net Weight Including Battery | 173 kg | 173 kg |
Applications
The stainless steel fully electric pallet truck can be used for pallet transportation in a variety of commercial and industrial environments.
Food Processing
The stainless steel forks are suitable for food processing environments where equipment cleanliness and corrosion resistance are important considerations.
Cold Storage
The pallet truck can be used for pallet handling in refrigerated warehouses and cold storage facilities. Its compact dimensions and small turning radius help support operation in relatively confined working areas.
Warehousing and Logistics
The EPT series provides an electric solution for moving palletized goods between storage areas, production zones, loading areas, and other warehouse locations.
Manufacturing
The fully electric pallet truck can be used for transporting raw materials, components, finished products, and other palletized goods inside manufacturing facilities.
Distribution Centers
The compact design and electric drive system make the EPT series suitable for routine pallet transportation in distribution and logistics facilities.
Compact Design for Warehouse Operation
The EPT series has an overall length of 1,638 mm and a minimum turning radius of 1,475 mm. Depending on pallet dimensions, the required right-angle stacking aisle width is approximately 2,150–2,280 mm.
These dimensions make the electric pallet truck suitable for warehouse applications where maneuverability and efficient use of operating space are important.
Load Capacity Options
Two models are available:
EPT1.5 — 1,500 kg Rated Capacity
Suitable for general pallet handling and transportation applications requiring a rated capacity of up to 1.5 tons.
EPT2 — 2,000 kg Rated Capacity
Designed for applications requiring a higher rated load capacity of up to 2 tons.
Both models feature a 600 mm load center, 80 mm minimum fork height, and 195 mm maximum fork height.
Customization Option
The standard version uses stainless steel components for applications requiring corrosion resistance and easier maintenance.
Carbon steel construction can also be customized for customers whose operating environments do not require stainless steel material.
The appropriate material can be selected according to the working environment, application requirements, and customer specifications.
Frequently Asked Questions
What is a stainless steel fully electric pallet truck?
A stainless steel fully electric pallet truck is a powered pallet handling vehicle designed to transport palletized goods using an electric drive system. Stainless steel components make it suitable for applications where cleanliness and corrosion resistance are important.
What are the available load capacities?
The EPT series is available in two models: EPT1.5 with a 1,500 kg rated capacity and EPT2 with a 2,000 kg rated capacity.
What type of battery does the EPT pallet truck use?
Both models use a 24V / 65Ah battery.
What is the load center?
Both EPT1.5 and EPT2 have a 600 mm load center.
What is the maximum fork height?
The maximum fork height is 195 mm for both models.
Can the material be customized?
Yes. In addition to the standard stainless steel configuration, carbon steel construction can be customized according to the customer's application requirements.
What industries can use this electric pallet truck?
Typical applications include food processing, cold storage, warehousing, logistics, manufacturing, distribution centers, and other material handling environments.
Request a Quote
Looking for a stainless steel fully electric pallet truck for your warehouse, food processing facility, cold storage operation, or logistics application?
Send us your required load capacity, pallet dimensions, fork width, working environment, and material requirements. We can recommend the appropriate EPT model and provide a quotation based on your application.
