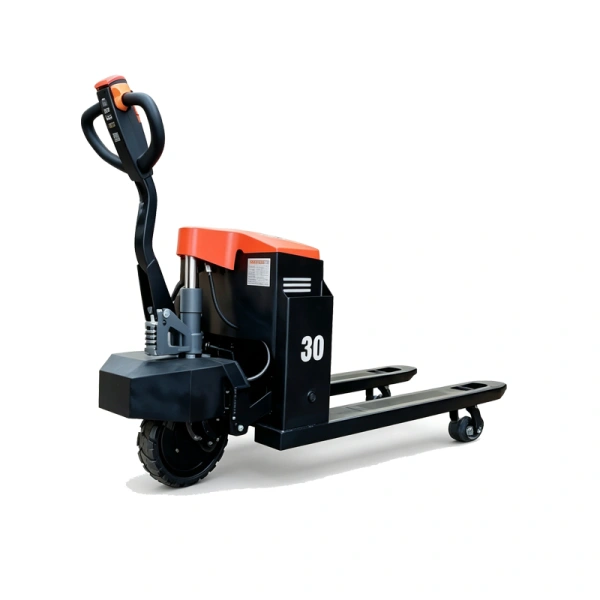

CBD3T King Kong Series 3 Ton Fully Electric Rough Terrain Pallet Truck
The CBD3T King Kong Series 3 Ton Fully Electric Rough Terrain Pallet Truck is a heavy-duty electric pallet truck developed for applications where conventional warehouse pallet trucks may not provide sufficient terrain adaptability.
The King Kong Series is designed around three core characteristics:
Heavy-Duty Capacity + Rough Terrain Capability + Fully Electric Power
With a rated load capacity of 3,000 kg, a 500 mm load center, large solid rubber drive wheels and approximately 100 mm ground clearance, the CBD3T King Kong Series is designed for material transportation across demanding industrial environments.
It is suitable for:
Outdoor industrial yards
Factories
Manufacturing facilities
Logistics yards
Construction sites
Warehouses
Loading and unloading areas
Heavy-duty material handling operations
King Kong Series — Built for Rough Terrain
The King Kong Series is the dedicated product name for this rugged off-road configuration.
Unlike the CBD3T Bull Series, which emphasizes lightweight modular construction, the King Kong Series focuses more strongly on:
Rough terrain capability
Large drive wheels
High ground clearance
Strong traction
High torque
Heavy-duty transmission
Outdoor material handling
Complex operating surfaces
The King Kong Series therefore provides a clear product distinction from conventional electric pallet trucks and the lightweight Bull Series.
3,000 kg Heavy-Duty Load Capacity
The CBD3T King Kong Series has a rated load capacity of:
3,000 kg
with a:
500 mm load center
This configuration allows the pallet truck to handle heavy palletized materials, machinery components, raw materials and industrial products.
Load Specifications
Rated load capacity: 3,000 kg
Load center: 500 mm
Fork length: 1,150 mm
Fork width: 160 mm
Fork thickness: 60 mm
Maximum fork lifting height: 200 mm
Minimum fork ground clearance: 85 mm
The heavy-duty forks are designed to provide the required structural strength for 3-ton material handling.
48V Permanent-Magnet Brushless Motor
The CBD3T King Kong Series uses a:
48V permanent-magnet brushless maintenance-free motor
The motor is designed to provide high torque for heavy-load transportation and challenging operating conditions.
The drive motor power is:
1,500W
The permanent-magnet brushless configuration provides an efficient electric drive system while reducing routine motor maintenance requirements.
Drive System
Voltage: 48V
Motor type: Permanent-magnet brushless
Drive motor: 1,500W
Maintenance: Maintenance-free motor design
Operation: Fully electric
300 × 100 mm Heavy-Duty Solid Rubber Drive Wheel
One of the most important features of the King Kong Series is its large drive wheel.
The CBD3T uses:
Φ300 × 100 mm heavy-duty solid rubber drive wheels
The large wheel diameter increases ground contact and helps the truck pass over uneven surfaces more effectively.
The solid rubber construction also eliminates the puncture risk associated with pneumatic tires.
Wheel Configuration
Drive wheel: Φ300 × 100 mm
Drive wheel material: Heavy-duty solid rubber
Load wheel: Φ80 × 70 mm
Rear wheel type: UP / Nylon
The large drive wheel is a key difference between the King Kong Series and the smaller-wheel CBD3T Bull Series.
100 mm Ground Clearance
The King Kong Series is designed with approximately:
100 mm ground clearance
The increased clearance helps reduce the possibility of the chassis contacting uneven surfaces and minor obstacles.
Combined with the large Φ300 × 100 mm drive wheel, the design provides strong passability for complex industrial terrain.
This makes the CBD3T King Kong Series particularly suitable for:
Uneven factory yards
Outdoor warehouses
Construction material handling
Industrial loading areas
Logistics yards
Rough industrial floors
Outdoor pallet transportation
Dual-Control Operation
The CBD3T King Kong Series uses a dual-control operating configuration.
This provides operators with flexible control during material transportation and maneuvering.
The control system is designed to make the truck easier to operate during repeated pallet handling while maintaining direct operator control over the equipment.
Integrated Cast Gearbox
The King Kong Series uses an integrated cast gearbox combined with a reinforced drivetrain.
The gearbox is designed for heavy-duty torque transmission and stable operation.
Its integrated structure helps improve:
Mechanical strength
Transmission stability
Gear durability
Torque transfer
Overall drivetrain reliability
This is particularly important for a 3-ton pallet truck operating on challenging terrain.
Sealed High-Torque Gear Transmission
The CBD3T King Kong Series uses a specially designed:
Fully sealed + high-speed-ratio + large-module + high-torque gear transmission
The sealed transmission helps protect internal gear components from external contaminants.
The large-module gear design is intended to provide greater mechanical strength, while the high torque transmission is designed for heavy-load operation.
Transmission Characteristics
Fully sealed design
High transmission ratio
Large-module gears
High torque
Stable power transmission
Heavy-duty construction
Reliable operation
2,200W Electric Lifting System
The King Kong Series uses a:
2,200W electric lifting motor
for powered fork lifting.
The maximum fork lifting height is:
200 mm
The truck is primarily designed for:
Pallet pickup
Pallet transportation
Loading and unloading
Pallet positioning
Short-distance material movement
Lifting Performance
| Item | Specification |
|---|---|
| Lift Motor | 2,200W |
| Maximum Fork Lift Height | 200 mm |
| Lifting Speed, Full Load | 2.2 cm/s |
| Lifting Speed, No Load | 3.3 cm/s |
48V Lead-Acid or Lithium Battery
The CBD3T King Kong Series supports:
48V Lead-Acid / Lithium Battery
Customers can select the appropriate battery configuration according to operating hours, charging requirements and working environment.
Lead-Acid Battery
Suitable for:
Heavy-duty industrial applications
Cost-sensitive projects
Traditional industrial operations
Long working cycles
Lithium Battery
Suitable for:
Frequent operation
Flexible charging
Reduced battery maintenance
Efficient daily use
Applications requiring convenient energy management
100 mm Ground Clearance + Large Wheels for Outdoor Handling
The combination of:
Φ300 × 100 mm solid rubber drive wheels
and:
100 mm ground clearance
is one of the defining characteristics of the King Kong Series.
This configuration provides substantially stronger terrain adaptability than small-wheel pallet trucks designed mainly for smooth indoor floors.
For customers who need to move pallets between indoor and outdoor areas, the King Kong Series provides a more suitable configuration for challenging industrial surfaces.
Heavy-Duty Fork Configuration
The CBD3T King Kong Series uses heavy-duty forks designed for a 3-ton rated load.
Fork Specifications
| Fork Item | Specification |
|---|---|
| Fork Length | 1,150 mm |
| Fork Width | 160 mm |
| Fork Thickness | 60 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Maximum Fork Lift Height | 200 mm |
| Minimum Fork Ground Clearance | 85 mm |
The available fork spacing configurations allow the truck to accommodate different pallet dimensions and load arrangements.
Compact Overall Dimensions
Despite its rough-terrain configuration, the CBD3T King Kong Series maintains a relatively compact overall structure.
Main Dimensions
Overall length: 1,680 mm
Overall width: 685 mm
Overall height with handle: 1,240 mm
Overall height without handle: 760 mm
Minimum turning radius: 1,550 mm
The 1,550 mm minimum turning radius provides maneuverability for suitable industrial operating areas.
Gradeability and Travel Performance
The CBD3T King Kong Series has a maximum travel speed of:
4 km/h with full load / 4.5 km/h without load
The specified gradeability is:
7% with full load / 16% without load
Actual performance depends on:
Load weight
Ground condition
Gradient
Battery condition
Tire condition
Load distribution
Operating environment
For safety, actual operating conditions should always be evaluated before using the equipment on slopes or uneven terrain.
Product Specifications
| Specification | CBD3T King Kong Series |
|---|---|
| Product Type | 3 Ton Fully Electric Rough Terrain Pallet Truck |
| Model | CBD3T |
| Product Version | King Kong Series / Rough Terrain Type |
| Rated Load Capacity | 3,000 kg |
| Load Center | 500 mm |
| Operation Type | Walkie / Dual-Control |
| Wheel Type | Front Rubber, Rear UP / Nylon |
| Drive Wheel Size | Φ300 × 100 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Ground Clearance | Approx. 100 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,680 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Full Load / No Load | 7 / 16% |
| Travel Speed, Full Load / No Load | 4 / 4.5 km/h |
| Battery | 48V Lead-Acid / Lithium Optional |
| Drive Motor | 1,500W Permanent-Magnet Brushless |
| Lift Motor | 2,200W |
| Lifting Speed, Full Load / No Load | 2.2 / 3.3 cm/s |
| Machine Weight | 195 kg |
Application Areas
Outdoor Industrial Yards
The large solid rubber drive wheel and high ground clearance make the King Kong Series suitable for pallet transportation in industrial yards.
Construction Sites
The rough-terrain configuration can be used for moving palletized construction materials and heavy industrial products across suitable jobsite surfaces.
Manufacturing Plants
Suitable for moving heavy raw materials, components and finished products between production and storage areas.
Logistics Yards
The 3-ton capacity provides sufficient load-handling capability for heavy palletized goods.
Warehouses with Uneven Floors
For warehouses or industrial facilities where floors are not perfectly smooth, the King Kong Series provides greater terrain adaptability than standard small-wheel pallet trucks.
Why Choose CBD3T King Kong Series?
3 Ton Heavy-Duty Capacity
Handles loads up to 3,000 kg with a 500 mm load center.
King Kong Rough-Terrain Design
The King Kong Series is specifically positioned as a rugged rough-terrain electric pallet truck.
300 mm Large Drive Wheel
The Φ300 × 100 mm solid rubber drive wheel provides strong ground contact and excellent passability.
100 mm Ground Clearance
High clearance improves adaptability to uneven industrial surfaces.
48V Brushless Motor
The permanent-magnet brushless motor provides high torque and maintenance-free operation.
Heavy-Duty Sealed Transmission
Large-module, high-torque and fully sealed gear transmission provides reliable power transfer.
Fully Electric Operation
Both driving and lifting functions are electrically powered.
Flexible Battery Options
Choose between lead-acid and lithium battery configurations.
King Kong Series vs Bull Series
| Feature | CBD3T Bull Series | CBD3T King Kong Series |
|---|---|---|
| Product Positioning | Lightweight Heavy-Duty | Rough Terrain Heavy-Duty |
| Load Capacity | 3,000 kg | 3,000 kg |
| Load Center | 500 mm | 500 mm |
| Drive Wheel | Φ170 × 55 mm | Φ300 × 100 mm |
| Ground Clearance | Standard | Approx. 100 mm |
| Terrain Capability | Indoor / Suitable Industrial Floors | Rough / Complex Industrial Terrain |
| Machine Weight | 170 kg | 195 kg |
| Drive Motor | 1,500W | 1,500W |
| Lift Motor | 2,200W | 2,200W |
| Battery | 48V Lead-Acid / Lithium | 48V Lead-Acid / Lithium |
| Main Advantage | Lightweight + Modular | Rough Terrain + High Passability |
Bull Series = Lightweight & Modular
King Kong Series = Rough Terrain & High Passability
Frequently Asked Questions
What is the CBD3T King Kong Series?
The CBD3T King Kong Series is a 3-ton fully electric rough terrain pallet truck designed for heavy-duty pallet transportation on uneven and complex industrial surfaces.
Why is it called the King Kong Series?
King Kong Series is the English product-family name for the Chinese “金刚款”.
The name emphasizes the model's rugged positioning, strong load capacity and rough-terrain capability.
What is the load capacity?
The CBD3T King Kong Series has a rated load capacity of 3,000 kg with a 500 mm load center.
Is it a fully electric pallet truck?
Yes. The CBD3T King Kong Series uses electric drive and electric lifting.
It is equipped with a 48V system, 1,500W drive motor and 2,200W lifting motor.
What makes the King Kong Series different from a standard pallet truck?
The main difference is the rough-terrain configuration.
The King Kong Series uses:
Φ300 × 100 mm solid rubber drive wheels
Approximately 100 mm ground clearance
Heavy-duty sealed transmission
High-torque drivetrain
48V permanent-magnet brushless motor
These features improve adaptability to challenging industrial surfaces.
Can it be used outdoors?
Yes. The King Kong Series is specifically designed for rough-terrain and outdoor industrial material handling.
It can be used in suitable outdoor yards, construction environments, industrial areas and logistics yards.
Actual suitability depends on the specific ground conditions.
What is the drive wheel size?
The drive wheel is:
Φ300 × 100 mm
It uses a heavy-duty solid rubber construction.
What is the ground clearance?
The chassis ground clearance is approximately:
100 mm
The minimum fork ground clearance is 85 mm.
What is the machine weight?
The CBD3T King Kong Series weighs approximately:
195 kg
What is the maximum fork lifting height?
The maximum fork lifting height is:
200 mm
The truck is designed for pallet transportation and positioning rather than high-level stacking.
What battery options are available?
The truck uses a 48V battery system and supports:
Lead-Acid / Lithium Battery
What is the drive motor power?
The drive motor is:
1,500W permanent-magnet brushless motor
What is the lifting motor power?
The lifting motor is:
2,200W
What is the maximum travel speed?
The maximum travel speed is:
4 km/h with full load
4.5 km/h without load
What is the gradeability?
The specified gradeability is:
7% with full load
16% without load
Actual gradeability depends on ground conditions, load distribution and other operating factors.
What is the fork length?
The standard fork length is:
1,150 mm
with a fork width of 160 mm and thickness of 60 mm.
Customization Options
The CBD3T King Kong Series can be configured according to different application requirements, including:
Lead-acid battery
Lithium battery
Battery capacity
Fork dimensions
Fork spacing
Wheel configuration
Charger configuration
Product color
Customer logo
OEM requirements
Export configuration
For customized projects, please provide:
Load weight + pallet dimensions + working environment + working hours + required quantity
so the appropriate configuration can be recommended.
CTA
Looking for a 3 Ton Rough Terrain Electric Pallet Truck?
The CBD3T King Kong Series 3 Ton Fully Electric Rough Terrain Pallet Truck combines a 3,000 kg load capacity, 500 mm load center, 48V permanent-magnet brushless motor, Φ300 × 100 mm solid rubber drive wheels and approximately 100 mm ground clearance.
It is designed for customers who need a heavy-duty electric pallet truck capable of handling demanding outdoor and uneven industrial environments.
Contact us today for:
Product quotation
Technical specifications
Battery options
Fork configurations
Customized solutions
OEM/ODM service
Shipping information
Tell us your load weight, pallet size, working surface and required quantity, and our team can recommend the right CBD3T King Kong Series configuration for your application.
