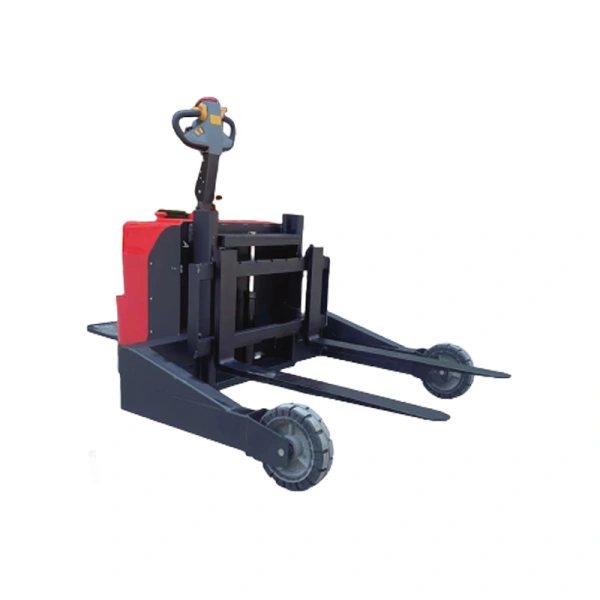

2 Ton Outdoor Full Electric Rough Terrain Stand-On Pallet Truck
Model: CBD20
The 2 Ton Outdoor Full Electric Rough Terrain Stand-On Pallet Truck CBD20 is designed for efficient pallet transportation in outdoor yards, factories, warehouses, logistics centers, loading areas, storage facilities, and other industrial environments where conventional indoor pallet trucks may not be suitable.
With a rated load capacity of 2,000 kg and a 500 mm load center, the CBD20 combines full-electric travel and lifting, stand-on operation, large-diameter wheels, a stable chassis, mechanical steering, and electromagnetic braking to provide an efficient solution for heavy pallet transportation.
Equipped with Ø300 × 100 mm driving wheels and load wheels, the machine provides a larger wheel footprint for improved mobility over suitable outdoor and uneven industrial surfaces.
2 Ton Load Capacity & 500 mm Load Center
The CBD20 rough terrain electric pallet truck has a rated load capacity of 2,000 kg with a standard 500 mm load center.
This 2 ton capacity makes the machine suitable for transporting a wide range of palletized materials, including:
Palletized goods
Raw materials
Finished products
Industrial components
Building materials
Machinery parts
Cartons and packaged goods
Production materials
Warehouse inventory
Outdoor stored materials
The actual allowable load depends on the load center, pallet dimensions, load distribution, ground conditions, and operating environment.
Operators should always use the machine within its rated capacity and follow the manufacturer's operating instructions.
Full Electric Travel and Lifting
The CBD20 uses a full-electric travel and lifting system.
The electric drive system eliminates the need for manual pushing, while the electric hydraulic lifting system makes pallet pickup and lowering easier and more efficient.
For applications involving frequent movement of heavy pallets, the full-electric configuration can help:
Reduce operator physical effort
Reduce repetitive manual handling
Improve pallet transportation efficiency
Reduce operator fatigue
Improve internal material flow
Increase daily handling productivity
Compared with a manual pallet jack, the CBD20 provides powered travel and fork lifting for more efficient handling of heavy loads.
Outdoor Rough Terrain Design
The CBD20 is designed for outdoor material handling applications where the machine may need to travel across suitable uneven or less-than-perfect industrial surfaces.
Its large wheel configuration provides an important advantage for outdoor transportation.
The machine is equipped with:
Driving Wheel: Ø300 × 100 mm
Load Wheel: Ø300 × 100 mm
The 300 mm diameter wheels provide a significantly larger contact profile than the small wheels commonly found on conventional indoor pallet trucks.
This configuration can improve the machine's ability to travel over suitable:
Outdoor concrete
Industrial yards
Factory compounds
Loading areas
Warehouse entrances
Paved outdoor areas
Outdoor storage areas
Uneven industrial floors
Material handling yards
The machine is intended for suitable outdoor and rough industrial surfaces, rather than extreme off-road terrain. Actual performance depends on ground conditions, obstacles, slope, load weight, and operating environment.
Large Ø300 mm Wheels for Outdoor Operation
One of the key characteristics of the CBD20 is its large-diameter wheel configuration.
Both the driving wheel and load wheel use:
Ø300 × 100 mm
Large wheels can help the pallet truck pass over minor ground irregularities more smoothly and provide better ground contact during outdoor transportation.
This makes the CBD20 particularly suitable for applications where pallets need to be transported between different working areas, such as:
Warehouse → Loading Area → Outdoor Yard → Production Area
The larger wheels also provide a more robust configuration for outdoor material handling compared with conventional warehouse pallet jacks equipped with smaller wheels.
Stable 1/1/2 Wheel Configuration
The CBD20 adopts a 1/1/2 wheel configuration, consisting of:
1 Driving Wheel
1 Balance Wheel
2 Load Wheels
The driving wheel and load wheels are both specified as Ø300 × 100 mm, while the balance wheel is Ø100 × 50 mm.
This multi-wheel configuration provides stable support for the machine and palletized load during transportation and turning operations.
The final stability and operating performance depend on:
Load weight
Load center
Ground conditions
Operating speed
Pallet dimensions
Turning conditions
Stand-On Operating Design
The CBD20 uses a stand-on operating configuration, allowing the operator to travel with the machine during transportation.
Instead of walking behind the pallet truck throughout the entire handling cycle, the operator can stand on the machine while traveling between different working areas.
This is particularly useful for operations requiring frequent pallet transportation over relatively longer internal distances.
Typical applications include:
Warehouse-to-loading-area transportation
Factory material transfer
Outdoor yard transportation
Logistics and distribution operations
Production material movement
Warehouse-to-workshop transportation
The combination of stand-on operation and full-electric travel improves efficiency for high-frequency material handling.
Fork Dimensions & Pallet Compatibility
The CBD20 is equipped with forks measuring:
35 × 100 × 1070 mm
The standard fork configuration includes:
Fork Length: 1070 mm
Fork Width: 100 mm
Fork Thickness: 35 mm
Outside Width Between Forks: 1540 mm
Inside Width Between Forks: 1300 mm
The relatively wide fork configuration provides a stable support structure for palletized loads.
Before purchasing, customers should confirm:
Pallet dimensions
Fork entry direction
Pallet opening dimensions
Load center
Load distribution
Required fork length
This helps ensure compatibility between the pallet and the rough terrain electric pallet truck.
Wide 1540 mm Working Width
The CBD20 has an overall width of 1540 mm.
The wide machine structure provides a stable base for the 2 ton rated load and large-wheel configuration.
The specified dimensions include:
Overall Length: 2285 mm
Overall Width: 1540 mm
Overall Vehicle Height: 1538 mm
Minimum Turning Radius: 1500 mm
The 1500 mm minimum turning radius provides practical maneuverability considering the machine's wide outdoor configuration.
Because the machine is wider than many conventional warehouse pallet trucks, customers should evaluate aisle width, pallet dimensions, turning space, and transportation routes before selecting the equipment.
Low Fork Height & Pallet Handling
The CBD20 provides a minimum fork lowered height of 50 mm and a maximum fork extended height of 200 mm.
| Fork Function | Height |
|---|---|
| Minimum Fork Lowered Height | 50 mm |
| Maximum Fork Extended Height | 200 mm |
The lifting system is primarily intended for pallet pickup, transportation, loading and unloading, rather than high-level pallet stacking.
The actual fork height requirement should be confirmed according to the pallet structure and application.
Mechanical Steering
The CBD20 uses a mechanical steering system.
Mechanical steering provides direct and straightforward control during daily material transportation.
This configuration is particularly practical for industrial applications where simple and reliable steering control is preferred.
The operator can maneuver the machine around:
Outdoor storage areas
Loading yards
Factory floors
Warehouse entrances
Logistics facilities
Production areas
The actual steering performance depends on ground conditions, load weight, pallet dimensions, operating speed, and turning space.
Electric Drive & Hydraulic Lifting System
The CBD20 is equipped with a:
2,000 W drive motor
and
3,000 W lift motor
The drive motor provides powered travel, while the lifting motor operates the hydraulic lifting system.
This full-electric configuration allows the operator to control both transportation and pallet lifting without manual pushing or manual fork lifting.
Travel, Lifting & Gradeability Performance
According to the technical specifications, the CBD20 provides the following operating performance:
| Function | Laden | Unladen |
|---|---|---|
| Travel Speed | 4 km/h | 5 km/h |
| Lift Speed | 15 mm/s | 22 mm/s |
| Lowering Speed | 18 mm/s | 12 mm/s |
| Gradeability | 6% | 10% |
The machine's 6% gradeability when loaded and 10% when unloaded provides practical performance for suitable industrial ramps and outdoor transportation routes.
Actual performance may vary according to:
Load weight
Ground surface
Slope
Battery condition
Tire condition
Operating speed
Outdoor environment
When transporting heavy loads on slopes or uneven ground, operators should reduce speed and follow the manufacturer's safety requirements.
Battery & Electrical Configuration
The CBD20 uses a 48V battery system.
Electrical Specifications
| Item | Specification |
|---|---|
| Battery Voltage | 48 V |
| Battery Capacity | Not specified |
| Charger | 48 V / 8 A |
| Drive Motor | 2,000 W |
| Lift Motor | 3,000 W |
| Controller | Jinshun JS |
| Brake | Electromagnetic |
| Steering | Mechanical |
The battery supplies electrical power to the travel and lifting systems.
Because the supplied technical specification does not provide a battery capacity in Ah, the battery capacity should be confirmed according to the actual configuration before ordering.
Actual operating time depends on:
Load weight
Travel distance
Working frequency
Lifting frequency
Ground conditions
Battery condition
Operating intensity
Outdoor environment
For long-duration outdoor applications, customers should confirm the required working hours and battery configuration with the supplier.
Electromagnetic Brake System
The CBD20 is equipped with an electromagnetic braking system.
The electromagnetic brake provides controlled braking during travel and stopping operations.
This is especially important when transporting heavy palletized goods in outdoor industrial environments where the machine may encounter different ground conditions and gradients.
The braking performance depends on load weight, travel speed, ground surface, and slope.
Stable Chassis for Outdoor Material Handling
The CBD20 is designed around a stable chassis structure supporting a 2,000 kg rated load and large-wheel configuration.
The combination of:
Large Ø300 × 100 mm driving wheel
Large Ø300 × 100 mm load wheels
1/1/2 wheel configuration
Wide 1540 mm overall structure
Stand-on operation
Mechanical steering
Electromagnetic braking
provides a practical configuration for heavy-duty outdoor pallet transportation.
The machine is especially suitable where materials need to be transferred between indoor and outdoor working areas.
Outdoor Material Handling Applications
The 2 Ton Full Electric Rough Terrain Stand-On Pallet Truck can be used in a wide range of suitable industrial environments.
Warehouse & Storage
Suitable for:
Pallet transportation
Warehouse material movement
Loading and unloading
Outdoor storage areas
Warehouse-to-yard transportation
Internal pallet transfer
Manufacturing
Suitable for moving:
Raw materials
Components
Production materials
Semi-finished products
Finished goods
between production areas, warehouses, and outdoor storage areas.
Logistics & Distribution
Suitable for:
Distribution centers
Logistics yards
Loading areas
Shipping areas
Outdoor transfer areas
Short and medium-distance pallet transportation
Construction Material Handling
The rough terrain configuration can be considered for transporting palletized:
Building materials
Construction components
Industrial materials
Machinery parts
Packaged materials
around suitable material handling areas.
Agricultural & Outdoor Facilities
Suitable applications may include:
Agricultural warehouses
Farm storage facilities
Outdoor material storage
Agricultural product transportation
Packaging areas
Distribution facilities
The actual suitability should be evaluated according to ground conditions and operating requirements.
Key Advantages
1. 2 Ton Load Capacity
Handles loads up to 2,000 kg under specified rated conditions.
2. 500 mm Load Center
Provides a standard reference for the rated load capacity.
3. Rough Terrain Configuration
Designed for suitable outdoor and uneven industrial surfaces.
4. Large Ø300 mm Wheels
The Ø300 × 100 mm driving and load wheels provide improved mobility over minor surface irregularities.
5. Full Electric Operation
Electric travel and lifting reduce operator physical effort and repetitive manual handling.
6. Stand-On Design
Allows the operator to travel with the machine during frequent pallet transportation.
7. 1540 mm Wide Structure
Provides a stable machine configuration for heavy pallet handling.
8. Mechanical Steering
Provides straightforward and direct steering control.
9. Electromagnetic Brake
Provides controlled braking during travel and stopping.
10. 48V Electrical System
Provides power for the electric travel and lifting systems.
11. Indoor & Outdoor Flexibility
Suitable for material transfer between warehouses, factories, loading areas, yards, and other industrial locations.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CBD20 |
| Product Type | Full Electric Rough Terrain Stand-On Pallet Truck |
| Operating Type | Stand-On |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Wheel Type | PU |
| Wheel Quantity | 1 / 1 / 2 |
| Driving Wheel Size | Ø300 × 100 mm |
| Balance Wheel Size | Ø100 × 50 mm |
| Load Wheel Size | Ø300 × 100 mm |
| Minimum Fork Lowered Height | 50 mm |
| Maximum Fork Extended Height | 200 mm |
| Outside Width Between Forks | 1540 mm |
| Inside Width Between Forks | 1300 mm |
| Fork Size | 35 × 100 × 1070 mm |
| Overall Length | 2285 mm |
| Overall Width | 1540 mm |
| Overall Vehicle Height | 1538 mm |
| Minimum Turning Radius | 1500 mm |
| Travel Speed, Laden / Unladen | 4 / 5 km/h |
| Lift Speed, Laden / Unladen | 15 / 22 mm/s |
| Lowering Speed, Laden / Unladen | 18 / 12 mm/s |
| Gradeability, Laden / Unladen | 6 / 10% |
| Drive Motor / Lift Motor | 2000 / 3000 W |
| Battery Voltage | 48 V |
| Battery Capacity | 20A |
| Charger Specification | 48 V / 8 A |
| Controller | Jinshun JS |
| Brake | Electromagnetic Brake |
| Steering Type | Mechanical Steering |
Note: The specifications above are based on the technical parameter table you provided. Items marked Not specified should be confirmed according to the actual machine configuration. I have not added an estimated battery capacity, battery weight, service weight, or wheelbase.
FAQ
1. What is a 2 ton rough terrain electric pallet truck?
A 2 ton rough terrain electric pallet truck is a powered pallet transportation machine designed for heavy-load handling on suitable outdoor and uneven industrial surfaces.
The CBD20 combines full-electric travel and lifting with large wheels and a stand-on operating configuration.
2. Can the CBD20 be used outdoors?
Yes. The CBD20 is designed for suitable outdoor material handling applications such as industrial yards, loading areas, outdoor storage areas, factory compounds, and warehouse entrances.
Its Ø300 × 100 mm driving and load wheels provide improved mobility compared with conventional small-wheel pallet trucks.
3. Is the CBD20 a full electric pallet jack?
Yes. The CBD20 uses electric travel and electric lifting.
It can also be marketed as a 2 ton electric pallet jack or rough terrain electric pallet jack when targeting customers who use the pallet jack terminology.
4. What is the load capacity?
The rated load capacity is 2,000 kg with a 500 mm load center.
5. What size are the wheels?
The driving wheel and load wheels are both:
Ø300 × 100 mm
The balance wheel is:
Ø100 × 50 mm
The large 300 mm wheels are one of the important characteristics of this outdoor configuration.
6. What is the wheel configuration?
The CBD20 uses a 1/1/2 wheel configuration:
1 driving wheel
1 balance wheel
2 load wheels
7. What is the fork size?
The standard fork size is:
35 × 100 × 1070 mm
The outside width between the forks is 1540 mm, while the inside width is 1300 mm.
8. What is the battery voltage?
The standard electrical specification is 48V.
The supplied technical data does not specify the battery capacity in Ah, so the actual battery capacity should be confirmed according to the machine configuration.
9. What type of steering does the CBD20 use?
The CBD20 uses mechanical steering.
10. What type of brake does the machine use?
The CBD20 uses an electromagnetic brake.
11. Can the CBD20 operate on gravel or very rough terrain?
The CBD20 is designed for suitable outdoor and uneven industrial surfaces, but it should not automatically be considered an extreme off-road vehicle.
For gravel, mud, deep potholes, steep slopes, construction sites, or heavily uneven terrain, customers should provide details about the actual ground conditions so the appropriate configuration can be evaluated.
12. Can the CBD20 replace a conventional pallet jack?
For applications involving heavy pallet transportation, the CBD20 can replace manual pallet jacks and provide powered travel and lifting.
However, the appropriate choice depends on pallet dimensions, ground conditions, transportation distance, load weight, and working frequency.
Why Choose the CBD20 2 Ton Rough Terrain Electric Pallet Truck?
The CBD20 2 Ton Outdoor Full Electric Rough Terrain Stand-On Pallet Truck is designed for customers who need more than a conventional indoor pallet jack.
Its combination of 2,000 kg load capacity, 500 mm load center, full-electric travel and lifting, stand-on operation, Ø300 × 100 mm large wheels, 1/1/2 wheel configuration, 1540 mm overall width, mechanical steering, and electromagnetic braking provides a robust solution for suitable outdoor pallet transportation.
For businesses moving heavy pallets between warehouses, factories, loading areas, outdoor yards, storage facilities, and production areas, the CBD20 provides a practical electric material handling solution.
Request a Quote
Looking for a 2 Ton Rough Terrain Electric Pallet Truck or Outdoor Electric Pallet Jack for your operation?
Please provide:
Required load capacity
Pallet dimensions
Load center
Outdoor ground conditions
Transportation distance
Daily working hours
Required battery configuration
Application environment
Our team can recommend a suitable rough terrain electric pallet truck configuration according to your material handling requirements.
Contact us today to get a suitable 2 ton outdoor electric pallet truck solution for your warehouse, factory, logistics yard, or industrial application.
