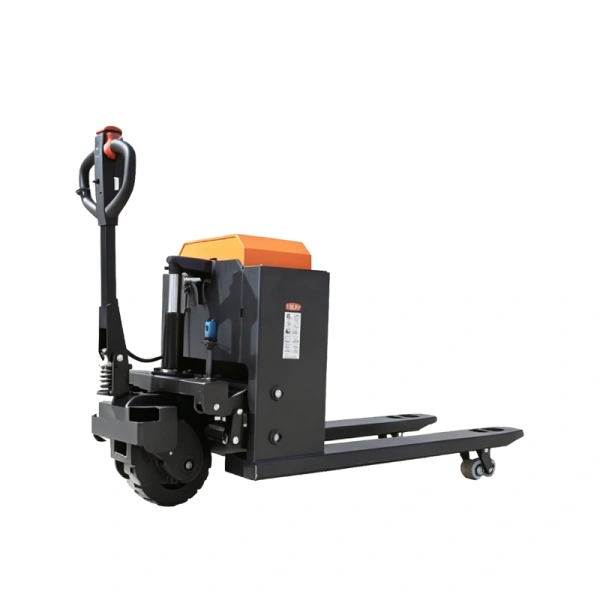

5 Ton Fully Electric Rough Terrain Pallet Truck
The 5 Ton Fully Electric Rough Terrain Pallet Truck is designed for heavy-duty material handling where conventional electric pallet trucks may not provide sufficient load capacity or ground clearance.
With a rated load capacity of 5,000 kg, a 600 mm load center, reinforced chassis and large solid rubber drive wheels, this electric pallet truck is suitable for demanding material transportation in factories, warehouses, logistics yards, construction sites, manufacturing facilities and outdoor industrial environments.
Unlike standard warehouse pallet trucks, the rough terrain configuration provides stronger ground adaptability and higher clearance, allowing the truck to operate more confidently on uneven, complicated and partially rough surfaces.
Heavy-Duty 5,000 kg Load Capacity
With a rated capacity of 5,000 kg, the CBD5T is designed for transporting extremely heavy palletized loads.
The 600 mm load center provides a clear reference for evaluating the truck's rated load capacity and load stability.
The heavy-duty fork structure features:
Rated load capacity: 5,000 kg
Load center: 600 mm
Fork length: 1,150 mm
Fork width: 160 mm
Fork thickness: 60 mm
Maximum fork lifting height: 200 mm
Minimum fork ground clearance: 85 mm
The large fork dimensions provide the structural strength required for heavy-duty pallet handling.
48V Permanent-Magnet Brushless Drive Motor
The CBD5T uses a 48V permanent-magnet brushless, maintenance-free drive motor.
The motor is designed to provide high torque for heavy-load transportation while reducing routine maintenance requirements.
The 1,500 W drive motor works together with the heavy-duty drivetrain to provide stable traction and reliable operation.
Key advantages include:
48V electrical system
Permanent-magnet brushless motor
Maintenance-free design
High torque output
Stable driving performance
Suitable for heavy-load transportation
The electric drive system also eliminates the need for fuel-powered propulsion, making the truck suitable for facilities where electric material handling equipment is preferred.
Heavy-Duty Rough Terrain Drive System
One of the main characteristics of the CBD5T is its reinforced drive system.
The truck uses a dual-rocker-arm structure and integrated cast gearbox, creating a robust drivetrain designed for high-load operation.
The drive system incorporates a fully sealed, high-speed-ratio, large-module and high-torque gear transmission.
This design helps improve:
Torque transmission
Gear durability
Driving stability
Mechanical reliability
Resistance to demanding operating conditions
The sealed transmission structure also helps protect the internal drivetrain components when operating in more challenging outdoor environments.
300 × 100 mm Heavy-Duty Solid Rubber Drive Wheel
The CBD5T is equipped with a large Φ300 × 100 mm solid rubber drive wheel.
Compared with smaller wheels commonly used on standard indoor pallet trucks, the larger drive wheel provides better ground contact and improved ability to pass over uneven surfaces.
The solid rubber construction also eliminates the risk of pneumatic tire punctures.
Drive wheel specification:
Φ300 × 100 mm heavy-duty solid rubber
This makes the CBD5T particularly suitable for outdoor yards, industrial facilities and other applications where the ground may not be perfectly smooth.
High Ground Clearance for Complex Terrain
The truck is designed with strong ground adaptability.
Its chassis provides approximately 100 mm ground clearance, helping the truck pass over uneven ground and minor obstacles more effectively.
The specified fork minimum ground clearance is 85 mm.
This combination of high chassis clearance and large drive wheels makes the CBD5T more suitable for applications where ordinary low-clearance pallet trucks may have difficulty operating.
Typical environments include:
Outdoor industrial yards
Manufacturing plants
Construction material handling
Logistics yards
Heavy machinery facilities
Large warehouses
Factory loading areas
Uneven industrial floors
Powerful Lifting System
The CBD5T uses a 3,000 W lifting motor for electric fork lifting.
The maximum fork lifting height is 200 mm, which is primarily designed for pallet pickup, transportation and positioning rather than high-level stacking.
The lifting speed is:
Full load: 2.2 cm/s
No load: 3.3 cm/s
The electric lifting system reduces manual effort and allows operators to raise the forks efficiently during pallet handling.
48V Lead-Acid or Lithium Battery Options
The CBD5T supports a 48V battery system, with lead-acid and lithium battery options available.
Customers can select the battery configuration according to their working environment, operating hours and charging requirements.
Lead-Acid Battery
Suitable for users who prioritize:
Proven battery technology
Lower initial equipment cost
Heavy-duty applications
Traditional industrial operation
Lithium Battery
Suitable for users who prioritize:
Convenient charging
Higher energy efficiency
Frequent operation
Reduced battery maintenance
Longer operational flexibility
The battery configuration can therefore be selected according to the specific requirements of the application.
7. Product Specifications
| Specification | CBD5T |
|---|---|
| Product Type | 5 Ton Fully Electric Rough Terrain Pallet Truck |
| Model | CBD5T |
| Rated Load Capacity | 5,000 kg |
| Load Center | 600 mm |
| Operation Type | Walkie |
| Wheel Type | Front Rubber, Rear UP / Nylon |
| Drive Wheel Size | Φ300 × 100 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,700 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Full Load / No Load | 7 / 16% |
| Travel Speed, Full Load / No Load | 4 / 4.5 km/h |
| Battery | 48V, Lead-Acid / Lithium Optional |
| Drive Motor | 1,500 W |
| Lift Motor | 3,000 W |
| Lifting Speed, Full Load / No Load | 2.2 / 3.3 cm/s |
| Machine Weight | 290 kg |
8. Application Areas
The 5 Ton Fully Electric Rough Terrain Pallet Truck is particularly suitable for heavy-duty applications where high load capacity and terrain adaptability are important.
Warehouses
Used for moving heavy pallets, machinery components, raw materials and finished products.
Manufacturing Facilities
Suitable for transporting heavy industrial components between production areas and storage zones.
Outdoor Yards
Large drive wheels and increased ground clearance make the truck suitable for material movement in industrial yards.
Construction Sites
The high load capacity and rough-terrain design can be used for transporting heavy construction materials and equipment components.
Logistics and Distribution
Suitable for loading, unloading and short-distance transportation of heavy palletized goods.
Heavy Industry
Ideal for applications involving steel components, machinery parts, large equipment and other heavy materials.
9. Safety and Operational Design
For a 5-ton electric pallet truck, stability and controlled operation are especially important.
The CBD5T combines a reinforced chassis, heavy-duty drive system and large solid rubber drive wheel to provide stable operation during heavy-load transportation.
The walkie operating configuration allows the operator to control the truck from the ground while maintaining direct visibility of the load and surrounding working area.
The large turning radius of 1,550 mm should also be considered when planning operating aisles and working spaces.
10. Why Choose the CBD5T?
5,000 kg Heavy-Duty Capacity
Designed for transporting loads up to 5 tons, making it suitable for applications beyond the capacity of conventional warehouse pallet trucks.
Rough Terrain Capability
Large solid rubber drive wheels and high ground clearance improve adaptability to uneven and complex operating surfaces.
High-Torque Electric Drive
The 48V permanent-magnet brushless motor provides strong torque while requiring minimal routine maintenance.
Reinforced Transmission
The integrated cast gearbox and large-module high-torque gear transmission are designed for demanding heavy-load applications.
Flexible Battery Configuration
Choose between lead-acid and lithium battery configurations according to your operating requirements.
Electric Lifting
The 3,000 W lifting motor provides powered fork lifting for efficient pallet handling.
11. 5 Ton Electric Pallet Truck vs Standard Electric Pallet Truck
The CBD5T is designed for applications requiring substantially greater load capacity and stronger terrain adaptability.
| Feature | CBD5T Rough Terrain Pallet Truck | Standard Electric Pallet Truck |
|---|---|---|
| Load Capacity | Up to 5,000 kg | Usually lower |
| Load Center | 600 mm | Typically shorter |
| Drive Wheel | Φ300 × 100 mm solid rubber | Smaller wheel |
| Ground Clearance | High | Generally lower |
| Terrain | Uneven / complex industrial surfaces | Mainly smooth floors |
| Drive Motor | 1,500 W | Usually lower power |
| Battery | 48V Lead-Acid / Lithium | Various |
| Main Application | Heavy-duty material handling | General warehouse handling |
For customers handling very heavy loads or operating on uneven industrial surfaces, the CBD5T provides a more suitable configuration than a conventional warehouse pallet truck.
12. Frequently Asked Questions
What is the load capacity of the CBD5T?
The CBD5T has a rated load capacity of 5,000 kg (5 tons) with a 600 mm load center.
Is the CBD5T fully electric?
Yes. The CBD5T uses electric drive and electric lifting, with a 48V drive system, 1,500 W drive motor and 3,000 W lifting motor.
Can this pallet truck be used outdoors?
Yes. The CBD5T is specifically designed for demanding environments. Its large Φ300 × 100 mm solid rubber drive wheel, high ground clearance and reinforced drivetrain improve its ability to operate on complex industrial surfaces.
However, actual terrain suitability depends on the specific site conditions.
What type of battery does the CBD5T use?
The truck uses a 48V battery system and can be configured with either lead-acid or lithium batteries.
How high can the forks lift?
The maximum fork lifting height is 200 mm.
The truck is primarily designed for pallet transportation, pickup and positioning rather than high-level pallet stacking.
What is the drive motor power?
The CBD5T uses a 1,500 W permanent-magnet brushless drive motor.
What is the lifting motor power?
The lifting system uses a 3,000 W electric lifting motor.
What is the maximum travel speed?
The maximum travel speed is:
4 km/h under full load
4.5 km/h without load
What is the minimum turning radius?
The minimum turning radius is 1,550 mm.
Customers should consider this dimension when planning operating aisles and turning areas.
What is the fork length?
The standard fork length is 1,150 mm, with a fork width of 160 mm and thickness of 60 mm.
Can the battery type be customized?
Yes. The standard configuration supports 48V lead-acid or lithium batteries. Battery configuration can be discussed according to the customer's operating requirements.
Is the CBD5T suitable for heavy industrial applications?
Yes. With its 5,000 kg load capacity, 600 mm load center, heavy-duty solid rubber drive wheel, high-torque drivetrain and electric power system, the CBD5T is designed for heavy-duty material handling in industrial environments.
13. Customization Options
Different customers may have different requirements for heavy-duty material handling equipment.
We can discuss customized configurations according to the application, including:
Battery type
Lead-acid or lithium battery configuration
Fork configuration
Fork dimensions
Wheel configuration
Operating environment
Special load-handling requirements
Branding and color
Export configuration
Please contact our sales team with your required load capacity, pallet dimensions, working surface and operating environment so we can recommend the appropriate configuration.
14. CTA
Need a 5 Ton Electric Pallet Truck for Heavy-Duty Applications?
If you are looking for a 5 ton electric pallet truck, 5000kg rough terrain pallet truck or heavy-duty electric pallet jack for outdoor material handling, the CBD5T provides a combination of high load capacity, high-torque electric drive, large solid rubber wheels and strong terrain adaptability.
Contact us today for:
Product quotation
Technical specifications
Battery options
Customized configuration
Shipping information
OEM/ODM requirements
Tell us your load capacity, pallet size, working environment and required quantity, and our team can recommend the right configuration for your application.
