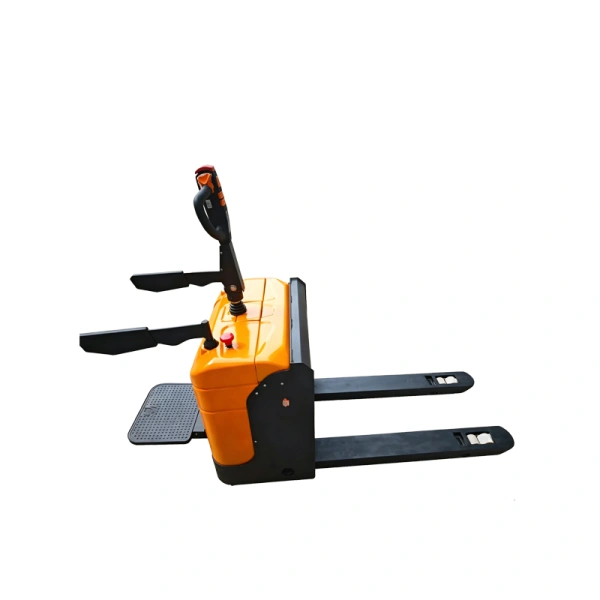

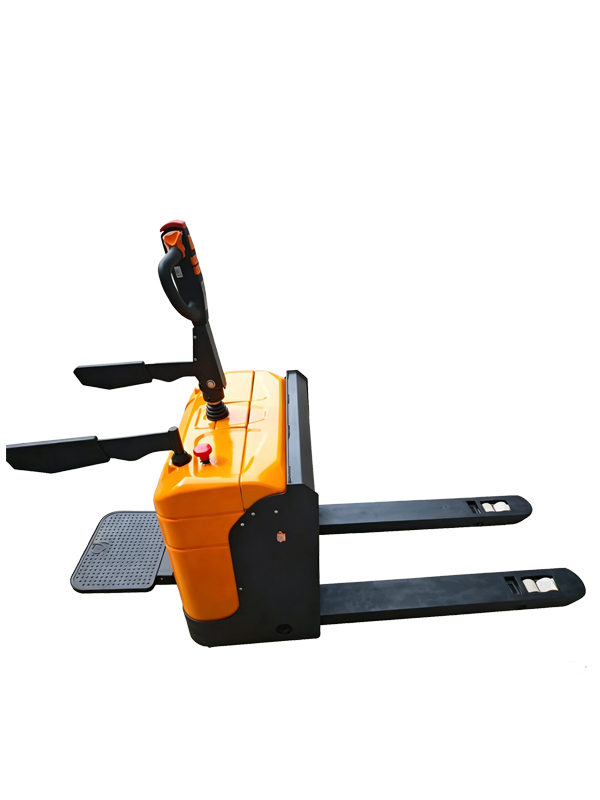

2 Ton Full Electric Stand-On Pallet Truck
The 2 Ton Full Electric Stand-On Pallet Truck CBD20 is a practical and efficient material handling solution designed for warehouses, factories, logistics centers, distribution facilities, and other industrial environments.
With a rated load capacity of 2,000 kg and a standard 500 mm load center, this pallet truck is designed for transporting palletized goods over short and medium distances.
The machine uses a full-electric travel and lifting system, reducing the physical effort required from operators while providing smooth and efficient pallet transportation.
The stand-on operating design allows the operator to travel with the machine, making it particularly suitable for applications requiring frequent movement between different loading, storage, production, and distribution areas.
2 Ton Load Capacity & 500 mm Load Center
The CBD20 electric pallet truck has a rated load capacity of 2,000 kg with a standard 500 mm load center.
The 2 ton capacity makes the pallet truck suitable for handling a wide range of palletized materials, including:
Palletized goods
Raw materials
Finished products
Industrial components
Cartons and packaged goods
Warehouse inventory
Production materials
The actual allowable load should be determined according to the load distribution, pallet dimensions, operating conditions, and equipment configuration.
For safe operation, the rated capacity and operating instructions of the selected machine should always be followed.
Full Electric Travel and Lifting
The CBD20 uses a full-electric operating system for both travel and fork lifting.
The electric drive system eliminates the need for manual pushing, while the electric hydraulic lifting system makes pallet lifting and lowering easier and more efficient.
This configuration is especially suitable for businesses that require frequent pallet transportation throughout the working day.
Compared with manual pallet trucks, the full-electric design can help:
Reduce operator physical effort
Improve transportation efficiency
Reduce repetitive manual handling
Improve working productivity
Make heavy-load transportation easier
Stand-On Operating Design
The stand-on configuration allows the operator to travel with the pallet truck instead of walking behind it during every transportation cycle.
This design is particularly useful for warehouses and logistics operations where pallets need to be transported repeatedly over longer internal travel distances.
The standing platform provides a practical operating position while allowing the operator to quickly move between different handling locations.
The combination of stand-on operation and full-electric travel helps improve transportation efficiency for high-frequency material handling applications.
Efficient Pallet Transportation
The CBD20 is primarily designed for horizontal pallet transportation rather than high-level pallet stacking.
With a 1,200 mm fork length, 685 mm outside fork width, and 365 mm inside fork width, the machine is suitable for handling common palletized loads.
Its compact overall structure and mechanical steering system allow the operator to maneuver the pallet truck in warehouses, production areas, storage zones, and logistics facilities.
Fork Dimensions & Pallet Compatibility
The pallet truck is equipped with forks measuring:
50 × 160 × 1200 mm
The fork configuration provides support for pallet transportation and material handling applications.
The main fork dimensions include:
Fork Length: 1200 mm
Fork Width: 160 mm
Fork Thickness: 50 mm
Outside Width Between Forks: 685 mm
Inside Width Between Forks: 365 mm
Before purchasing, customers should confirm the pallet dimensions and entry configuration to ensure compatibility with the selected machine.
Compact and Practical Dimensions
The CBD20 has an overall width of 850 mm, making it suitable for a variety of warehouse and industrial handling environments.
The technical drawing shows:
Overall Width: 850 mm
Overall Height: 1845 mm
Overall Length: 2276 / 1805 mm
Minimum Turning Radius: 1538 mm
The relatively compact design helps the operator maneuver the pallet truck efficiently around storage areas, production zones, and warehouse aisles.
Actual space requirements should be evaluated according to pallet size, load dimensions, aisle width, and operating conditions.
Stable Four-Wheel Configuration
The CBD20 uses a 1/1/4 wheel configuration designed to provide stable support during pallet transportation.
The wheel specifications shown in the technical data are:
Driving Wheel: Ø170 × 55 mm
Balance Wheel: Ø115 × 55 mm
Balance Wheel: Ø80 × 70 mm
The multi-wheel structure helps distribute the machine and load forces during transportation and turning operations.
The final wheel performance depends on floor conditions, load weight, operating speed, and working environment.
Mechanical Steering
The pallet truck is equipped with a mechanical steering system.
Mechanical steering provides a straightforward operating structure and allows the operator to control travel direction conveniently during daily material handling operations.
It is suitable for warehouses, factories, logistics facilities, and other industrial environments where reliable and economical operation is important.
Electric Drive & Hydraulic Lifting System
The CBD20 is equipped with an electric drive motor and lifting motor system.
The technical data shows:
Drive Motor / Lift Motor: 2000 / 3000 W
The electric drive provides efficient movement, while the hydraulic lifting system provides stable fork lifting and lowering performance.
The lifting height of the forks is designed primarily for pallet handling and transportation rather than high-level stacking.
Lifting Performance
The pallet truck provides electrically controlled fork lifting and lowering.
According to the technical specifications:
| Function | Loaded | Unloaded |
|---|---|---|
| Travel Speed | 4 km/h | 5 km/h |
| Lift Speed | 15 mm/s | 22 mm/s |
| Lowering Speed | 18 mm/s | 12 mm/s |
| Gradeability | 6% | 10% |
Actual operating performance may vary according to load weight, battery condition, floor conditions, and operating environment.
Battery & Power System
The CBD20 uses a 48V 100Ah battery system to provide power for daily pallet transportation operations.
Battery Specifications
| Item | Specification |
|---|---|
| Battery Voltage | 48 V |
| Battery Capacity | 100 Ah |
| Charger | 48 V / 8 A |
| Drive Motor | 2000 W |
| Lift Motor | 3000 W |
| Brake | Electric |
The battery system is designed to provide reliable power for routine warehouse and industrial material handling.
Actual working time depends on:
Load weight
Travel distance
Operating frequency
Lifting frequency
Floor conditions
Working environment
Battery condition
Operating intensity
For applications requiring longer operating periods, customers should discuss the required duty cycle and battery configuration before selecting the machine.
Electric Brake System
The CBD20 uses an electric braking system.
The electric brake helps control the pallet truck during travel and stopping operations.
Combined with the controlled electric travel system and mechanical steering, it provides a practical operating solution for daily warehouse material transportation.
Stable Chassis & Industrial Applications
The pallet truck is designed with a stable chassis structure for transporting heavy palletized goods.
It can be used on common industrial floor surfaces such as:
Warehouse floors
Factory floors
Logistics facilities
Distribution centers
Storage areas
Production workshops
The actual suitability of the equipment depends on the floor condition, load weight, operating environment, and application requirements.
Safety Features
Safety is an important consideration when transporting loads up to 2,000 kg.
The CBD20 incorporates several design features intended to support safe daily operation, including:
Controlled electric travel
Electric braking system
Mechanical steering
Stable wheel configuration
Controlled fork lifting and lowering
Suitable load center design
Operator-controlled travel and lifting functions
Stand-on operating configuration
Operators should always follow the manufacturer's operating instructions and use the equipment within its rated capacity.
Labor-Saving Material Handling
Manual pallet transportation can require considerable physical effort, especially when heavy pallets need to be moved repeatedly throughout the day.
The full-electric travel system of the CBD20 eliminates the need for manual pushing.
The electric lifting system also makes pallet pickup and lowering easier for the operator.
As a result, the machine can help businesses:
Reduce manual handling
Reduce operator fatigue
Improve pallet transportation efficiency
Increase warehouse productivity
Reduce repetitive physical work
Improve internal material flow
Applications
The 2 Ton Full Electric Stand-On Pallet Truck is suitable for a wide range of material transportation applications.
Warehouse & Storage
Suitable for:
Pallet transportation
Warehouse material movement
Loading and unloading
Internal pallet transfer
Storage area transportation
Manufacturing
Suitable for moving:
Raw materials
Components
Production materials
Semi-finished products
Finished goods
between production and storage areas.
Logistics & Distribution
Suitable for:
Distribution centers
Logistics warehouses
Loading areas
Shipping areas
Short and medium-distance pallet transportation
Retail & Wholesale
Suitable for:
Wholesale warehouses
Stockrooms
Distribution facilities
Back-of-house material handling
Key Advantages
1. 2 Ton Load Capacity
Handles loads up to 2,000 kg under the specified rated conditions.
2. 500 mm Load Center
Provides a standard reference for rated load handling.
3. Full Electric Operation
Electric travel and lifting reduce physical effort and improve handling efficiency.
4. Stand-On Design
Allows the operator to travel with the machine for frequent pallet transportation.
5. 1200 mm Forks
Provides a practical fork length for common pallet handling applications.
6. 48V 100Ah Battery
Provides reliable electrical power for daily warehouse operations.
7. Mechanical Steering
Provides straightforward and reliable steering control.
8. Electric Brake
Provides controlled braking during material transportation.
9. Compact Structure
The 850 mm overall width makes the machine suitable for a variety of industrial handling environments.
10. Multiple Industrial Applications
Suitable for warehouses, factories, logistics centers, distribution facilities, and storage areas.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CBD20 |
| Product Type | Full Electric Stand-On Pallet Truck |
| Operation Type | Stand-On |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Wheel Type | UP |
| Wheel Quantity | 1 / 1 / 4 |
| Driving Wheel Size | Ø170 × 55 mm |
| Balance Wheel Size | Ø115 × 55 mm |
| Balance Wheel Size | Ø80 × 70 mm |
| Minimum Fork Lowered Height | 85 mm |
| Maximum Fork Extended Height | 200 mm |
| Outside Width Between Forks | 685 mm |
| Inside Width Between Forks | 365 mm |
| Fork Size | 50 × 160 × 1200 mm |
| Overall Length | 2276 / 1805 mm |
| Overall Width | 850 mm |
| Overall Vehicle Height | 1845 mm |
| Minimum Turning Radius | 1538 mm |
| Travel Speed, Loaded / Unloaded | 4 / 5 km/h |
| Lift Speed, Loaded / Unloaded | 15 / 22 mm/s |
| Lowering Speed, Loaded / Unloaded | 18 / 12 mm/s |
| Gradeability, Loaded / Unloaded | 6 / 10 % |
| Drive Motor / Lift Motor | 2000 / 3000 W |
| Battery Voltage / Capacity | 48 V / 100 Ah |
| Charger Specification | 48 V / 8 A |
| Controller | [JINGANG JS] |
| Brake | Electric |
| Steering Type | Mechanical Steering |
FAQ
1. What is the load capacity of the CBD20 electric pallet truck?
The CBD20 has a rated load capacity of 2,000 kg with a standard 500 mm load center.
2. Is the CBD20 a fully electric pallet truck?
Yes. The CBD20 uses electric travel and electric lifting, eliminating the need for manual pushing and manual fork lifting.
3. What is the difference between a stand-on pallet truck and a walkie pallet truck?
A stand-on pallet truck allows the operator to travel with the machine on a standing platform, making it suitable for frequent and relatively longer internal transportation.
A walkie pallet truck is controlled while the operator walks behind or alongside the machine and is generally suitable for applications where travel distances are shorter or maneuverability is prioritized.
4. What is the battery specification?
The standard battery specification shown for the CBD20 is 48V 100Ah, with a 48V / 8A charger.
5. What is the fork length?
The standard fork size is 50 × 160 × 1200 mm, with a fork length of 1200 mm.
6. What is the load center?
The standard load center is 500 mm.
7. What industries can use this electric pallet truck?
The CBD20 is suitable for warehouses, manufacturing facilities, logistics centers, distribution centers, storage areas, retail warehouses, and other industrial material handling applications.
8. Can the CBD20 be customized?
Configuration requirements can be discussed according to the customer's application, pallet dimensions, working environment, and operating requirements.
Why Choose the CBD20 2 Ton Electric Pallet Truck?
The CBD20 2 Ton Full Electric Stand-On Pallet Truck combines a 2,000 kg load capacity, full-electric travel and lifting, stand-on operation, mechanical steering, electric braking, and a 48V 100Ah battery system.
Its stand-on design makes it particularly suitable for applications requiring frequent pallet transportation, while the full-electric drive system reduces manual handling effort.
With its 500 mm load center, 1200 mm forks, 850 mm overall width, and 1538 mm minimum turning radius, the CBD20 provides a practical solution for warehouse and industrial pallet transportation.
For companies looking to improve internal material flow while reducing manual handling, the CBD20 offers an efficient and economical electric pallet truck solution.
Request a Quote
Looking for a 2 Ton Full Electric Stand-On Pallet Truck for your warehouse, factory, or logistics operation?
Contact us for:
Technical specifications
Battery options
Charger configuration
Fork dimensions
Application recommendations
Customization options
Pricing
Send us your required load capacity, pallet size, transportation distance, working hours, floor conditions, and application environment, and our team can recommend the appropriate pallet truck configuration for your operation.
Contact us today to get the right 2 ton electric pallet truck for your material handling needs.
