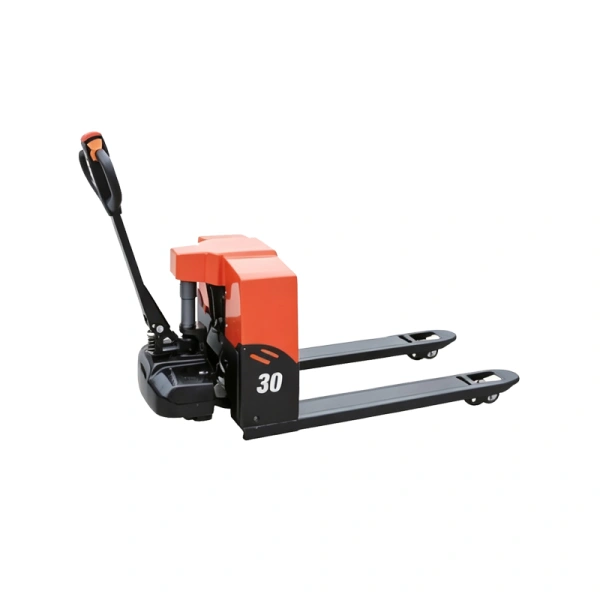

CBD3T Bull Series 3 Ton Fully Electric Pallet Truck
The CBD3T Bull Series 3 Ton Fully Electric Pallet Truck is a heavy-duty electric pallet truck developed for customers who require high load capacity, efficient electric operation and a lightweight, easy-to-maintain structure.
As a member of the Bull Series, the CBD3T features a distinctive modular integrated design, streamlined impact-resistant housing and optimized internal structure.
With a rated load capacity of 3,000 kg and a 500 mm load center, the CBD3T is designed for transporting heavy palletized goods, raw materials, machinery components and other industrial products.
It is suitable for:
Warehouses
Manufacturing plants
Logistics centers
Distribution centers
Industrial facilities
Factory workshops
Material storage areas
Bull Series Design — Built for Heavy-Duty Handling
The Bull Series is designed around a simple concept: strong load capacity combined with a lightweight and service-friendly structure.
The CBD3T Bull Series uses a modular body architecture that integrates major components into a compact structure.
Compared with conventional heavy-duty pallet trucks, the design focuses on:
High load capacity
Lightweight construction
Easy installation
Convenient maintenance
Faster component replacement
Reduced service downtime
Stronger overall body structure
The Bull Series name also provides a clear product-family distinction for customers looking for this specific design.
Modular Integrated Body
The CBD3T Bull Series features a modular integrated body design.
The modular structure makes installation and maintenance more convenient, helping technicians access and replace components more efficiently.
The design can help:
Simplify assembly
Reduce maintenance time
Speed up component replacement
Improve service accessibility
Reduce equipment downtime
Simplify troubleshooting
This makes the CBD3T particularly suitable for customers operating electric pallet trucks on a regular or continuous basis.
Streamlined Impact-Resistant Housing
The Bull Series uses a streamlined body design with an impact-resistant outer housing.
The housing material is designed to provide a combination of impact resistance, structural strength and lightweight construction.
This optimized body structure helps reduce unnecessary equipment weight while protecting internal components.
The result is a machine weighing approximately 170 kg despite its 3-ton rated load capacity.
Lightweight 170 kg Construction
One of the distinctive features of the CBD3T Bull Series is its relatively low machine weight.
The total machine weight is approximately:
170 kg
This lightweight structure is achieved through the modular integrated body, streamlined housing and optimized structural design.
The reduced machine weight can make equipment transportation, installation and maintenance more convenient.
For distributors and fleet operators, the lightweight design can also simplify equipment handling during delivery and servicing.
3,000 kg Rated Load Capacity
The CBD3T Bull Series is designed to handle loads up to:
3,000 kg
The rated capacity is based on a:
500 mm load center
This makes the CBD3T suitable for moving heavy palletized materials that exceed the capacity of common 1.5-ton or 2-ton electric pallet trucks.
Load Specifications
Rated load capacity: 3,000 kg
Load center: 500 mm
Fork length: 1,150 mm
Fork width: 160 mm
Fork thickness: 60 mm
Maximum fork lifting height: 200 mm
Minimum fork ground clearance: 85 mm
48V Fully Electric Power System
The CBD3T Bull Series uses a 48V fully electric power system.
Both travel and lifting operations are electrically powered, reducing manual effort and improving operating efficiency.
The drive system uses a:
1,500W drive motor
while fork lifting is powered by a:
2,200W lifting motor
Drive Performance
| Item | Specification |
|---|---|
| Battery Voltage | 48V |
| Drive Motor | 1,500W |
| Lift Motor | 2,200W |
| Travel Speed, Full Load | 4 km/h |
| Travel Speed, No Load | 4.5 km/h |
| Gradeability, Full Load | 7% |
| Gradeability, No Load | 16% |
Large-Capacity Battery
The CBD3T uses a 48V battery system and supports both:
Lead-Acid Battery / Lithium Battery
The large-capacity battery configuration is designed to support extended operating periods and continuous material handling requirements.
Lead-Acid Battery
Suitable for customers who prioritize:
Cost-effective equipment configuration
Traditional battery technology
Heavy-duty industrial applications
Long working cycles
Lithium Battery
Suitable for customers who prioritize:
Flexible charging
Frequent operation
Lower routine battery maintenance
Convenient energy management
Continuous daily operation
The battery configuration can be selected according to the customer's application requirements.
2,200W Electric Lifting System
The Bull Series uses a 2,200W lifting motor to power the fork lifting system.
The forks can lift to a maximum height of:
200 mm
This configuration is designed primarily for:
Pallet pickup
Pallet transportation
Pallet positioning
Loading and unloading
Short-distance material movement
The lifting speed is:
2.2 cm/s with full load
and:
3.3 cm/s without load
Down-Lifting Structure
The CBD3T Bull Series adopts a down-lifting structural design.
This configuration gives the machine a cleaner external appearance while making the internal structure more convenient for installation and maintenance.
The design helps:
Simplify installation
Improve service accessibility
Reduce maintenance complexity
Improve component replacement efficiency
Create a cleaner machine appearance
Precision-Honed Hydraulic Cylinder
The hydraulic system incorporates imported seals, while the cylinder body is precision-honed.
This combination is designed to improve hydraulic system stability and sealing performance.
The main advantages include:
Stable lifting operation
Improved sealing performance
Reduced leakage risk
Lower potential failure rate
Longer hydraulic component service life
Φ170 × 55 mm Drive Wheels
The CBD3T Bull Series is equipped with:
Φ170 × 55 mm drive wheels
The wheel type is:
UP / Nylon
The drive wheel configuration provides a compact solution for industrial material handling applications.
The rear load wheels are:
Φ80 × 70 mm
The wheel configuration is designed to balance load support, maneuverability and compact equipment dimensions.
Compact and Maneuverable Design
The CBD3T has an overall length of:
1,700 mm
and an overall width of:
685 mm
The minimum turning radius is:
1,550 mm
Overall Dimensions
Overall length: 1,700 mm
Overall width: 685 mm
Overall height with handle: 1,240 mm
Overall height without handle: 760 mm
Minimum turning radius: 1,550 mm
This configuration allows the Bull Series to operate in suitable warehouse and industrial working areas while maintaining a 3-ton load capacity.
Fork Configuration
The CBD3T Bull Series uses heavy-duty forks designed for 3-ton material handling.
Fork Specifications
| Fork Item | Specification |
|---|---|
| Fork Length | 1,150 mm |
| Fork Width | 160 mm |
| Fork Thickness | 60 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Maximum Lift Height | 200 mm |
| Minimum Ground Clearance | 85 mm |
The available fork spacing configurations provide greater flexibility for different pallet sizes and load configurations.
Product Specifications
| Specification | CBD3T Bull Series |
|---|---|
| Product Type | Bull Series 3 Ton Fully Electric Pallet Truck |
| Model | CBD3T |
| Product Version | Small-Wheel Type |
| Rated Load Capacity | 3,000 kg |
| Load Center | 500 mm |
| Operation Type | Walkie |
| Wheel Type | UP / Nylon |
| Drive Wheel Size | Φ170 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,700 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Full Load / No Load | 7 / 16% |
| Travel Speed, Full Load / No Load | 4 / 4.5 km/h |
| Battery | 48V Lead-Acid / Lithium Optional |
| Drive Motor Power | 1,500W |
| Lift Motor Power | 2,200W |
| Lifting Speed, Full Load / No Load | 2.2 / 3.3 cm/s |
| Machine Weight | 170 kg |
Application Areas
Warehouses
The CBD3T Bull Series can be used for moving heavy palletized products, raw materials and finished goods.
Manufacturing Plants
Suitable for transporting heavy production materials and machinery components between different working areas.
Logistics Centers
The fully electric drive system helps improve efficiency during repeated pallet transportation.
Distribution Centers
The 3-ton capacity makes the CBD3T suitable for heavier palletized goods that require powered transportation.
Industrial Facilities
The Bull Series can be used for a wide range of heavy-duty horizontal material handling applications.
Why Choose CBD3T Bull Series?
3 Ton Heavy-Duty Capacity
Handles loads up to 3,000 kg with a 500 mm load center.
Bull Series Modular Design
A distinctive modular integrated structure makes the CBD3T easy to install, service and maintain.
Lightweight 170 kg Body
Optimized body construction reduces equipment weight while maintaining a heavy-duty configuration.
48V Fully Electric System
Electric travel and lifting provide convenient operation without manual driving or pumping.
1,500W Drive Motor
Provides electric driving power for heavy-duty pallet transportation.
2,200W Lift Motor
Provides powered fork lifting up to 200 mm.
Flexible Battery Options
Both lead-acid and lithium batteries are available.
Easy Maintenance
The modular body, down-lifting structure and precision-honed hydraulic cylinder simplify routine maintenance and component replacement.
CBD3T Bull Series vs Standard Electric Pallet Truck
| Feature | CBD3T Bull Series | Standard Electric Pallet Truck |
|---|---|---|
| Load Capacity | 3,000 kg | Usually lower |
| Load Center | 500 mm | Usually shorter |
| Drive System | Fully Electric | Electric / Various |
| Battery | 48V Lead-Acid / Lithium | Various |
| Drive Motor | 1,500W | Varies |
| Lift Motor | 2,200W | Varies |
| Machine Weight | 170 kg | Varies |
| Body Design | Modular Integrated | Conventional |
| Maintenance | Modular Service-Friendly Design | Varies |
| Main Application | Heavy-Duty Material Handling | General Material Handling |
Frequently Asked Questions
What does “Bull Series” mean?
Bull Series is the English product-family name used for the “牛魔款” CBD3T. It distinguishes this model from other conventional electric pallet truck configurations.
The Bull Series focuses on heavy-duty capacity, lightweight construction, modular design and easy maintenance.
What is the load capacity of the CBD3T Bull Series?
The CBD3T has a rated load capacity of 3,000 kg, with a 500 mm load center.
Is the CBD3T fully electric?
Yes. The CBD3T is a fully electric pallet truck. Both travel and lifting are electrically powered.
What battery does the Bull Series use?
The CBD3T uses a 48V battery system. Customers can choose between lead-acid and lithium battery configurations.
What is the drive motor power?
The drive motor power is 1,500W.
What is the lifting motor power?
The lifting motor power is 2,200W.
How high can the forks lift?
The maximum fork lifting height is 200 mm.
The truck is designed primarily for pallet transportation and positioning rather than high-level stacking.
What is the machine weight?
The CBD3T weighs approximately 170 kg.
Its lightweight construction is one of the key characteristics of the Bull Series.
Why is the CBD3T called a Bull Series pallet truck?
The Bull Series name is used to communicate the model's heavy-duty positioning and distinguish it from standard electric pallet trucks.
It is particularly suitable for customers looking for a combination of strong load capacity and lightweight modular construction.
Is the CBD3T suitable for outdoor rough terrain?
The CBD3T is a small-wheel electric pallet truck, mainly intended for warehouses, factories, logistics centers and industrial environments with relatively suitable ground conditions.
For significantly uneven outdoor terrain, the CBD5T rough terrain model is the more suitable configuration.
What is the turning radius?
The minimum turning radius is 1,550 mm.
What is the fork length?
The standard fork length is 1,150 mm, with a fork width of 160 mm and thickness of 60 mm.
Can the fork dimensions be customized?
Fork configurations can be discussed according to pallet dimensions and application requirements. Customers should provide pallet length, pallet width and load information when requesting customization.
Customization Options
The CBD3T Bull Series can be discussed with different configurations according to customer requirements, including:
Lead-acid battery
Lithium battery
Battery capacity
Fork dimensions
Fork spacing
Wheel configuration
Charger configuration
Product color
Customer logo
OEM requirements
Export configuration
For customized projects, please provide the load weight, pallet dimensions, operating environment, working hours and required quantity.
CTA
Looking for a 3 Ton Heavy-Duty Electric Pallet Truck?
The CBD3T Bull Series 3 Ton Fully Electric Pallet Truck combines a 3,000 kg load capacity, 500 mm load center, 48V electric system, 1,500W drive motor, 2,200W lifting motor and 170 kg lightweight modular body.
If you need a 3 ton electric pallet truck, 3000kg electric pallet jack or heavy-duty walkie pallet truck, the CBD3T Bull Series provides a practical solution for industrial material handling.
Contact us today for:
Product quotation
Technical specifications
Battery options
Fork configuration
Customized solutions
OEM/ODM service
Shipping information
Send us your pallet size, load weight, working environment and required quantity, and our team will recommend the right CBD3T Bull Series configuration for your application.
