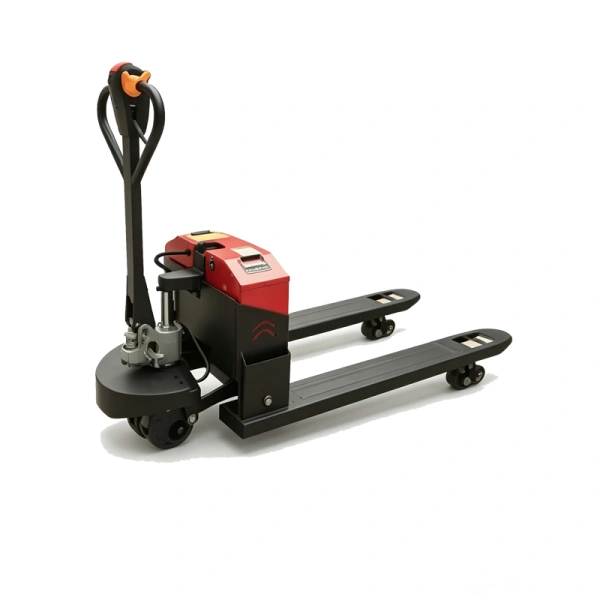

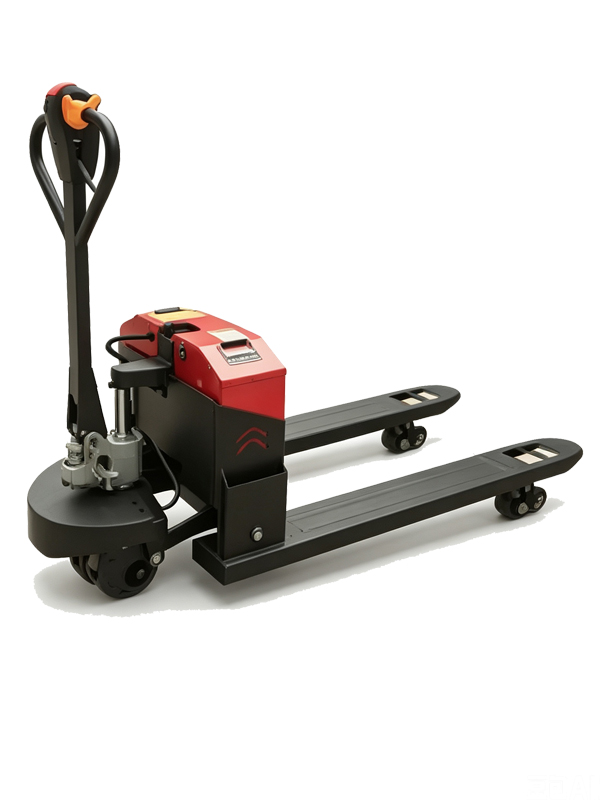

3 Ton Economic Small Wheel Semi Electric Pallet Truck
The 3 Ton Economic Small Wheel Semi Electric Pallet Truck is a cost-effective material handling solution designed for customers who require high load capacity and electric traveling but do not need a fully electric lifting system.
The pallet truck uses electric drive for traveling and manual lifting for the forks, reducing the complexity of the machine while maintaining efficient transportation performance.
With a 3,000 kg rated load capacity, compact small-wheel configuration and economical design, this model is suitable for daily pallet transportation in warehouses, factories, workshops, logistics centers and loading areas.
Compared with larger-wheel configurations designed for rough or uneven terrain, the small-wheel version focuses more on economical operation, compact dimensions and efficient material handling on relatively flat surfaces.
Economic Design for Cost-Effective Material Handling
The main advantage of this model is its economic configuration.
By combining electric travel with manual fork lifting, the pallet truck provides powered movement while avoiding the additional complexity of an electric lifting system.
This makes it suitable for businesses looking for an economical solution for heavy pallet transportation.
Economic Design Advantages
3,000 kg heavy-load capacity
Electric traveling
Manual fork lifting
Simple mechanical structure
Small-wheel configuration
Lower equipment complexity
Cost-effective operation
Suitable for regular pallet transportation
The economic design makes the truck particularly suitable for customers who need to move heavy loads frequently but do not require electric fork lifting.
48V High-Torque Electric Drive System
The pallet truck is equipped with a 48V permanent-magnet brushless maintenance-free drive motor with a power rating of 1,200 W.
The motor provides strong torque for heavy-load transportation and helps maintain stable traveling performance during daily material handling operations.
The permanent-magnet brushless design reduces maintenance requirements and provides a reliable drive solution for long-term use.
Drive System Features
48V electric drive system
1,200 W drive motor
Permanent-magnet brushless motor
Maintenance-free design
High torque output
Electric traveling
Suitable for heavy-load transportation
Small Wheel Design
The CBD3T adopts a Φ175 × 95 mm drive wheel with UP / nylon wheels at the front and rear.
Compared with large-wheel rough-terrain configurations, the small-wheel design is intended primarily for relatively flat floors and conventional material handling environments.
The compact wheel configuration helps maintain a simple and economical overall structure while providing sufficient traveling performance for warehouses, workshops and logistics facilities.
Small Wheel Features
Φ175 × 95 mm drive wheel
Front and rear UP / nylon wheels
Compact wheel configuration
Economical structure
Suitable for flat working surfaces
Easy to operate in conventional material handling environments
Patented Sealed Gear Transmission
The pallet truck adopts a patented fully sealed gear transmission system featuring a high transmission ratio, large-module gears and high torque transmission.
The sealed gear structure provides reliable power transmission while helping protect the transmission components during regular operation.
Transmission Advantages
Fully sealed design
High transmission ratio
Large-module gears
High torque transmission
Stable power delivery
Reliable operation
Reduced maintenance requirements
Manual Fork Lifting
The pallet truck uses a manual fork lifting system.
The maximum fork lifting height is 200 mm, while the minimum fork ground clearance is 85 mm.
The manual lifting configuration helps simplify the overall structure and keeps the equipment economical.
For applications where the primary requirement is electric transportation rather than frequent powered lifting, this configuration provides a practical solution.
Lifting Features
Manual fork lifting
Maximum lifting height: 200 mm
Minimum fork ground clearance: 85 mm
Simple lifting mechanism
Economical configuration
Removable Battery and Flexible Charging
The pallet truck is equipped with a 48V 20Ah battery.
The battery can be charged directly on the machine or removed for charging at another location.
This design provides greater flexibility for customers who may not have a fixed charging point near the working area.
When the pallet truck is not in operation, disconnecting the power plug can help reduce unnecessary battery discharge and contribute to longer battery service life.
Battery Features
48V 20Ah battery
Removable battery pack
On-board charging
Separate battery charging
Flexible charging options
Convenient for different working locations
Heavy-Duty Fork Design
The pallet truck is equipped with 1,160 mm long forks, with a 160 mm fork width and 40 mm fork thickness.
The heavy-duty fork structure is designed to support loads up to 3,000 kg and provides stable support during pallet transportation.
Fork Specifications
| Item | Specification |
|---|---|
| Rated Load Capacity | 3,000 kg |
| Load Center | 500 mm |
| Fork Length | 1,160 mm |
| Fork Width | 160 mm |
| Fork Thickness | 40 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
Compact Structure
The small-wheel configuration provides a relatively compact machine structure.
The overall length is 1,260 mm, while the overall width is 685 mm.
The compact dimensions make the pallet truck suitable for conventional warehouses, workshops, production areas and logistics facilities.
Dimension Highlights
Overall length: 1,260 mm
Overall width: 685 mm
Overall height with handle: 1,380 mm
Overall height without handle: 700 mm
Minimum turning radius: 1,550 mm
Machine weight: 165 kg
The 165 kg machine weight also contributes to easier handling and transportation compared with heavier configurations.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Economic Small Wheel Semi Electric Pallet Truck |
| Model | CBD3T |
| Rated Load Capacity | 3,000 kg |
| Load Center | 500 mm |
| Travel Type | Electric |
| Lifting Type | Manual |
| Wheel Type | Front & Rear UP / Nylon |
| Drive Wheel Size | Φ175 × 95 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,160 mm |
| Fork Thickness | 40 mm |
| Overall Length | 1,260 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,380 mm |
| Overall Height without Handle | 700 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Loaded / Unloaded | 7% / 16% |
| Maximum Travel Speed, Loaded / Unloaded | 4 / 4.5 km/h |
| Battery | 48V 20Ah |
| Drive Motor Power | 1,200 W |
| Lifting | Manual |
| Lifting Speed, Loaded / Unloaded | 2.2 / 3.3 cm/s |
| Machine Weight | 165 kg |
Note: Since this model uses manual fork lifting, the lift motor power is not applicable and should be displayed as Manual Lifting rather than specifying an electric lifting motor.
Application Range
The 3 Ton Economic Small Wheel Semi Electric Pallet Truck is primarily designed for material handling on relatively flat and conventional working surfaces.
Warehouses
Suitable for transporting palletized goods, raw materials and finished products between storage areas, loading zones and working stations.
Factories
The 3-ton load capacity makes it suitable for moving heavy components, materials and finished products inside manufacturing facilities.
Workshops
The compact structure and electric travel system provide a convenient solution for moving heavy pallets between different working areas.
Logistics Centers
Suitable for short-distance transportation of palletized goods in distribution centers, loading areas and logistics facilities.
Loading and Unloading Areas
The electric drive system reduces manual pushing effort during repeated pallet transportation and loading operations.
Production Lines
The pallet truck can be used to move raw materials, components and finished products between production stations and storage areas.
Recommended Working Environment
This model is particularly suitable for:
Warehouses
Factories
Workshops
Logistics centers
Distribution centers
Loading areas
Production facilities
Relatively flat industrial floors
Why Choose the Economic Small Wheel Version?
Economical Configuration
The combination of electric travel and manual lifting reduces equipment complexity and provides a cost-effective solution for heavy pallet handling.
3 Ton Load Capacity
The 3,000 kg rated capacity allows the pallet truck to handle heavy palletized materials.
Compact Small-Wheel Structure
The Φ175 × 95 mm drive wheel provides a compact and economical configuration for conventional working environments.
Maintenance-Free Drive Motor
The 48V permanent-magnet brushless motor provides high torque and reduces routine motor maintenance.
Removable Battery
The 48V 20Ah removable battery provides flexible charging options.
Simple Operation
Electric travel reduces operator pushing effort, while manual lifting keeps the machine simple and economical.
Lower Machine Weight
With a machine weight of approximately 165 kg, the compact design makes the equipment easier to handle and transport.
FAQ
1. What is a small wheel semi electric pallet truck?
A small wheel semi electric pallet truck uses an electric motor for traveling while the forks are lifted manually. The small-wheel configuration is primarily designed for conventional, relatively flat working surfaces.
2. What is the load capacity of this pallet truck?
The pallet truck has a 3,000 kg rated load capacity with a 500 mm load center.
3. Is the pallet truck fully electric?
No. It is a semi electric pallet truck. The traveling function is electrically powered, while fork lifting is manual.
4. Why is it called an economic pallet truck?
The machine combines electric travel with manual lifting, reducing system complexity and providing a more economical solution than a fully electric pallet truck.
5. What size is the drive wheel?
The drive wheel size is Φ175 × 95 mm.
6. What battery does the pallet truck use?
The standard battery is 48V 20Ah.
7. Can the battery be removed?
Yes. The battery can be removed from the machine and charged separately.
8. How high can the forks lift?
The maximum fork lifting height is 200 mm.
9. What is the drive motor power?
The pallet truck is equipped with a 1,200 W drive motor.
10. What type of working environment is recommended?
The small-wheel version is mainly recommended for warehouses, factories, workshops, logistics centers, loading areas and other relatively flat industrial surfaces.
11. Is this pallet truck suitable for heavy loads?
Yes. The pallet truck has a 3,000 kg rated load capacity and is designed for heavy-duty pallet transportation.
12. Can the product be customized?
Customization can be discussed according to the customer's requirements, including working environment, fork dimensions, battery configuration and other material handling requirements.
CTA
Looking for an Economical 3 Ton Semi Electric Pallet Truck?
The 3 Ton Economic Small Wheel Semi Electric Pallet Truck is a practical solution for businesses that need high load capacity, electric traveling and economical operation.
With a 3,000 kg capacity, 48V electric drive system, manual lifting, Φ175 × 95 mm drive wheel and removable battery, it provides a simple and cost-effective solution for daily pallet transportation in warehouses, factories, workshops and logistics facilities.
Contact us today for pricing, technical specifications, battery options and customized configurations.
Please provide:
Required quantity
Working environment
Fork requirements
Battery requirements
Destination country
Any special configuration requirements
Choose an economical 3-ton material handling solution for your daily operations.
