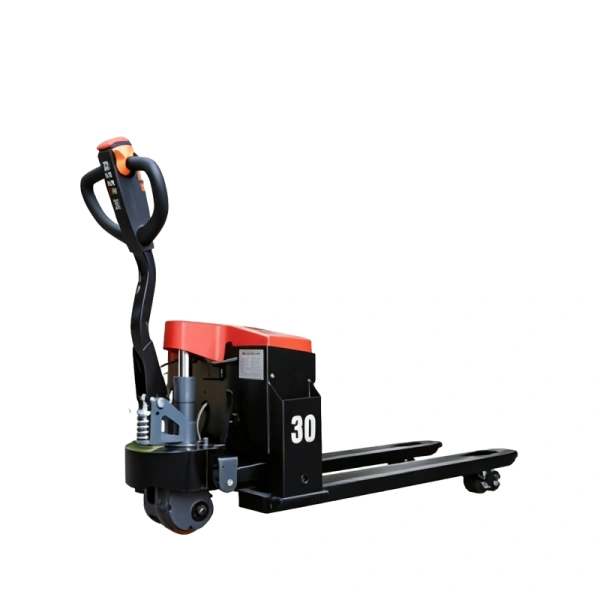

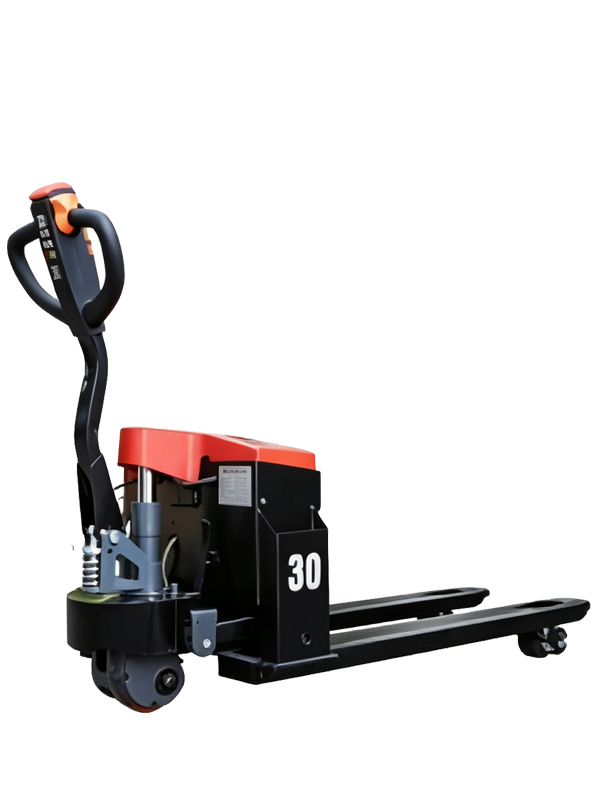

CBD3T King Kong Series Small-Wheel 3 Ton Fully Electric Pallet Truck
The CBD3T King Kong Series Small-Wheel 3 Ton Fully Electric Pallet Truck is a heavy-duty electric pallet truck designed for customers who require 3-ton load capacity, fully electric operation, compact dimensions and convenient maintenance.
As part of the King Kong Series, this model uses a distinctive modular integrated body and optimized structural design.
Unlike the King Kong Rough Terrain version, which uses large Φ300 × 100 mm solid rubber drive wheels for challenging outdoor terrain, the King Kong Small-Wheel version uses Φ170 × 55 mm drive wheels and is primarily designed for warehouses, factories, logistics centers and industrial environments with relatively suitable floors.
The model combines:
3 Ton Capacity + Small-Wheel Design + Fully Electric Operation + Modular Structure
King Kong Series Small-Wheel Design
The King Kong Series Small-Wheel version is designed to provide a different configuration from the King Kong Rough Terrain model.
Its main characteristics include:
3,000 kg load capacity
Small-wheel configuration
Lightweight 170 kg machine weight
Modular integrated body
Impact-resistant housing
48V electric system
Electric travel and lifting
Convenient installation and maintenance
The Small-Wheel designation is important because it clearly differentiates this product from the King Kong Rough Terrain model.
3,000 kg Heavy-Duty Load Capacity
The CBD3T King Kong Small-Wheel has a rated load capacity of:
3,000 kg
with a:
500 mm load center
This makes the truck suitable for transporting heavy pallets, raw materials, machinery components and finished industrial products.
Load Specifications
Rated load capacity: 3,000 kg
Load center: 500 mm
Fork length: 1,150 mm
Fork width: 160 mm
Fork thickness: 60 mm
Maximum fork lifting height: 200 mm
Minimum fork ground clearance: 85 mm
The heavy-duty fork structure is designed to support the truck's 3-ton rated capacity.
Modular Integrated Body
One of the key characteristics of the King Kong Small-Wheel model is its modular integrated body design.
The modular structure simplifies installation, maintenance and component replacement.
It is designed to help:
Simplify assembly
Improve maintenance access
Reduce replacement time
Improve service efficiency
Reduce maintenance downtime
Simplify troubleshooting
For users operating multiple electric pallet trucks, convenient maintenance can help improve equipment availability.
Streamlined Impact-Resistant Housing
The CBD3T King Kong Small-Wheel uses a streamlined body design.
The outer housing is made from impact-resistant material to provide better structural protection while keeping the overall machine relatively lightweight.
The optimized housing design helps:
Improve impact resistance
Protect internal components
Reduce unnecessary body weight
Improve overall structural strength
Create a compact appearance
The total machine weight is approximately:
170 kg
Lightweight 170 kg Construction
The King Kong Small-Wheel model has a machine weight of approximately 170 kg.
This lightweight design is achieved through the modular body architecture and optimized housing structure.
For distributors, warehouse operators and maintenance teams, the lighter equipment configuration can make transportation, installation and servicing more convenient.
The combination of 3,000 kg rated load capacity and approximately 170 kg machine weight is one of the key characteristics of this model.
48V Fully Electric Power System
The CBD3T King Kong Small-Wheel uses a:
48V fully electric power system
Both travel and fork lifting are electrically powered.
The truck is equipped with:
1,500W drive motor
and:
2,200W lifting motor
Drive Performance
| Item | Specification |
|---|---|
| Battery Voltage | 48V |
| Drive Motor | 1,500W |
| Lift Motor | 2,200W |
| Travel Speed, Full Load | 4 km/h |
| Travel Speed, No Load | 4.5 km/h |
| Gradeability, Full Load | 7% |
| Gradeability, No Load | 16% |
Large-Capacity Battery
The CBD3T uses a 48V battery system with:
Lead-Acid / Lithium Battery Options
The large-capacity battery configuration is designed to support extended operation and continuous material handling.
Lead-Acid Battery
Suitable for customers prioritizing:
Cost-effective configuration
Traditional industrial battery technology
Heavy-duty applications
Long working cycles
Lithium Battery
Suitable for customers prioritizing:
Flexible charging
Frequent operation
Reduced battery maintenance
Convenient energy management
Efficient daily operation
1,500W Drive Motor
The King Kong Small-Wheel model uses a:
1,500W electric drive motor
The motor provides the power required for horizontal pallet transportation.
The fully electric drive system reduces manual effort and provides consistent travel performance during repeated material handling operations.
Maximum travel speed:
4 km/h with full load
4.5 km/h without load
2,200W Electric Lifting Motor
The fork lifting system is powered by a:
2,200W lifting motor
The maximum fork lifting height is:
200 mm
The truck is primarily designed for pallet pickup, transportation and positioning.
Lifting Performance
| Item | Specification |
|---|---|
| Lift Motor | 2,200W |
| Maximum Fork Lift Height | 200 mm |
| Lifting Speed, Full Load | 2.2 cm/s |
| Lifting Speed, No Load | 3.3 cm/s |
Down-Lifting Structure
The King Kong Small-Wheel model adopts a down-lifting structural design.
This structure provides a cleaner overall appearance while making installation and maintenance more convenient.
The design helps simplify:
Component installation
Routine inspection
Maintenance
Component replacement
Internal servicing
Precision-Honed Hydraulic Cylinder
The hydraulic lifting system uses imported seals, while the cylinder body undergoes precision grinding.
This design is intended to improve hydraulic system stability and sealing performance.
The main benefits include:
Stable lifting performance
Improved sealing
Reduced leakage risk
Reduced potential failure rate
Improved hydraulic component durability
Φ170 × 55 mm Small Drive Wheels
The key feature distinguishing this model from the King Kong Rough Terrain version is the wheel configuration.
The King Kong Small-Wheel model uses:
Φ170 × 55 mm drive wheels
The wheel configuration is:
UP / Nylon
The load wheels are:
Φ80 × 70 mm
This compact wheel configuration is designed primarily for suitable warehouse and industrial floors.
Wheel Configuration
Drive wheel: Φ170 × 55 mm
Load wheel: Φ80 × 70 mm
Wheel type: UP / Nylon
Small-Wheel Configuration for Industrial Floors
The Small-Wheel configuration provides a more compact solution for indoor and general industrial material handling.
It is particularly suitable for:
Warehouses
Manufacturing plants
Logistics centers
Distribution centers
Factory workshops
Storage areas
Loading and unloading zones
For severely uneven outdoor terrain, the King Kong Rough Terrain version with Φ300 × 100 mm solid rubber drive wheels is a better choice.
Compact Dimensions
The CBD3T King Kong Small-Wheel has an overall length of:
1,680 mm
and an overall width of:
685 mm
The minimum turning radius is:
1,550 mm
Main Dimensions
Overall length: 1,680 mm
Overall width: 685 mm
Overall height with handle: 1,240 mm
Overall height without handle: 760 mm
Minimum turning radius: 1,550 mm
Heavy-Duty Fork Configuration
The King Kong Small-Wheel uses heavy-duty forks designed for 3-ton pallet handling.
Fork Specifications
| Fork Item | Specification |
|---|---|
| Fork Length | 1,150 mm |
| Fork Width | 160 mm |
| Fork Thickness | 60 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Maximum Fork Lift Height | 200 mm |
| Minimum Fork Ground Clearance | 85 mm |
The two fork spacing configurations provide flexibility for different pallet dimensions.
Gradeability and Travel Performance
The specified travel speed is:
4 km/h with full load / 4.5 km/h without load
The specified gradeability is:
7% with full load / 16% without load
Actual operating performance depends on:
Load weight
Load distribution
Floor condition
Gradient
Battery condition
Wheel condition
The Small-Wheel model is intended primarily for suitable industrial surfaces rather than severely rough terrain.
Product Specifications
| Specification | CBD3T King Kong Small-Wheel |
|---|---|
| Product Type | 3 Ton Fully Electric Small-Wheel Pallet Truck |
| Model | CBD3T |
| Product Series | King Kong Series |
| Product Version | Small-Wheel Type |
| Rated Load Capacity | 3,000 kg |
| Load Center | 500 mm |
| Operation Type | Walkie |
| Wheel Type | UP / Nylon |
| Drive Wheel Size | Φ170 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inside Width | 230 / 365 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,680 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Full Load / No Load | 7 / 16% |
| Travel Speed, Full Load / No Load | 4 / 4.5 km/h |
| Battery | 48V Lead-Acid / Lithium Optional |
| Drive Motor Power | 1,500W |
| Lift Motor Power | 2,200W |
| Lifting Speed, Full Load / No Load | 2.2 / 3.3 cm/s |
| Machine Weight | 170 kg |
Application Areas
Warehouses
Suitable for transporting heavy pallets, raw materials and finished products on suitable warehouse floors.
Manufacturing Facilities
Ideal for moving heavy components and production materials between different work areas.
Logistics Centers
The fully electric drive system provides efficient short-distance pallet transportation.
Distribution Centers
The 3-ton capacity makes the CBD3T suitable for heavier palletized products.
Factory Workshops
The compact small-wheel configuration provides convenient operation in suitable industrial environments.
Why Choose CBD3T King Kong Small-Wheel?
3 Ton Load Capacity
Handles loads up to 3,000 kg with a 500 mm load center.
King Kong Series Identity
The King Kong Series provides a distinct product family positioned around robust and heavy-duty material handling.
Small-Wheel Configuration
The Φ170 × 55 mm drive wheel configuration is optimized for warehouses and suitable industrial floors.
Lightweight 170 kg Body
The modular structure and optimized housing keep the machine weight at approximately 170 kg.
Modular Integrated Design
Makes installation, maintenance and component replacement more convenient.
48V Electric System
Provides electric power for both travel and lifting.
1,500W Drive Motor
Provides reliable electric driving power.
2,200W Lift Motor
Provides powered lifting up to 200 mm.
Flexible Battery Configuration
Available with 48V lead-acid or lithium battery options.
King Kong Small-Wheel vs King Kong Rough Terrain
| Feature | King Kong Small-Wheel | King Kong Rough Terrain |
|---|---|---|
| Product Type | Small-Wheel Electric Pallet Truck | Rough Terrain Electric Pallet Truck |
| Load Capacity | 3,000 kg | 3,000 kg |
| Load Center | 500 mm | 500 mm |
| Drive Wheel | Φ170 × 55 mm | Φ300 × 100 mm |
| Wheel Type | UP / Nylon | Solid Rubber |
| Ground Clearance | Standard | Approx. 100 mm |
| Machine Weight | 170 kg | 195 kg |
| Main Application | Warehouse / Factory | Outdoor / Rough Terrain |
| Terrain Capability | Suitable Industrial Floors | Uneven / Complex Terrain |
| Drive Motor | 1,500W | 1,500W |
| Lift Motor | 2,200W | 2,200W |
Choose King Kong Small-Wheel if your application is mainly in warehouses, factories and logistics centers with suitable floors.
Choose King Kong Rough Terrain if you need to operate on uneven outdoor or complex industrial surfaces.
Frequently Asked Questions
What is the CBD3T King Kong Small-Wheel?
The CBD3T King Kong Small-Wheel is a 3-ton fully electric walkie pallet truck designed for warehouses, factories, logistics centers and other industrial environments with suitable operating surfaces.
Why is it called the King Kong Series?
King Kong Series is the English product-family name for the Chinese “金刚款”.
The name distinguishes this product family from other CBD3T configurations.
What does Small-Wheel mean?
Small-Wheel refers to the compact Φ170 × 55 mm drive wheel configuration.
It distinguishes this model from the King Kong Rough Terrain version, which uses much larger Φ300 × 100 mm solid rubber drive wheels.
What is the load capacity?
The CBD3T King Kong Small-Wheel has a rated load capacity of:
3,000 kg
with a 500 mm load center.
Is it fully electric?
Yes. The truck uses electric travel and electric lifting.
It is equipped with a 48V battery, 1,500W drive motor and 2,200W lift motor.
What battery options are available?
The truck supports:
48V Lead-Acid / Lithium Battery
Customers can select the battery type according to their operating requirements.
What is the machine weight?
The CBD3T King Kong Small-Wheel weighs approximately:
170 kg
What is the drive wheel size?
The drive wheel is:
Φ170 × 55 mm
This is the main wheel specification distinguishing the Small-Wheel version from the King Kong Rough Terrain version.
Can it be used outdoors?
The Small-Wheel model can be used in suitable industrial and outdoor areas with relatively smooth surfaces.
However, it is not intended as the primary configuration for severely uneven rough terrain.
For complex outdoor terrain, the King Kong Rough Terrain version with Φ300 × 100 mm solid rubber drive wheels is recommended.
How high can the forks lift?
The maximum fork lifting height is:
200 mm
The truck is mainly designed for pallet pickup, transportation and positioning.
What is the fork length?
The standard fork length is:
1,150 mm
The fork width is 160 mm, with a thickness of 60 mm.
What is the turning radius?
The minimum turning radius is:
1,550 mm
What is the travel speed?
The maximum travel speed is:
4 km/h with full load
4.5 km/h without load
Is the CBD3T easy to maintain?
Yes. The modular integrated body, down-lifting structure, imported seals and precision-honed hydraulic cylinder are designed to make installation, maintenance and component replacement more convenient.
Customization Options
The CBD3T King Kong Small-Wheel can be discussed with different configurations according to customer requirements:
Lead-acid battery
Lithium battery
Battery capacity
Fork dimensions
Fork spacing
Charger configuration
Wheel configuration
Product color
Customer logo
OEM requirements
Export configuration
For customized projects, please provide:
Load weight + pallet dimensions + working environment + working hours + required quantity
so we can recommend the appropriate configuration.
CTA
Looking for a 3 Ton Small-Wheel Electric Pallet Truck?
The CBD3T King Kong Series Small-Wheel 3 Ton Fully Electric Pallet Truck combines a 3,000 kg load capacity, 500 mm load center, 48V electric system, 1,500W drive motor, 2,200W lifting motor and lightweight 170 kg modular body.
It is designed for customers looking for a heavy-duty, compact and easy-to-maintain electric pallet truck for warehouses, factories and industrial facilities.
Contact us today for:
Product quotation
Technical specifications
Battery options
Fork configurations
Customized solutions
OEM/ODM service
Shipping information
Tell us your load weight, pallet size, working environment and required quantity, and our team can recommend the right CBD3T King Kong Series configuration for your application.
