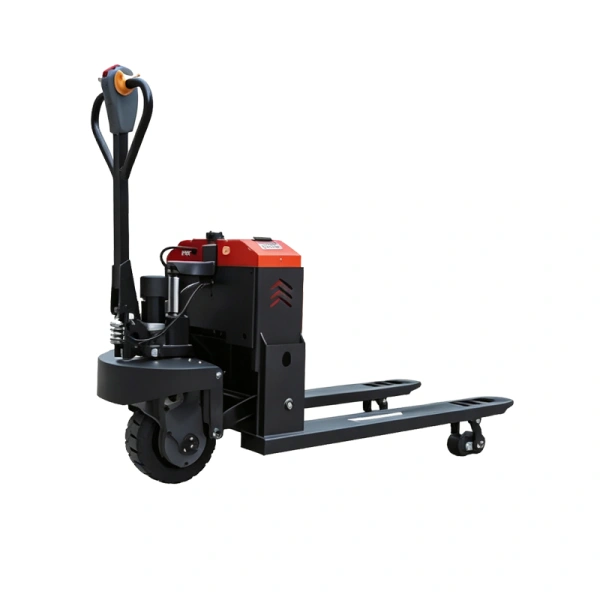

3 Ton Economic Rough Terrain Fully Electric Pallet Truck
The CBD3T 3 Ton Economic Rough Terrain Fully Electric Pallet Truck is an economical heavy-duty material handling solution developed for applications where standard warehouse pallet trucks may struggle with uneven floors, outdoor yards or demanding working conditions.
With a rated load capacity of 2,000/3,000 kg, the CBD3T provides strong load-handling capability while maintaining a compact overall structure. Its rough-terrain configuration uses large front rubber drive wheels and a robust chassis design to improve stability and traction when operating on uneven or less-than-perfect surfaces.
The truck adopts fully electric travel and lifting, reducing manual effort and improving handling efficiency during daily operations.
Key Features
1. Economic Rough Terrain Design
The CBD3T is designed as an economic rough terrain electric pallet truck, providing essential heavy-duty handling performance without unnecessary complexity.
Its practical structure helps reduce purchasing and maintenance costs, making it suitable for customers who need reliable performance while keeping the total cost of ownership under control.
The robust chassis and large drive wheels make the truck suitable for:
Warehouses
Logistics yards
Manufacturing facilities
Workshops
Construction sites
Outdoor material handling
Uneven industrial floors
Short-distance heavy-load transportation
2. 2,000/3,000 kg Load Capacity
The CBD3T is available with a 2,000 kg or 3,000 kg rated load capacity, providing flexibility for different material handling requirements.
With a 500 mm load center, the pallet truck is designed for handling standard palletized loads and other heavy materials within its rated capacity.
The reinforced fork structure and heavy-duty chassis provide reliable support during loading, transportation and unloading operations.
3. Large Rough Terrain Drive Wheels
One of the most important features of the CBD3T is its large Φ300 × 100 mm front rubber drive wheels.
Compared with conventional warehouse pallet trucks, the larger drive wheels provide better ground clearance and improved ability to travel across:
Uneven concrete floors
Rough industrial surfaces
Outdoor yards
Slightly uneven roads
Construction and workshop environments
The front rubber wheels also provide good traction and help improve driving stability under demanding working conditions.
4. Fully Electric Travel and Lifting
The CBD3T uses an electric drive system and electric lifting, eliminating the need for manual pumping during normal operation.
The 1,500 W drive motor provides the power required for material transportation, while the 2,200 W lifting motor delivers efficient electric fork lifting.
This fully electric configuration helps reduce operator fatigue and improves productivity during repetitive handling tasks.
5. Large-Capacity Battery System
The CBD3T is equipped with a 48V/20A battery system, providing power for electric travel and lifting operations.
The battery configuration is designed to support continuous material handling while maintaining a relatively compact vehicle structure.
For customers with different operating schedules or application requirements, battery and charging configurations can be discussed according to the actual working environment.
6. Strong and Stable Chassis
The CBD3T adopts a robust chassis structure designed to withstand demanding material handling conditions.
With an overall vehicle weight of approximately 195 kg, the truck combines a strong load-bearing structure with a relatively compact body.
The 85 mm minimum fork ground clearance helps improve the vehicle's ability to operate on uneven surfaces while maintaining practical pallet handling performance.
7. Flexible Steering and Compact Turning Radius
Despite its heavy-duty load capacity, the CBD3T maintains a relatively compact vehicle footprint.
With an overall width of 685 mm and a minimum turning radius of approximately 1,550 mm, the truck can operate in comparatively restricted working areas.
The flexible steering system allows operators to maneuver the pallet truck more easily around pallets, equipment and other obstacles.
8. Practical Fork Configuration
The CBD3T is equipped with 1,150 mm long forks and a fork width of 160 mm.
The fork configuration provides compatibility with common pallet handling applications while maintaining sufficient structural strength for heavy loads.
The available fork inner spacing is:
230 mm
365 mm
The corresponding fork outer spacing is:
550 mm
685 mm
This provides flexibility for different pallet and load configurations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CBD3T |
| Product Type | Economic Rough Terrain Fully Electric Pallet Truck |
| Rated Load Capacity | 2,000 / 3,000 kg |
| Load Center | 500 mm |
| Lifting Type | Electric Lifting |
| Wheel Type | Front Rubber, Rear UP / Nylon |
| Drive Wheel Size | Φ300 × 100 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inner Width | 230 / 365 mm |
| Fork Outer Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,780 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Loaded / Unloaded | 7 / 16% |
| Travel Speed, Loaded / Unloaded | 4 / 4.5 km/h |
| Battery | 48V / 20A |
| Drive Motor Power | 1,500 W |
| Lift Motor Power | 2,200 W |
| Vehicle Weight | 195 kg |
| Lifting Speed, Loaded / Unloaded | 2.2 / 3.3 cm/s |
Rough Terrain Material Handling Applications
The CBD3T is designed for applications where material handling equipment needs to operate beyond a perfectly smooth warehouse floor.
Typical applications include:
Warehousing & Logistics
Suitable for short-distance transportation of palletized goods in warehouses, logistics centers and distribution facilities.
Manufacturing Plants
Useful for moving raw materials, components and finished products between production and storage areas.
Construction Sites
The large rubber drive wheels and robust structure provide improved mobility for material transportation around suitable construction-site surfaces.
Outdoor Yards
The rough-terrain configuration makes the CBD3T suitable for selected outdoor material handling applications where conventional warehouse pallet trucks may have limited mobility.
Workshops & Industrial Facilities
Its compact dimensions and flexible steering make it practical for moving heavy materials around workshops and industrial facilities.
Safety & Operator-Friendly Design
The CBD3T is designed with practical operation and daily safety in mind.
The compact body provides good maneuverability, while the steering handle allows the operator to control travel and lifting functions conveniently.
The large drive wheels help maintain traction and stability when traveling across suitable uneven surfaces.
The electric drive and lifting systems also reduce the physical effort required from the operator compared with manually operated pallet trucks.
Why Choose the CBD3T?
The CBD3T Economic Rough Terrain Fully Electric Pallet Truck combines the advantages of a conventional electric pallet truck with a rough-terrain-oriented chassis and larger drive wheels.
Main advantages include:
2,000/3,000 kg load capacity
Fully electric travel and lifting
Economic design for cost-conscious buyers
Large Φ300 × 100 mm rubber drive wheels
1,500 W drive motor
2,200 W lifting motor
48V/20A battery system
500 mm load center
1,150 mm forks
685 mm overall width
1,550 mm minimum turning radius
Suitable for selected uneven and demanding surfaces
Simple and flexible operation
Easy maintenance
Suitable for indoor and selected outdoor applications
FAQ
1. What is the load capacity of the CBD3T?
The CBD3T is available with a 2,000 kg or 3,000 kg rated load capacity, depending on the configuration.
2. Is the CBD3T fully electric?
Yes. The CBD3T uses electric travel and electric lifting, reducing manual effort during material handling operations.
3. Can the CBD3T operate on rough terrain?
The CBD3T is designed for rougher and uneven working surfaces compared with standard warehouse pallet trucks. Its large Φ300 × 100 mm rubber drive wheels and robust chassis improve mobility on suitable uneven surfaces. However, it is not intended to replace a dedicated off-road forklift on very steep, muddy or severely uneven terrain.
4. What is the lifting height?
The maximum fork lifting height is 200 mm, which is primarily intended for pallet lifting and short-distance transportation rather than high-level stacking.
5. What is the battery voltage?
The standard battery specification is 48V/20A.
6. What are the motor powers?
The CBD3T uses a 1,500 W drive motor and a 2,200 W lifting motor.
7. What is the fork length?
The standard fork length is 1,150 mm, with a fork width of 160 mm and fork thickness of 60 mm.
8. Is the CBD3T suitable for outdoor use?
Yes, the CBD3T can be used for suitable outdoor material handling applications such as industrial yards, workshops and construction-related environments, particularly where the ground is uneven but still suitable for pallet truck operation.
Customization Options
Different customers may have different pallet sizes, working conditions and transportation requirements.
Depending on the project, customization can be discussed for:
Battery configuration
Charger configuration
Fork dimensions
Fork spacing
Wheel configuration
Vehicle configuration
Branding and color
Packaging
Other application-specific requirements
Please contact us with your load capacity, pallet dimensions, working surface and operating environment, and our team can recommend a suitable configuration.
Get a Quote for CBD3T
Looking for an economic 3 ton rough terrain electric pallet truck for your warehouse, factory, workshop, logistics yard or outdoor material handling operation?
The CBD3T provides a practical combination of high load capacity, fully electric operation, large drive wheels, compact dimensions and cost-effective design.
Contact us today for pricing, technical specifications, customization options and shipping information.
