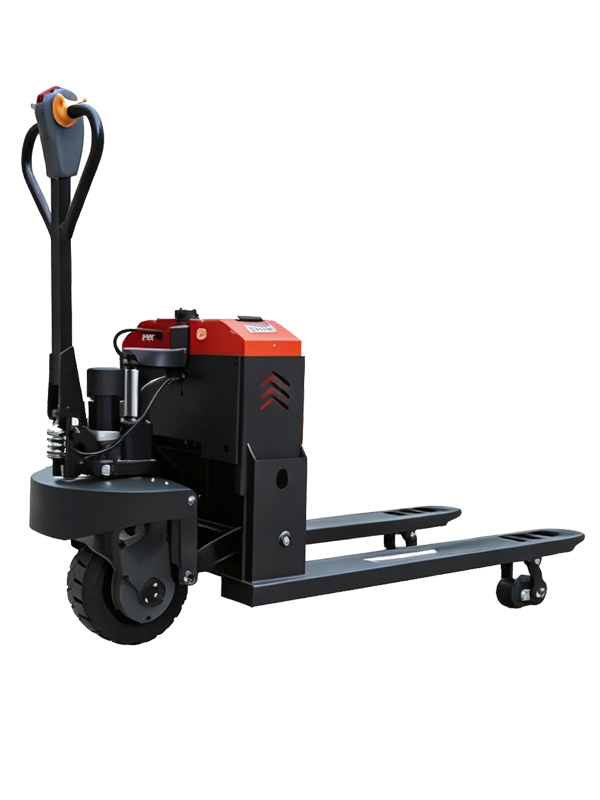

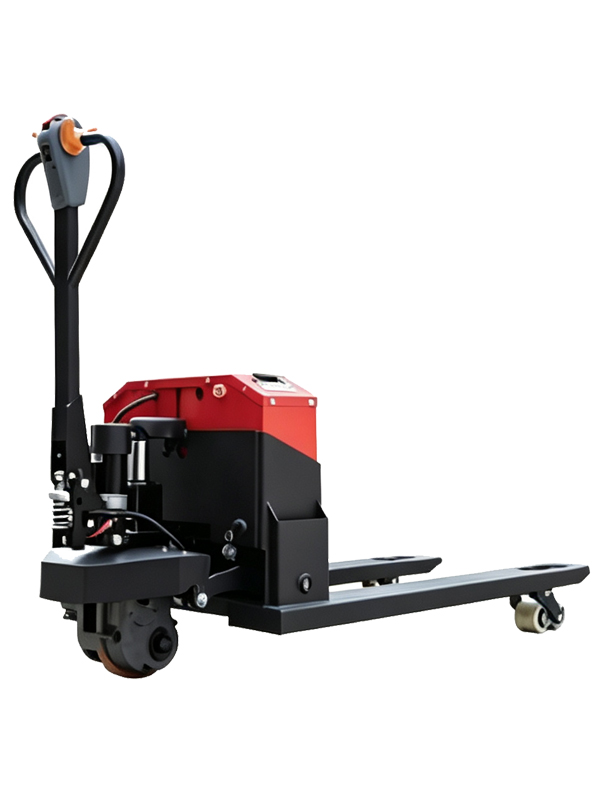

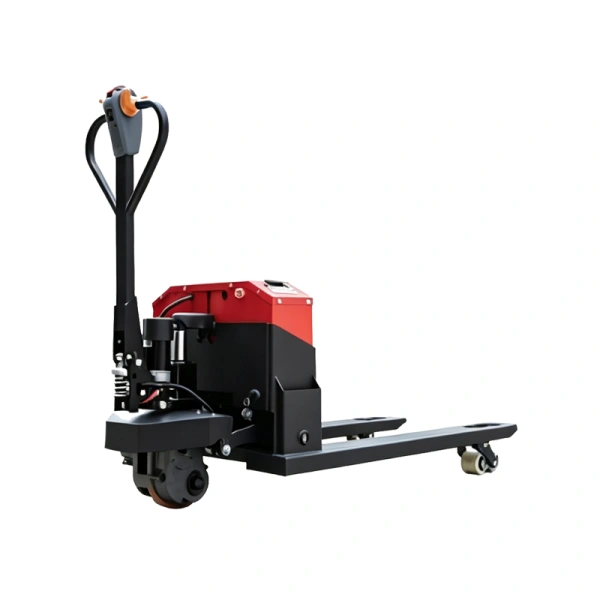

3 Ton Economic Small Wheel Fully Electric Pallet Truck
The CBD3T 3 Ton Economic Small Wheel Fully Electric Pallet Truck is designed for customers looking for a practical, reliable and economical solution for daily pallet transportation.
With a rated load capacity of 2,000/3,000 kg, the CBD3T is suitable for handling heavy palletized goods in warehouses, manufacturing plants, logistics facilities and workshops. Its small-wheel configuration provides a compact and practical solution for applications where the ground is relatively smooth and high maneuverability is more important than rough-terrain capability.
Unlike the rough-terrain version of the CBD3T, this small-wheel model uses Φ170 × 55 mm drive wheels, helping maintain a compact vehicle structure while reducing overall vehicle weight to approximately 165 kg.
The truck adopts fully electric travel and lifting, reducing manual effort and making repetitive material handling more efficient.
Key Features
1. Economic Small Wheel Design
The CBD3T is designed as an economic small wheel electric pallet truck, focusing on the essential functions required for everyday material handling while keeping the overall structure practical and cost-effective.
The small-wheel configuration is particularly suitable for relatively smooth indoor industrial floors and standard warehouse environments.
Compared with larger-wheel rough-terrain configurations, the small-wheel design allows the truck to maintain a compact body and lower overall weight.
It is suitable for:
Warehouses
Manufacturing facilities
Logistics centers
Distribution centers
Workshops
Storage areas
Production lines
Indoor material handling
2. 2,000/3,000 kg Load Capacity
The CBD3T provides a 2,000 kg or 3,000 kg rated load capacity, allowing customers to select the appropriate configuration according to their material handling requirements.
With a 500 mm load center, the truck is designed for stable handling of palletized goods within its rated capacity.
The reinforced fork structure provides the necessary support for heavy loads during lifting and short-distance transportation.
3. Compact Small-Wheel Configuration
The CBD3T uses Φ170 × 55 mm drive wheels, combined with Φ80 × 70 mm load wheels.
The smaller drive wheel configuration helps keep the vehicle compact and contributes to the relatively low overall weight of approximately 165 kg.
This configuration is especially suitable for smooth indoor floors where large ground-clearance wheels are not required.
The small-wheel design also helps provide a practical solution for customers who prioritize:
Compact vehicle dimensions
Lower vehicle weight
Indoor operation
Easy maneuverability
Economical purchasing cost
Convenient maintenance
4. Modular Integrated Body Design
The CBD3T adopts a modular integrated exterior design, making the main components easier to install, inspect and maintain.
The modular structure simplifies component replacement and can help reduce maintenance time.
This design is particularly useful for equipment operating frequently in warehouses and factories where minimizing downtime is important.
5. Streamlined Body with Impact-Resistant Housing
The truck features a streamlined body design with an impact-resistant outer housing.
The integrated housing helps protect internal components during normal operation while maintaining a clean and modern appearance.
The optimized body structure also helps reduce unnecessary vehicle weight while maintaining sufficient structural strength.
The result is a compact electric pallet truck that combines:
Lightweight Design + Structural Strength + Easy Maintenance
6. Large-Capacity Battery
The CBD3T is equipped with a 48V/20A battery system designed to provide sufficient power for regular material handling operations.
The large-capacity battery configuration supports longer operating periods and helps meet the requirements of continuous daily work.
The electric power system eliminates the need for manual travel and manual pumping, reducing physical effort for operators.
7. Fully Electric Travel and Lifting
The CBD3T features fully electric travel and electric lifting.
The 1,200 W drive motor provides power for vehicle movement, while the 2,200 W lifting motor provides electric lifting performance.
The electric configuration is particularly suitable for repetitive pallet transportation where operators need to move and lift loads frequently throughout the working day.
Compared with a manual pallet truck, the CBD3T can significantly reduce the physical effort required from the operator.
8. Lower-Lifting Structure
The CBD3T adopts a lower-lifting structural design, giving the vehicle a cleaner and more compact appearance.
This structure also makes installation and maintenance more convenient.
With a maximum fork lifting height of 200 mm, the CBD3T is primarily designed for pallet lifting and short-distance transportation rather than high-level stacking.
The minimum fork ground clearance is 85 mm, providing practical clearance for standard pallet handling applications.
9. Reliable Hydraulic System
The hydraulic lifting system uses imported sealing components, while the cylinder body is precisely ground to improve component matching and sealing performance.
This design helps provide:
More stable lifting performance
Better sealing
Reduced risk of hydraulic leakage
Lower failure rates
Longer component service life
Easier maintenance
The optimized hydraulic system is particularly important for an electric pallet truck that performs frequent lifting operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CBD3T |
| Product Type | Economic Small Wheel Fully Electric Pallet Truck |
| Rated Load Capacity | 2,000 / 3,000 kg |
| Load Center | 500 mm |
| Lifting Type | Electric Lifting |
| Wheel Type | UP / Nylon |
| Drive Wheel Size | Φ170 × 55 mm |
| Load Wheel Size | Φ80 × 70 mm |
| Minimum Fork Ground Clearance | 85 mm |
| Maximum Fork Lifting Height | 200 mm |
| Fork Inner Width | 230 / 365 mm |
| Fork Outer Width | 550 / 685 mm |
| Fork Width | 160 mm |
| Fork Length | 1,150 mm |
| Fork Thickness | 60 mm |
| Overall Length | 1,680 mm |
| Overall Width | 685 mm |
| Overall Height with Handle | 1,240 mm |
| Overall Height without Handle | 760 mm |
| Minimum Turning Radius | 1,550 mm |
| Gradeability, Loaded / Unloaded | 7 / 16% |
| Travel Speed, Loaded / Unloaded | 4 / 4.5 km/h |
| Battery | 48V / 20A |
| Drive Motor Power | 1,200 W |
| Lift Motor Power | 2,200 W |
| Vehicle Weight | 165 kg |
| Lifting Speed, Loaded / Unloaded | 2.2 / 3.3 cm/s |
Applications
The CBD3T Economic Small Wheel Fully Electric Pallet Truck is mainly designed for indoor and relatively smooth working environments.
Warehouse Material Handling
Suitable for moving palletized goods between storage areas, loading zones and picking areas.
Manufacturing Facilities
Can be used to transport raw materials, components and finished products between production lines and storage areas.
Logistics & Distribution
Suitable for short-distance pallet transportation in logistics centers and distribution warehouses.
Workshops
Its compact structure and flexible steering make it suitable for moving materials around workshops and industrial facilities.
Production Lines
The fully electric drive and lifting system can help operators efficiently move materials between different production stations.
Safety & Operator-Friendly Design
The CBD3T is designed around simple and practical operation.
The compact body and flexible steering system allow operators to maneuver the pallet truck efficiently in indoor working environments.
The electric travel and lifting functions reduce physical effort during repetitive material handling.
The impact-resistant outer housing provides additional protection for internal components during normal operation.
The hydraulic system uses reliable sealing components and a precision-ground cylinder to support stable lifting performance and reduce the likelihood of hydraulic-related failures.
Why Choose the CBD3T?
The CBD3T 3 Ton Economic Small Wheel Fully Electric Pallet Truck is a practical choice for customers who need high load capacity without the additional cost and complexity of a rough-terrain configuration.
Main Advantages
2,000/3,000 kg load capacity
Economic small-wheel design
Fully electric travel and lifting
Φ170 × 55 mm drive wheels
1,200 W drive motor
2,200 W lifting motor
48V/20A battery
165 kg lightweight vehicle design
Modular integrated body
Impact-resistant housing
Lower-lifting structure
Imported hydraulic seals
Precision-ground cylinder
Easy installation and maintenance
Reduced maintenance downtime
Suitable for smooth indoor industrial floors
FAQ
1. What is the load capacity of the CBD3T?
The CBD3T is available with a 2,000 kg or 3,000 kg rated load capacity, depending on the configuration.
2. Is the CBD3T fully electric?
Yes. The CBD3T provides fully electric travel and electric lifting, reducing the physical effort required from the operator.
3. What is the difference between the small-wheel and rough-terrain versions?
The small-wheel CBD3T uses Φ170 × 55 mm drive wheels and is primarily designed for smooth indoor floors and standard industrial environments.
The rough-terrain version uses larger Φ300 × 100 mm rubber drive wheels and is designed for more demanding and uneven surfaces.
Therefore:
Small Wheel → Indoor / Smooth Floors / Lightweight / Economical
Rough Terrain → Uneven Surfaces / Outdoor Applications / Larger Wheels
4. What is the maximum lifting height?
The maximum fork lifting height is 200 mm.
The CBD3T is designed mainly for pallet lifting and transportation rather than high-level stacking.
5. What is the battery specification?
The standard battery specification is 48V/20A.
6. What are the motor powers?
The truck is equipped with a 1,200 W drive motor and a 2,200 W lifting motor.
7. What is the fork length?
The standard fork length is 1,150 mm, with a fork width of 160 mm and thickness of 60 mm.
8. Is this pallet truck suitable for outdoor use?
The small-wheel CBD3T is primarily recommended for smooth indoor or relatively flat industrial surfaces. For uneven outdoor ground or rough terrain, the larger-wheel rough-terrain version is more appropriate.
9. Is the CBD3T easy to maintain?
Yes. The modular integrated design and lower-lifting structure make installation, component replacement and maintenance more convenient. The hydraulic system also uses imported seals and a precision-ground cylinder to improve reliability.
Customization Options
The CBD3T can be configured according to different pallet sizes, load requirements and working environments.
Possible customization options include:
Battery configuration
Charger configuration
Fork dimensions
Fork spacing
Wheel configuration
Branding
Exterior color
Packaging
Other application-specific requirements
For a suitable configuration, provide your required load capacity, pallet dimensions, working environment and expected operating hours.
