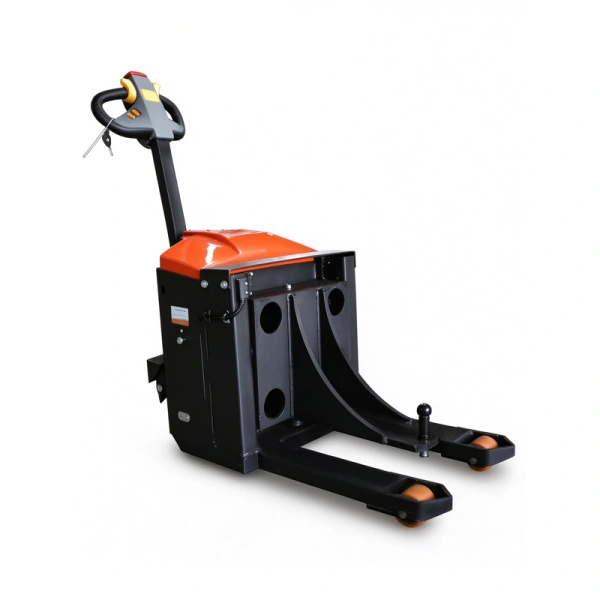

3 Ton Electric Tow Tractor
The 3 ton electric tow tractor is a compact and practical towing solution designed for moving trailers, carts and material handling equipment in warehouses, workshops, factories and industrial facilities. With a maximum towing capacity of 3000kg, this electric tugger is suitable for applications where multiple loads need to be moved efficiently without using a forklift.
With a compact body size of 1348 × 570 × 1260mm and a minimum turning radius of 1550mm, the electric tow tractor can operate in relatively narrow warehouse aisles, workshops and production areas.
Key Features
3000kg maximum towing capacity for industrial material handling
190–304mm towing height for connecting with different towing equipment
Compact 1348 × 570 × 1260mm body dimensions
1550mm minimum turning radius for maneuvering in confined areas
48V battery system with different capacity options
Electric drive for convenient daily material transport
Suitable for towing carts, trailers and material handling equipment
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 3 Ton Electric Tow Tractor |
| Maximum Towing Capacity | 3000 kg |
| Towing Ball Height | 190–304 mm |
| Fork Length | 586 mm |
| Minimum Turning Radius | 1550 mm |
| Battery | 48V, optional capacity |
| Overall Dimensions | 1348 × 570 × 1260 mm |
Designed for Towing, Not Carrying
Unlike an electric pallet truck, which lifts and carries pallets on its forks, an electric tow tractor is designed to pull carts and trailers.
For example, a manufacturing facility can connect several material carts to one electric tugger and transport components from a warehouse to the production line in a single trip. This makes the equipment suitable for repetitive internal logistics operations.
3 Ton Towing Capacity
With a maximum towing capacity of 3000kg, this electric tugger can be used for moving relatively heavy loads on wheeled carts or trailers.
Typical applications include:
Factory material transport
Warehouse internal logistics
Production line supply
Automotive parts transportation
Industrial carts and trailers
Distribution centers
Manufacturing workshops
Airport and logistics applications
Compact Design for Narrow Working Areas
The 1348mm × 570mm body footprint keeps the electric tow tractor relatively compact for industrial equipment. Combined with a 1550mm minimum turning radius, it can be used in workshops and warehouse areas where larger tow tractors may have difficulty maneuvering.
The towing connection height can be adjusted between 190mm and 304mm, providing flexibility when connecting the tugger to different carts or trailers.
Electric Tugger for Internal Logistics
The Electric Tow Tractor provides a practical alternative to using forklifts for repetitive towing tasks. Instead of lifting individual pallets, operators can connect one or more carts and move materials between different working areas.
This makes the Electric Tugger particularly suitable for factories and warehouses with fixed internal transportation routes.
Battery Configuration
The tow tractor uses a 48V battery system, with different battery capacity options available. Buyers can select a suitable battery configuration according to daily operating hours and transportation requirements.
Why Choose This Electric Tow Tractor?
For factories and warehouses that frequently move materials between storage and production areas, the 3 Ton Electric Tow Tractor provides a compact way to tow carts and trailers. Its 3000kg towing capacity, adjustable towing height and compact body make it suitable for repetitive internal material transportation.
For different towing capacities, battery configurations or towing connections, configurations can be discussed according to the customer's application.
