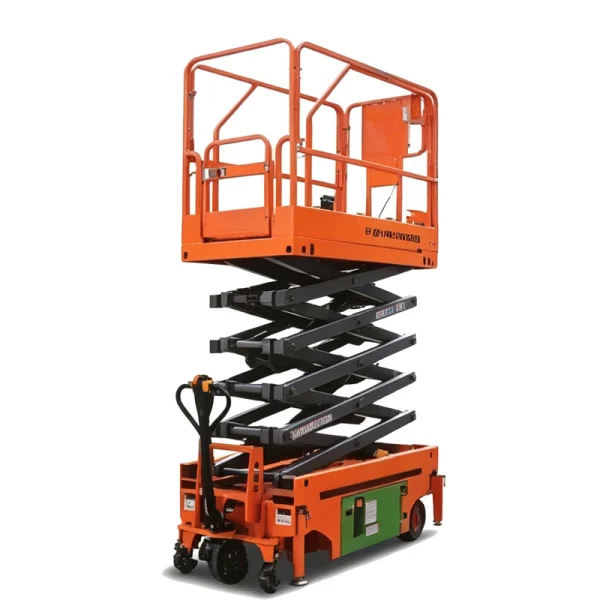

Electric Scissor Lift Platform for Elevated Work
This electric scissor lift platform is designed for elevated work where operators need a stable working platform, convenient mobility and reliable lifting performance.
The series covers working heights from 6 m to 13.8 m, allowing users to select the appropriate model according to their required working height, platform size and load capacity.
Powered by rechargeable batteries and equipped with an electric drive system, the scissor lift provides efficient and low-emission operation for warehouses, construction sites, maintenance areas and industrial facilities.
Key Features
1. Simple and Easy Operation
The scissor lift is designed with a straightforward operating system, making daily operation convenient for users. The multifunction control handle allows operators to control the machine efficiently during movement and elevated work.
2. Battery-Powered Operation
The machine uses a rechargeable battery power system, eliminating the need for conventional fuel-powered operation.
The compact power system helps reduce operating noise and emissions, making the equipment suitable for applications where a cleaner working environment is required.
3. Powerful Electric Drive
A high-power DC brushless motor assists the machine during movement.
The electric drive system provides strong driving power while maintaining convenient operation and low maintenance requirements.
4. Convenient Maintenance
The machine features integrated pull-out trays on both sides.
These trays provide convenient access to key components for routine inspection, maintenance and servicing, helping reduce maintenance time.
5. Extendable Working Platform
The platform is equipped with a one-way extension platform.
The extension provides additional working space and allows operators to reach areas that may otherwise be difficult to access from the main platform.
Depending on the model, the platform extension reaches up to 0.9 m.
Safety Features
Safety is an important consideration when using an elevated work platform. This scissor lift is equipped with multiple safety systems for daily operation.
Platform Self-Locking Gate
The platform is equipped with a self-locking access gate to help prevent accidental opening during elevated work.
Emergency Lowering System
An emergency lowering system allows the platform to be lowered when normal operation is unavailable.
Multifunction Control Handle
The multifunction control handle integrates operating functions into a convenient control system, helping simplify machine operation.
Anti-Pinch Emergency Reverse Braking
The emergency reverse braking function helps respond quickly when an abnormal situation occurs during operation.
Automatic Braking System
The automatic braking system helps maintain machine stability when the equipment stops.
Emergency Stop Button
An emergency stop button is provided for quickly stopping machine operation in an emergency.
Telescopic Outriggers
Telescopic support legs provide additional support during elevated operation and help improve overall working stability.
Working Height Options
The series provides multiple working-height configurations:
| Model | Working Height | Rated Load | Platform Size | Platform Extension |
|---|---|---|---|---|
| SJPT0407B | 6.0 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0607B | 7.8 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0608B | 8.3 m | 300 kg | 1.8 × 0.80 m | 0.9 m |
| SJPT0808B | 10.3 m | 300 kg | 1.8 × 0.80 m | 0.9 m |
| SJPT1012B | 11.8 m | 450 kg | 2.27 × 1.13 m | 0.9 m |
| SJPT1212B | 13.8 m | 450 kg | 2.35 × 1.13 m | 0.9 m |
Working height range: 6–13.8 m
Technical Specifications
| Specification | SJPT0407B | SJPT0607B | SJPT0608B | SJPT0808B | SJPT1012B | SJPT1212B |
|---|---|---|---|---|---|---|
| Maximum Working Height | 6 m | 7.8 m | 8.3 m | 10.3 m | 11.8 m | 13.8 m |
| Platform Size | 1.4×0.78 m | 1.4×0.78 m | 1.8×0.8 m | 1.8×0.8 m | 2.27×1.13 m | 2.35×1.13 m |
| Platform Extension | 0.6 m | 0.6 m | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Overall Height, Guardrail Raised | 2.11 m | 2.19 m | 2.23 m | 2.33 m | 2.39 m | 2.51 m |
| Overall Height, Guardrail Folded | 1.74 m | 1.82 m | 1.75 m | 1.85 m | 1.73 m | 1.85 m |
| Overall Length | 1.73 m | 1.73 m | 2.26 m | 2.26 m | 2.61 m | 2.61 m |
| Overall Width | 0.85 m | 0.85 m | 0.88 m | 0.88 m | 1.21 m | 1.21 m |
| Rated Load Capacity | 230 kg | 230 kg | 300 kg | 300 kg | 450 kg | 450 kg |
| Travel Speed, Stowed | 2 km/h | 2 km/h | 2 km/h | 2 km/h | 3.5 km/h | 3.5 km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Tires | 300×7 Solid Tires | 300×7 Solid Tires | 300×7 Solid Tires | 300×7 Solid Tires | 400×8 Solid Tires | 400×8 Solid Tires |
| Battery | 4×12V/32Ah | 4×12V/32Ah | 4×12V/45Ah | 4×12V/45Ah | 4×12V/45Ah | 4×12V/45Ah |
| Machine Weight | 820 kg | 900 kg | 1,160 kg | 1,260 kg | 2,240 kg | 2,450 kg |
Applications
Where Is an Electric Scissor Lift Used?
Electric scissor lifts are commonly used wherever workers need a stable elevated working platform.
Warehouses & Logistics
Used for:
Warehouse maintenance
High-level inventory work
Lighting replacement
Equipment inspection
Facility maintenance
Construction Sites
Suitable for:
Interior construction
Ceiling installation
Electrical installation
Building maintenance
Elevated finishing work
Industrial Facilities
The platform can be used for:
Machinery maintenance
Factory equipment inspection
Pipe and cable installation
Lighting maintenance
Routine facility servicing
Commercial Buildings
Typical applications include:
Shopping malls
Exhibition halls
Commercial buildings
Hotels
Public facilities
The appropriate model should be selected according to the required working height, rated load, platform dimensions and operating environment.
How to Choose the Right Scissor Lift?
When selecting an electric scissor lift, consider four main factors:
Working Height
Choose the machine according to the required working height.
This series provides working heights from 6 m to 13.8 m.
Load Capacity
Consider the combined weight of operators, tools and materials.
The available models provide rated capacities from 230 kg to 450 kg.
Platform Size
Larger platforms provide more working space, while compact platforms can be more suitable for restricted working areas.
Machine Dimensions
Check the overall width and folded height to ensure that the machine can pass through available doors, aisles and other access areas.
FAQ
What is an electric scissor lift?
An electric scissor lift is an elevated work platform that uses a scissor lifting mechanism to raise operators and equipment vertically. Battery-powered models provide convenient operation without relying on fuel-powered engines.
How high can this scissor lift reach?
This series provides maximum working heights from 6 m to 13.8 m, depending on the model.
What is the maximum load capacity?
The rated load capacity ranges from 230 kg to 450 kg depending on the model.
Does the scissor lift have a platform extension?
Yes. The models are equipped with a one-way platform extension. The extension ranges from 0.6 m to 0.9 m, depending on the model.
Is the scissor lift battery powered?
Yes. The series uses a rechargeable battery system and an electric drive motor.
What safety features does the machine have?
The machine is equipped with a platform self-locking gate, emergency lowering system, emergency stop button, automatic braking system, anti-pinch emergency reverse braking and telescopic support legs.
What industries use electric scissor lifts?
Electric scissor lifts are commonly used in warehouses, logistics facilities, construction, industrial plants, commercial buildings, maintenance operations and other elevated-work applications.
Can I choose different working heights?
Yes. Six models are available with working heights from 6 m to 13.8 m, allowing customers to choose a suitable configuration based on their application requirements.
