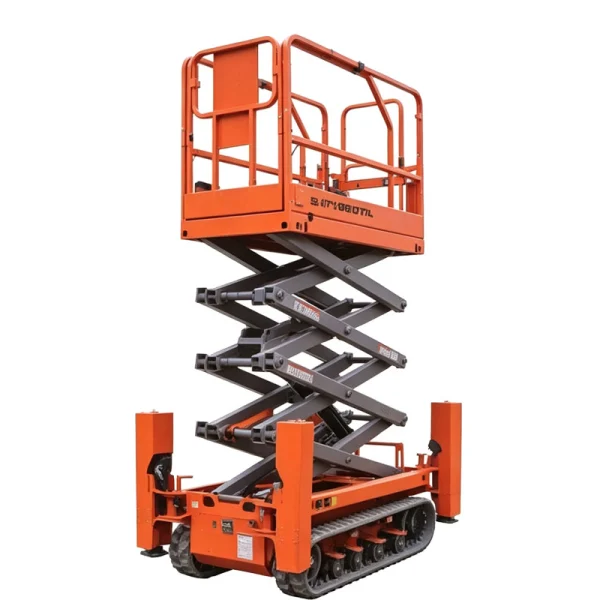

The Self-Propelled Tracked Outrigger Scissor Lift combines the mobility advantages of a tracked chassis with the additional stability provided by automatic leveling outriggers.

Designed for the 6–10 m working height class, the series offers maximum working heights of 6.0 m, 8.0 m, 8.3 m and 10.3 m.

Unlike a conventional tracked scissor lift, this model is equipped with automatic leveling outriggers, making it particularly suitable for applications where ground conditions require additional leveling and stabilization before elevated work.

The combination of:

Tracked Chassis + Self-Propelled Travel + Automatic Outrigger Leveling + 6–10 m Working Height

provides a versatile solution for construction, maintenance, installation and industrial elevated work.

Tracked Design for Better Ground Adaptability

The tracked chassis is one of the key features of this scissor lift.

Compared with conventional wheeled aerial platforms, tracks provide a larger ground contact area and good traction, helping the machine handle working environments where ground conditions may be less uniform.

The tracked design is suitable for applications involving:

• Construction sites

• Uneven ground

• Outdoor maintenance

• Industrial facilities

• Installation projects

• Areas requiring improved passage capability

The compact tracked structure also allows the machine to maintain a relatively narrow overall width of 0.92–0.96 m, depending on the model.

Self-Propelled Tracked Mobility

The machine is designed as a self-propelled tracked scissor lift, allowing operators to drive and reposition the equipment using its integrated travel system.

No manual pushing or external towing is required for normal repositioning.

The tracked drive system provides good traction while the AC motor delivers efficient and responsive travel performance.

This is particularly useful when operators need to move between different elevated work areas during the same project.

6–10 m Working Height

The series is designed specifically for the 6–10 m working height range.

Available maximum working heights include:

• 6.0 m

• 8.0 m

• 8.3 m

• 10.3 m

The different models allow customers to select a suitable machine according to the required access height, platform size, load capacity and working environment.

The highest model reaches 10.3 m, making it suitable for elevated work applications requiring approximately 10 m of working height.

Automatic Outrigger Leveling

The biggest difference between this model and a standard tracked scissor lift is the automatic leveling outrigger system.

The machine is equipped with four outriggers designed to provide additional stabilization when required.

With the one-button leveling function, operators can activate the leveling process conveniently instead of manually adjusting each outrigger individually.

The system is designed to:

• Simplify leveling operation

• Improve setup efficiency

• Support stable platform positioning

• Reduce manual adjustment

• Improve operational convenience

This feature is particularly useful when the machine is used on suitable uneven or inclined working surfaces.

Operators must always ensure that the ground conditions, slope, load and other operating conditions are within the manufacturer's specified limits.

One-Button Automatic Leveling

The one-button automatic leveling function makes setup easier.

After positioning the machine in a suitable working area, the operator can activate the automatic leveling function. The outriggers adjust to help level and stabilize the machine according to the system's operating logic.

Compared with manually adjusting multiple outriggers, automatic leveling can make machine setup more convenient and reduce preparation time.

This makes the tracked outrigger scissor lift particularly suitable for projects where the machine needs to be relocated and set up at multiple work locations.

Tracked Chassis + Outriggers

The combination of tracks and outriggers provides two complementary advantages.

Tracked Chassis

Provides:

• Good traction

• Better passage capability

• Larger ground contact area

• Convenient self-propelled movement

• Improved adaptability to suitable uneven surfaces

Automatic Outriggers

Provide:

• Additional stabilization

• Automatic leveling

• Convenient setup

• Improved working platform stability

Together, these features make the machine suitable for elevated work environments where both mobility and stabilization are important.

30% Gradeability

The listed models provide a maximum gradeability of 30%.

This provides good climbing capability for suitable working environments.

The actual operating conditions must always comply with the machine's technical specifications and safety requirements.

Efficient AC Motor

The machine uses an AC motor designed to provide:

• High efficiency

• High torque

• Long service life

• Responsive travel

• Reliable operation

The AC motor works together with the tracked drive system to provide self-propelled mobility.

This configuration is suitable for applications requiring frequent repositioning around the work site.

New-Energy Power System

The machine uses a rechargeable new-energy power system.

Depending on the model, battery configurations include:

• 2 × 12V/120Ah

• 4 × 12V/83Ah

The battery-powered configuration provides a practical solution for many indoor and outdoor elevated work applications.

The compact power system also helps maintain the machine's relatively compact dimensions.

Intelligent Human-Machine Interaction

The machine incorporates an intelligent control and monitoring system.

Available functions include:

• Human-machine interaction

• Parameter setting

• Fault diagnosis

• Parameter reading

• Parameter writing

• System monitoring

The display system allows operators to access important machine information and supports maintenance personnel during equipment inspection.

Fault Diagnosis System

The integrated fault diagnosis system helps identify potential equipment problems and supports more efficient troubleshooting.

It can assist with:

• Equipment status monitoring

• Fault identification

• Parameter checking

• Maintenance troubleshooting

• System inspection

This is especially useful for customers who use the equipment frequently or operate multiple machines.

Large and Extendable Working Platform

Depending on the model, platform dimensions are:

• 1.4 × 0.78 m

• 1.8 × 0.8 m

Platform extensions are:

• 0.6 m

• 0.9 m

The extension provides additional horizontal access and working space for operators.

This can help reduce unnecessary repositioning when the work area extends beyond the main platform.

Multiple Safety Protection Systems

The Self-Propelled Tracked Outrigger Scissor Lift incorporates multiple safety functions.

Platform Self-Locking Gate

The self-locking platform gate helps prevent accidental opening during elevated work.

Emergency Lowering System

The emergency lowering system provides a method for lowering the platform if normal operation is unavailable.

Automatic Outrigger Leveling

The automatic leveling system helps simplify machine setup and support stable positioning.

Automatic Braking

The automatic braking system helps stabilize the machine when travel is stopped.

Emergency Stop

The emergency stop button allows operators to quickly stop machine operation in an emergency.

Tilt Protection

The tilt protection system provides additional protection when excessive inclination is detected.

Fault Diagnosis

The fault diagnosis system helps operators and maintenance personnel identify potential machine faults.

Convenient Maintenance

The machine is designed with maintenance accessibility in mind.

The modular design and accessible components help simplify routine inspection and servicing.

The intelligent monitoring and fault diagnosis functions can also help maintenance personnel identify potential problems more efficiently.

Model Options

Working Height Class: 6–10 m

Technical Specifications

Applications

Construction Sites

The tracked chassis and automatic leveling outriggers make this machine suitable for elevated construction and installation work.

Typical applications include:

• Ceiling installation

• Electrical installation

• Lighting installation

• Interior construction

• Building maintenance

• Elevated equipment installation

The tracked chassis provides mobility while the outriggers support machine leveling and stabilization when required.

Industrial Maintenance

The machine can be used for elevated maintenance in industrial facilities.

Applications include:

• Machinery maintenance

• Factory equipment inspection

• Lighting replacement

• Cable installation

• Equipment servicing

• Facility maintenance

• Elevated repair work

The self-propelled tracked system allows operators to reposition the equipment between suitable work locations.

Outdoor Maintenance

The tracked configuration provides good passage capability for suitable outdoor work environments.

Applications may include:

• Building maintenance

• Infrastructure servicing

• Outdoor equipment installation

• Facility inspection

• Construction projects

The automatic leveling outriggers are particularly useful when the selected working area requires machine leveling within the manufacturer's permitted operating conditions.

Warehouse and Facility Applications

The compact width of 0.92–0.96 m makes selected models suitable for certain restricted working areas.

Potential applications include:

• High-level lighting maintenance

• Ceiling inspection

• Electrical maintenance

• Equipment servicing

• Facility installation

Site access and floor conditions should always be checked before selecting the machine.

How to Choose the Right Tracked Outrigger Scissor Lift?

1. Determine Working Height

Available maximum working heights are:

6.0 m → 8.0 m → 8.3 m → 10.3 m

Select the model according to the actual required working height.

2. Consider Load Capacity

Available rated load capacities are:

230 kg and 300 kg

The combined weight of operators, tools and approved materials should remain within the specified load limit.

3. Consider Ground Conditions

Because this machine uses a tracked chassis and outriggers, ground conditions remain an important consideration.

Check:

• Ground surface

• Ground bearing capacity

• Inclination

• Access conditions

• Working area

• Indoor/outdoor environment

4. Consider Platform Size

The platform is available in:

1.4 × 0.78 m

and

1.8 × 0.8 m

Choose according to the required working area and number of operators/tools.

5. Consider Platform Extension

The available platform extensions are:

0.6 m and 0.9 m

A longer extension can provide additional access to elevated work areas.

Why Choose a Self-Propelled Tracked Outrigger Scissor Lift?

Tracked Mobility

The tracked chassis provides good traction and passage capability for demanding working environments.

Self-Propelled Operation

The integrated drive system allows operators to reposition the machine without manual pushing or external towing.

Automatic Outrigger Leveling

The one-button leveling system simplifies machine setup and provides additional stabilization.

6–10 m Working Height

Four models provide maximum working heights from 6 m to 10.3 m.

30% Gradeability

The machines provide up to 30% maximum gradeability under specified operating conditions.

230–300 kg Load Capacity

Different models provide suitable capacity for operators, tools and approved materials.

Intelligent Monitoring

Parameter setting, fault diagnosis, parameter reading and writing, and system monitoring improve equipment management.

AC Motor

The AC motor provides high efficiency, high torque and long service life.

Multiple Safety Systems

Tilt protection, automatic braking, emergency stop, emergency lowering and other safety systems provide additional operational protection.

FAQ

What is a tracked outrigger scissor lift?

A tracked outrigger scissor lift is an elevated work platform that combines a tracked chassis with stabilizing outriggers. The tracks provide mobility and traction, while the outriggers help level and stabilize the machine before elevated operation.

Is this scissor lift self-propelled?

Yes. This is a Self-Propelled Tracked Scissor Lift, allowing the operator to drive and reposition the machine using its integrated tracked drive system.

What is the working height?

The series covers the 6–10 m working height range, with maximum working heights of 6 m, 8 m, 8.3 m and 10.3 m.

What is the maximum working height?

The SJPT0810TLE provides a maximum working height of 10.3 m.

Why does the machine use tracks?

The tracked chassis provides good traction, ground contact and passage capability, making it suitable for certain uneven or demanding working environments.

Does it have outriggers?

Yes. All listed models are equipped with automatic leveling outriggers.

How are the outriggers operated?

The machine uses a one-button automatic leveling system, simplifying the leveling and setup process.

What is the maximum gradeability?

The listed models have a maximum gradeability of 30%.

What is the rated load capacity?

The rated load capacity ranges from 230 kg to 300 kg, depending on the model.

What platform sizes are available?

Platform sizes are 1.4 × 0.78 m and 1.8 × 0.8 m.

Does the platform have an extension?

Yes. Platform extensions are available in 0.6 m and 0.9 m configurations.

What type of motor does it use?

The machine uses an AC motor designed for high efficiency, high torque and long service life.

Does it have a fault diagnosis system?

Yes. The machine includes a fault diagnosis system together with parameter setting, parameter reading and writing, and system monitoring.

What safety systems are included?

The machine includes:

• Automatic outrigger leveling

• Tilt protection

• Automatic braking

• Emergency stop

• Emergency lowering

• Platform self-locking gate

• Fault diagnosis system

Request a Quote for a 6–10 m Tracked Outrigger Scissor Lift

Looking for a Self-Propelled Tracked Outrigger Scissor Lift with 6–10 m working height?

This series combines tracked mobility, self-propelled operation, automatic outrigger leveling, AC motor drive and multiple safety systems for elevated work in construction, industrial maintenance and facility servicing.

Available models provide 6.0 m, 8.0 m, 8.3 m and 10.3 m maximum working heights, with rated load capacities from 230 kg to 300 kg.

Contact us for model selection, technical specifications and a quotation.

Please provide:

• Required working height

• Load requirement

• Working environment

• Platform size requirements

• Ground conditions

• Quantity required

• Destination country

Our team can recommend a suitable Self-Propelled Tracked Outrigger Scissor Lift according to your project requirements.
