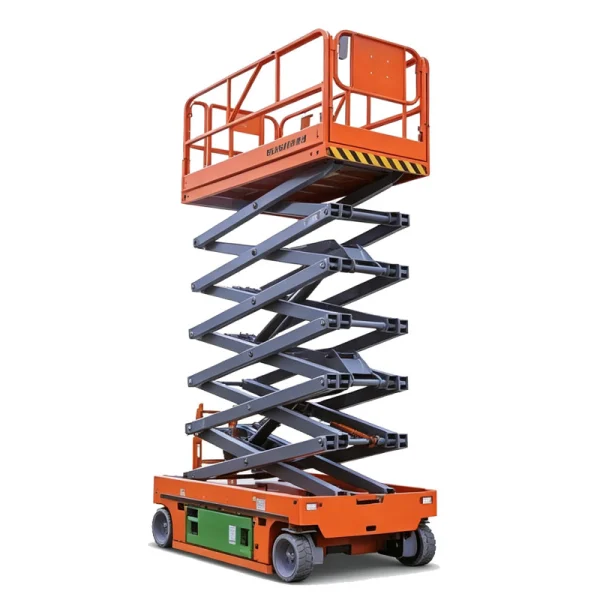

The Self-Propelled Wheeled Scissor Lift is a high-height mobile elevated work platform designed for applications that require reliable vertical access, convenient movement and efficient operation.

With maximum working heights from 11.8 m to 15.8 m, this series covers the 12–16 m working height class and provides a practical solution for elevated maintenance, installation and construction tasks.

The machine combines a wheeled chassis, self-propelled travel, full-height travel capability, 450 kg rated load capacity and multiple safety protection systems.

Compared with compact scissor lifts designed for lower working heights, this series is designed for applications where operators need greater vertical access while maintaining the ability to reposition the equipment efficiently around the work site.

1. Wheeled Self-Propelled Design

The wheeled self-propelled structure is one of the main advantages of this scissor lift series.

The machine is equipped with wheels and an integrated drive system, allowing the operator to move the equipment independently between suitable working locations.

This eliminates the need for manual pushing or external towing during normal repositioning.

The wheeled configuration also provides good mobility and transportation convenience for a machine designed for working heights of up to approximately 16 m.

Depending on the model, overall width ranges from 1.15 m to 1.41 m, providing a balance between platform size, machine stability and site accessibility.

2. 12–16 m Working Height

This series is specifically designed for higher elevated work requirements.

The available maximum working heights are:

• 11.8 m

• 13.8 m

• 15.8 m

These models correspond to the 12–16 m working height range and allow users to select a suitable machine according to their actual access requirements.

For projects requiring approximately 12 m of working height, the SJPT1012 configuration provides a compact solution.

For higher applications, the SJPT1212 reaches 13.8 m, while the SJPT1412 provides up to 15.8 m maximum working height.

3. Full-Height Travel Capability

The machine is designed to support travel at full working height under applicable operating conditions.

This is particularly valuable for elevated maintenance and installation work where multiple work positions are located relatively close to one another.

Without full-height travel, operators may need to repeatedly lower the platform before moving to the next position.

A typical workflow would be:

Lower Platform → Move → Stop → Raise Platform → Continue Working

With full-height travel capability, suitable operations can be performed by:

Raise Platform → Travel to the Next Suitable Position → Continue Working

This can reduce unnecessary lifting and lowering cycles and improve productivity during multi-location elevated work.

Because this is a high-height scissor lift, operators must always comply with the manufacturer's operating instructions, load limits, ground requirements and applicable safety regulations when traveling with the platform raised.

4. Optimized Machine Stability and Smooth Operation

The overall machine smoothness has been optimized to provide stable performance during movement and elevated operation.

The chassis, lifting structure, hydraulic system and control system are designed to work together to provide controlled lifting and travel.

This is particularly important for higher working heights, where machine stability and controlled movement are essential for safe and efficient operation.

5. Optimized Electrical and Hydraulic System

The electrical and hydraulic systems are optimized and matched to improve overall machine performance.

The coordinated design helps support:

• Efficient lifting operation

• Stable hydraulic performance

• Smooth machine movement

• High operating cycle capability

• Long operating endurance

• Reliable daily operation

The optimized system is designed to provide durable performance during repeated lifting and travel cycles.

6. 450 kg Rated Load Capacity

All three models in this series provide a 450 kg rated load capacity.

This provides sufficient capacity for approved combinations of operators, tools and working materials within the specified load limits.

The load capacity should always be considered together with platform dimensions and operating height when selecting the correct model.

7. Large Working Platform

The platform provides a relatively large working area for elevated maintenance and installation tasks.

Platform sizes include:

• 2.27 × 1.13 m

• 2.73 × 1.13 m

The larger platform configuration is designed for applications requiring additional working space.

8. Extendable Working Platform

The working platform includes a one-way extension platform.

Depending on the model, the extension length is:

• 0.9 m

• 1.1 m

The extension provides additional reach and working space, helping operators access areas beyond the main platform without unnecessarily repositioning the entire machine.

9. Intelligent Display and Human-Machine Interaction

The machine is equipped with a display-based human-machine interaction system.

The system supports functions including:

• Parameter setting

• Fault diagnosis

• Parameter reading

• Parameter writing

• System monitoring

The display provides operators with important machine information and makes it easier to monitor equipment status during operation.

10. Fault Diagnosis System

The integrated fault diagnosis system helps maintenance personnel identify potential equipment problems more efficiently.

By providing machine status and diagnostic information, the system can assist with:

• Equipment inspection

• Fault identification

• Maintenance troubleshooting

• System monitoring

• Parameter management

This can help reduce troubleshooting time and improve maintenance efficiency.

11. Modular and Standardized Components

The machine uses a modular component design with a high degree of component commonality.

This design provides several practical advantages:

• Simplified maintenance

• Easier component replacement

• Improved parts compatibility

• Reduced maintenance complexity

• Reliable long-term operation

The standardized and modular approach is particularly useful for fleet operators and customers who operate multiple machines.

Safety Features

The Self-Propelled Wheeled Scissor Lift is equipped with multiple safety systems designed to support stable and controlled operation.

Automatic Pothole Protection

The automatic pothole protection system helps improve stability when the machine operates in areas where small ground depressions may be present.

Tilt Protection System

The tilt protection system provides additional protection when the machine encounters excessive inclination.

Automatic Braking System

The automatic braking system helps stabilize the machine when travel is stopped and provides additional control during positioning.

Emergency Stop Button

The emergency stop button allows the operator to quickly stop machine operation when an emergency occurs.

Emergency Lowering System

The emergency lowering system provides a way to lower the platform when normal operating functions are unavailable.

Platform Self-Locking Gate

The self-locking platform gate helps prevent accidental opening during elevated work.

Full-Height Travel Protection

The machine incorporates safety functions associated with elevated travel to support controlled operation when the platform is raised.

Model Options

The series provides three main models covering the 12–16 m working height range.

Working Height Class: 12–16 m

Technical Specifications

Applications

Construction and Building Installation

The 12–16 m Wheeled Scissor Lift is suitable for elevated construction and installation work such as:

• Ceiling installation

• Electrical installation

• Lighting installation

• HVAC-related installation

• Interior construction

• Building maintenance

• Elevated equipment installation

The higher working height allows workers to access elevated areas that are beyond the reach of lower scissor lift models.

Industrial Facilities

Industrial plants often require regular maintenance at elevated positions.

Typical applications include:

• Factory equipment maintenance

• Machinery inspection

• Lighting replacement

• Cable installation

• Pipe maintenance

• Structural inspection

• Facility servicing

The self-propelled wheeled design allows the machine to be repositioned between different work areas without relying on external towing equipment.

Warehouses and Logistics Facilities

The machine can be used for higher-level maintenance tasks in large warehouses and logistics facilities.

Applications include:

• High-level lighting maintenance

• Ceiling inspection

• Equipment maintenance

• Facility servicing

• High-level installation work

Site access, floor conditions, aisle width and operating height should be evaluated before selecting a model.

Commercial and Public Buildings

The scissor lift can also be used in large commercial and public facilities, including:

• Shopping centers

• Exhibition halls

• Large indoor venues

• Hotels

• Commercial buildings

• Public facilities

Its mobile design makes it suitable for projects requiring work at multiple elevated positions.

How to Choose the Right 12–16 m Wheeled Scissor Lift?

1. Determine the Required Working Height

First determine the actual working height required for your project.

The available models provide:

11.8 m → 13.8 m → 15.8 m

For marketing purposes, these models can be grouped into the 12–16 m working height range.

2. Consider Load Requirements

All three models have a rated load capacity of 450 kg.

Consider the combined weight of operators, tools and approved materials when determining the required capacity.

3. Select the Appropriate Platform Size

The platform sizes are:

2.27 × 1.13 m

and

2.73 × 1.13 m

The larger SJPT1412 platform provides additional working space for applications requiring more room.

4. Consider Platform Extension

The available extensions are 0.9 m and 1.1 m.

If the working area requires additional horizontal reach, a model with a longer platform extension may be more suitable.

5. Check Site Accessibility

Before purchasing, customers should confirm:

• Door dimensions

• Aisle width

• Floor conditions

• Transportation conditions

• Working area

• Maximum allowable equipment weight

• Indoor or outdoor application

The machine width ranges from 1.15 m to 1.41 m depending on the model.

Advantages of This Wheeled Scissor Lift

High Working Height

Provides up to 15.8 m maximum working height, covering the 12–16 m working height class.

Wheeled Self-Propelled Mobility

Allows operators to drive and reposition the machine without manual pushing or external towing.

Full-Height Travel

Allows travel at full working height under applicable operating conditions, improving efficiency during multi-location elevated work.

450 kg Load Capacity

Provides a substantial working load capacity for approved operators, tools and materials.

Intelligent Monitoring

Display-based human-machine interaction supports parameter setting, fault diagnosis, parameter reading and writing, and system monitoring.

Modular Construction

Common and modular components help simplify maintenance and component replacement.

Multiple Safety Systems

Automatic pothole protection, tilt protection, automatic braking, emergency stop and emergency lowering provide additional operational protection.

FAQ

What is a self-propelled wheeled scissor lift?

A self-propelled wheeled scissor lift is a mobile elevated work platform equipped with wheels and an integrated drive system. It allows operators to drive and reposition the machine without manually pushing or towing it.

What is the working height of this scissor lift?

The series provides maximum working heights of 11.8 m, 13.8 m and 15.8 m, covering the 12–16 m working height class.

What is the highest working height available?

The SJPT1412 provides a maximum working height of 15.8 m.

Can the scissor lift travel at full working height?

Yes. The machine is designed to support travel at full working height under applicable operating conditions and according to the manufacturer's operating requirements.

What is the rated load capacity?

All three models provide a 450 kg rated load capacity.

What platform sizes are available?

The available platform sizes are 2.27 × 1.13 m and 2.73 × 1.13 m.

Does the platform have an extension?

Yes. The platform extension is 0.9 m on SJPT1012 and SJPT1212, and 1.1 m on SJPT1412.

What safety systems does the machine have?

The machine includes:

• Automatic pothole protection

• Tilt protection

• Automatic braking

• Emergency stop

• Emergency lowering

• Platform self-locking gate

• Full-height travel protection

Does it have a fault diagnosis system?

Yes. The machine includes an integrated fault diagnosis system together with parameter setting, parameter reading and writing, and system monitoring functions.

Is the machine suitable for construction?

Yes. It can be used for elevated installation, ceiling work, electrical installation, maintenance and other construction-related applications where the required working height and site conditions are suitable.

Is it suitable for industrial maintenance?

Yes. The machine is suitable for industrial equipment inspection, machinery maintenance, lighting replacement, cable installation and other elevated maintenance tasks.

How do I choose between the three models?

The main factors are required working height, platform size, platform extension, machine dimensions and working environment. Choose from 11.8 m, 13.8 m or 15.8 m maximum working height according to your application.

Request a Quote for a 12–16 m Wheeled Scissor Lift

Looking for a Self-Propelled Wheeled Scissor Lift with 12–16 m working height?

This series combines wheeled mobility, self-propelled operation, full-height travel, 450 kg load capacity and multiple safety systems for demanding elevated work applications.

Whether you need an 11.8 m, 13.8 m or 15.8 m maximum working height, we can help you select a suitable model according to your working environment and project requirements.

Contact us for model selection, technical specifications and a quotation.

Please provide:

• Required working height

• Load requirement

• Platform size

• Working environment

• Quantity required

• Destination country

We can recommend a suitable Self-Propelled Wheeled Scissor Lift for your project.
