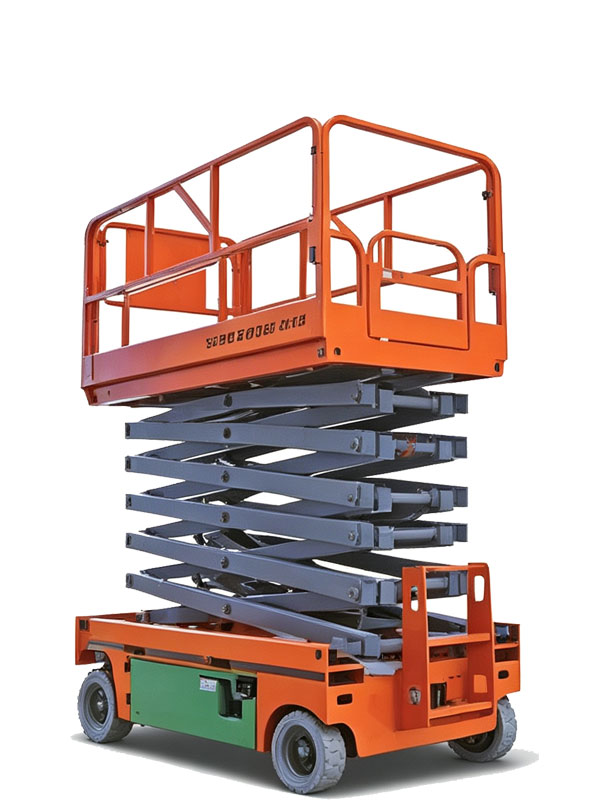

The Self-Propelled Wheeled Scissor Lift is a compact mobile aerial work platform designed for elevated maintenance, installation, construction and facility servicing. With a 6–10 m working height range, wheeled chassis, self-propelled operation and multiple safety protection systems, this series provides a flexible solution for applications that require frequent movement between different working locations.
The wheeled structure makes the machine convenient to transport and maneuver, while the self-propelled drive system allows operators to reposition the platform efficiently without manual pushing or towing. The machine also supports travel at full working height under applicable operating conditions, reducing repeated lifting and lowering when several elevated work positions are located close to each other.
Available models provide rated load capacities from 230 kg to 300 kg, platform sizes from 1.4 × 0.78 m to 1.8 × 0.8 m, and platform extensions from 0.6 m to 0.9 m, allowing customers to select a suitable configuration according to working height, load and application requirements.
Wheeled Design for Easy Transportation and Mobility
The wheeled design is one of the key features of this scissor lift series.
Compared with larger aerial work platforms, the compact chassis provides good accessibility in indoor and outdoor working environments. The machine can be conveniently transported between different working areas and repositioned according to changing work requirements.
The overall width of the available models is only 0.79–0.84 m, while the overall length ranges from 1.52 m to 2.10 m. This compact structure makes the equipment suitable for warehouses, factories, commercial buildings and construction areas where working space may be limited.
The solid wheel configuration provides stable contact with the working surface and supports frequent movement during daily operations.
Self-Propelled Operation
The self-propelled system allows the operator to drive the scissor lift directly instead of manually pushing or towing the machine.
This is particularly useful when elevated work needs to be completed at multiple locations. Operators can reposition the machine more efficiently, reducing physical effort and unnecessary downtime between work positions.
The machine uses a DC motor drive system, providing responsive movement and efficient power transmission. The driving system is designed for convenient operation and precise positioning during daily elevated work.
Travel at Full Working Height
A major advantage of this Self-Propelled Wheeled Scissor Lift is its full-height travel capability.
For applications where several work points are located close to one another, the operator can reposition the machine while the platform remains raised, when permitted by the machine's operating conditions and applicable safety requirements.
Traditional working procedures may require:
Lower the platform → Move the machine → Stop → Raise the platform → Continue working
With full-height travel capability, suitable work environments can instead allow:
Raise the platform → Travel to the next suitable work position → Continue working
This can reduce unnecessary lifting and lowering cycles and improve productivity during multi-location elevated work.
Full-height travel is particularly useful for maintenance, installation and facility servicing tasks where workers need to move between nearby elevated positions.
Operators must always follow the manufacturer's operating instructions, load limits, ground requirements and applicable safety regulations when traveling with the platform raised.
6–10 m Working Height Range
The series is designed for elevated work requirements from approximately 6 m to 10 m, with the actual maximum working heights ranging from 6.0 m to 10.3 m depending on the model.
Available configurations include:
6.0 m working height
7.8 m working height
8.3 m working height
10.3 m working height
This range allows customers to select a model based on the required access height, working environment and platform capacity.
For applications requiring lower working heights and greater compactness, the 6 m models provide a practical solution. For higher maintenance and installation work, the 8.3 m and 10.3 m models provide additional vertical reach.
Stable Working Platform
The scissor mechanism provides vertical lifting and creates a stable working platform for operators, tools and approved materials.
Depending on the model, platform dimensions range from 1.4 × 0.78 m to 1.8 × 0.8 m.
The platform is also equipped with a one-way extension section, providing additional working reach.
Available platform extensions include:
0.6 m for compact models
0.9 m for larger models
The extension can provide additional workspace and make it easier for operators to reach areas that are beyond the main platform.
Multiple Safety Protection Systems
Safety is a key consideration for elevated work platforms. This wheeled scissor lift incorporates multiple protection systems to support stable and controlled operation.
Platform Self-Locking Gate
The platform access gate uses a self-locking design to help prevent accidental opening during elevated operation.
Emergency Lowering System
An emergency lowering system is provided to allow the platform to be lowered when normal operating functions are unavailable.
Automatic Pothole Protection
The automatic pothole protection system is designed to improve stability when the machine operates in working environments where small floor depressions may be present.
Tilt Protection System
The tilt protection system provides additional protection when the machine encounters excessive inclination.
Automatic Braking
The automatic braking system helps keep the machine stable when travel is stopped and supports controlled positioning.
Emergency Stop Button
An emergency stop button allows the operator to quickly stop machine operation when an emergency situation occurs.
Fault Diagnosis System
The integrated fault diagnosis system helps identify equipment conditions and potential faults, supporting more efficient inspection and maintenance.
Full-Height Travel Protection
The machine incorporates safety functions associated with elevated travel to help maintain controlled operation when traveling with the platform raised.
Intelligent Control and System Monitoring
The machine incorporates several intelligent functions to improve equipment management and daily operation.
The system supports:
Human-machine interaction
Fault diagnosis
Parameter reading
Parameter writing
System monitoring
These functions provide operators and maintenance personnel with access to important equipment information.
Fault diagnosis can help maintenance personnel identify potential problems more efficiently, while system monitoring provides better visibility into the operating condition of the machine.
Efficient New-Energy Power System
The scissor lift uses a rechargeable new-energy power system.
Compared with conventional fuel-powered aerial equipment, the battery-powered configuration provides a cleaner operating solution for many indoor and semi-indoor applications.
The compact power system also contributes to the machine's relatively compact structure, making the equipment easier to use in warehouses, factories, commercial buildings and other restricted working environments.
DC Motor Drive
The machine uses a DC motor drive system designed to provide efficient and responsive travel.
The drive system offers:
Efficient power transmission
Responsive movement
Convenient operation
Good positioning control
Suitable performance for frequent repositioning
The combination of DC motor drive and wheeled chassis allows the machine to move efficiently between different work locations.
Model Options
The Self-Propelled Wheeled Scissor Lift series provides six configurations covering different working heights and platform capacities.
| Model | Maximum Working Height | Rated Load | Platform Size | Platform Extension |
|---|---|---|---|---|
| SJPT0407 | 6.0 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0407E | 6.0 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0607 | 7.8 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0607E | 7.8 m | 230 kg | 1.4 × 0.78 m | 0.6 m |
| SJPT0608 | 8.3 m | 300 kg | 1.8 × 0.80 m | 0.9 m |

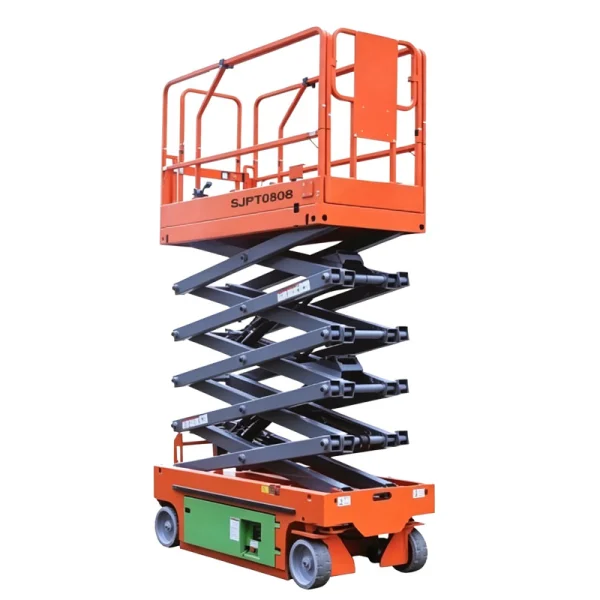

| SJPT0808 | 10.3 m | 300 kg | 1.8 × 0.80 m | 0.9 m |
Technical Specifications
| Specification | SJPT0407 | SJPT0407E | SJPT0607 | SJPT0607E | SJPT0608 | SJPT0808 |
|---|---|---|---|---|---|---|
| Maximum Working Height | 6 m | 6 m | 7.8 m | 7.8 m | 8.3 m | 10.3 m |
| Platform Size | 1.4 × 0.78 m | 1.4 × 0.78 m | 1.4 × 0.78 m | 1.4 × 0.78 m | 1.8 × 0.8 m | 1.8 × 0.8 m |
| Platform Extension | 0.6 m | 0.6 m | 0.6 m | 0.6 m | 0.9 m | 0.9 m |
| Overall Height, Guardrail Raised | 2.09 m | 2.09 m | 2.17 m | 2.17 m | 2.21 m | 2.31 m |
| Overall Height, Guardrail Folded | 1.72 m | 1.72 m | 1.80 m | 1.80 m | 1.73 m | 1.83 m |
| Overall Length | 1.52 m | 1.52 m | 1.52 m | 1.52 m | 2.10 m | 2.10 m |
| Overall Width | 0.79 m | 0.79 m | 0.79 m | 0.79 m | 0.84 m | 0.84 m |
| Rated Load Capacity | 230 kg | 230 kg | 230 kg | 230 kg | 300 kg | 300 kg |
| Travel Speed, Stowed | 2 km/h | 2 km/h | 2 km/h | 2 km/h | 2 km/h | 2 km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Wheel Size | Φ305 × 100 mm | Φ305 × 100 mm | Φ305 × 100 mm | Φ305 × 100 mm | Φ305 × 100 mm | Φ305 × 100 mm |
| Battery | 2 × 12V/120Ah | 2 × 12V/100Ah | 2 × 12V/120Ah | 2 × 12V/100Ah | 4 × 12V/83Ah | 4 × 12V/83Ah |
| Machine Weight | 1,040 kg | 950 kg | 1,120 kg | 1,030 kg | 1,360 kg | 1,450 kg |
Applications
Warehouse and Logistics Applications
The compact dimensions and wheeled design make this scissor lift suitable for many warehouse maintenance tasks.
Typical applications include:
High-level lighting maintenance
Ceiling inspection
Warehouse facility maintenance
Electrical installation
Equipment inspection
Building service work
The self-propelled system makes it easier to move between different work locations.
Construction Applications
The Wheeled Scissor Lift can be used for various construction and installation tasks where vertical access is required.
Typical applications include:
Ceiling installation
Electrical installation
Interior finishing
Lighting installation
Building maintenance
Elevated equipment installation
The full-height travel capability can be particularly useful when multiple work points are located within the same construction area.
Industrial Applications
Industrial facilities often require regular inspection and maintenance at elevated positions.
The machine can be used for:
Machinery maintenance
Factory equipment inspection
Lighting replacement
Cable installation
Pipe maintenance
Facility servicing
Elevated repair work
Its compact structure and self-propelled operation provide flexibility for different industrial environments.
Commercial Building Applications
The machine can also be used for elevated maintenance in:
Shopping malls
Hotels
Exhibition halls
Commercial buildings
Public facilities
Large indoor venues
The relatively narrow machine width can be advantageous when working in areas with limited access.
How to Choose the Right Self-Propelled Wheeled Scissor Lift?
Selecting the correct model should be based on several application requirements.
1. Determine the Required Working Height
Working height is the first factor to consider.
This series covers 6 m to 10.3 m, allowing customers to select a suitable model for different elevated work requirements.
2. Consider the Required Load Capacity
The rated load capacity ranges from 230 kg to 300 kg.
When selecting the equipment, consider the combined weight of operators, tools and materials.
3. Check Platform Dimensions
The platform size ranges from 1.4 × 0.78 m to 1.8 × 0.8 m.
If more working space is required, the larger platform configurations may be more suitable.
4. Consider the Platform Extension
The platform extension is available in 0.6 m and 0.9 m configurations.
A longer extension can provide additional access to areas beyond the main platform.
5. Consider Site Accessibility
Check:
Door width
Aisle width
Floor conditions
Working area
Transportation requirements
Indoor or outdoor application
The available machine widths are 0.79 m and 0.84 m, depending on the model.
6. Consider Repositioning Frequency
If workers need to move frequently between multiple elevated positions, the self-propelled operation and full-height travel capability can help improve working efficiency.
Why Choose a Wheeled Scissor Lift?
A Wheeled Scissor Lift provides several advantages for customers who need a mobile elevated work platform.
Convenient Mobility
The wheeled chassis makes transportation and repositioning easier.
Self-Propelled Operation
Operators can drive the machine directly without manually pushing or towing it.
6–10 m Working Height
Multiple models are available for different elevated work requirements.
Full-Height Travel
The machine can travel at full working height under applicable operating conditions, helping reduce unnecessary lowering and raising cycles.
Compact Dimensions
The narrow chassis allows the machine to work in relatively restricted areas.
Multiple Safety Systems
Pothole protection, tilt protection, automatic braking, emergency stop and emergency lowering provide additional operational protection.
Easy Maintenance
Integrated pull-out trays on both sides provide convenient access for inspection and maintenance.
FAQ
What is a wheeled scissor lift?
A wheeled scissor lift is a mobile elevated work platform equipped with wheels for transportation and positioning. It raises operators vertically using a scissor lifting mechanism.
Is this a self-propelled scissor lift?
Yes. The machine is equipped with a self-propelled drive system, allowing operators to drive and reposition the platform directly.
What is the working height of this wheeled scissor lift?
The series covers 6 m to 10.3 m maximum working height, corresponding to the 6–10 m working-height range.
Can the machine travel at full working height?
Yes. The machine is designed to support travel at full working height, subject to the specified operating conditions, load limits and applicable safety requirements.
What is the maximum load capacity?
The available models have rated load capacities of 230 kg or 300 kg.
What is the platform size?
Platform dimensions range from 1.4 × 0.78 m to 1.8 × 0.8 m, depending on the model.
Does the platform have an extension?
Yes. The platform extension is available in 0.6 m or 0.9 m configurations.
What safety systems are included?
The machine includes a self-locking platform gate, emergency lowering system, automatic pothole protection, tilt protection, automatic braking, emergency stop and fault diagnosis.
What type of motor does the scissor lift use?
The machine uses a DC motor drive system for efficient and responsive travel.
Is it suitable for warehouse applications?
Yes. The compact wheeled design, narrow width and self-propelled operation make it suitable for many warehouse maintenance and elevated work applications.
How do I choose the right model?
Select the model according to required working height, load capacity, platform size, platform extension, working environment and transportation requirements.
Request a Quote for a Self-Propelled Wheeled Scissor Lift
Looking for a Wheeled Scissor Lift with 6–10 m working height?
This series provides a combination of wheeled mobility, self-propelled operation, full-height travel and multiple safety protection systems for efficient elevated work.
Whether you need a compact 6 m model or a higher 10.3 m configuration, we can help you select a suitable model based on your working requirements.
Contact us for model selection, technical specifications and a quotation.
Please provide:
Required working height
Required load capacity
Platform size requirements
Working environment
Quantity required
Destination country
Our team can recommend a suitable Self-Propelled Wheeled Scissor Lift according to your application.
