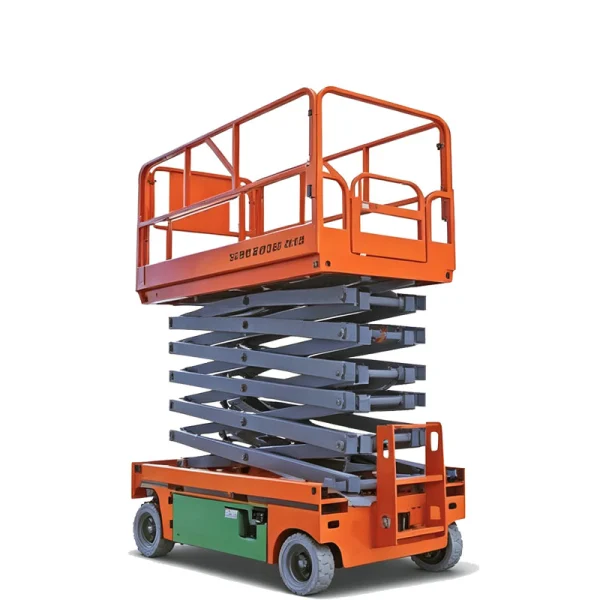

The Self-Propelled Self-Leveling Wheeled 4WD Scissor Lift is designed for customers who need a high working height together with flexible driving performance and automatic chassis leveling.
The series provides maximum working heights of 13.8 m and 15.8 m, corresponding to the 14–16 m working height class.
Its most distinctive feature is the combination of:
Wheeled Chassis + Self-Propelled Travel + 2WD/4WD Switching + Automatic Chassis Leveling + 14–16 m Working Height
Instead of using a fixed two-wheel-drive or four-wheel-drive configuration, the machine allows operators to select the appropriate drive mode according to the operating condition.
At higher travel speeds, 2WD mode provides efficient driving performance. When stronger traction is required at low speeds, 4WD mode can be selected.
14–16 m Working Height
The machine is designed for elevated work in the 14–16 m height class.
Available maximum working heights are:
13.8 m
15.8 m
The SJPT1412E-T4 reaches a maximum working height of 15.8 m, making it suitable for applications requiring approximately 16 m of elevated access.
The different platform sizes and machine dimensions allow customers to select the appropriate model according to their project requirements.
Self-Leveling Wheeled Chassis
The automatic chassis leveling system is one of the key features of this scissor lift.
Instead of relying only on a fixed chassis position, the machine can automatically adjust the chassis leveling system to help maintain a suitable level condition.
This feature provides:
Automatic leveling
Easier machine setup
Improved operational convenience
Additional stability support
Better adaptability to suitable working surfaces
The leveling function should always be used within the manufacturer's specified operating conditions and limits.
Automatic Chassis Leveling
The machine uses an integrated automatic self-leveling system.
When the machine is positioned on a suitable working surface, the leveling system can automatically adjust the chassis according to the machine's control logic.
This eliminates the need for operators to manually perform complex leveling adjustments.
For elevated operations, maintaining an appropriate machine level is particularly important.
The automatic leveling function therefore provides a more convenient solution for applications where ground conditions require chassis adjustment.
2WD / 4WD Freely Switchable
The 2WD/4WD switchable drive system is another major advantage of this model.
The machine can operate in two different drive modes:
2WD Mode
The two-wheel-drive mode is designed for:
Higher travel efficiency
Faster repositioning
Lower drive energy demand
Suitable high-speed travel
The maximum stowed travel speed is 4.5 km/h.
4WD Mode
Four-wheel drive is designed for:
Stronger traction
Higher low-speed driving force
Improved driving capability
Suitable demanding travel conditions
This allows the operator to choose the appropriate drive mode according to the working environment.
High-Speed 2WD + Low-Speed 4WD
The drive strategy can be summarized as:
High-Speed Travel → 2WD
Low-Speed / High-Traction Operation → 4WD
This configuration combines the efficiency advantages of two-wheel drive with the traction advantages of four-wheel drive.
Compared with a machine permanently configured for four-wheel drive, the switchable system provides greater flexibility.
Operators can use efficient 2WD operation during normal repositioning and select 4WD when additional traction is required.
Self-Propelled Wheeled Operation
The machine is a Self-Propelled Wheeled Scissor Lift, allowing operators to drive and reposition the platform using its integrated travel system.
There is no need for manual pushing during normal repositioning.
This is particularly useful for:
Construction sites
Industrial facilities
Large buildings
Maintenance projects
Installation projects
The self-propelled wheeled configuration allows the machine to move efficiently between suitable work areas.
AC Motor Drive
The machine uses an AC motor drive system.
The AC motor provides:
High efficiency
High torque
Long service life
Responsive driving performance
Reliable operation
The AC drive system works with the 2WD/4WD switching system to provide flexible driving performance.
450 kg Rated Load Capacity
Both models provide a rated load capacity of:
450 kg
This allows the platform to accommodate operators, tools and approved materials within the specified load limit.
When calculating platform load, the total combined weight of personnel, tools and materials should be considered.
Large Working Platform
The machine provides practical platform dimensions for elevated work.
Available platform sizes include:
2.27 × 1.13 m
and
2.73 × 1.13 m
The larger platform provides additional working space for operators, tools and approved materials.
Extendable Working Platform
The platform includes a one-way extension.
Available platform extensions are:
0.9 m
1.1 m
The extension provides additional horizontal access to elevated work areas.
This can help operators reach areas outside the main platform without constantly repositioning the machine.
Intelligent Human-Machine Interaction
The machine features a display-based human-machine interaction system.
Available functions include:
Parameter setting
Fault diagnosis
Parameter reading
Parameter writing
System monitoring
The display provides operators with convenient access to machine operating information.
Maintenance personnel can also use the system to support equipment inspection and troubleshooting.
Fault Diagnosis System
The integrated fault diagnosis system helps identify potential machine problems.
It can support:
Equipment status monitoring
Fault identification
Parameter checking
System inspection
Maintenance troubleshooting
This makes daily equipment management more convenient and can help maintenance personnel identify issues more efficiently.
Multiple Safety Protection Systems
The Self-Leveling Wheeled 4WD Scissor Lift includes multiple safety functions.
Automatic Chassis Leveling
The automatic leveling system helps maintain a suitable machine position for elevated operation.
Automatic Braking
The automatic braking system helps stabilize the machine when travel is stopped.
Tilt Protection
The tilt protection system provides additional protection when excessive inclination is detected.
Emergency Stop
The emergency stop button allows the operator to stop machine operation quickly in an emergency.
Emergency Lowering
The emergency lowering system provides an alternative method for lowering the platform if normal operation is unavailable.
Platform Self-Locking Gate
The self-locking platform gate helps reduce the risk of accidental opening during elevated work.
Fault Diagnosis
The fault diagnosis system supports machine monitoring and troubleshooting.
Convenient Maintenance
The machine uses an optimized design with integrated side pull-out trays, making routine inspection and maintenance more convenient.
Maintenance personnel can access relevant components more easily for:
Daily inspection
Battery inspection
Electrical system checks
Hydraulic system checks
Routine servicing
The intelligent monitoring and fault diagnosis system further assists maintenance operations.
Model Options
| Model | Maximum Working Height | Rated Load | Platform Size | Extension | Drive |
|---|---|---|---|---|---|
| SJPT1212E-T4 | 13.8 m | 450 kg | 2.27 × 1.13 m | 0.9 m | 2WD / 4WD switchable |
| SJPT1412E-T4 | 15.8 m | 450 kg | 2.73 × 1.13 m | 1.1 m | 2WD / 4WD switchable |
Working Height Class: 14–16 m
Technical Specifications
| Specification | SJPT1212E-T4 | SJPT1412E-T4 |
|---|---|---|
| Maximum Working Height | 13.8 m | 15.8 m |
| Platform Size | 2.27 × 1.13 m | 2.73 × 1.13 m |
| Platform Extension | 0.9 m | 1.1 m |
| Overall Height, Guardrail Raised | 2.63 m | 2.77 m |
| Overall Height, Guardrail Folded | 2.10 m | 2.24 m |
| Overall Length | 2.56 m | 2.92 m |
| Overall Width | 1.16 m | 1.60 m |
| Rated Load Capacity | 450 kg | 450 kg |
| Travel Speed, Stowed | 4.5 km/h | 4.5 km/h |
| Gradeability | 35% | 35% |
| Tire Size | Φ406 × 125 mm | Φ406 × 125 mm |
| Battery | 4 × 12V/120Ah | 4 × 12V/120Ah |
| Machine Weight | 3,240 kg | 4,070 kg |
| Drive Mode | 2WD / 4WD switchable | 2WD / 4WD switchable |
| Chassis Leveling | Automatic | Automatic |
Applications
Construction Sites
The Self-Propelled Self-Leveling Wheeled 4WD Scissor Lift is suitable for various high-level construction applications.
Typical uses include:
Building construction
Ceiling installation
Electrical installation
Lighting installation
Steel structure installation
Equipment installation
Building maintenance
The self-propelled wheeled chassis allows convenient repositioning between suitable work areas.
Industrial Maintenance
The high working height and 450 kg load capacity make the machine suitable for industrial maintenance.
Typical applications include:
Factory equipment maintenance
High-level equipment inspection
Lighting replacement
Electrical installation
Cable installation
Facility maintenance
Elevated repair work
The intelligent monitoring and fault diagnosis system also supports maintenance management.
Large Facility Maintenance
The machine can be used for elevated maintenance in:
Manufacturing plants
Warehouses
Commercial facilities
Industrial buildings
Large indoor facilities
Outdoor facility areas
The 2WD/4WD switching function allows operators to select an appropriate drive mode according to the travel conditions.
Elevated Installation
The large platform and extension make the machine suitable for installation work requiring access to elevated areas.
Potential applications include:
HVAC installation
Electrical installation
Lighting installation
Piping-related installation
Equipment installation
Building services
How to Choose the Right Self-Leveling 4WD Scissor Lift?
1. Determine the Required Working Height
The series provides:
13.8 m → 15.8 m
For applications requiring approximately 16 m of access height, the SJPT1412E-T4 is the higher model.
2. Consider Platform Space
The platform sizes are:
2.27 × 1.13 m
and
2.73 × 1.13 m
Choose according to the number of operators, tools and materials required for the project.
3. Consider Drive Requirements
If the machine needs efficient higher-speed travel, 2WD mode can be selected.
When additional low-speed traction is required, 4WD mode can be selected.
This makes the switchable drive system particularly useful for projects with changing travel conditions.
4. Consider the Need for Automatic Leveling
If the working environment requires chassis leveling, the automatic self-leveling system can simplify machine setup.
This is an important advantage compared with conventional fixed-chassis wheeled scissor lifts.
Why Choose This Self-Leveling Wheeled 4WD Scissor Lift?
Self-Propelled Wheeled Design
Integrated drive allows convenient machine repositioning without manual pushing.
Automatic Self-Leveling
The chassis can automatically adjust to help maintain a suitable level condition.
2WD / 4WD Switching
Use 2WD for efficient higher-speed travel and 4WD for stronger low-speed traction.
14–16 m Working Height
Maximum working heights of 13.8 m and 15.8 m cover the 14–16 m working height class.
450 kg Load Capacity
Both models provide a rated load capacity of 450 kg.
35% Gradeability
Both models provide up to 35% maximum gradeability under specified conditions.
AC Motor
High-efficiency AC motor provides high torque and long service life.
Large Working Platform
Platform sizes up to 2.73 × 1.13 m provide practical working space.
Intelligent Monitoring
Parameter setting, fault diagnosis, parameter reading and writing and system monitoring support daily operation and maintenance.
Multiple Safety Systems
Automatic braking, tilt protection, emergency stop, emergency lowering and automatic leveling provide multiple layers of operational protection.
FAQ
What is a self-leveling scissor lift?
A self-leveling scissor lift uses an automatic leveling system to adjust the chassis and help maintain a suitable level condition for elevated operation.
Is this scissor lift self-propelled?
Yes. It is a Self-Propelled Wheeled Scissor Lift, allowing the operator to drive and reposition the machine using its integrated drive system.
What is the working height?
The series covers the 14–16 m working height class, with maximum working heights of 13.8 m and 15.8 m.
What is the maximum working height?
The SJPT1412E-T4 provides a maximum working height of 15.8 m.
Does it have four-wheel drive?
Yes. The machine supports 2WD / 4WD switching.
Can the operator switch between 2WD and 4WD?
Yes. The drive system allows 2WD and 4WD to be freely switched according to operating requirements.
Why use 2WD?
2WD is designed to provide efficient travel performance, particularly when higher-speed repositioning is required.
Why use 4WD?
4WD provides stronger traction and is designed for low-speed operation when additional driving force is required.
Does it have automatic leveling?
Yes. The machine is equipped with an automatic chassis leveling system.
What is the rated load capacity?
Both models have a rated load capacity of 450 kg.
What is the maximum gradeability?
Both models have a maximum gradeability of 35%.
What type of motor does it use?
The machine uses an AC motor drive system designed for high efficiency, high torque and long service life.
What battery does it use?
Both models use 4 × 12V/120Ah batteries.
Does the platform have an extension?
Yes. The platform extension is 0.9 m on the SJPT1212E-T4 and 1.1 m on the SJPT1412E-T4.
Does it have a fault diagnosis system?
Yes. The machine includes a fault diagnosis system together with parameter setting, parameter reading and writing and system monitoring.
What safety systems are included?
The machine includes:
Automatic chassis leveling
Automatic braking
Tilt protection
Emergency stop
Emergency lowering
Platform self-locking gate
Fault diagnosis system
Request a Quote for a 14–16 m Self-Leveling 4WD Scissor Lift
Looking for a Self-Propelled Self-Leveling Wheeled 4WD Scissor Lift with 14–16 m working height?
This series combines automatic chassis leveling, 2WD/4WD switching, self-propelled wheeled mobility, AC motor drive, 450 kg load capacity and multiple safety systems for demanding elevated applications.
With 13.8 m and 15.8 m maximum working height options, the series provides flexible solutions for construction, industrial maintenance, installation and facility servicing.
Contact us for model selection, technical specifications and a quotation.
Please provide:
Required working height
Load requirement
Working environment
Ground conditions
Platform size requirements
Quantity required
Destination country
Our team can recommend a suitable Self-Propelled Self-Leveling Wheeled 4WD Scissor Lift according to your project requirements.
