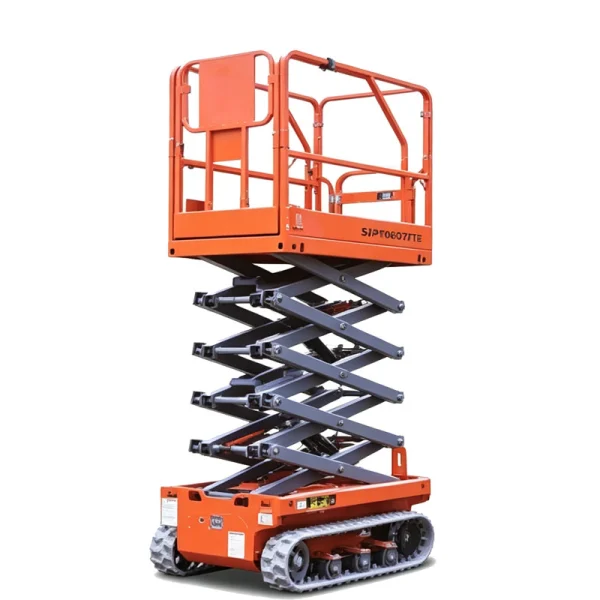

The Self-Propelled Tracked Scissor Lift is designed for customers who require a compact elevated work platform with better mobility and ground adaptability than conventional wheeled scissor lifts.

With maximum working heights from 6.0 m to 10.3 m, the series covers the 6–10 m working height class and provides multiple configurations for different elevated work requirements.

The combination of a tracked chassis, self-propelled operation, compact dimensions, new-energy power system and multiple safety functions makes this tracked scissor lift suitable for construction, industrial maintenance, building installation and other elevated work applications.

1. Tracked Chassis for Better Ground Adaptability

The most distinctive feature of this series is the tracked chassis.

Compared with conventional wheeled scissor lifts, tracked mobility provides better contact with the ground and improved passage capability in working environments where ordinary wheels may have difficulty maintaining traction.

The tracked design is particularly useful for:

• Construction sites

• Uneven work areas

• Industrial facilities

• Outdoor maintenance areas

• Sites requiring improved traction

• Projects with changing ground conditions

The compact tracked chassis also makes transportation and positioning relatively convenient.

2. Self-Propelled Tracked Operation

The machine is a self-propelled tracked scissor lift, meaning operators can drive the platform directly using the integrated travel system.

There is no need to manually push the machine or rely on external towing equipment for normal repositioning.

Self-propelled operation can improve productivity when workers need to move the platform between multiple work locations.

The tracked drive system also provides good traction and controlled movement in demanding working environments.

3. 6–10 m Working Height

This series is designed specifically for elevated work requirements in the 6–10 m working height range.

The available maximum working heights are:

• 6.0 m

• 7.8 m

• 8.3 m

• 10.3 m

The different configurations allow customers to select a suitable model according to required access height, platform size, rated load and working environment.

The actual maximum working height of the highest model is 10.3 m, while the product series can be marketed as a 6–10 m Tracked Scissor Lift.

4. Compact Tracked Structure

Although designed for elevated work, the machine maintains a relatively compact overall structure.

Depending on the model, the overall width ranges from:

0.92 m to 0.96 m

The overall length ranges from:

1.52 m to 2.01 m

This compact design helps the machine move through relatively restricted working areas.

For customers working in construction sites, factories, warehouses or other locations with limited access, machine dimensions should be checked against actual site conditions before purchase.

Tracked Mobility for Construction and Uneven Sites

One of the main reasons to select a Tracked Scissor Lift instead of a conventional wheeled model is ground adaptability.

The tracked system distributes the machine's weight across a larger contact area, helping provide stable traction and passage capability.

The machine provides a maximum gradeability of 30%, supporting operation on suitable inclined surfaces within the manufacturer's specified operating conditions.

The tracked configuration can therefore be particularly useful when the working environment is more demanding than a typical smooth indoor floor.

5. Efficient AC Motor

The machine uses an AC motor drive system.

The AC motor provides:

• High efficiency

• High torque

• Long service life

• Responsive travel

• Reliable performance

• Reduced routine maintenance requirements

The combination of the AC motor and tracked drive system provides efficient self-propelled movement for daily elevated work.

6. New-Energy Power System

The tracked scissor lift uses a rechargeable new-energy power system.

The battery-powered design provides a cleaner operating solution for many indoor and outdoor applications.

Depending on the model, battery configurations include:

• 2 × 12V/120Ah

• 4 × 12V/83Ah

The power system is designed to provide sufficient energy for lifting and travel operations while maintaining a compact machine structure.

7. Intelligent Human-Machine Interaction

The machine incorporates an intelligent control and monitoring system.

Available functions include:

• Human-machine interaction

• Parameter setting

• Fault diagnosis

• Parameter reading

• Parameter writing

• System monitoring

The system allows operators and maintenance personnel to obtain important machine information and monitor operating conditions more conveniently.

8. Fault Diagnosis System

The integrated fault diagnosis system helps maintenance personnel identify potential problems and improve troubleshooting efficiency.

The system can assist with:

• Machine status monitoring

• Fault identification

• Parameter checking

• Maintenance troubleshooting

• Equipment inspection

This function is particularly useful for customers operating the equipment frequently or managing multiple machines.

9. Working Platform

The tracked scissor lift provides different platform configurations according to working height and machine size.

Platform sizes include:

1.4 × 0.78 m

and

1.8 × 0.8 m

The larger platform configuration provides additional working space for operators, tools and approved materials.

10. Extendable Platform

The platform is equipped with a one-way extension.

Available extension lengths include:

• 0.6 m

• 0.9 m

The extension provides additional horizontal access and working space, helping operators reach areas beyond the main platform.

This can reduce the need for frequent machine repositioning when the work area extends beyond the main platform.

11. Multiple Safety Protection Systems

Safety is an important consideration for elevated work.

The Self-Propelled Tracked Scissor Lift is equipped with multiple safety functions.

Platform Self-Locking Gate

The platform uses a self-locking gate to help prevent accidental opening during elevated operation.

Emergency Lowering System

The emergency lowering system provides a method for lowering the platform when normal operation is unavailable.

Tilt Protection

The tilt protection system helps provide additional protection when the machine encounters excessive inclination.

Automatic Braking

The automatic braking system helps stabilize the machine when travel is stopped.

Emergency Stop

The emergency stop button allows the operator to quickly stop machine operation in an emergency.

Fault Diagnosis

The integrated fault diagnosis system helps operators and maintenance personnel identify potential machine faults.

12. Convenient Maintenance

The machine is designed with maintenance accessibility in mind.

Its modular structure and convenient access to key components help simplify routine inspection and servicing.

The design can help reduce maintenance complexity and support long-term equipment reliability.

Model Options

The Self-Propelled Tracked Scissor Lift series provides four configurations covering the 6–10 m working height range.

Technical Specifications

Applications

Construction Sites

The tracked design makes this scissor lift suitable for many construction-related elevated work applications.

Typical uses include:

• Ceiling installation

• Electrical installation

• Lighting installation

• Interior construction

• Building maintenance

• Elevated equipment installation

• Construction site servicing

The tracked chassis can provide better passage capability when site conditions are less uniform.

Industrial Maintenance

The machine can be used for elevated maintenance and inspection in industrial facilities.

Typical applications include:

• Factory equipment maintenance

• Machinery inspection

• Lighting replacement

• Cable installation

• Facility maintenance

• Equipment servicing

• Elevated repair work

The self-propelled system allows operators to reposition the machine between suitable work areas.

Warehouse and Facility Maintenance

The compact structure can be useful for maintenance operations in warehouses and facilities.

Applications include:

• High-level lighting maintenance

• Ceiling inspection

• Equipment servicing

• Electrical maintenance

• Facility inspection

• Elevated installation work

Outdoor Elevated Work

The tracked configuration can provide advantages in outdoor work environments where ground conditions may be more demanding.

Potential applications include:

• Building exterior maintenance

• Construction projects

• Infrastructure maintenance

• Outdoor facility servicing

• Installation projects

Actual use should always be based on ground conditions, machine specifications and applicable safety requirements.

Why Choose a Self-Propelled Tracked Scissor Lift?

Tracked Mobility

The tracked chassis provides good ground contact and passage capability for demanding work environments.

Self-Propelled Operation

Operators can drive and reposition the machine without manual pushing or external towing.

6–10 m Working Height

Four configurations cover working heights from 6 m to 10.3 m.

30% Gradeability

The machine provides up to 30% maximum gradeability under specified conditions.

Compact Dimensions

Overall width is only 0.92–0.96 m, depending on the model.

High-Torque AC Motor

The AC motor provides high torque, high efficiency and long service life.

Intelligent Monitoring

Human-machine interaction, parameter setting, fault diagnosis, parameter reading and writing, and system monitoring improve operational convenience.

Multiple Safety Systems

Tilt protection, automatic braking, emergency stop, emergency lowering and other safety systems provide additional operational protection.

How to Choose the Right Tracked Scissor Lift?

1. Determine the Required Working Height

The first consideration is the required working height.

Available models provide:

6.0 m → 7.8 m → 8.3 m → 10.3 m

For website product classification, these models can be grouped as a:

6–10 m Self-Propelled Tracked Scissor Lift

2. Consider Load Capacity

The available rated load capacities are:

• 230 kg

• 300 kg

Consider the combined weight of operators, tools and approved materials when selecting the appropriate model.

3. Consider Platform Size

The available platform sizes are:

• 1.4 × 0.78 m

• 1.8 × 0.8 m

If more working space is required, the larger platform models may be more appropriate.

4. Consider Ground Conditions

One of the most important selection factors for a tracked scissor lift is the working surface.

Consider:

• Ground unevenness

• Inclination

• Surface conditions

• Passage requirements

• Indoor or outdoor operation

• Available access width

The tracked configuration is particularly useful where improved passage capability and traction are required.

5. Consider Transportation Requirements

The machine has a compact structure, but the machine weight ranges from 975 kg to 1,445 kg.

Transportation equipment and loading conditions should therefore be considered before purchase.

FAQ

What is a tracked scissor lift?

A tracked scissor lift is an elevated work platform equipped with a tracked chassis instead of conventional wheels. The tracked design provides good ground contact and passage capability for demanding working environments.

Is this tracked scissor lift self-propelled?

Yes. This is a Self-Propelled Tracked Scissor Lift. Operators can drive and reposition the machine directly using its integrated travel system.

What is the working height?

The series provides maximum working heights from 6 m to 10.3 m, covering the 6–10 m working height range.

What is the maximum working height?

The SJPT0810TE provides a maximum working height of 10.3 m.

Why choose tracks instead of wheels?

Tracks can provide better ground contact, traction and passage capability in certain uneven or demanding working environments compared with conventional wheeled configurations.

What is the maximum gradeability?

The maximum gradeability is 30% for the listed models.

What is the load capacity?

The rated load capacity is 230 kg or 300 kg, depending on the model.

What platform sizes are available?

Platform dimensions are 1.4 × 0.78 m and 1.8 × 0.8 m.

Does the platform have an extension?

Yes. The platform extension is 0.6 m or 0.9 m, depending on the model.

What type of motor does it use?

The machine uses an AC motor, providing high efficiency, high torque and long service life.

Does the machine have a fault diagnosis system?

Yes. It features a fault diagnosis system together with parameter setting, parameter reading and writing, and system monitoring.

What safety systems are included?

The machine includes:

• Platform self-locking gate

• Emergency lowering system

• Tilt protection

• Automatic braking

• Emergency stop

• Fault diagnosis system

Request a Quote for a 6–10 m Tracked Scissor Lift

Looking for a Self-Propelled Tracked Scissor Lift with 6–10 m working height?

This series combines tracked mobility, self-propelled operation, compact dimensions, high-torque AC motor and multiple safety systems for elevated work in construction, industrial maintenance and facility servicing applications.

Available models provide 6.0 m, 7.8 m, 8.3 m and 10.3 m maximum working heights, with rated load capacities from 230 kg to 300 kg.

Contact us for model selection, technical specifications and a quotation.

Please provide:

• Required working height

• Required load capacity

• Working environment

• Platform size requirements

• Quantity required

• Destination country

Our team can recommend a suitable Self-Propelled Tracked Scissor Lift according to your project requirements.
