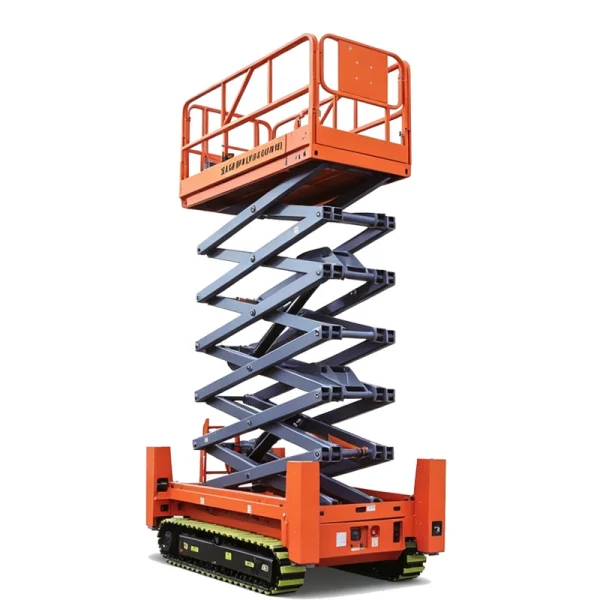

The Self-Propelled Tracked Outrigger Scissor Lift is designed for customers who need a higher working platform combined with strong ground adaptability and convenient stabilization.

With maximum working heights of 12 m, 14 m and 16 m, this series covers the 12–16 m working height range.

Unlike conventional wheeled scissor lifts, the machine uses a tracked chassis designed for all-terrain and multi-surface travel. It also incorporates automatic leveling outriggers, allowing the machine to be leveled conveniently before elevated operation.

The complete system combines:

Tracked Chassis + Self-Propelled Travel + Automatic Outriggers + 12–16 m Working Height + Pure Electric Power

This makes it suitable for elevated work where both high access height and ground adaptability are important.

12–16 m Working Height

The series is specifically designed for high-level elevated work in the 12–16 m range.

Three models are available:

• 12 m maximum working height

• 14 m maximum working height

• 16 m maximum working height

The SJPT1412TLE reaches a maximum working height of 16 m, making it the highest model in this series.

The three height options allow customers to select equipment according to their actual building height, access requirements and working conditions.

Tracked Chassis for All-Terrain Mobility

The tracked chassis is one of the most important characteristics of this scissor lift.

The machine uses steel tracks with nylon and rubber blocks, providing a combination of:

• Strong traction

• Good passage capability

• Improved ground adaptability

• Durable tracked construction

• Reduced impact on suitable ground surfaces

The tracked design allows the machine to travel across a wider range of suitable surfaces than conventional wheeled configurations.

This makes it suitable for applications where the ground may not always be perfectly smooth or uniform.

Steel Tracks with Nylon and Rubber Blocks

The tracked system uses a steel track structure combined with nylon and rubber blocks.

The steel track provides structural strength and durability, while the rubberized track blocks help reduce direct contact between the metal track and the working surface.

This design can help minimize ground marking and is especially useful when working on suitable finished surfaces where protection of the ground is important.

At the same time, the tracked configuration provides good traction for outdoor and construction-related applications.

Self-Propelled Tracked Operation

The machine is a Self-Propelled Tracked Scissor Lift, allowing the operator to drive and reposition the platform using its integrated tracked travel system.

Self-propelled operation eliminates the need for manual pushing during normal repositioning.

This is particularly useful when the machine must move between multiple work areas during the same project.

The tracked drive system provides controlled travel while the AC motor delivers high torque and efficient power transmission.

Automatic Outrigger Leveling

The machine is equipped with automatic leveling outriggers.

The outriggers provide additional stabilization when the machine is set up for elevated operation.

Instead of manually adjusting individual supports, the operator can use the one-button automatic leveling function to simplify setup.

This provides several advantages:

• Faster machine setup

• Easier leveling operation

• Reduced manual adjustment

• Improved operational convenience

• Additional platform stabilization

The actual operating surface and ground conditions must always comply with the manufacturer's requirements.

One-Button Leveling System

The one-button automatic leveling function is a key difference between this product and a standard tracked scissor lift.

After positioning the machine on a suitable working surface, the operator can activate the leveling function.

The system automatically adjusts the outriggers according to its control logic, helping the machine achieve a suitable level position before elevated operation.

This is especially useful when the machine is frequently relocated to different working areas.

High Load Capacity up to 450 kg

All three models provide a rated load capacity of:

450 kg

The relatively high load capacity allows the working platform to accommodate operators, tools and approved materials within the specified load limit.

When selecting a machine, customers should consider the total combined weight of personnel, tools and materials rather than operator weight alone.

Large Working Platform

The machine is equipped with relatively large working platforms designed for high-level construction and maintenance operations.

Available platform sizes include:

2.27 × 1.13 m

and

2.73 × 1.13 m

The larger platform provides additional working space for operators, tools and approved materials.

Extendable Working Platform

The platform is equipped with a one-way extension.

Available extension lengths are:

• 0.9 m

• 1.1 m

The extension provides additional horizontal reach and can help operators access areas beyond the main platform.

This can reduce the need to reposition the entire machine when performing work across a larger elevated area.

Pure Electric Design

The machine uses a pure electric power system.

Compared with conventional fuel-powered equipment, the electric design provides:

• No direct exhaust emissions

• Low operating noise

• Cleaner operation

• Efficient energy use

• Suitable performance for many indoor and outdoor applications

The large-capacity battery system is designed to provide sustained operating time for elevated work.

Large-Capacity Battery

The machines use:

8 × 12V/150Ah batteries

The large battery configuration provides a substantial energy reserve for travel and lifting operations.

The electric system is designed to support extended working periods while maintaining the machine's pure electric operating characteristics.

Actual operating time depends on factors such as load, travel frequency, working conditions and operating cycle.

High-Torque AC Motor

The tracked scissor lift uses an AC motor drive system.

The AC motor provides:

• High efficiency

• High torque

• Long service life

• Responsive travel

• Reliable operation

The high torque output is particularly useful for a tracked machine that needs to maintain traction while moving across suitable demanding surfaces.

Intelligent Human-Machine Interaction

The machine is equipped with a display-based human-machine interaction system.

Available functions include:

• Parameter setting

• Fault diagnosis

• Parameter reading

• Parameter writing

• System monitoring

The display system allows operators to access important machine information conveniently.

Maintenance personnel can also use the system to support machine inspection and troubleshooting.

Fault Diagnosis System

The integrated fault diagnosis system helps operators and maintenance personnel identify potential machine problems.

It can assist with:

• Machine status monitoring

• Fault identification

• Parameter checking

• System inspection

• Maintenance troubleshooting

This helps improve maintenance efficiency and supports long-term equipment management.

Multiple Safety Protection Systems

The Self-Propelled Tracked Outrigger Scissor Lift incorporates multiple safety systems designed for elevated operation.

Platform Self-Locking Gate

The self-locking platform gate helps reduce the risk of accidental opening during operation.

Automatic Outrigger Leveling

The automatic leveling system helps simplify setup and support machine stabilization.

Tilt Protection

The tilt protection system provides additional protection when excessive inclination is detected.

Automatic Braking

The automatic braking system helps stabilize the machine when travel is stopped.

Emergency Stop

The emergency stop button allows the operator to stop machine operation quickly in an emergency.

Emergency Lowering

The emergency lowering system provides an alternative method of lowering the platform when normal operation is unavailable.

Fault Diagnosis

The integrated fault diagnosis system supports machine monitoring and troubleshooting.

Compact Transportation Dimensions

Despite providing up to 16 m working height, the machine maintains a practical transport profile.

Depending on the model:

• Overall width: 1.35–1.54 m

• Overall length: 2.78–3.16 m

• Folded overall height: 1.98–2.14 m

The relatively compact dimensions can help with transportation and site access.

Transportation requirements should be evaluated according to the machine's actual weight and local transport regulations.

Model Options

Working Height Class: 12–16 m

Technical Specifications

Applications

High-Level Construction

The 12–16 m Tracked Outrigger Scissor Lift is suitable for various elevated construction activities.

Typical applications include:

• Building construction

• Ceiling installation

• Electrical installation

• Lighting installation

• Steel structure work

• Building maintenance

• Elevated equipment installation

The tracked chassis provides mobility while the automatic outriggers assist with leveling and stabilization.

Industrial Maintenance

The high working height and large platform make the machine suitable for industrial maintenance applications.

Typical uses include:

• Factory equipment maintenance

• High-level machinery inspection

• Lighting maintenance

• Cable installation

• Equipment servicing

• Facility maintenance

• Elevated repair work

Building Maintenance

The machine can be used for high-level building maintenance and facility servicing.

Applications may include:

• Exterior maintenance

• High-level lighting replacement

• Building inspection

• Installation work

• Facility repair

• Elevated cleaning-related work

Outdoor Installation Projects

The tracked chassis makes the machine suitable for selected outdoor installation projects where conventional wheeled equipment may have limited passage capability.

Potential applications include:

• Infrastructure installation

• Outdoor equipment installation

• Construction projects

• Facility installation

• Industrial site maintenance

How to Choose a 12–16 m Tracked Outrigger Scissor Lift?

1. Select the Required Working Height

The three models provide:

12 m → 14 m → 16 m

Choose the machine according to the actual required access height.

For applications requiring the highest access, the 16 m SJPT1412TLE provides the highest working height in the series.

2. Consider Ground Conditions

The tracked configuration is especially important when the machine needs to travel over suitable uneven or demanding surfaces.

Consider:

• Ground condition

• Ground bearing capacity

• Inclination

• Access width

• Indoor/outdoor use

• Surface protection requirements

3. Consider the Need for Outriggers

If the working environment requires additional leveling and stabilization, the Tracked Outrigger Scissor Lift provides a significant advantage over a standard tracked scissor lift.

The one-button leveling function also makes setup more convenient.

4. Consider Platform Space

The available platform sizes are:

2.27 × 1.13 m

and

2.73 × 1.13 m

If more working space is required, the SJPT1412TLE provides the larger platform.

5. Consider Platform Extension

Available extensions are:

0.9 m and 1.1 m

A platform extension can provide additional horizontal access to elevated work areas.

6. Consider Transportation

Machine weights range from:

3,550 kg to 4,760 kg

Therefore, transportation, loading and unloading equipment should be considered when planning the project.

FAQ

What is a tracked outrigger scissor lift?

A tracked outrigger scissor lift combines a tracked chassis for mobility with stabilizing outriggers for leveling and elevated operation.

Is this machine self-propelled?

Yes. It is a Self-Propelled Tracked Outrigger Scissor Lift, allowing the operator to drive and reposition the machine using its integrated tracked travel system.

What is the working height?

This series covers the 12–16 m working height range, with maximum working heights of 12 m, 14 m and 16 m.

What is the maximum working height?

The SJPT1412TLE provides a maximum working height of 16 m.

Does the machine have outriggers?

Yes. All models are equipped with automatic leveling outriggers.

How are the outriggers leveled?

The machine uses a one-button automatic leveling system, which simplifies the setup and leveling process.

Why use a tracked chassis?

The tracked chassis provides good traction, passage capability and ground adaptability for suitable all-terrain and multi-surface working environments.

Does the track damage the ground?

The machine uses steel tracks with nylon and rubber blocks, designed to provide good passage capability while helping reduce ground marking on suitable surfaces.

Actual ground impact depends on the surface, machine weight and operating conditions.

What is the load capacity?

All three models have a rated load capacity of 450 kg.

What is the maximum gradeability?

The listed models have a maximum gradeability of 35%.

What battery does it use?

All models use 8 × 12V/150Ah batteries.

Is the machine fully electric?

Yes. The machine uses a pure electric power design with an AC motor drive system, providing low-noise operation and zero direct emissions during operation.

Does it have a platform extension?

Yes. Platform extensions are 0.9 m or 1.1 m, depending on the model.

Does it have fault diagnosis?

Yes. The machine includes a fault diagnosis system, parameter setting, parameter reading and writing, and system monitoring.

What safety systems are included?

The machine includes:

• Automatic outrigger leveling

• Tilt protection

• Automatic braking

• Emergency stop

• Emergency lowering

• Platform self-locking gate

• Fault diagnosis system

Request a Quote for a 12–16 m Tracked Outrigger Scissor Lift

Looking for a Self-Propelled Tracked Outrigger Scissor Lift with 12–16 m working height?

This series combines steel tracked mobility, self-propelled travel, automatic outrigger leveling, pure electric power and multiple safety systems for demanding elevated work applications.

With 12 m, 14 m and 16 m working height options, 450 kg rated load capacity, large working platforms and platform extensions, the series can be configured for different construction, industrial maintenance and installation requirements.

Contact us for model selection, technical specifications and a quotation.

Please provide:

• Required working height

• Load requirement

• Working environment

• Ground conditions

• Platform size requirements

• Quantity required

• Destination country

Our team can recommend a suitable 12–16 m Self-Propelled Tracked Outrigger Scissor Lift for your project.
