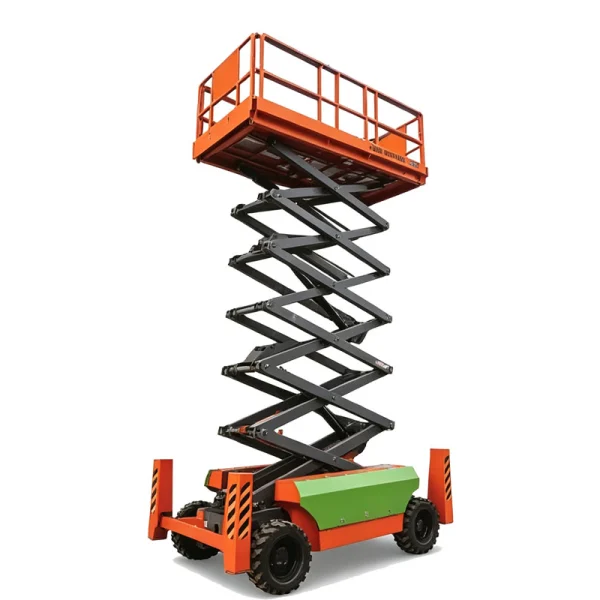

The Self-Propelled Rough Terrain Wheeled Outrigger Scissor Lift is designed for customers who need high working height, strong outdoor mobility and additional stabilization in challenging working environments.
With maximum working heights of 14 m and 16 m, this series is positioned in the 14–16 m rough terrain scissor lift category.
Unlike conventional indoor scissor lifts, this machine uses a wide wheeled chassis, large solid off-road tires and high ground clearance to provide better passage capability on suitable uneven outdoor surfaces.
The machine also integrates automatic leveling outriggers, allowing operators to level and stabilize the equipment conveniently before elevated operation.
The core configuration can be summarized as:
Rough Terrain + Wheeled + Self-Propelled + Outriggers + 14–16 m Working Height + Pure Electric
This combination makes the machine particularly suitable for outdoor construction and elevated maintenance where both mobility and working height are important.
Rough Terrain Wheeled Design
The rough terrain wheeled chassis is one of the defining characteristics of this scissor lift.
The machine uses large 26×12-16 solid off-road tires designed for demanding outdoor working environments.
Compared with conventional small-wheel scissor lifts, the larger off-road tire configuration provides:
Better ground clearance
Stronger traction
Improved passage capability
Better adaptability to uneven surfaces
Greater suitability for outdoor applications
The machine has an overall width of 1.83 m, giving it a wide and stable chassis configuration suitable for its high working height.
Large Solid Off-Road Tires
The machine is equipped with 26×12-16 solid off-road tires.
The solid tire design eliminates the need for pneumatic tire inflation and reduces the risk of punctures during suitable outdoor operations.
The large tire dimensions also contribute to the machine's ground clearance and passage capability.
This makes the configuration suitable for construction sites, industrial outdoor areas and other applications where ground conditions may be less uniform than those found in standard indoor facilities.
Self-Propelled Wheeled Operation
This is a Self-Propelled Rough Terrain Wheeled Scissor Lift, allowing the operator to drive and reposition the machine using its integrated travel system.
The self-propelled design eliminates the need for manual pushing or external towing during normal repositioning.
With a maximum stowed travel speed of 6.5 km/h, the machine can efficiently move between suitable work locations.
This is particularly useful on larger construction and industrial sites where the platform may need to be repositioned frequently.
14–16 m Working Height
The series is designed for high-level work in the 14–16 m working height range.
Available maximum working heights include:
14 m
16 m
The SJPT1614ERT-T4 provides a maximum working height of 16 m, making it the highest model in this series.
Customers can select the appropriate model according to the building height, access requirements and working environment.
Automatic Outrigger Leveling
A major feature of this rough terrain scissor lift is its automatic leveling outrigger system.
The machine is equipped with outriggers that provide additional stabilization during elevated operation.
The one-button automatic leveling function simplifies the setup process.
Instead of manually adjusting individual supports, the operator can activate the leveling function to assist with machine leveling.
Benefits include:
Easier setup
Faster leveling
Reduced manual adjustment
Improved operational convenience
Additional stabilization
The machine must always be positioned and operated within the manufacturer's specified ground, slope, load and environmental conditions.
One-Button Outrigger Leveling
The one-button leveling function is especially useful for outdoor applications where the ground may not be perfectly level.
After the machine is positioned in a suitable working area, the operator can activate the automatic leveling system.
The outriggers then adjust according to the control system to assist in achieving a suitable level position.
This makes the machine more convenient for projects where the platform is frequently moved between different work locations.
Up to 35% Gradeability
The models provide a maximum gradeability of 30–35%.
The SJPT1214ERT provides 30% gradeability, while the SJPT1214ERT-T4 and SJPT1614ERT-T4 provide up to 35%.
This provides strong climbing capability for suitable outdoor operating conditions.
Actual operation should always remain within the manufacturer's specified limits.
Wide 1.83 m Wheeled Chassis
The machine has an overall width of 1.83 m across the listed models.
The wider chassis contributes to the machine's overall configuration and is designed to support elevated operation at working heights of up to 16 m.
When planning a project, customers should consider:
Site entrance width
Transportation route
Working area
Ground conditions
Turning space
Storage area
The wider chassis is particularly important when comparing this model with compact indoor scissor lifts.
Pure Electric Power
The Rough Terrain Wheeled Outrigger Scissor Lift uses a pure electric power design.
The electric system provides:
Zero direct emissions during operation
Low operating noise
Clean power
Efficient operation
Reduced dependence on fuel
This makes the machine suitable for outdoor applications where low-noise or zero-emission operation is preferred.
High-Torque AC Motor
The machine uses an AC motor drive system.
The AC motor provides:
High efficiency
High torque
Long service life
Responsive driving performance
Reliable operation
The high-torque motor works together with the large off-road tires to provide strong driving performance for suitable outdoor conditions.
Large-Capacity Battery
The machine is equipped with:
8 × 12V/150Ah batteries
The large-capacity battery configuration provides the energy required for travel and lifting operations.
The pure electric configuration supports low-noise operation without direct exhaust emissions.
Actual operating time depends on factors such as load, travel frequency, working conditions and operating cycles.
Large Working Platform
The machine provides a large working platform designed for elevated construction and maintenance work.
Available platform sizes include:
2.57 × 1.39 m
and
3.6 × 1.39 m
The large platform provides working space for operators, tools and approved materials.
The larger platform on the SJPT1614ERT-T4 provides additional workspace for applications requiring more room.
Extendable Working Platform
The platform is equipped with extension sections.
Available extension configurations include:
1.2 m
0.9 m / 0.9 m
The platform extension increases horizontal access and allows operators to reach additional working areas without constantly repositioning the entire machine.
Intelligent Human-Machine Interaction
The machine uses a display-based human-machine interaction system.
Available functions include:
Parameter setting
Fault diagnosis
Parameter reading
Parameter writing
System monitoring
The system provides operators and maintenance personnel with convenient access to machine information.
Fault Diagnosis System
The integrated fault diagnosis system helps maintenance personnel identify potential machine faults and supports equipment troubleshooting.
It can assist with:
Machine status monitoring
Fault identification
Parameter checking
System inspection
Maintenance troubleshooting
This can improve maintenance efficiency and help support long-term equipment management.
Multiple Safety Protection Systems
The machine incorporates multiple safety functions for elevated work.
Automatic Outrigger Leveling
The automatic leveling system assists with machine setup and stabilization.
Tilt Protection
The tilt protection system provides additional protection when excessive inclination is detected.
Automatic Braking
The automatic braking system helps stabilize the machine when travel is stopped.
Emergency Stop
The emergency stop button allows the operator to quickly stop machine operation during an emergency.
Emergency Lowering
The emergency lowering system provides an alternative method of lowering the platform if normal operation becomes unavailable.
Platform Self-Locking Gate
The platform self-locking gate helps prevent accidental opening during elevated operation.
Fault Diagnosis
The fault diagnosis system supports machine monitoring and troubleshooting.
Model Options
| Model | Maximum Working Height | Rated Load | Platform Size | Platform Extension | Gradeability |
|---|---|---|---|---|---|
| SJPT1214ERT | 14 m | 450 kg | 2.57 × 1.39 m | 1.2 m | 30% |
| SJPT1214ERT-T4 | 14 m | 450 kg | 2.57 × 1.39 m | 1.2 m | 35% |
| SJPT1614ERT-T4 | 16 m | 450 kg | 3.6 × 1.39 m | 0.9 / 0.9 m | 35% |
Working Height Range: 14–16 m
Technical Specifications
| Specification | SJPT1214ERT | SJPT1214ERT-T4 | SJPT1614ERT-T4 |
|---|---|---|---|
| Maximum Working Height | 14 m | 14 m | 16 m |
| Platform Size | 2.57 × 1.39 m | 2.57 × 1.39 m | 3.6 × 1.39 m |
| Platform Extension | 1.2 m | 1.2 m | 0.9 / 0.9 m |
| Overall Height, Guardrail Raised | 2.65 m | 2.65 m | 2.88 m |
| Overall Height, Guardrail Folded | 2.13 m | 2.13 m | 2.25 m |
| Overall Length | 3.33 m | 3.33 m | 3.7 m |
| Overall Width | 1.83 m | 1.83 m | 1.83 m |
| Rated Load Capacity | 450 kg | 450 kg | 450 kg |
| Travel Speed, Stowed | 6.5 km/h | 6.5 km/h | 6.5 km/h |
| Gradeability | 30% | 35% | 35% |
| Tire Size | 26 × 12-16 | 26 × 12-16 | 26 × 12-16 |
| Battery | 8 × 12V/150Ah | 8 × 12V/150Ah | 8 × 12V/150Ah |
| Machine Weight | 3,740 kg | 4,160 kg | 5,150 kg |
| Outrigger Leveling | One-button automatic leveling | One-button automatic leveling | One-button automatic leveling |
Applications
Outdoor Construction
The 14–16 m Rough Terrain Wheeled Scissor Lift is designed for demanding outdoor construction applications.
Typical uses include:
Building construction
Steel structure installation
High-level installation
Exterior building work
Electrical installation
Lighting installation
Construction site maintenance
The large off-road tires and self-propelled wheeled chassis provide convenient mobility around suitable construction sites.
Rough Terrain Construction Sites
The large 26×12-16 solid off-road tires, high ground clearance and wide chassis make this machine suitable for selected rough terrain applications.
It can be used for:
Construction site installation
Outdoor equipment installation
Infrastructure work
Elevated maintenance
Site facility construction
Ground conditions must be suitable for the machine's rated operating requirements.
Industrial Maintenance
The high working height and large platform make the machine suitable for industrial maintenance applications.
Typical applications include:
Factory equipment maintenance
High-level machinery inspection
Lighting replacement
Electrical installation
Equipment servicing
Facility maintenance
Large Facility Maintenance
The machine can be used for high-level maintenance in:
Industrial facilities
Large warehouses
Manufacturing plants
Outdoor facilities
Commercial buildings
Infrastructure sites
The self-propelled wheeled configuration makes repositioning between work areas convenient.
Why Choose a Rough Terrain Wheeled Outrigger Scissor Lift?
Rough Terrain Wheeled Configuration
Large off-road tires and high ground clearance provide good passage capability for suitable outdoor environments.
Self-Propelled Mobility
The integrated drive system allows the operator to move the machine between suitable work areas without manual pushing.
Automatic Outriggers
One-button automatic leveling simplifies machine setup and provides additional stabilization.
14–16 m Working Height
The series provides 14 m and 16 m maximum working height options.
450 kg Load Capacity
All three models provide a rated load capacity of 450 kg.
30–35% Gradeability
The machines provide up to 35% maximum gradeability under specified conditions.
26×12-16 Solid Off-Road Tires
Large solid tires provide strong traction, durability and improved ground clearance.
Pure Electric Operation
The pure electric system provides low-noise operation and zero direct emissions.
Intelligent Monitoring
Parameter setting, fault diagnosis, parameter reading and writing, and system monitoring simplify equipment management.
FAQ
What is a rough terrain wheeled scissor lift?
A rough terrain wheeled scissor lift is an aerial work platform designed for outdoor applications, using large off-road tires, increased ground clearance and a robust wheeled chassis to provide better mobility on suitable uneven surfaces.
Is this scissor lift self-propelled?
Yes. It is a Self-Propelled Rough Terrain Wheeled Scissor Lift, allowing the operator to drive and reposition the machine using its integrated travel system.
What is the working height?
The series covers the 14–16 m working height range, with models providing maximum working heights of 14 m and 16 m.
What is the maximum working height?
The SJPT1614ERT-T4 provides a maximum working height of 16 m.
Does the machine have outriggers?
Yes. The machines are equipped with automatic leveling outriggers.
How are the outriggers operated?
The machine uses a one-button automatic leveling system, simplifying the setup and leveling process.
What type of tires does it use?
The machine uses 26×12-16 solid off-road tires designed for suitable rough terrain and outdoor applications.
What is the maximum gradeability?
Depending on the model, maximum gradeability is 30% or 35%.
What is the load capacity?
All models have a rated load capacity of 450 kg.
Is the machine fully electric?
Yes. The machine uses a pure electric power system with an AC motor.
What battery does it use?
All models use 8 × 12V/150Ah batteries.
What is the machine width?
All three models have an overall width of 1.83 m.
Does the platform have an extension?
Yes. Depending on the model, platform extensions are 1.2 m or 0.9 / 0.9 m.
Does it have a fault diagnosis system?
Yes. The machine includes a fault diagnosis system together with parameter setting, parameter reading and writing, and system monitoring.
What safety systems are included?
The machine includes:
Automatic outrigger leveling
Tilt protection
Automatic braking
Emergency stop
Emergency lowering
Platform self-locking gate
Fault diagnosis system
Request a Quote for a 14–16 m Rough Terrain Wheeled Scissor Lift
Looking for a Self-Propelled Rough Terrain Wheeled Outrigger Scissor Lift with 14–16 m working height?
This series combines large off-road solid tires, wide 1.83 m chassis, self-propelled mobility, automatic outrigger leveling, pure electric power and multiple safety systems for demanding elevated outdoor applications.
Available models provide 14 m and 16 m working heights, 450 kg rated load capacity, large working platforms and platform extensions.
Contact us for model selection, technical specifications and a quotation.
Please provide:
Required working height
Load requirement
Working environment
Ground conditions
Platform size requirements
Quantity required
Destination country
We can recommend a suitable 14–16 m Self-Propelled Rough Terrain Wheeled Outrigger Scissor Lift according to your project requirements.
