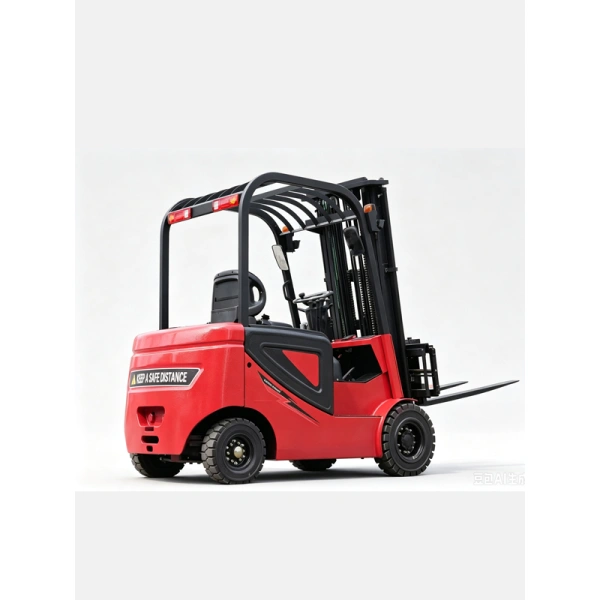

4 Ton Fully Electric Counterbalance Forklift
The 4 Ton Fully Electric Counterbalance Forklift CPD-40 is the highest-capacity model in this series, designed for heavy-duty pallet handling, industrial material transportation, warehouse operations, manufacturing facilities, logistics centers and demanding loading and unloading applications.
With a rated load capacity of 4,000 kg, the CPD-40 provides significantly higher load-handling capability for heavy palletized goods, machinery components, raw materials and industrial products.
The forklift is powered by a 72V 140Ah battery, a powerful 13 kW permanent magnet driving motor and a 10 kW synchronous lifting motor.
Compared with the 3-ton and 3.5-ton models, the CPD-40 uses higher motor power to provide stronger travel and lifting support for its 4-ton rated capacity.
The CPD-40 also features an intelligent automatic braking and ramp parking system. When the accelerator pedal is released, the forklift can automatically brake. On slopes, it can automatically maintain its position under unloaded and fully loaded conditions without requiring handbrake operation. The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
Technical Specifications
| Specification | 4 Ton Fully Electric Counterbalance Forklift |
|---|---|
| Model | CPD-40 |
| Battery Type | Chaowei / Tianneng |
| Battery | 72V 140Ah |
| Operating Type | Seated |
| Rated Load Capacity | 4,000 kg |
| Overall Length | 3,999 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,145 mm |
| Fork Length | 1,070 mm |
| Fork Width | 125 mm |
| Fork Thickness | 45 mm |
| Lifting Height | 3,000 mm |
| Vehicle Weight | 4,600 kg |
| Driving Motor Power | 13 kW Permanent Magnet |
| Lifting Motor Power | 10 kW Synchronous |
| Maximum Gradeability | 15° |
| Front Axle | 310 Cast Steel Axle |
| Rear Axle | Double-Layer Steering Axle |
| Front Tires | 28-9-15 (A Grade) |
| Rear Tires | 650-10 (A Grade) |
Final product specifications should be confirmed according to the actual production configuration.
Fully Electric Travel and Lifting
The CPD-40 uses a fully electric travel and lifting system.
The 13 kW permanent magnet driving motor provides strong travel power, while the 10 kW synchronous lifting motor provides high-power lifting support for 4-ton loads.
The fully electric configuration provides:
Fully electric travel
Fully electric lifting
Strong driving power
High lifting power
Smooth operation
Responsive acceleration
Low operating noise
Reduced operator effort
Lower operating emissions
Efficient heavy-load transportation
The 72V 140Ah battery provides electrical power for the vehicle's travel, lifting and control systems.
13 kW Permanent Magnet Drive Motor
The CPD-40 is equipped with a 13 kW permanent magnet driving motor, providing stronger travel power for its 4-ton load capacity.
The higher motor output helps support:
Heavy-load transportation
Frequent starting and stopping
Strong acceleration
Ramp operation
Long-distance internal transportation
High-frequency industrial handling
The permanent magnet drive system is designed to provide efficient power utilization and responsive vehicle operation.
For customers handling heavier materials, the 13 kW drive motor provides a stronger power reserve than the lower-capacity models.
10 kW Synchronous Lifting Motor
The CPD-40 uses a 10 kW synchronous lifting motor.
The higher lifting motor power provides strong support for lifting loads up to the rated 4-ton capacity under specified operating conditions.
Advantages include:
Strong lifting power
Stable fork movement
Efficient lifting
Smooth lifting and lowering
Suitable for heavy palletized goods
Reliable repeated lifting performance
The lifting system works together with the reinforced mast and heavy-duty fork structure to support demanding material handling applications.
Automatic Braking and Ramp Parking
The CPD-40 is equipped with an intelligent automatic braking system.
When the accelerator pedal is released, the forklift can automatically brake.
The ramp parking system can automatically maintain the forklift's position under unloaded and fully loaded conditions.
Key advantages include:
Automatic braking
Reduced unintended movement
Automatic ramp parking
Reduced rollback risk
Loaded and unloaded slope parking
Improved operator convenience
Enhanced operating safety
The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
15° Maximum Gradeability
The CPD-40 provides a maximum gradeability of 15°.
The powerful 13 kW permanent magnet drive motor provides strong travel support for suitable inclined working areas.
Potential applications include:
Warehouse ramps
Loading and unloading zones
Industrial facilities
Manufacturing areas
Logistics centers
Material transfer areas
Actual gradeability depends on the load, road surface, ramp condition and working environment.
Seated Operating Design
The CPD-40 uses a seated operating design, suitable for frequent heavy-load handling.
The seated configuration helps:
Reduce operator fatigue
Improve operating comfort
Support longer working periods
Improve handling efficiency
Facilitate repeated transportation
Provide convenient travel and lifting control
For customers handling 4-ton loads, the seated design provides a more practical operating configuration for intensive material handling.
Heavy-Duty Counterbalance Design
The counterbalance structure provides stable support for loads up to 4,000 kg under specified conditions.
The CPD-40 is designed for:
Heavy pallet stacking
Heavy material transportation
Loading and unloading
Manufacturing material supply
Logistics operations
Industrial warehouse handling
Machinery and component transportation
The counterbalance configuration allows the forklift to approach pallets directly while maintaining stable load support.
3,000 mm Lifting Height
The CPD-40 provides a 3,000 mm lifting height.
The lifting system is powered by a 10 kW synchronous motor, providing strong lifting performance for heavy loads.
The 3,000 mm lifting height is suitable for:
Warehouse pallet stacking
Rack storage
Loading and unloading
Production material handling
Internal material transportation
Heavy industrial goods handling
The actual allowable capacity at different lifting heights should be confirmed according to the final load chart and machine configuration.
High-Strength Mast Structure
The CPD-40 uses a reinforced mast structure designed for heavy-load lifting applications.
The mast works together with the 10 kW synchronous lifting motor to provide stable and controlled lifting performance.
Key advantages include:
High structural strength
Stable lifting
Reliable load support
Suitable for repeated heavy-load lifting
Improved structural durability
Designed for demanding industrial applications
Heavy-Duty Forks
The CPD-40 is equipped with:
1,070 × 125 × 45 mm forks
The 45 mm fork thickness provides strong structural support for heavy palletized loads.
The fork configuration is suitable for repeated heavy-duty pallet handling.
Where applicable, fork dimensions and configurations can be customized according to pallet size and customer requirements.
Durable Axle and Wheel Configuration
The CPD-40 uses a 310 cast steel front axle and double-layer steering rear axle.
The tire configuration includes:
28-9-15 A Grade front tires
650-10 A Grade rear tires
This heavy-duty axle and tire configuration provides stable support during travel, steering, loading and unloading.
72V 140Ah Battery
The CPD-40 is equipped with a 72V 140Ah battery.
The specified battery type is Chaowei / Tianneng.
The battery provides power for:
Electric travel
Electric lifting
Hydraulic system
Control system
Vehicle electrical functions
The 72V system and 140Ah capacity provide electrical support for the CPD-40's high-power drive and lifting motors.
Vehicle Dimensions and Weight
The CPD-40 has:
Overall length: 3,999 mm
Overall width: 1,200 mm
Overall height: 2,145 mm
Vehicle weight: 4,600 kg
The larger vehicle configuration provides the structural support required for the 4-ton rated load capacity.
Before ordering, customers should evaluate:
Warehouse aisle width
Door width
Door height
Rack configuration
Turning space
Loading area
Working surface
Transportation route
Safety Design
| Safety Feature | Function |
|---|---|
| Automatic Braking | Automatically brakes when accelerator is released |
| Ramp Parking | Helps prevent rollback on slopes |
| 60-Second Anti-Rollback | Helps maintain position on a slope |
| Emergency Stop | Quickly stops operation when required |
| Counterbalance Structure | Provides stable heavy-load support |
| Reinforced Mast | Supports heavy-load lifting |
| Controlled Lifting & Lowering | Helps provide smooth load movement |
| 310 Cast Steel Axle | Provides strong structural support |
| A Grade Tires | Supports stable travel and steering |
Core Advantages
1. 4 Ton Load Capacity
The CPD-40 provides a 4,000 kg rated load capacity for heavy industrial material handling.
2. 13 kW Permanent Magnet Drive Motor
Provides stronger driving power for heavy-load transportation and ramp operation.
3. 10 kW Synchronous Lifting Motor
Provides powerful lifting performance for 4-ton loads.
4. 72V 140Ah Battery
Provides power for the fully electric travel and lifting system.
5. 3,000 mm Lifting Height
Suitable for standard pallet stacking and warehouse storage.
6. Automatic Braking
Automatically assists braking when the accelerator is released.
7. Automatic Ramp Parking
Helps maintain the forklift position on suitable slopes.
8. 60-Second Anti-Rollback
Provides additional protection during slope operation.
9. 15° Maximum Gradeability
Suitable for appropriate inclined industrial environments.
10. Seated Operation
Improves operator comfort during heavy-duty transportation.
11. 45 mm Thick Forks
Provides stronger support for heavy palletized loads.
12. Heavy-Duty Axle and Tires
The 310 cast steel axle and A Grade tire configuration provide stable support.
Why Choose the 4 Ton Fully Electric Counterbalance Forklift?
The CPD-40 4 Ton Fully Electric Counterbalance Forklift is designed for customers who need to handle loads up to 4,000 kg while maintaining fully electric operation.
It combines a 72V 140Ah battery, 13 kW permanent magnet driving motor, 10 kW synchronous lifting motor and 3,000 mm lifting height.
Compared with lower-capacity models, the CPD-40 provides significantly greater load capacity and higher motor output, making it suitable for heavy industrial materials, machinery components, heavy pallets and demanding warehouse operations.
The automatic braking and ramp parking system provides additional safety during daily operation, while the reinforced mast, 45 mm forks, 310 cast steel front axle and heavy-duty tire configuration provide reliable structural support.
For customers looking for a 4 ton fully electric counterbalance forklift, the CPD-40 provides a powerful solution for warehouses, manufacturing facilities, logistics centers, distribution operations and heavy industrial material handling.
Typical Applications
Warehouse & Storage
Heavy pallet stacking, loading and unloading, and internal transportation.
Manufacturing
Moving heavy raw materials, machinery components, production materials and finished products.
Logistics & Distribution
Heavy pallet transportation and loading-area handling.
Retail & Wholesale
Handling heavy palletized products and industrial goods.
Heavy Industrial Material Handling
Suitable for applications requiring 4-ton electric load capacity and fully electric operation.
OEM and Customization
Customization options may include:
Machine color
Company logo
Nameplate
Fork dimensions
Lifting height
Battery configuration
Charger
Safety equipment
Packaging
Application-specific configurations
OEM and customized solutions are available according to the selected configuration and order requirements.
FAQ
What is the rated load capacity?
The CPD-40 has a rated load capacity of 4,000 kg / 4 tons.
Is the CPD-40 fully electric?
Yes. The forklift uses fully electric travel and lifting systems.
What battery does it use?
The standard configuration uses a 72V 140Ah battery.
What is the drive motor power?
The drive motor is a 13 kW permanent magnet motor.
What is the lifting motor power?
The lifting motor is a 10 kW synchronous motor.
What is the lifting height?
The standard lifting height is 3,000 mm.
What is the maximum gradeability?
The maximum gradeability is 15°.
Does it have automatic braking?
Yes. The forklift can automatically brake when the accelerator pedal is released.
Can it automatically park on slopes?
Yes. The ramp parking system supports unloaded and fully loaded conditions, with anti-rollback protection for up to 60 seconds.
What are the fork dimensions?
The forks measure 1,070 × 125 × 45 mm.
What are the overall dimensions?
The overall dimensions are 3,999 × 1,200 × 2,145 mm.
What is the vehicle weight?
The vehicle weight is approximately 4,600 kg.
