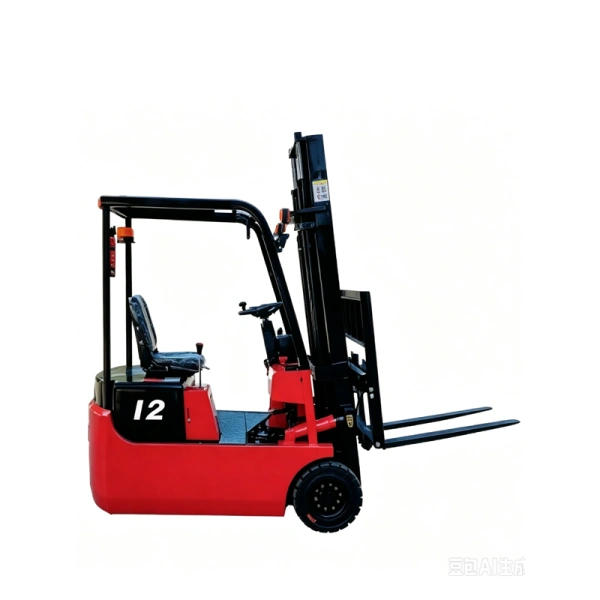

1.2 Ton 3-Wheel Fully Electric Forklift
The CPD-12 1.2 Ton 3-Wheel Fully Electric Forklift is the highest-capacity model in this series.
It is designed for customers who need 1,200 kg load capacity while still requiring the maneuverability and compact operating characteristics of a three-wheel forklift.
The CPD-12 combines:
Three-point counterbalance structure
Dual front-wheel drive
Centralized rear steering
Fully electric travel
Fully electric lifting
Wide-view mast
Intelligent electronic control
Adjustable operator configuration
The result is a compact electric forklift designed for indoor warehouse, manufacturing and logistics applications.
1,200 kg Rated Load Capacity
The CPD-12 provides a 1,200 kg rated load capacity with a 500 mm load center.
The capacity is suitable for:
Pallet handling
Warehouse storage
Production material handling
Logistics operations
Loading and unloading
Internal transportation
As the largest model in the series, the CPD-12 provides increased handling capability compared with the CPD-05, CPD-08 and CPD-10.
Three-Point Counterbalance Structure
The CPD-12 uses a three-point support configuration consisting of:
Two front drive wheels
Two centrally arranged rear steering wheels
Three-point ground support
Counterbalance chassis
Centralized rear steering
The design combines counterbalance load support with compact steering characteristics.
2,000 mm Turning Radius
The CPD-12 provides a 2,000 mm turning radius.
This makes it suitable for:
Warehouse aisles
Rack storage
Manufacturing workshops
Logistics centers
Loading areas
Indoor transportation
Compact industrial facilities
The compact steering structure can help improve maneuverability compared with larger four-wheel forklift configurations of similar operating requirements.
Fully Electric Travel and Lifting
The CPD-12 uses a fully electric power system for both travel and lifting.
The system provides:
Zero direct exhaust emissions
Low operating noise
Smooth travel
Responsive acceleration
Precise low-speed movement
Reduced operator effort
Efficient indoor operation
This makes the CPD-12 suitable for clean indoor environments.
4,000 W Drive Motor
The CPD-12 is equipped with a specified 4,000 W drive motor power.
The higher drive motor output supports the vehicle's 1,200 kg rated load capacity.
The dual-drive system provides:
Independent front-wheel drive
Responsive acceleration
Smooth travel
Precise low-speed control
Flexible maneuvering
Efficient electric power transmission
2,500 W Lifting Motor
The CPD-12 uses a 2,500 W lifting motor.
The lifting motor provides additional lifting support for the 1.2-ton rated capacity and the specified 2,500 mm lifting height.
The electric lifting system provides controlled fork movement during:
Pallet lifting
Rack stacking
Loading
Unloading
Material positioning
2,500 mm Lifting Height
The standard lifting height is 2,500 mm.
This configuration supports:
Warehouse pallet stacking
Medium-height rack storage
Production material handling
Logistics operations
Loading and unloading
The mast configuration can be customized according to the required storage height and working environment.
Wide-View Mast
The CPD-12 uses a wide-view mast to improve forward visibility.
The large-radius overhead guard and optimized roof panel angle provide additional visibility above the operator.
The design helps operators observe:
Forks
Pallets
Storage racks
Elevated loads
Forward working areas
Hydraulic Hose Burst Protection
The mast can be equipped with hydraulic hose burst protection.
This safety configuration is designed to help reduce the risk of uncontrolled lowering if a hydraulic hose fails.
It provides an additional layer of protection during lifting and stacking operations.
Intelligent LCD Display
The CPD-12 can use a large LCD display to provide intuitive information about vehicle operating status.
The intelligent control system can provide:
Fault code display
Operating status information
Incorrect-operation alarm
Turning-speed reduction
Overload protection
Emergency power cut-off
Ramp anti-rollback
The system helps operators monitor vehicle conditions during daily operation.
Comfortable Seated Operation
The CPD-12 uses a seated operating configuration.
The adjustable steering wheel and seat allow operators to select a suitable driving position.
The design helps:
Reduce driver fatigue
Improve operating comfort
Improve steering control
Support longer working periods
The ratchet-type parking brake provides controlled braking for level-ground and ramp parking conditions.
Energy-Efficient Electric System
The CPD-12 incorporates an energy-efficient electric design.
The system can use:
Dedicated electric forklift tires
Regenerative braking
LED signal lights
Efficient motor control
Professionally matched electrical components
The electric tires are designed to improve travel efficiency, while regenerative braking can recover part of the braking energy.
LED signal lights can reduce lighting energy consumption compared with conventional lighting.
Compact Vehicle Dimensions
The CPD-12 provides a compact configuration for a 1.2-ton electric forklift.
The main dimensions include:
Overall length: 1,850 mm
Overall width: 920 mm
Overall height with forks lowered: 1,910 mm
Overall height with forks raised: 3,510 mm
Fork length: 1,070 mm
Maximum fork width: 800 mm
Minimum fork ground clearance: 35 mm
Turning radius: 2,000 mm
Customers should compare the vehicle dimensions with the actual warehouse aisle width, rack layout, door dimensions and operating clearance before ordering.
Technical Specifications
| Specification | CPD-12 |
|---|---|
| Product Type | 3-Wheel Fully Electric Counterbalance Forklift |
| Model | CPD-12 |
| Rated Load Capacity | 1,200 kg / 1.2 Ton |
| Load Center | 500 mm |
| Operating Type | Seated |
| Battery / Power Type | Pure Electric Drive |
| Tire Type | Rubber |
| Drive Wheel Size | Φ400 × 100 / 350 × 100 mm |
| Load Wheel Size | Φ104 × 25 mm |
| Balance Wheel Size | Φ40 × 25 / 58 × 23 mm |
| Wheel Quantity Specification | 18 |
| Lifting Height | 2,500 mm |
| Overall Height, Forks Lowered | 1,910 mm |
| Overall Height, Forks Raised | 3,510 mm |
| Minimum Fork Ground Clearance | 35 mm |
| Overall Length | 1,850 mm |
| Overall Width | 920 mm |
| Fork Length | 1,070 mm |
| Maximum Fork Width | 800 mm |
| Turning Radius | 2,000 mm |
| Travel Speed, Loaded / Unloaded | 11 / 13 km/h |
| Lifting Speed | 2,000 / 19 mm/s |
| Lowering Speed | 2,000 / 15 mm/s |
| Gradeability, Loaded / Unloaded | 5 / 8% |
| Braking System | Oil Braking |
| Drive Motor Power | 4,000 W |
| Lifting Motor Power | 2,500 W |
| Electrical System | 60V / 70Ah |
| Control System | MOS Stepless Speed Control |
Final product specifications should be confirmed according to the actual production configuration.
Safety Design
| Safety Feature | Function |
|---|---|
| Wide-View Mast | Improves operator visibility |
| Hydraulic Hose Burst Protection | Helps reduce uncontrolled lowering risk |
| LCD Fault Display | Provides vehicle status and fault information |
| Incorrect-Operation Alarm | Provides operating warnings |
| Overload Protection | Helps protect the vehicle |
| Emergency Power Cut-Off | Allows rapid power interruption |
| Turning-Speed Reduction | Helps improve turning stability |
| Ramp Anti-Rollback | Helps reduce unintended movement |
| Ratchet Parking Brake | Supports controlled parking |
Core Advantages
1. 1.2 Ton Rated Capacity
The CPD-12 provides 1,200 kg load capacity for medium-duty indoor material handling.
2. 500 mm Load Center
The standard load center is 500 mm.
3. Three-Point Counterbalance Structure
The three-wheel design combines compact maneuverability with counterbalance support.
4. 2,000 mm Turning Radius
Provides maneuverability for relatively confined warehouse and industrial environments.
5. 4,000 W Drive Motor
Provides higher drive motor output for the 1.2-ton configuration.
6. 2,500 W Lifting Motor
Provides strong electric lifting support.
7. 2,500 mm Lifting Height
Suitable for medium-height pallet storage and stacking.
8. Fully Electric Operation
Provides clean, quiet and efficient indoor material handling.
9. Wide-View Operator Design
Improves forward and upward visibility.
10. Intelligent Safety Control
LCD display, alarms, overload protection, emergency power cut-off and ramp anti-rollback support safer operation.
Typical Applications
Warehouse & Storage
Pallet stacking, rack storage and internal transportation.
Manufacturing
Moving raw materials, production components and finished goods.
Logistics & Distribution
Pallet transportation and loading-area handling.
Retail & Wholesale
Handling palletized products in storage and distribution facilities.
Indoor Industrial Handling
Suitable for industrial facilities requiring a compact 1.2-ton electric forklift.
OEM & Customization
Customization options may include:
Machine color
Company logo
Nameplate
Fork dimensions
Lifting height
Battery configuration
Charger
Safety equipment
Packaging
Application-specific configurations
OEM configurations can be discussed according to the actual application and order requirements.
FAQ
What is the rated load capacity?
The CPD-12 has a 1,200 kg / 1.2 ton rated load capacity.
What is the load center?
The standard load center is 500 mm.
What is the lifting height?
The standard lifting height is 2,500 mm.
What is the turning radius?
The turning radius is 2,000 mm.
Is the CPD-12 fully electric?
Yes. Both travel and lifting use electric power.
What is the drive motor power?
The specified drive motor power is 4,000 W.
What is the lifting motor power?
The specified lifting motor power is 2,500 W.
What is the electrical system?
The specified electrical system is 60V / 70Ah.
Is it suitable for indoor warehouses?
Yes. The fully electric configuration, low operating noise and compact three-wheel structure make it suitable for many indoor warehouse applications.
Can the lifting height be customized?
Yes. The mast and lifting configuration can be customized according to the required application.
Can the forklift be equipped with different attachments?
The forklift can be configured with suitable attachments such as side shifters, fork positioners and other load-handling equipment according to the application and actual vehicle configuration.
