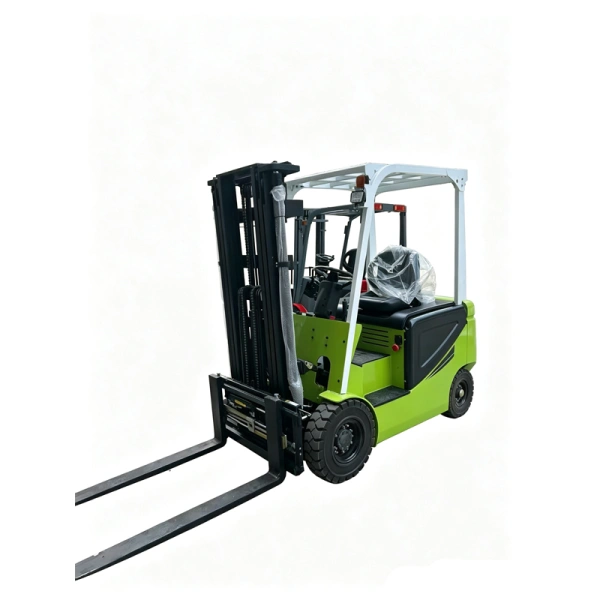

3 Ton Fully Electric Counterbalance Forklift
The 3 Ton Fully Electric Counterbalance Forklift CPD-30 is designed for heavy-duty pallet handling, stacking, loading, unloading and short-distance material transportation in warehouses, manufacturing facilities, logistics centers, distribution centers and industrial environments.
With a rated load capacity of 3,000 kg, a 3,000 mm lifting height and a comfortable seated operating design, the CPD-30 provides stronger load-handling capability for heavier palletized goods and industrial materials.
The forklift is equipped with a 72V 140Ah battery, a 10 kW permanent magnet driving motor and a 7.5 kW synchronous lifting motor. The higher-power configuration provides strong travel and lifting performance for demanding 3-ton material handling applications.
The CPD-30 also features an intelligent automatic braking and ramp parking system. When the accelerator pedal is released, the forklift can automatically brake. On slopes, it can automatically maintain its position under unloaded and fully loaded conditions without requiring the operator to use the handbrake. The anti-rollback function can maintain the forklift on a slope for up to 60 seconds, providing additional protection during ramp operation.
Technical Specifications
| Specification | 3 Ton Fully Electric Counterbalance Forklift |
|---|---|
| Model | CPD-30 |
| Battery Type | Chaowei / Tianneng |
| Battery | 72V 140Ah |
| Operating Type | Seated |
| Rated Load Capacity | 3,000 kg |
| Overall Length | 3,999 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,145 mm |
| Fork Length | 1,070 mm |
| Fork Width | 125 mm |
| Fork Thickness | 45 mm |
| Lifting Height | 3,000 mm |
| Vehicle Weight | 3,800 kg |
| Driving Motor Power | 10 kW Permanent Magnet |
| Lifting Motor Power | 7.5 kW Synchronous |
| Maximum Gradeability | 15° |
| Front Axle | 310 Cast Steel Axle |
| Rear Axle | Double-Layer Steering Axle |
| Front Tires | 28-9-15 (A Grade) |
| Rear Tires | 650-10 (A Grade) |
Final product specifications should be confirmed according to the actual production configuration.
Fully Electric Travel and Lifting
The CPD-30 uses a fully electric travel and lifting system, eliminating fuel-powered operation and manual fork lifting.
The 10 kW permanent magnet driving motor provides strong travel power, while the 7.5 kW synchronous lifting motor provides stable lifting performance for 3-ton loads.
The fully electric configuration provides:
Fully electric travel
Fully electric lifting
Strong power output
Smooth acceleration
Stable lifting
Low operating noise
Reduced operator effort
Efficient pallet handling
Lower operating emissions
Suitable for industrial material handling
The 72V 140Ah battery provides a larger electrical energy capacity than the lower-capacity models, supporting the higher operating requirements of a 3-ton forklift.
Permanent Magnet Synchronous Power System
The CPD-30 is equipped with a 10 kW permanent magnet driving motor.
The permanent magnet power system provides efficient and responsive power during frequent starting, stopping, acceleration and transportation operations.
Key advantages include:
Strong travel performance
Responsive acceleration
Efficient power utilization
Stable operation under heavy loads
Reduced energy loss
Suitable for frequent material transportation
Stronger power reserve for 3-ton applications
The 10 kW drive motor provides stronger power support compared with the 2.5-ton model, making the CPD-30 suitable for heavier palletized materials and more demanding industrial applications.
Automatic Braking and Ramp Parking
The CPD-30 features an intelligent automatic braking system.
When the operator releases the accelerator pedal, the forklift can automatically brake, helping improve vehicle control during frequent starting and stopping.
The system also supports automatic parking on slopes under both unloaded and fully loaded conditions.
Key advantages include:
Automatic braking when the accelerator is released
Reduced unintended vehicle movement
Automatic ramp parking
Reduced reliance on handbrake operation
Support for loaded and unloaded conditions
Improved operator convenience
Enhanced safety during inclined operation
The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
15° Maximum Gradeability
The CPD-30 provides a maximum gradeability of 15°.
This allows the forklift to handle suitable inclined working areas such as:
Warehouse ramps
Loading and unloading areas
Industrial facilities
Production areas
Internal transportation routes
Material transfer zones
Actual gradeability depends on load, road surface, ramp condition and operating environment.
Seated Operating Design
The CPD-30 uses a seated operating configuration, making it suitable for frequent transportation and longer working cycles.
The seated design can help:
Reduce operator fatigue
Improve operating comfort
Support longer operating periods
Improve handling efficiency
Provide convenient travel and lifting control
Improve productivity during repeated material transportation
The combination of 3-ton capacity and seated operation is particularly suitable for heavy-duty warehouse and industrial applications.
Counterbalance Forklift Design
The counterbalance structure allows the forks to approach pallets directly while providing stable support for heavier loads.
The CPD-30 is suitable for:
Heavy pallet stacking
Warehouse transportation
Loading and unloading
Production material supply
Logistics operations
Distribution center handling
Industrial material transportation
The counterbalance design provides flexibility for pallet handling while maintaining stable vehicle operation.
3,000 mm Lifting Height
The CPD-30 provides a 3,000 mm lifting height for standard pallet stacking and material handling applications.
The lifting system is powered by a 7.5 kW synchronous lifting motor, providing strong lifting support for its 3-ton rated load capacity.
The 3,000 mm lifting height can be used for:
Warehouse stacking
Pallet handling
Rack storage
Loading and unloading
Production material handling
Internal transportation
Actual allowable capacity at different lifting heights should be confirmed according to the final load chart and machine configuration.
High-Strength Mast Structure
The CPD-30 uses a reinforced mast structure designed to provide reliable support during lifting and stacking.
The mast works together with the 7.5 kW synchronous lifting motor to provide stable fork movement.
Key advantages include:
Strong structural support
Stable lifting performance
Reliable load handling
Good resistance to deformation
Suitable for repeated lifting
Designed for heavy-duty applications
Integrated Fork Design
The CPD-30 is equipped with forks measuring:
1,070 × 125 × 45 mm
The thicker 45 mm fork configuration provides stronger structural support for heavier loads.
Key advantages include:
1,070 mm fork length
125 mm fork width
45 mm fork thickness
Strong pallet support
Suitable for heavier loads
Reliable repeated lifting performance
Fork dimensions can be customized according to specific pallet and application requirements where applicable.
Durable Axle and Wheel Configuration
The CPD-30 uses a 310 cast steel front axle and double-layer steering rear axle.
The wheel configuration includes:
28-9-15 A Grade front tires
650-10 A Grade rear tires
The reinforced axle and larger tire configuration provide stable support for heavy-duty operation.
72V 140Ah Battery
The CPD-30 uses a 72V 140Ah battery, providing electrical power for the travel, lifting and control systems.
The battery type is specified as Chaowei / Tianneng.
The higher-capacity battery configuration is suitable for the greater power requirements of the 3-ton model.
It supplies power for:
Electric travel
Electric lifting
Hydraulic system
Vehicle control system
Battery and charger configurations can be confirmed according to the final order requirements.
Vehicle Dimensions and Weight
The CPD-30 has:
Overall length: 3,999 mm
Overall width: 1,200 mm
Overall height: 2,145 mm
Vehicle weight: 3,800 kg
Before ordering, customers should consider warehouse aisle width, door dimensions, rack configuration, turning space and loading area requirements.
Safety Design
| Safety Feature | Function |
|---|---|
| Automatic Braking | Automatically brakes when the accelerator is released |
| Ramp Parking | Helps prevent rollback on slopes |
| 60-Second Anti-Rollback | Helps maintain the forklift position on a slope |
| Emergency Stop | Quickly stops operation when required |
| Counterbalance Structure | Supports stable heavy-load handling |
| Reinforced Mast | Provides stable lifting support |
| Controlled Lifting & Lowering | Helps provide smooth load movement |
| 310 Cast Steel Axle | Provides strong vehicle support |
| A Grade Tires | Provides stable travel and steering |
Core Advantages
1. 3 Ton Load Capacity
Handles loads up to 3,000 kg under specified operating conditions.
2. 10 kW Permanent Magnet Drive Motor
Provides strong travel power for heavy-duty material handling.
3. 7.5 kW Synchronous Lifting Motor
Provides strong and stable lifting performance.
4. 72V 140Ah Battery
Provides higher battery capacity for demanding operating requirements.
5. 3,000 mm Lifting Height
Suitable for standard pallet stacking and warehouse storage.
6. Automatic Braking
Automatically brakes when the accelerator pedal is released.
7. Automatic Ramp Parking
Supports automatic parking on slopes without requiring handbrake operation.
8. 60-Second Anti-Rollback
Helps maintain the forklift position on a slope for up to 60 seconds.
9. 15° Maximum Gradeability
Suitable for appropriate ramps and inclined industrial environments.
10. Seated Operation
Improves operator comfort during frequent material transportation.
11. Reinforced 45 mm Forks
The 1,070 × 125 × 45 mm forks provide strong support for heavy loads.
12. Heavy-Duty Axle and Tires
The 310 cast steel front axle, double-layer steering axle and A Grade tires provide stable vehicle support.
Why Choose the 3 Ton Fully Electric Counterbalance Forklift?
The CPD-30 3 Ton Fully Electric Counterbalance Forklift combines a 3,000 kg load capacity, 72V 140Ah battery, 10 kW permanent magnet drive motor, 7.5 kW synchronous lifting motor and 3,000 mm lifting height.
It is designed for customers who require more load capacity than a 2.5-ton electric forklift while maintaining fully electric operation.
The combination of a 10 kW permanent magnet drive motor and 7.5 kW synchronous lifting motor provides strong travel and lifting performance for heavy-duty warehouse, manufacturing and logistics applications.
With automatic braking, ramp parking, anti-rollback protection, 15° gradeability and a reinforced counterbalance structure, the CPD-30 provides a practical solution for demanding industrial material handling.
Typical Applications
Warehouse & Storage
Heavy pallet stacking, loading, unloading and internal warehouse transportation.
Manufacturing
Moving raw materials, components and finished products between production and storage areas.
Logistics & Distribution
Pallet transportation, loading operations and distribution center handling.
Retail & Wholesale
Handling heavier palletized products between storage and dispatch areas.
Industrial Material Handling
Heavy-duty material transportation where higher load capacity and fully electric operation are required.
OEM and Customization
Customization options may include:
Machine color
Logo and branding
Nameplate and labels
Fork configuration
Fork dimensions
Lifting height
Battery configuration
Charger configuration
Safety configuration
Packaging
Application-specific requirements
OEM and customized solutions are available depending on the selected configuration and order requirements.
FAQ
Is the CPD-30 fully electric?
Yes. The CPD-30 uses fully electric travel and lifting systems.
What is the rated load capacity?
The rated load capacity is 3,000 kg / 3 tons.
What is the lifting height?
The standard lifting height is 3,000 mm.
What battery does it use?
It uses a 72V 140Ah battery, with Chaowei / Tianneng listed as the battery type.
What is the drive motor power?
The driving motor is 10 kW permanent magnet.
What is the lifting motor power?
The lifting motor is 7.5 kW synchronous.
What is the maximum gradeability?
The maximum gradeability is 15°.
Does it have automatic braking?
Yes. Releasing the accelerator pedal activates automatic braking.
Can it park automatically on slopes?
Yes. The forklift supports automatic ramp parking under loaded and unloaded conditions.
What are the fork dimensions?
The forks are 1,070 × 125 × 45 mm.
What are the overall dimensions?
The overall dimensions are 3,999 × 1,200 × 2,145 mm.
What is the vehicle weight?
The vehicle weight is approximately 3,800 kg.
Request a Quote
Looking for a 3 Ton Fully Electric Counterbalance Forklift?
Send us your required lifting height, load capacity, pallet dimensions, rack height, working environment, daily operating hours and battery requirements.
Our team can recommend a suitable CPD-30 3 Ton Fully Electric Counterbalance Forklift configuration for your application.
Contact us today for product specifications, configuration options and a quotation.
