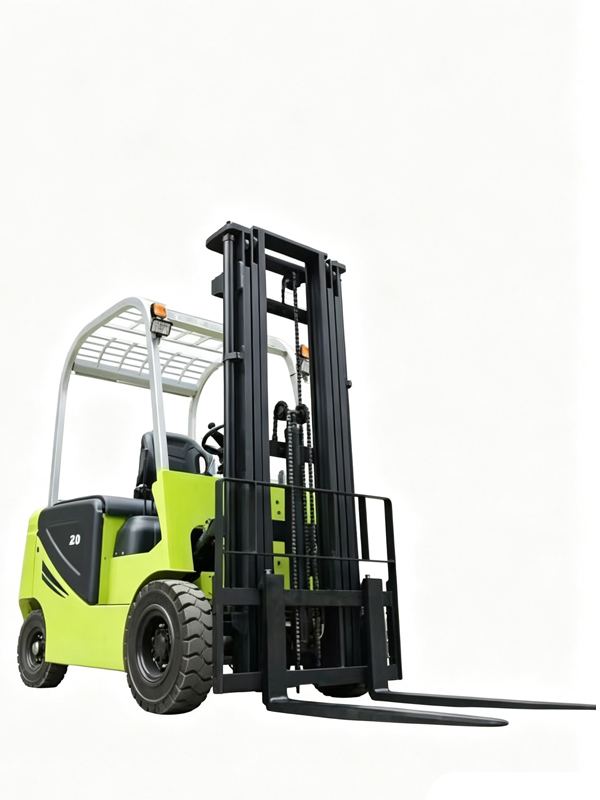

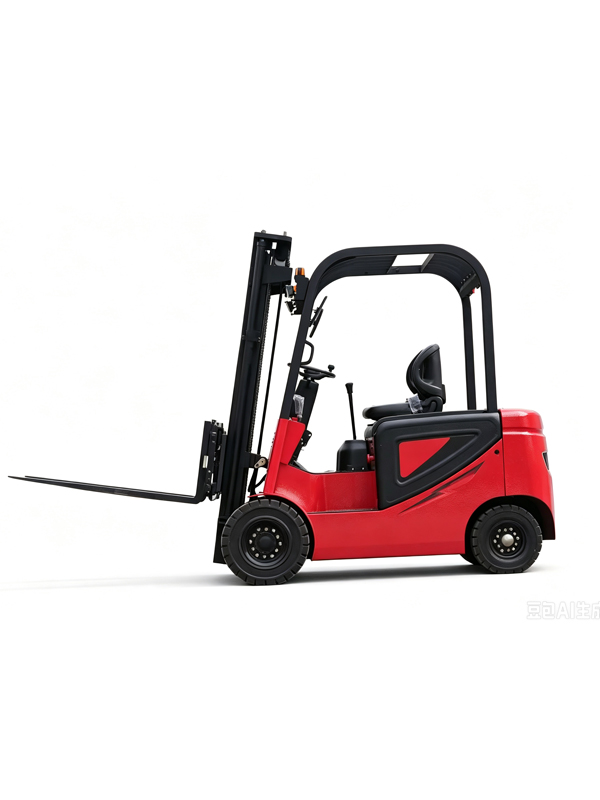

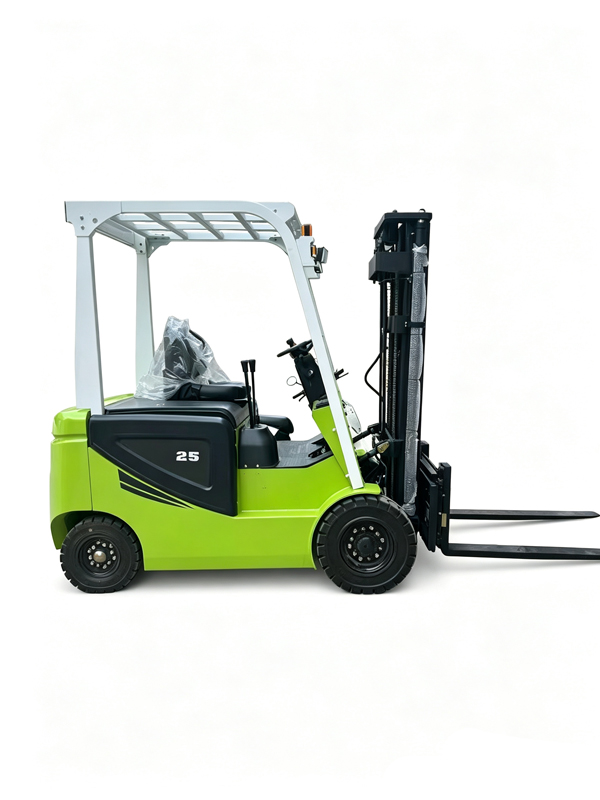

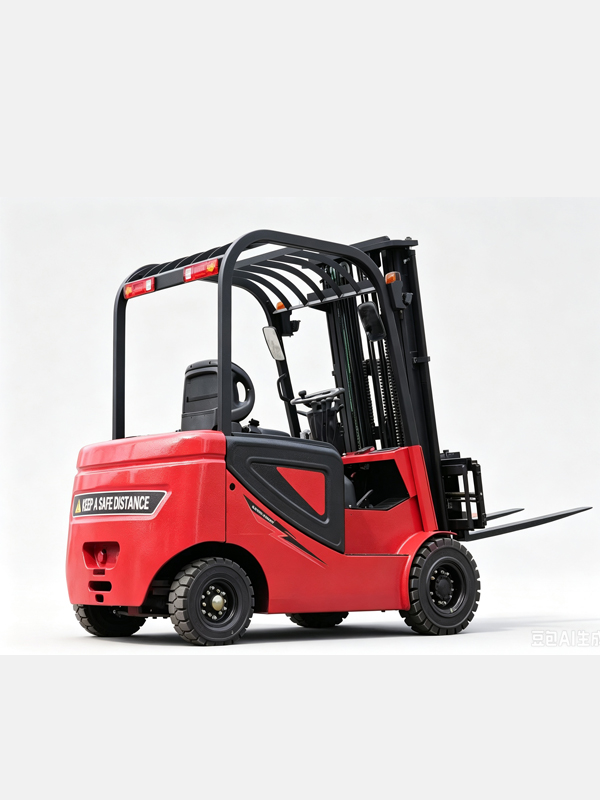

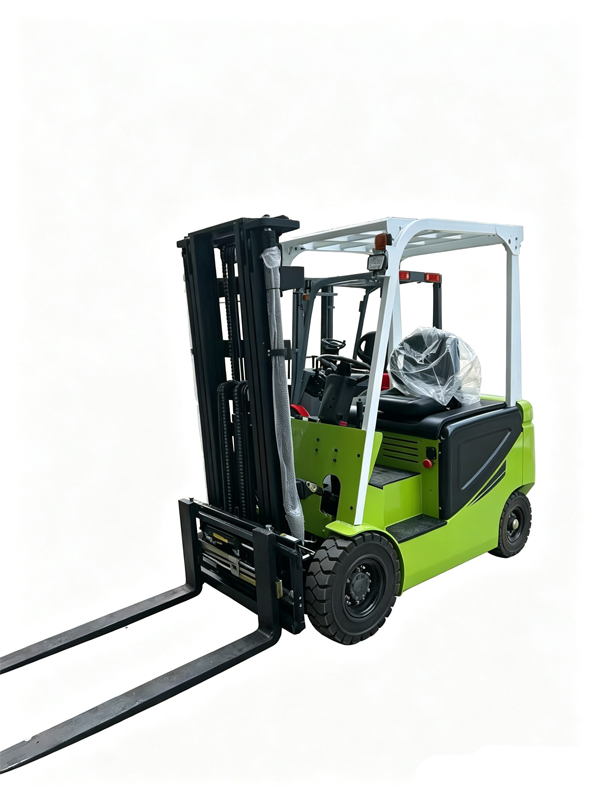

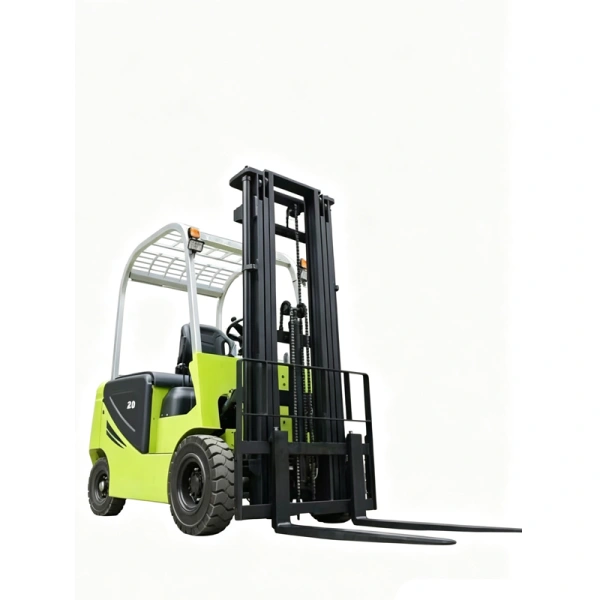

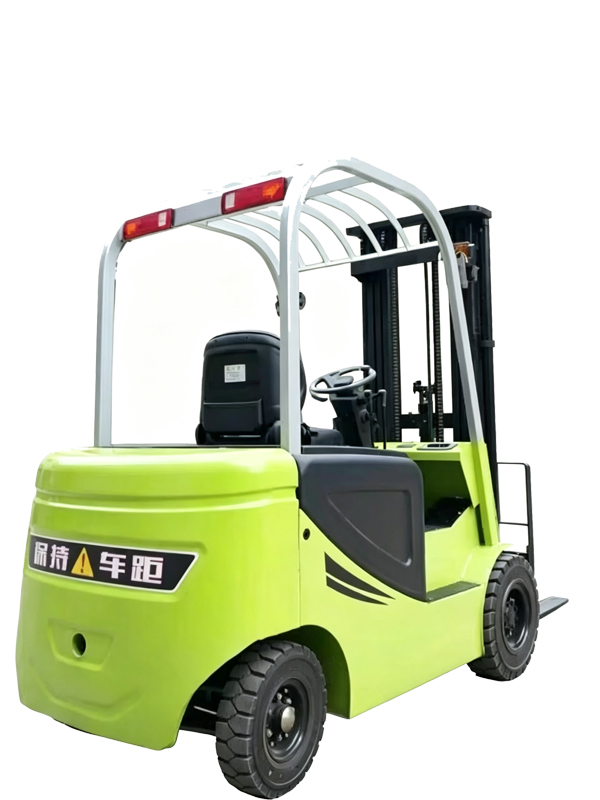

2 Ton Fully Electric Counterbalance Forklift
The 2 Ton Fully Electric Counterbalance Forklift is designed for efficient pallet handling, stacking, loading, unloading and short-distance material transportation in warehouses, manufacturing facilities, logistics centers, distribution centers and other industrial environments.
With a rated load capacity of 2,000 kg, a 3,000 mm lifting height and a seated operating design, this forklift provides stronger load-handling capability and comfortable operation for daily material handling tasks.
The forklift is powered by a 72V 70Ah battery, a 5 kW permanent magnet driving motor and a 4 kW synchronous lifting motor. The permanent magnet synchronous power system can increase overall operating time by approximately 30% and improve acceleration by nearly 2 times, helping improve handling efficiency during frequent starting, stopping and transportation operations.
The forklift also features an intelligent automatic braking and ramp parking system. When the accelerator pedal is released, the forklift can automatically brake. On slopes, it can automatically maintain its position under both unloaded and fully loaded conditions without requiring the operator to use the handbrake. The anti-rollback function can maintain the forklift on a slope for up to 60 seconds, providing additional safety during loading, unloading and ramp operation.
Technical Specifications
| Specification | 2 Ton Fully Electric Counterbalance Forklift |
|---|---|
| Model | CPD-20 |
| Battery Type | Chaowei / Tianneng |
| Battery | 72V 70Ah |
| Operating Type | Seated |
| Rated Load Capacity | 2,000 kg |
| Overall Length | 3,520 mm |
| Overall Width | 1,160 mm |
| Overall Height | 2,160 mm |
| Fork Length | 1,070 mm |
| Fork Width | 120 mm |
| Fork Thickness | 35 mm |
| Lifting Height | 3,000 mm |
| Vehicle Weight | 2,950 kg |
| Driving Motor Power | 5 kW Permanent Magnet |
| Lifting Motor Power | 4 kW Synchronous |
| Maximum Gradeability | 15° |
| Front Axle | 256 Cast Steel Axle |
| Rear Axle | Double-Layer Steering Axle |
| Front Tires | 650-10 (A Grade) |
| Rear Tires | 500-8 (A Grade) |
Final product specifications should be confirmed according to the actual production configuration.
Fully Electric Travel and Lifting
The forklift uses a fully electric travel and lifting system, eliminating the need for fuel-powered driving and manual fork lifting.
The 5 kW permanent magnet driving motor provides efficient and responsive power for travel, while the 4 kW synchronous lifting motor provides stable lifting performance.
The fully electric configuration provides:
Fully electric travel
Fully electric lifting
Smooth and responsive operation
Strong power output
Fast acceleration
Low operating noise
Reduced operator effort
Efficient pallet handling
Lower operating emissions
Suitable for indoor and industrial material handling
With a 72V 70Ah battery, the forklift provides a practical power configuration for regular warehouse and industrial handling operations.
Permanent Magnet Synchronous Power System
The permanent magnet synchronous power system is one of the key advantages of this 2 ton electric forklift.
The forklift is equipped with a 5 kW permanent magnet driving motor, providing efficient power output and responsive acceleration during transportation.
Compared with conventional drive configurations, the permanent magnet synchronous power system can provide:
Approximately 30% longer overall operating time
Nearly 2 times faster acceleration
Efficient power utilization
Stronger dynamic performance
Smooth travel response
Improved handling efficiency
Reduced energy consumption
The improved acceleration is particularly useful for applications involving frequent movement between storage areas, production lines, loading zones and warehouse aisles.
The higher 5 kW drive motor also provides strong power support for the 2 ton load-handling requirement.
Automatic Braking and Ramp Parking
The forklift is equipped with an intelligent automatic braking function.
When the operator releases the accelerator pedal, the forklift can automatically apply braking, helping reduce unintended movement and improving driving control.
The system also provides automatic parking on slopes under both unloaded and fully loaded conditions without requiring the operator to use the handbrake.
Key advantages include:
Automatic braking when the accelerator is released
Reduced risk of unintended movement
Automatic ramp parking
No need to operate the handbrake during ramp parking
Support for unloaded and loaded conditions
Improved operator convenience
Enhanced safety during slope operation
The anti-rollback function can maintain the forklift on a slope for up to 60 seconds, providing additional protection when stopping on ramps.
15° Maximum Gradeability
The CPD-20 provides a maximum gradeability of 15°, allowing it to handle suitable ramps and inclined working areas.
The gradeability is supported by the combination of the 5 kW permanent magnet drive motor, transmission system and electric control system.
This makes the forklift suitable for applications involving:
Warehouse ramps
Loading and unloading areas
Production facilities
Material transfer areas
Internal transportation routes
Industrial facilities with inclined surfaces
Actual gradeability depends on load condition, road surface, ramp condition and operating environment.
Seated Operating Design
The forklift uses a seated operating design, allowing the operator to remain seated during material handling and transportation.
The seated configuration is particularly suitable for applications involving frequent transportation between different warehouse, production and loading areas.
The operating design helps:
Reduce operator fatigue
Improve operating comfort
Support longer working periods
Improve transportation efficiency
Provide convenient control of travel and lifting functions
Support frequent pallet handling
For warehouses and manufacturing facilities handling heavier palletized materials, the seated configuration provides a comfortable solution for repeated transportation tasks.
Counterbalance Forklift Design
The counterbalance structure provides stable load handling while allowing the forks to approach pallets directly.
The counterbalance configuration is suitable for different pallet handling applications and provides greater flexibility compared with equipment using front supporting legs.
It can be used for:
Pallet stacking
Pallet transportation
Loading and unloading
Warehouse material handling
Production-line material supply
Logistics and distribution operations
The counterbalance structure makes the forklift suitable for applications where flexible pallet access and stable load handling are required.
3,000 mm Lifting Height
The CPD-20 provides a 3,000 mm lifting height, making it suitable for standard warehouse stacking and material handling applications.
The 3,000 mm lifting height can be used for:
Pallet stacking
Warehouse storage
Rack handling
Loading and unloading
Production material handling
Internal material transportation
The lifting system is powered by a 4 kW synchronous lifting motor, providing stable and efficient fork lifting performance.
The actual allowable load at the selected lifting height should be confirmed according to the final machine configuration and operating conditions.
High-Strength Mast Structure
The forklift uses a reinforced mast structure designed to provide stable and reliable lifting performance.
The mast provides structural support during pallet lifting, stacking and transportation operations.
Key advantages include:
Strong structural support
Stable lifting performance
Reliable load handling
Good resistance to deformation
Suitable for repeated lifting operations
Reliable performance in warehouse applications
The mast structure works together with the 4 kW synchronous lifting motor to provide smooth and controlled fork lifting.
Integrated Fork Design
The CPD-20 is equipped with forks measuring 1,070 mm in length, 120 mm in width and 35 mm in thickness.
The fork dimensions are designed for common pallet handling applications and provide reliable support during lifting and transportation.
Key advantages include:
1,070 mm fork length
120 mm fork width
35 mm fork thickness
Strong structural support
Reliable pallet handling
Suitable for repeated lifting and transportation
The fork configuration can be customized according to different pallet dimensions and application requirements where applicable.
Durable Axle and Wheel Configuration
The CPD-20 uses a 256 cast steel front axle and a double-layer steering rear axle to provide stable support and steering performance.
The forklift is equipped with:
650-10 A Grade front tires
500-8 A Grade rear tires
The axle and tire configuration is designed to provide stable vehicle support during transportation, turning and material handling operations.
The combination of the reinforced axle structure, durable tires and counterbalance design helps provide reliable performance during daily industrial operation.
72V 70Ah Battery
The CPD-20 is equipped with a 72V 70Ah battery, providing electrical power for the travel, lifting, hydraulic and control systems.
The battery configuration supports the forklift's fully electric operating system while working together with the permanent magnet drive motor to provide efficient power utilization.
The battery system provides power for:
Electric travel
Electric lifting
Hydraulic lifting system
Vehicle control system
The battery type shown in the technical specification is Chaowei / Tianneng.
Battery configuration and charging requirements should be confirmed according to the final machine configuration and customer application.
Vehicle Dimensions and Weight
The CPD-20 has an overall length of 3,520 mm, an overall width of 1,160 mm and an overall height of 2,160 mm.
The vehicle weight is approximately 2,950 kg, providing a stable counterbalance structure for handling loads up to 2 tons under specified operating conditions.
Before ordering, customers should consider:
Warehouse aisle width
Door width
Door height
Rack configuration
Loading area dimensions
Turning space
Working environment
This helps ensure that the selected forklift configuration is suitable for the actual operating area.
Safety Design
The 2 Ton Fully Electric Counterbalance Forklift integrates multiple safety functions designed to support stable and controlled material handling.
| Safety Feature | Function |
| Automatic Braking | Automatically brakes when the accelerator pedal is released |
| Ramp Parking | Helps prevent rollback when stopping on slopes |
| 60-Second Anti-Rollback | Helps maintain the forklift position on a slope |
| Emergency Stop | Quickly stops machine operation when required |
| Counterbalance Structure | Supports stable load handling |
| High-Strength Mast | Provides stable lifting support |
| Controlled Lifting & Lowering | Helps provide smooth load movement |
| Durable Axle Structure | Provides stable vehicle support |
| 650-10 Front Tires | Supports stable front-end operation |
| 500-8 Rear Tires | Supports steering and vehicle movement |
The combination of automatic braking, ramp parking, permanent magnet drive, counterbalance structure and reinforced vehicle components provides a safer and more reliable operating experience.
Core Advantages
1. 2 Ton Load Capacity
The CPD-20 provides a 2,000 kg rated load capacity, making it suitable for heavier palletized goods, industrial materials and warehouse handling.
2. 5 kW Permanent Magnet Drive Motor
The 5 kW permanent magnet driving motor provides strong and efficient power output, approximately 30% longer overall operating time and nearly 2 times faster acceleration.
3. 72V 70Ah Battery
The 72V 70Ah battery provides power for the fully electric travel, lifting and control systems.
4. 4 kW Synchronous Lifting Motor
The 4 kW synchronous lifting motor provides stable and efficient fork lifting performance.
5. Automatic Braking
Releasing the accelerator pedal automatically activates braking, helping improve vehicle control and safety.
6. Automatic Ramp Parking
The forklift can automatically park on slopes under unloaded and fully loaded conditions without requiring handbrake operation.
7. 60-Second Anti-Rollback
The automatic ramp parking function can maintain the forklift on a slope for up to 60 seconds.
8. 15° Maximum Gradeability
The forklift provides a maximum gradeability of 15° for suitable inclined working environments.
9. 3,000 mm Lifting Height
The 3,000 mm lifting height is suitable for standard warehouse stacking and pallet handling.
10. Seated Operation
The seated operating design improves operator comfort during frequent material transportation.
11. Durable Forks
The 1,070 × 120 × 35 mm fork configuration provides reliable pallet support.
12. Reinforced Axle and Tires
The 256 cast steel front axle, double-layer steering rear axle, 650-10 front tires and 500-8 rear tires provide stable vehicle support and steering performance.
Why Choose the 2 Ton Fully Electric Counterbalance Forklift?
The 2 Ton Fully Electric Counterbalance Forklift combines a 2,000 kg rated load capacity, 3,000 mm lifting height, 72V 70Ah battery, 5 kW permanent magnet drive motor and 4 kW synchronous lifting motor into a practical electric material handling solution.
Its permanent magnet synchronous power system can increase overall operating time by approximately 30% and improve acceleration by nearly 2 times, helping operators improve efficiency during frequent material transportation.
The automatic braking and ramp parking system provides an important safety advantage. When the accelerator pedal is released, the forklift automatically brakes. On slopes, the forklift can automatically maintain its position under unloaded and fully loaded conditions without requiring handbrake operation, with anti-rollback protection for up to 60 seconds.
With its 2 ton load capacity, counterbalance design, seated operation, 3,000 mm lifting height, 15° maximum gradeability, durable axle structure and practical fork dimensions, the CPD-20 provides a stronger material handling solution for warehouses, manufacturing facilities, logistics centers, distribution operations and other industrial applications.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, loading and unloading, warehouse transportation and internal material handling.
Manufacturing
Suitable for moving raw materials, components, finished products and production-line supplies.
Logistics & Distribution
Suitable for pallet transportation, loading-area handling and distribution center operations.
Retail & Wholesale
Suitable for moving palletized goods between storage areas, warehouse zones and order preparation areas.
Industrial Material Handling
Suitable for frequent transportation and stacking operations where electric drive, efficient acceleration and reliable braking performance are required.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available customization options may include:
Machine color
Logo and branding
Nameplate and labels
Fork configuration
Fork dimensions
Lifting height
Battery type and capacity
Charger configuration
Wheel configuration
Safety configuration
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on the selected model and order requirements.
FAQ
Is the CPD-20 fully electric?
Yes. The CPD-20 uses a fully electric travel and lifting system. It is equipped with a 5 kW permanent magnet driving motor, a 4 kW synchronous lifting motor and a 72V 70Ah battery.
What is the rated load capacity?
The rated load capacity of the CPD-20 is 2,000 kg / 2 tons.
What is the lifting height?
The standard lifting height shown for the CPD-20 is 3,000 mm.
What type of operation does it use?
The CPD-20 uses a seated operating design, which is suitable for frequent material transportation and longer operating periods.
What is the battery specification?
The CPD-20 uses a 72V 70Ah battery, with the battery type specified as Chaowei / Tianneng.
What is the driving motor power?
The driving motor power is 5 kW, using a permanent magnet motor.
What is the lifting motor power?
The lifting motor power is 4 kW, using a synchronous motor.
What is the maximum gradeability?
The maximum gradeability shown in the technical parameters is 15°.
Does the forklift automatically brake?
Yes. When the accelerator pedal is released, the forklift can automatically brake.
Can it automatically park on a slope?
Yes. The forklift can automatically park on a slope under both unloaded and fully loaded conditions without requiring the operator to use the handbrake. The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
What are the fork dimensions?
The CPD-20 uses forks measuring 1,070 mm in length, 120 mm in width and 35 mm in thickness.
What are the overall dimensions?
The overall dimensions are 3,520 mm in length, 1,160 mm in width and 2,160 mm in height.
How much does the forklift weigh?
The vehicle weight is approximately 2,950 kg.
Request a Quote
Looking for a 2 Ton Fully Electric Counterbalance Forklift?
Send us your requirements, including:
Required lifting height
Load requirements
Pallet type
Pallet dimensions
Load weight
Rack height
Warehouse aisle width
Warehouse door height
Daily operating hours
Travel distance
Battery requirements
Charging requirements
Working environment
Our team can recommend a suitable 2 Ton Fully Electric Counterbalance Forklift configuration according to your lifting, pallet handling, battery and working-environment requirements.
Contact us today for product specifications, configuration options and a quotation.
