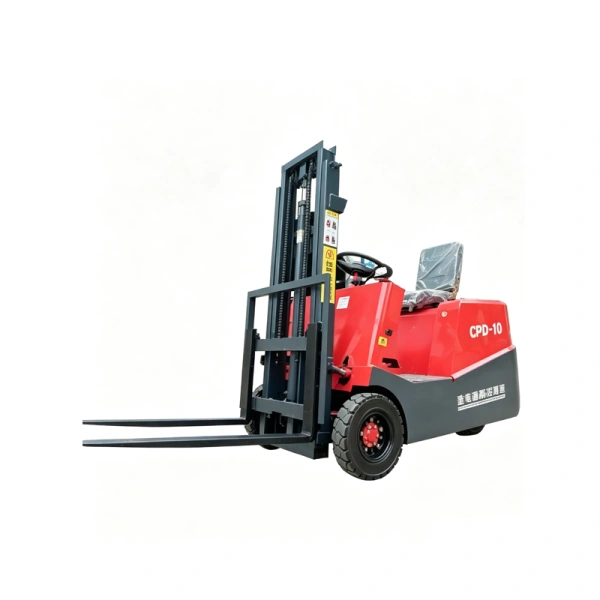

1 Ton 3-Wheel Fully Electric Forklift
The CPD-10 1 Ton 3-Wheel Fully Electric Forklift is designed for customers who need 1,000 kg load capacity while maintaining the compact maneuverability of a three-wheel electric forklift.
The vehicle uses two front drive wheels and two centrally arranged rear steering wheels to create a three-point support structure.
This configuration allows the CPD-10 to provide a 1,600 mm turning radius, making it suitable for relatively confined operating areas.
1,000 kg Counterbalance Capacity
The CPD-10 provides a 1,000 kg rated load capacity with a 500 mm load center.
The counterbalance structure supports applications such as:
Pallet handling
Warehouse storage
Manufacturing material movement
Loading and unloading
Internal logistics
Workshop transportation
The 1-ton capacity makes the CPD-10 a practical choice for customers who need more capacity than small compact forklifts while retaining a three-wheel structure.
Three-Point Support Structure
The CPD-10 uses:
Two front drive wheels
Two rear steering wheels
Centralized rear steering
Three-point support
Counterbalance chassis
The centralized steering configuration allows the forklift to maneuver within a compact space.
1,600 mm Turning Radius
The CPD-10 provides a 1,600 mm turning radius.
The compact turning performance can be useful in:
Narrow warehouse aisles
Rack storage areas
Production workshops
Indoor loading zones
Elevator areas
Compact warehouses
For facilities with limited floor space, the compact three-wheel design can help improve maneuverability around storage racks.
Fully Electric Travel and Lifting
The CPD-10 is fully electric for both travel and lifting.
Advantages include:
Zero direct exhaust emissions
Low operating noise
Smooth acceleration
Precise low-speed movement
Reduced operator effort
Efficient indoor operation
The electric system is particularly suitable for enclosed warehouses and clean production environments.
2,500 W Dual Drive Motor
The CPD-10 is equipped with a specified 2,500 W drive motor power configuration.
The dual-drive structure provides independent front-wheel drive and supports:
Responsive acceleration
Smooth travel
Precise low-speed movement
Flexible steering
Efficient electric operation
1,200 W Lifting Motor
The CPD-10 uses a 1,200 W lifting motor.
The lifting system provides controlled fork movement for the specified 1,000 kg load capacity and 2,000 mm lifting height.
2,000 mm Lifting Height
The standard lifting height is 2,000 mm.
This configuration is suitable for:
Pallet stacking
Low and medium-level storage
Production material handling
Warehouse operations
Loading and unloading
The mast lifting height can be customized according to application requirements.
Wide-View Mast
The wide-view mast helps provide improved operator visibility.
The large-radius overhead guard and optimized roof panel angle increase visibility around and above the operator.
This is useful when positioning loads on racks or operating in areas with limited overhead visibility.
Intelligent Control and LCD Display
The CPD-10 can use a large LCD display to show operating status and fault information.
The control system can incorporate:
Fault code display
Incorrect-operation alarm
Turning-speed reduction
Overload protection
Emergency power cut-off
Ramp anti-rollback
The system helps operators monitor vehicle status during daily operations.
Operator Comfort
The CPD-10 uses a seated operating configuration.
The steering wheel and seat can be adjusted to provide a more suitable driving position.
The ratchet-type parking brake provides controlled parking on both flat ground and ramps.
Energy-Saving System
The CPD-10 incorporates an energy-efficient electric design.
Potential energy-saving features include:
Dedicated electric forklift tires
Regenerative braking
LED signal lights
Efficient motor control
Professionally matched electrical components
Regenerative braking can recover part of the braking energy and return it to the electrical system.
Technical Specifications
| Specification | CPD-10 |
|---|---|
| Product Type | 3-Wheel Fully Electric Counterbalance Forklift |
| Model | CPD-10 |
| Rated Load Capacity | 1,000 kg / 1 Ton |
| Load Center | 500 mm |
| Operating Type | Seated |
| Battery Type | Chaowei Battery |
| Tire Type | Rubber |
| Drive Wheel Size | Φ400 × 100 / 350 × 100 mm |
| Load Wheel Size | Φ104 × 25 mm |
| Balance Wheel Size | Φ40 × 25 / 58 × 23 mm |
| Wheel Quantity Specification | 13 |
| Lifting Height | 2,000 mm |
| Overall Height, Forks Lowered | 1,600 mm |
| Overall Height, Forks Raised | 2,610 mm |
| Minimum Fork Ground Clearance | 40 mm |
| Overall Length | 1,700 mm |
| Overall Width | 1,150 mm |
| Fork Length | 1,070 mm |
| Maximum Fork Width | 530 mm |
| Turning Radius | 1,600 mm |
| Travel Speed, Loaded / Unloaded | 8 / 10 km/h |
| Lifting Speed | 2,000 / 19 mm/s |
| Lowering Speed | 2,000 / 15 mm/s |
| Gradeability, Loaded / Unloaded | 5 / 8% |
| Braking System | Mechanical Braking |
| Drive Motor Power | 2,500 W |
| Lifting Motor Power | 1,200 W |
| Electrical System | 48V / 46Ah |
| Control System | MOS Stepless Speed Control |
Final product specifications should be confirmed according to the actual production configuration.
Safety Design
| Safety Feature | Function |
|---|---|
| Wide-View Mast | Improves visibility |
| Hydraulic Hose Burst Protection | Helps reduce uncontrolled lowering risk |
| LCD Fault Display | Displays vehicle status |
| Incorrect-Operation Alarm | Provides warnings |
| Overload Protection | Helps protect the vehicle |
| Emergency Power Cut-Off | Allows rapid power interruption |
| Turning-Speed Reduction | Helps improve turning safety |
| Ramp Anti-Rollback | Helps reduce unintended movement |
| Ratchet Parking Brake | Provides controlled parking |
Core Advantages
1. 1 Ton Rated Capacity
Provides 1,000 kg load capacity for a broad range of indoor material handling tasks.
2. 500 mm Load Center
Suitable for standard palletized load handling within the specified capacity.
3. 1,600 mm Turning Radius
Provides compact maneuverability.
4. Three-Point Counterbalance Structure
Combines counterbalance support with a compact chassis.
5. 2,500 W Drive Motor
Provides responsive electric travel.
6. Fully Electric Operation
Suitable for low-noise indoor material handling.
7. Wide-View Mast
Improves operator visibility during lifting.
8. Intelligent Safety System
Provides fault display, alarms, overload protection and emergency controls.
Typical Applications
Warehouse & Storage
Pallet stacking, internal transportation and warehouse storage.
Manufacturing
Movement of raw materials, components and finished products.
Logistics & Distribution
Pallet handling and internal material transportation.
Retail & Wholesale
Handling palletized products in storage and distribution areas.
Indoor Industrial Handling
Suitable for workshops and facilities requiring compact electric material handling equipment.
OEM & Customization
Available customization options may include:
Color
Logo
Nameplate
Fork size
Lifting height
Battery
Charger
Safety equipment
Packaging
Application-specific configurations
FAQ
What is the rated capacity of CPD-10?
The rated load capacity is 1,000 kg / 1 Ton.
What is the load center?
The standard load center is 500 mm.
What is the lifting height?
The standard lifting height is 2,000 mm.
What is the turning radius?
The turning radius is 1,600 mm.
Is CPD-10 fully electric?
Yes. Both travel and lifting are electrically powered.
What is the drive motor power?
The specified drive motor power is 2,500 W.
What is the lifting motor power?
The lifting motor power is 1,200 W.
What battery system does it use?
The specified electrical system is 48V / 46Ah.
Can the lifting height be customized?
Yes. Different mast and lifting configurations can be discussed according to customer requirements.
Is it suitable for narrow aisles?
The compact three-wheel design and 1,600 mm turning radius make it suitable for many relatively narrow indoor working areas, subject to the actual aisle layout and required operating clearance.
Request a Quote
Looking for a 1 Ton 3-Wheel Fully Electric Forklift?
Send us your:
Load capacity, lifting height, pallet size, rack height, aisle width, floor conditions, daily working hours and battery requirements.
Our team can recommend the appropriate CPD-10 configuration.
Contact us today for specifications, configuration options and a quotation.
