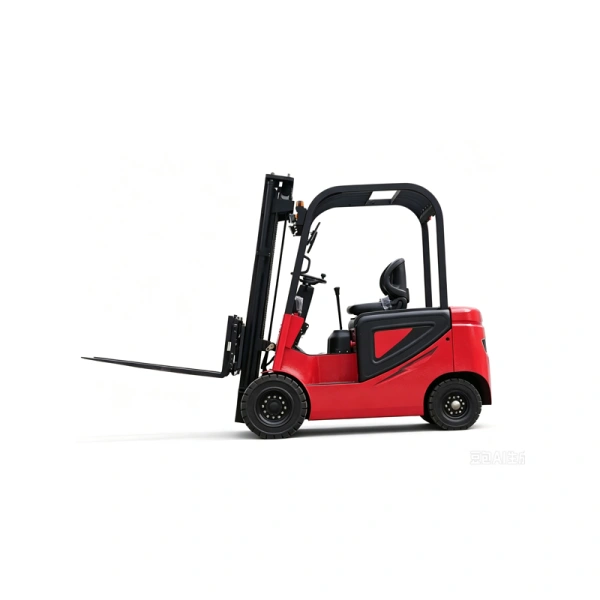

3.5 Ton Fully Electric Counterbalance Forklift
The 3.5 Ton Fully Electric Counterbalance Forklift CPD-35 is designed for customers requiring higher load capacity for heavy palletized goods, industrial materials, manufacturing components and logistics operations.
With a 3,500 kg rated load capacity, the CPD-35 provides a higher load-handling capability than the 3-ton model while maintaining a fully electric travel and lifting system.
The forklift is equipped with a 72V 140Ah battery, a 10 kW permanent magnet driving motor and a 7.5 kW synchronous lifting motor.
The 3,000 mm lifting height, seated operating design, reinforced mast, 1,070 × 125 × 45 mm forks, 310 cast steel front axle and heavy-duty tire configuration make the CPD-35 suitable for demanding material handling environments.
The intelligent automatic braking and ramp parking system provides additional safety during daily operation. When the accelerator pedal is released, the forklift can automatically brake. On slopes, it can automatically maintain its position under unloaded and fully loaded conditions without requiring the operator to use the handbrake. The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
Technical Specifications
| Specification | 3.5 Ton Fully Electric Counterbalance Forklift |
|---|---|
| Model | CPD-35 |
| Battery Type | Chaowei / Tianneng |
| Battery | 72V 140Ah |
| Operating Type | Seated |
| Rated Load Capacity | 3,500 kg |
| Overall Length | 3,999 mm |
| Overall Width | 1,200 mm |
| Overall Height | 2,145 mm |
| Fork Length | 1,070 mm |
| Fork Width | 125 mm |
| Fork Thickness | 45 mm |
| Lifting Height | 3,000 mm |
| Vehicle Weight | 4,200 kg |
| Driving Motor Power | 10 kW Permanent Magnet |
| Lifting Motor Power | 7.5 kW Synchronous |
| Maximum Gradeability | 15° |
| Front Axle | 310 Cast Steel Axle |
| Rear Axle | Double-Layer Steering Axle |
| Front Tires | 28-9-15 (A Grade) |
| Rear Tires | 650-10 (A Grade) |
Final product specifications should be confirmed according to the actual production configuration.
Fully Electric Travel and Lifting
The CPD-35 uses a fully electric travel and lifting system.
The 10 kW permanent magnet drive motor provides strong travel power, while the 7.5 kW synchronous lifting motor provides stable lifting performance.
The system provides:
Fully electric travel
Fully electric lifting
Strong power output
Smooth acceleration
Stable lifting
Low operating noise
Reduced operator effort
Efficient material transportation
Lower operating emissions
Suitable for heavy-duty industrial applications
The 72V 140Ah battery provides the electrical energy required for the vehicle's travel, lifting and control systems.
Permanent Magnet Synchronous Power System
The CPD-35 is equipped with a 10 kW permanent magnet driving motor.
The permanent magnet drive system provides strong and responsive power during frequent transportation, starting, stopping and acceleration.
Its advantages include:
Strong travel power
Responsive acceleration
Efficient energy utilization
Stable heavy-load operation
Strong dynamic performance
Suitable for frequent material transportation
The 10 kW motor provides the CPD-35 with the power required for its 3.5-ton rated load capacity.
Automatic Braking and Ramp Parking
The intelligent braking system automatically assists braking when the accelerator pedal is released.
The ramp parking system also helps maintain the vehicle position when operating on suitable slopes.
Key functions include:
Automatic braking
Automatic ramp parking
Reduced rollback risk
Loaded and unloaded ramp parking
Improved operator control
Reduced handbrake operation
Enhanced safety during slope operation
The anti-rollback function can maintain the forklift on a slope for up to 60 seconds.
15° Maximum Gradeability
The CPD-35 has a maximum gradeability of 15°.
It can be used in suitable inclined areas such as:
Warehouse ramps
Loading zones
Manufacturing facilities
Logistics facilities
Material transfer areas
Internal industrial roads
Actual gradeability varies according to load, road surface, ramp condition and operating environment.
Seated Operating Design
The CPD-35 uses a seated operating design, providing a more comfortable operating position for frequent heavy-load transportation.
The design helps:
Reduce operator fatigue
Improve operating comfort
Support longer working periods
Improve material handling efficiency
Facilitate frequent transportation
Provide convenient travel and lifting control
The combination of a 3.5-ton load capacity and seated operation is suitable for heavy industrial material handling.
Counterbalance Forklift Design
The counterbalance design provides stable support for heavy loads while allowing the forks to approach pallets directly.
The CPD-35 is suitable for:
Heavy pallet stacking
Warehouse transportation
Loading and unloading
Manufacturing material supply
Logistics handling
Distribution center operations
Industrial material transportation
Its higher rated capacity makes it suitable for applications where a 2.5-ton or 3-ton forklift may not provide sufficient load capacity.
3,000 mm Lifting Height
The CPD-35 provides a 3,000 mm lifting height.
The lifting system uses a 7.5 kW synchronous motor to provide stable lifting performance.
The 3,000 mm lifting height is suitable for:
Pallet stacking
Warehouse storage
Rack handling
Loading and unloading
Production material handling
Internal material transportation
The actual allowable load at different lifting heights should be confirmed according to the final load chart.
High-Strength Mast Structure
The reinforced mast structure is designed to support stable lifting and load handling.
The mast works together with the 7.5 kW synchronous lifting motor to provide reliable lifting performance for loads up to the rated capacity under specified operating conditions.
Key benefits include:
Strong structural support
Stable lifting
Reliable load handling
Suitable for repeated lifting
Improved structural durability
Integrated Heavy-Duty Forks
The CPD-35 is equipped with:
1,070 mm fork length × 125 mm fork width × 45 mm fork thickness
The 45 mm thick forks provide stronger structural support for heavy loads.
They are suitable for repeated pallet handling and industrial material transportation.
Durable Axle and Wheel Configuration
The CPD-35 uses a 310 cast steel front axle and double-layer steering rear axle.
The tire configuration is:
28-9-15 A Grade front tires
650-10 A Grade rear tires
This configuration provides stable support, steering and travel performance for heavy-duty applications.
72V 140Ah Battery
The CPD-35 is equipped with a 72V 140Ah battery.
The battery type is specified as Chaowei / Tianneng.
It provides power for:
Electric travel
Electric lifting
Hydraulic operation
Vehicle control
Electrical systems
The battery capacity provides suitable power support for the CPD-35's 3.5-ton material handling requirements.
Vehicle Dimensions and Weight
The CPD-35 has:
Overall length: 3,999 mm
Overall width: 1,200 mm
Overall height: 2,145 mm
Vehicle weight: 4,200 kg
Customers should consider aisle width, door dimensions, rack layout, turning radius and loading-area conditions before selecting the forklift.
Safety Design
| Safety Feature | Function |
|---|---|
| Automatic Braking | Brakes when the accelerator is released |
| Ramp Parking | Helps prevent rollback on slopes |
| 60-Second Anti-Rollback | Helps maintain position on a slope |
| Emergency Stop | Quickly stops operation when required |
| Counterbalance Structure | Supports stable heavy-load handling |
| Reinforced Mast | Provides lifting support |
| Controlled Fork Movement | Helps provide stable load movement |
| 310 Cast Steel Axle | Provides strong structural support |
| A Grade Tires | Provides stable travel and steering |
Core Advantages
1. 3.5 Ton Load Capacity
Provides a 3,500 kg rated load capacity for heavier industrial materials.
2. 10 kW Permanent Magnet Drive Motor
Provides strong travel power for heavy-duty operation.
3. 7.5 kW Synchronous Lifting Motor
Provides stable lifting performance.
4. 72V 140Ah Battery
Provides power for fully electric travel and lifting.
5. 3,000 mm Lifting Height
Suitable for standard warehouse stacking.
6. Automatic Braking
Automatically assists braking when the accelerator is released.
7. Automatic Ramp Parking
Helps maintain the vehicle position on suitable slopes.
8. 60-Second Anti-Rollback
Provides additional protection during slope operation.
9. 15° Maximum Gradeability
Suitable for appropriate inclined industrial environments.
10. Seated Operation
Improves operator comfort during frequent heavy-load transportation.
11. 45 mm Thick Forks
Provides strong support for 3.5-ton material handling.
12. 310 Cast Steel Front Axle
Provides strong structural support for heavy-duty applications.
Why Choose the 3.5 Ton Fully Electric Counterbalance Forklift?
The CPD-35 3.5 Ton Fully Electric Counterbalance Forklift is designed for applications requiring greater load capacity than conventional 2.5-ton and 3-ton electric forklifts.
It combines a 3,500 kg rated load capacity, 72V 140Ah battery, 10 kW permanent magnet drive motor, 7.5 kW synchronous lifting motor and 3,000 mm lifting height.
Its reinforced fork, axle and tire configuration provides additional support for heavy-duty industrial handling.
The automatic braking, ramp parking and anti-rollback functions provide additional operating safety, while the seated configuration helps improve operator comfort during frequent transportation.
Typical Applications
Warehouse & Storage
Heavy pallet stacking, warehouse transportation and loading operations.
Manufacturing
Transportation of heavy components, raw materials and finished products.
Logistics & Distribution
Heavy pallet transportation and loading-area operations.
Retail & Wholesale
Handling heavier palletized products and industrial goods.
Industrial Material Handling
Heavy-duty applications requiring 3.5-ton electric load capacity.
OEM and Customization
Available customization may include:
Machine color
Logo
Nameplate
Fork dimensions
Lifting height
Battery configuration
Charger
Safety equipment
Packaging
Application-specific configurations
OEM and customized solutions are available according to order requirements.
FAQ
What is the load capacity?
The CPD-35 has a rated load capacity of 3,500 kg / 3.5 tons.
Is it fully electric?
Yes. Both travel and lifting are electrically powered.
What is the battery?
The battery is 72V 140Ah.
What is the drive motor?
The drive motor is a 10 kW permanent magnet motor.
What is the lifting motor?
The lifting motor is a 7.5 kW synchronous motor.
What is the lifting height?
The standard lifting height is 3,000 mm.
What is the maximum gradeability?
The maximum gradeability is 15°.
What are the fork dimensions?
The forks measure 1,070 × 125 × 45 mm.
What is the vehicle weight?
The vehicle weight is approximately 4,200 kg.
Does it have automatic braking?
Yes. The system automatically assists braking when the accelerator is released.
Can it park on slopes?
Yes. The automatic ramp parking system supports unloaded and fully loaded conditions.
What are the overall dimensions?
The overall dimensions are 3,999 × 1,200 × 2,145 mm.
Request a Quote
Looking for a 3.5 Ton Fully Electric Counterbalance Forklift?
Send us your load requirements, lifting height, pallet dimensions, rack height, operating environment and battery requirements.
Our team can recommend the appropriate CPD-35 3.5 Ton Fully Electric Counterbalance Forklift configuration.
Contact us today for product specifications, configuration options and a quotation.
