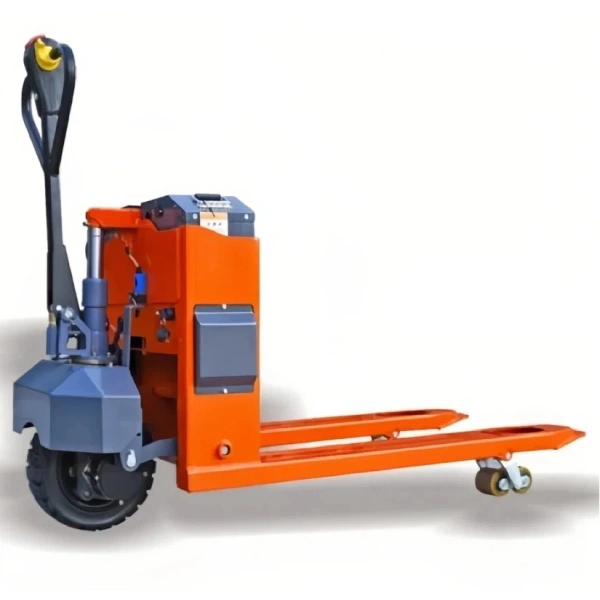

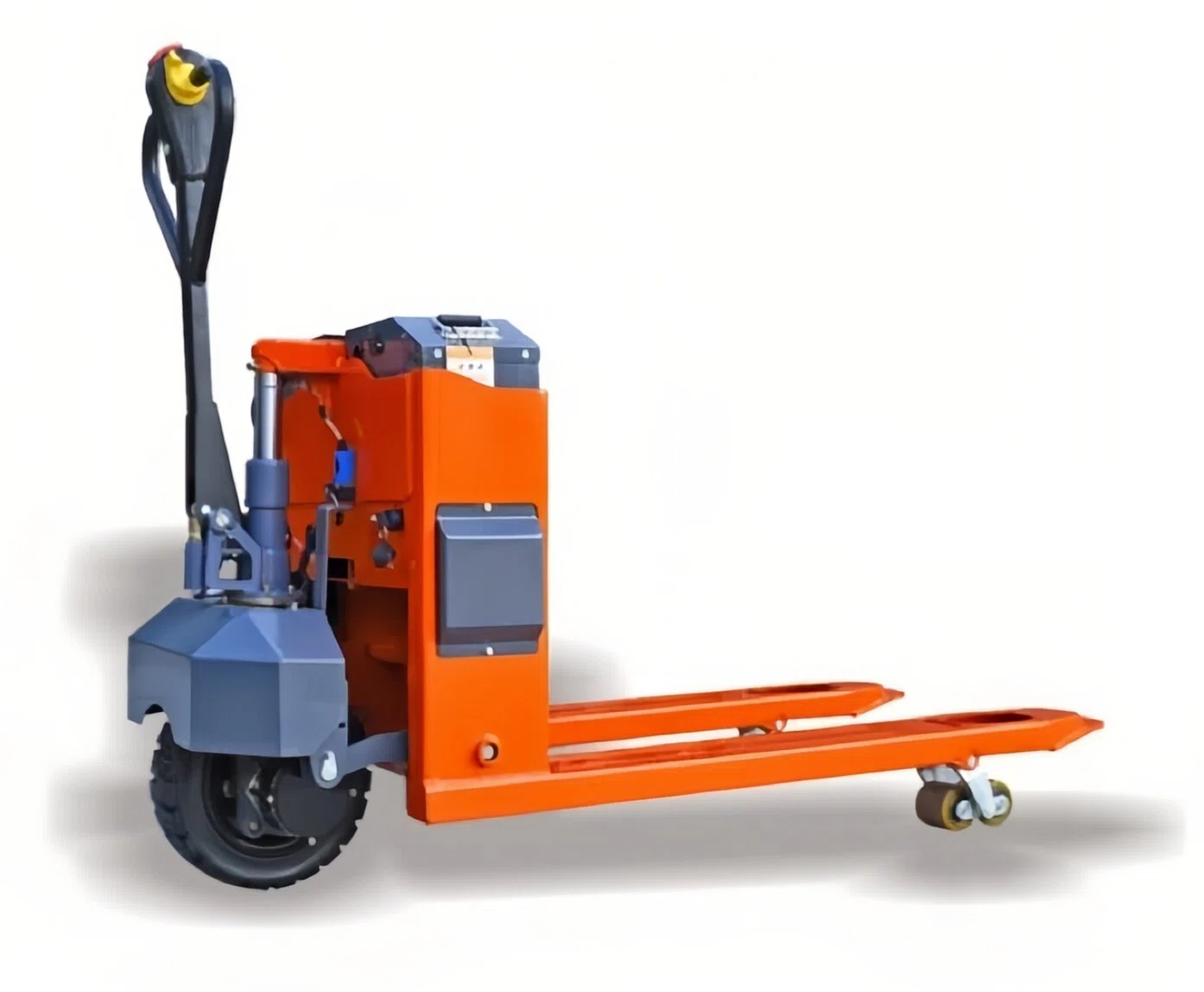

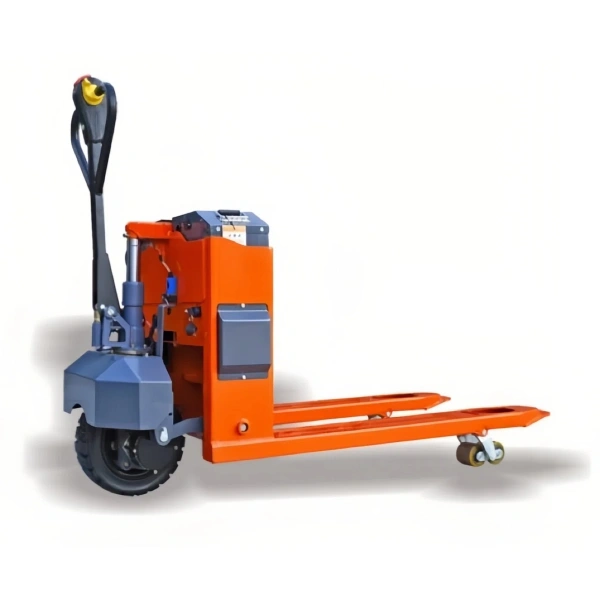

CTXY 20Q Pallet Truck

 • The whole vehicle is equipped with solid tires as standard.

 • Full AC system, with safety measures such as slope braking and regenerative braking.

 • The waterproof joint of the whole vehicle is sealed with adhesive treatment, and the waterproof performance of the whole vehicle is outstanding.

 • The lithium electricity system can be selected according to the user's requirements.

 • Intelligent code diagnosis of control system, low voltage protection. Intelligent charging device.


Description

ModelCTXY 20Q
Load2000KG
Power typeLead-acid battery
Operation typeStep by step
Load Center Distance

600MM

Lifting height200MM
Fork height after drop85MM
Fork size1150*160*55MM
Fork spacing(outer side)685MM
Vehicle length1680MM
Overall width685MM
Overall height1320MM
Minimum turing radius1425MM
Machine weight
230KG
Walking speed full load/ no load4/4.5KM/H
Lifting speed full load/ no load20/24MM/SEC
Maximum climbing grade
6%
Brake typeElectromagnetic brake
Bearing wheel tire type80*70MM
Driving wheel tire type350*100MM
Battery voltage48V 20AH
Walking motor 48V 0.8KW
Oil pump motor
48V 0.8KW
Controller48V permanent magnet brushless
