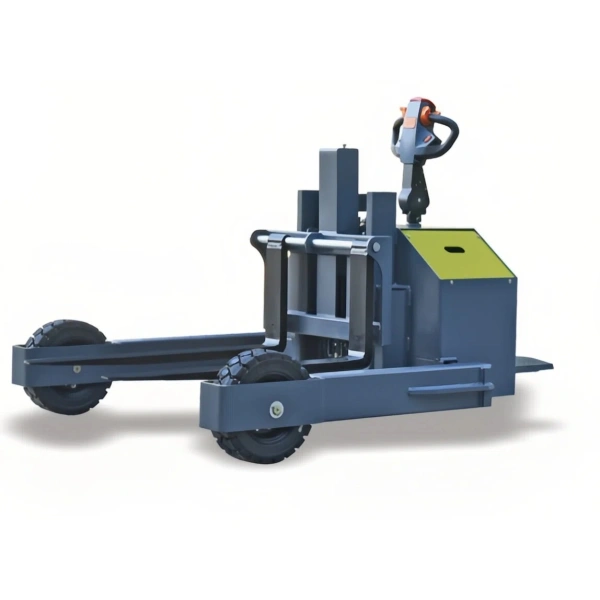

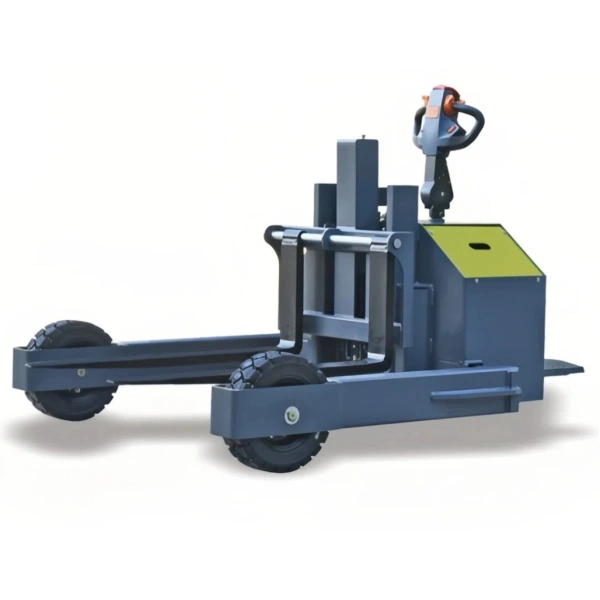

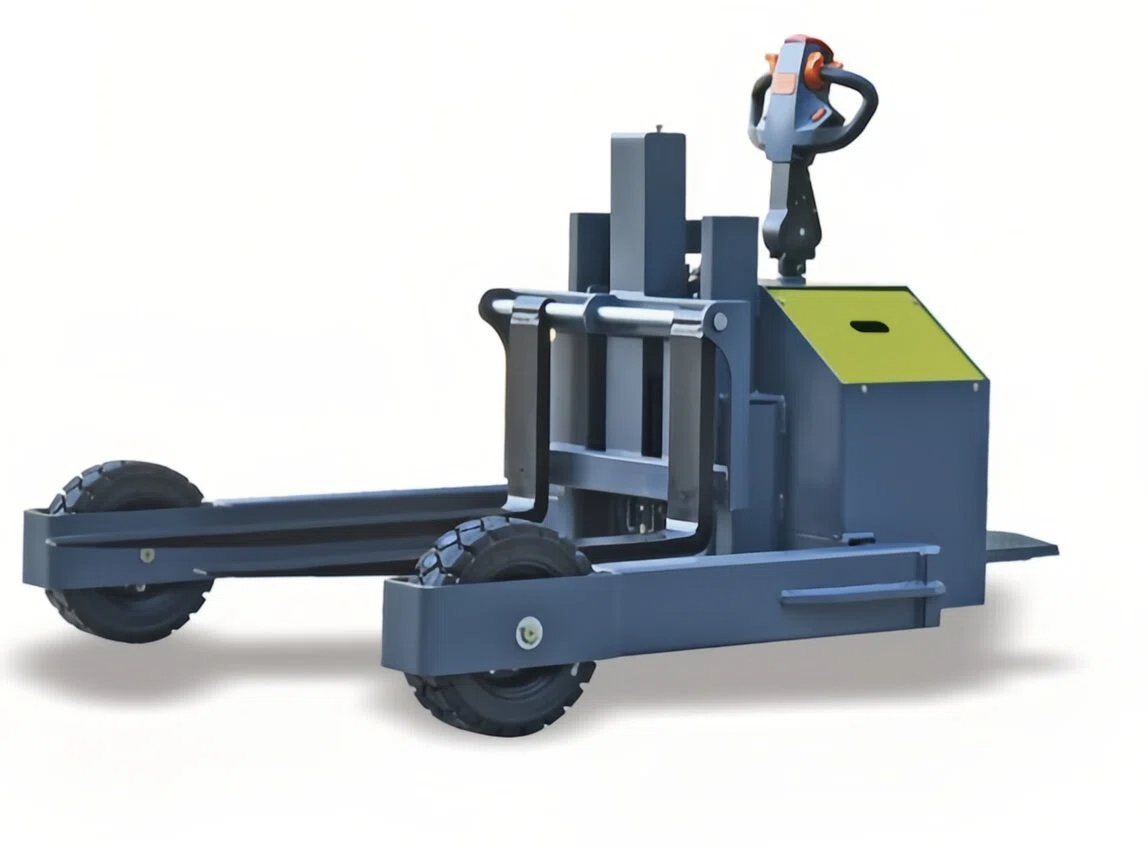

CTXA 15 Pallet Truck

 • The whole vehicle is equipped with solid tires as standard.

 • Full AC system, with safety measures such as slope braking and regenerative braking.

 • The waterproof joint of the whole vehicle is sealed with adhesive treatment, and the waterproof performance of the whole vehicle is outstanding.

 • The lithium electricity system can be selected according to the user's requirements.

 • Intelligent code diagnosis of control system, low voltage protection. Intelligent charging device.


Description

ModelCTXA 15
Load1500KG
Load Center Distance

500MM

Wheelbase1206MM
Front wheelΦ380*100
Driving wheel sizeΦ250*80
Lifting height400MM
Fork height after drop35MM
Fork spacing(outer side)200-732MM
Single fork height100MM
Fork length1070MM
Vehicle length1765-2185MM
Overall width1340/1480/1620/MM
Overall height1315MM
Minimum turing radius1820MM
Machine weight
575KG
Rated power of lifting motor2.2KW
Rated power of drive motor1.2KW
Battery voltage24V
Rated capacity100AH
Lifting speed no load/ full load55/80MM/S
Lower speed no load/ full load90/75MM/S
Driving speed no load/full load4.2/5.6 KM/S
Maximum climbing grade
4%
