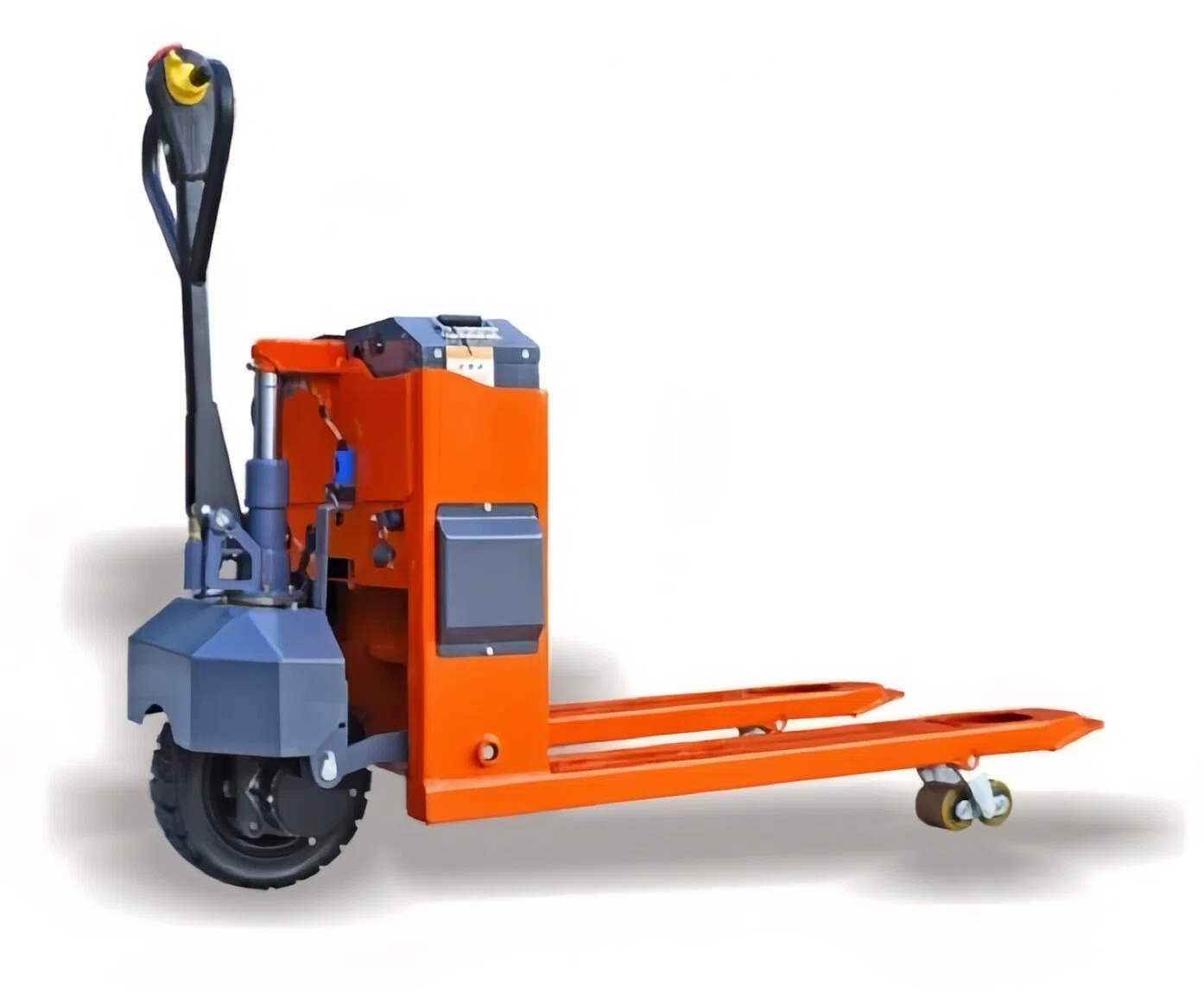

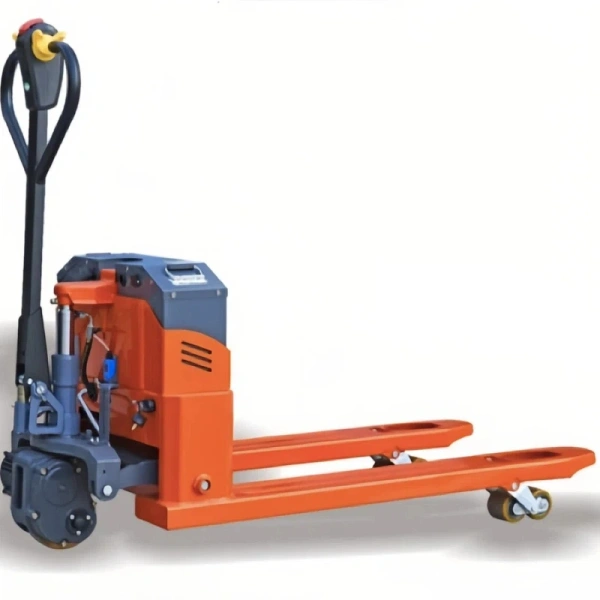

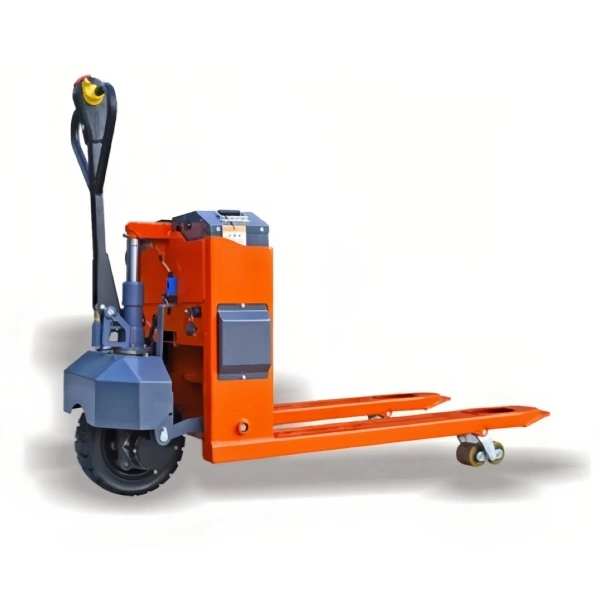

CTX 20Q Pallet Truck

 • The whole vehicle is equipped with solid tires as standard.

 • Full AC system, with safety measures such as slope braking and regenerative braking.

 • The waterproof joint of the whole vehicle is sealed with adhesive treatment, and the waterproof performance of the whole vehicle is outstanding.

 • The lithium electricity system can be selected according to the user's requirements.

 • Intelligent code diagnosis of control system, low voltage protection. Intelligent charging device.


Description

ModelCTX 20Q
Load2000KG
Power typeLead-acid battery
Operation typeStep by step
Load Center Distance

600MM

Lifting height200MM
Fork height after drop85MM
Fork size1150*160*55MM
Fork spacing(outer side)550/685MM
Vehicle length1625MM
Overall width695MM
Overall height1230MM
Minimum turing radius1410MM
Machine weight
170KG
Walking speed full load/ no load4/4.5KM/H
Lifting speed full load/ no load18/21MM/SEC
Maximum climbing grade
10%
Brake typeElectromagnetic brake
Bearing wheel tire type80*70MM
Driving wheel tire type170*52MM
Battery voltage48V 20AH
Driving motor 48V 0.8KW
Lifting motor
48V 0.8KW
Controller48V permanent magnet brushless
