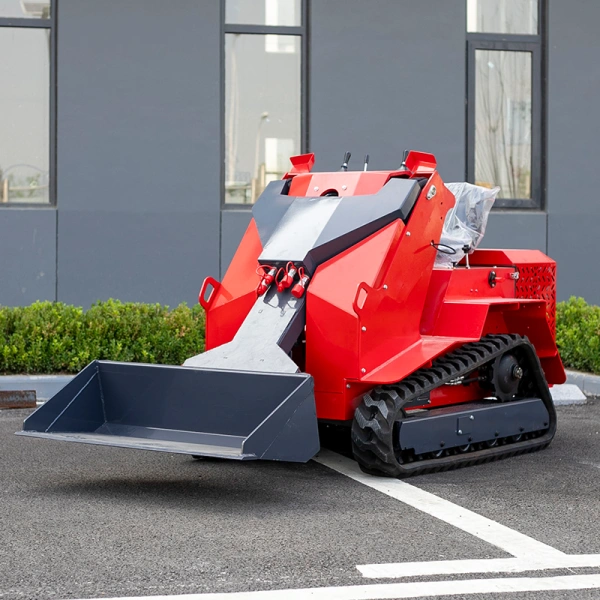

| Model | T490 |
| Operating Weight | 1305kgs |
| Bucket Capacity | 0.1m3 |
| Climbing Ability | 25° |
| Maximum Breakout Force | 4.5KN |
| Rated Load | 250kg |
| Maximum Load | 350kg |
| Travel Speed | 0-5km/h |
| Vehicle Width | 1089mm |
| Rated Pressure | 16Mpa |
| Bucket Width | 1150mm |
| Max Loading Height | 1700mm |
| Max Dumping Height | 1402mm |
| Max Operating Height | 2489mm |
| Height to Bucket Pin | 1900mm |
| Max Height Bucket Dump Angle | 63° |
| Min Height | 1300mm |
| Departure Angle | 15° |
| Ground Clearance | 220mm |
| Dumping Distance | 580mm |
| Track Contact Length | 1330mm |
| Overall Dismensions | 2535*1150*1300mm |
| Length including Bucket | 2535mm |
| Length excluding Bucket | 2100mm |
| Track Model | 180*72*45 |
| Engine Brand | Lithium Electricity/KOOP/Rato/B&S |
| Model | Lithium Iron Phosphate/292F/R740/Vanguard23 |
| Rated Power | 8KW,72V,200AH/15/19.2/17KW |
| Cylinder | 2 |
| Intake Method | Natural Inhalation |
| Emission Standard | EPA/EURO5 |
| Fuel Tank Capacity | 10L |
