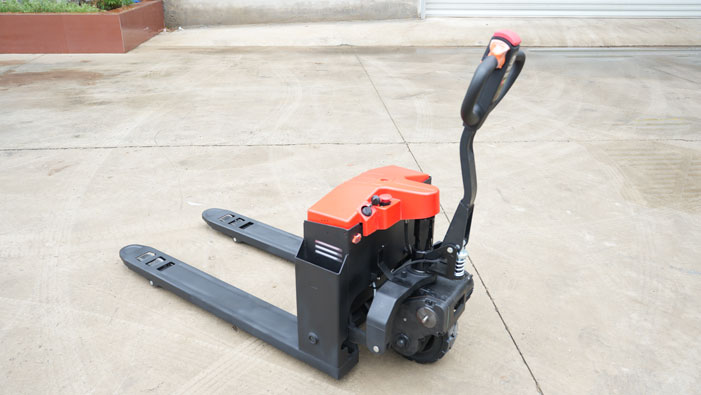

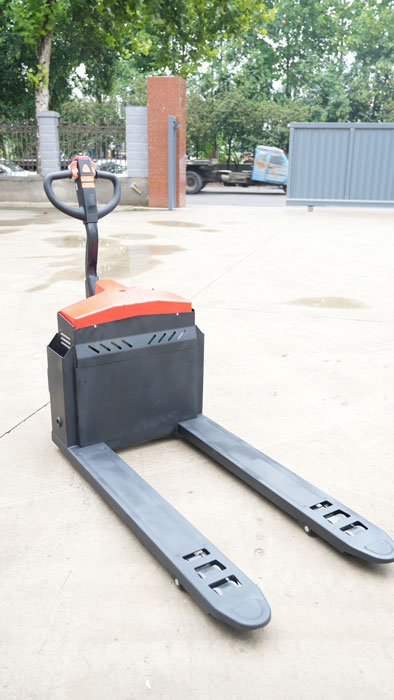

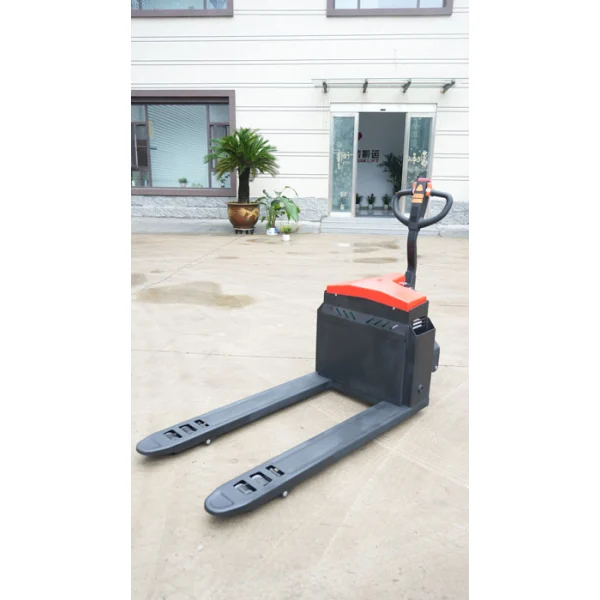

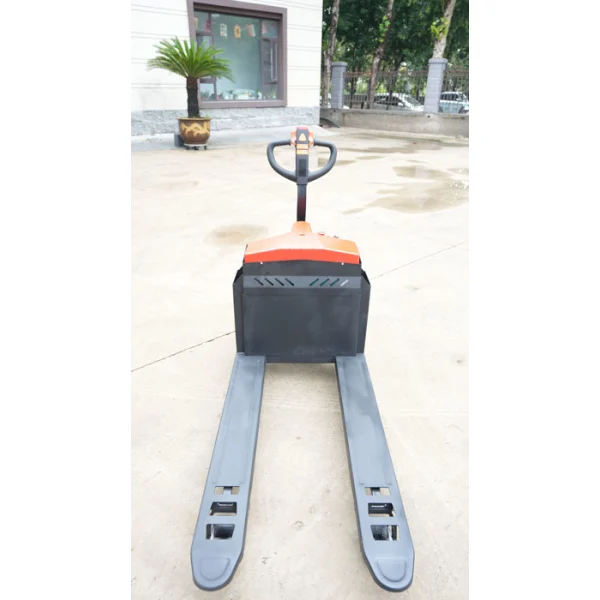

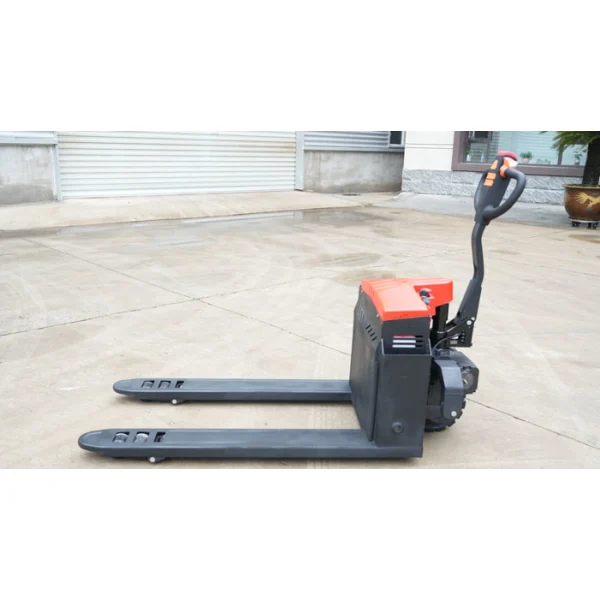

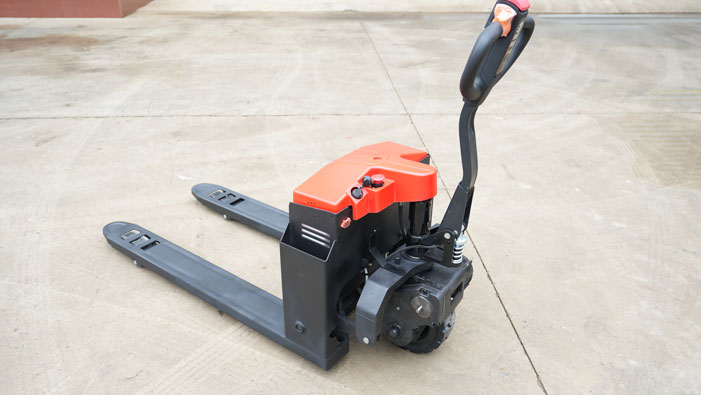

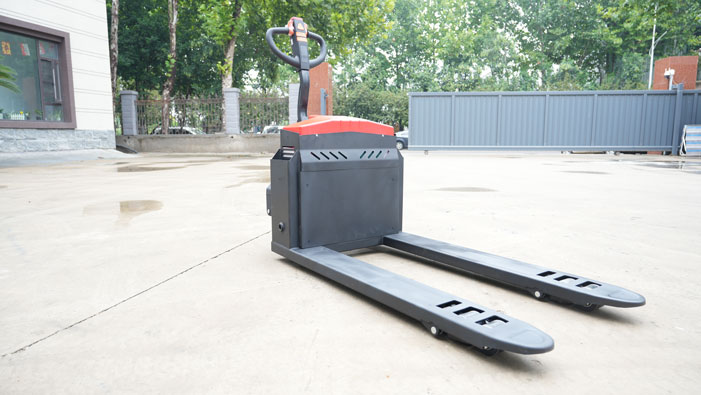

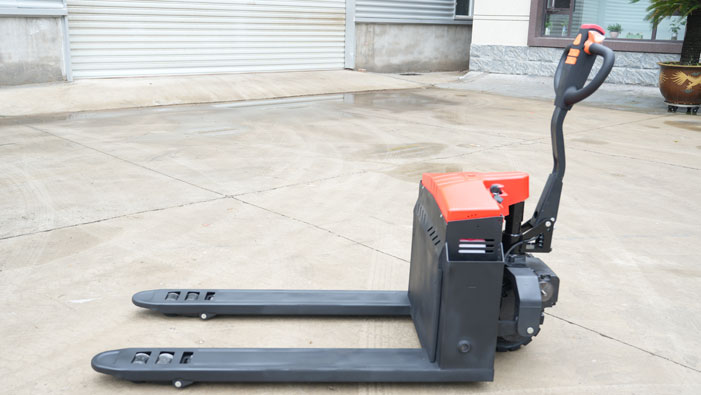

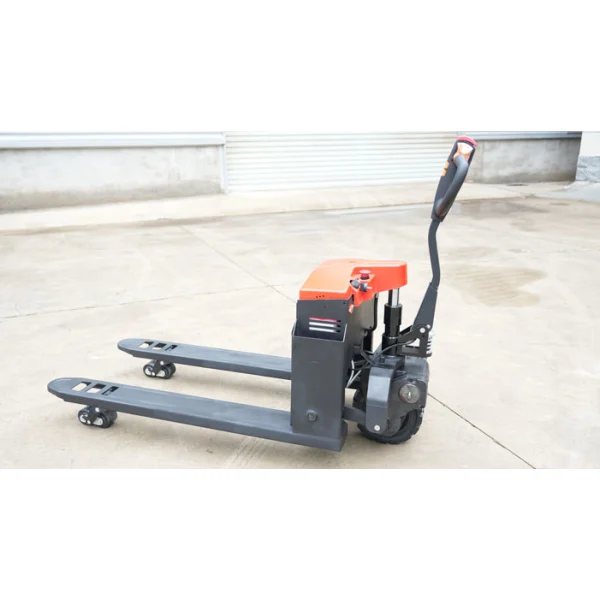

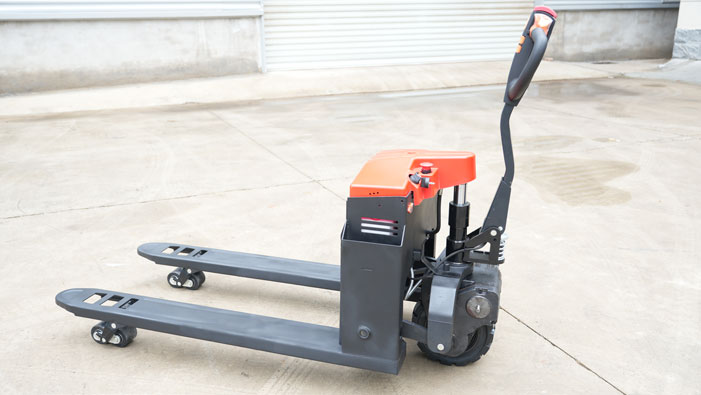

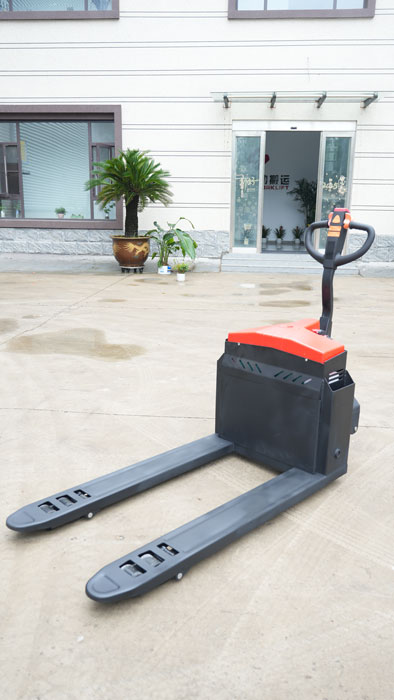

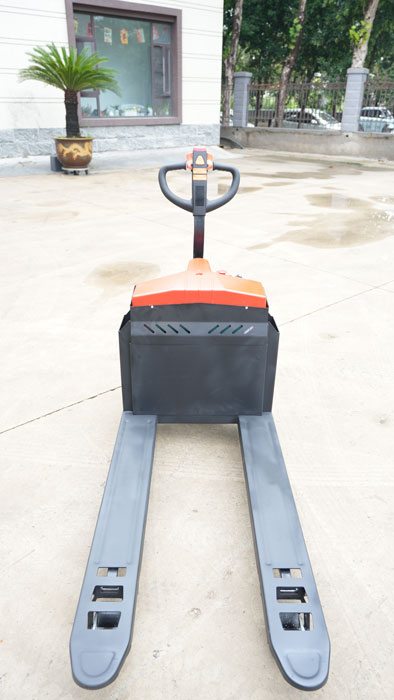

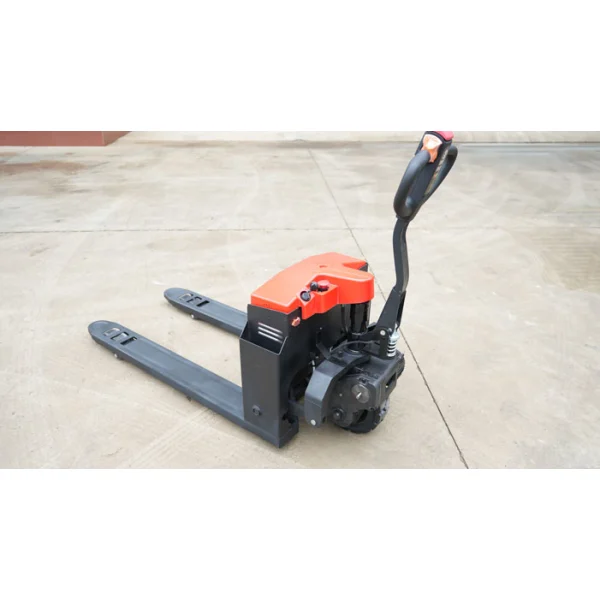

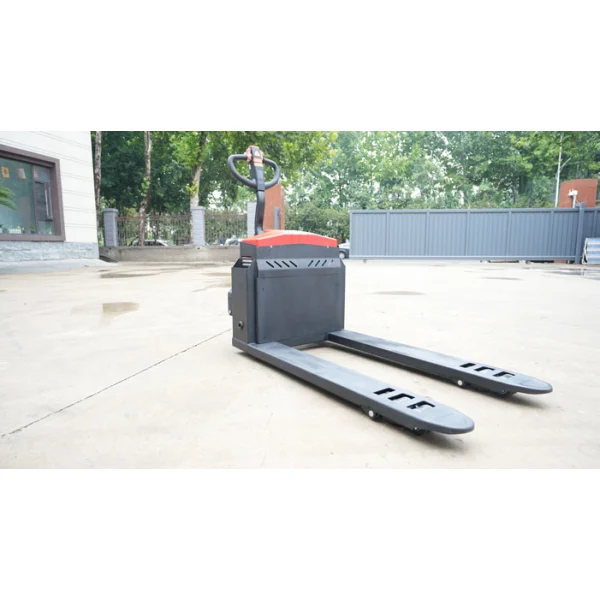

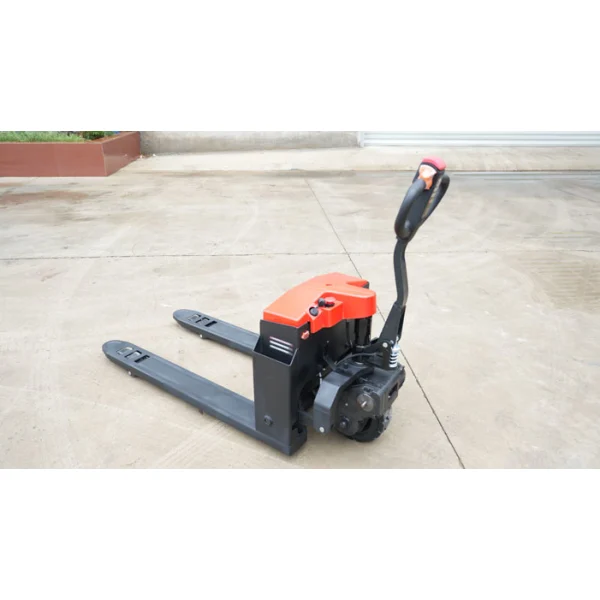

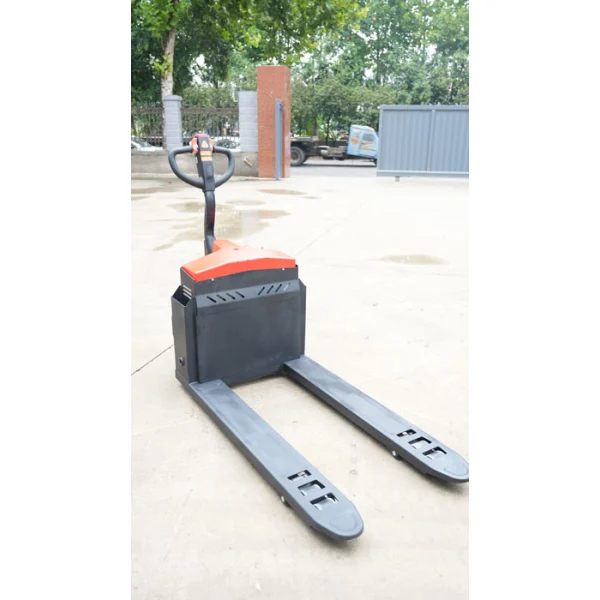

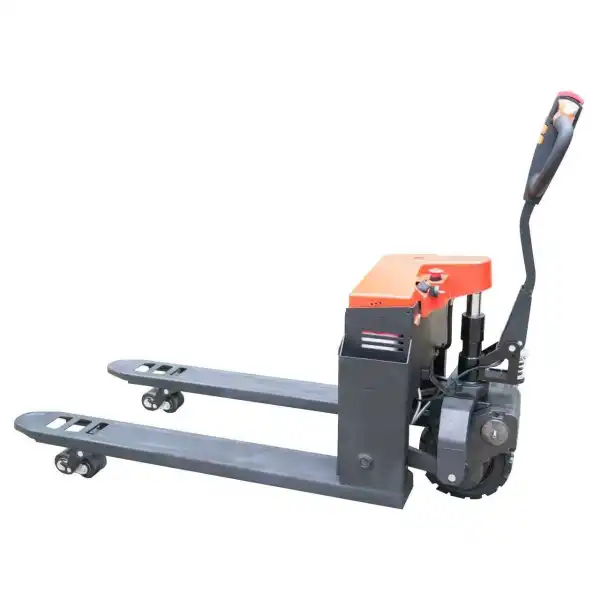

King Kong Big Wheel 3T Pallet Truck

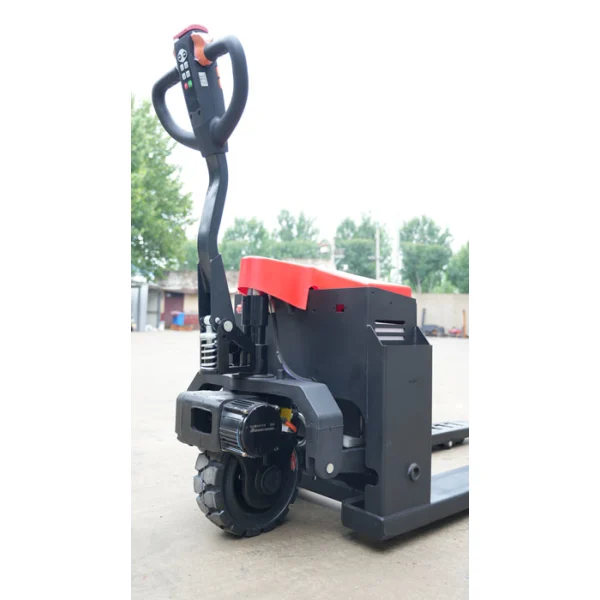

48V permanent magnet brushless motor with maintenance-free performance and high torque.

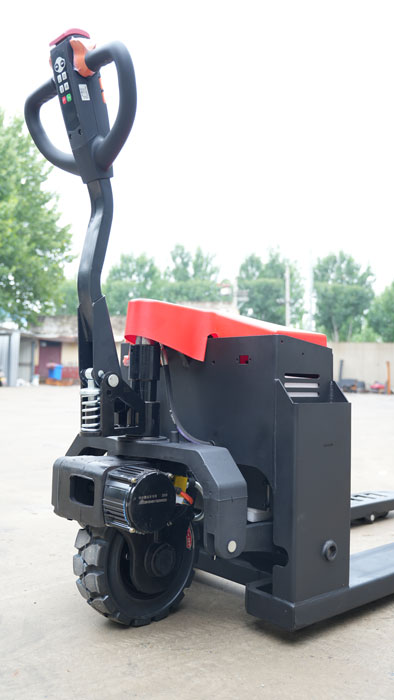

Dual rocker arms and integrally cast gearbox; 300x100mm heavy-duty ground solid rubber drive wheels.
100mm ground clearance for excellent passability, suitable for complex road conditions.
Patent-designed fully sealed gear transmission with high speed ratio, large modulus and high torque, ensuring stability and reliability.

Model	Full-Electric (Big-Wheel Version)	Rated Load	3000KG
Load Center Distance	500mm	Operation Type	Walk-Behind
Wheel Type	Front: Rubber; Rear: UP/Nylon	Drive Wheel Size	Φ300*100mm

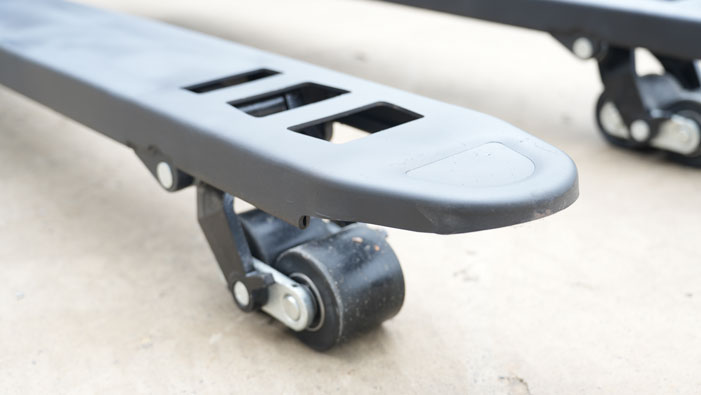

Load-Bearing Wheel Size	Φ80*70mm	Minimum Fork Height from Ground	85mm
Maximum Fork Lifting Height	200mm	Inner Fork Spacing	230/365mm
Outer Fork Spacing	550/685mm	Fork Width	160mm
Fork Length	1150mm	Overall Vehicle Length	1680mm
Fork Thickness	40mm	Overall Vehicle Height (Including Handle)	1240mm
Overall Vehicle Width	685mm	Minimum Turning Radius	1550mm
Overall Vehicle Height (Excluding Handle)	680mm	Climbing Capacity (Full Load/No Load)	7/16%
Maximum Travel Speed (Full Load/No Load)	4/4.5km/h	Storage Battery	48V; Lead-Acid or Lithium Battery Optional
Drive Motor Power	1500W	Overall Vehicle Weight	195KG
Lifting Motor Power	2200W	Lifting Speed (Full Load/No Load)	2.2/3.3cm/s
