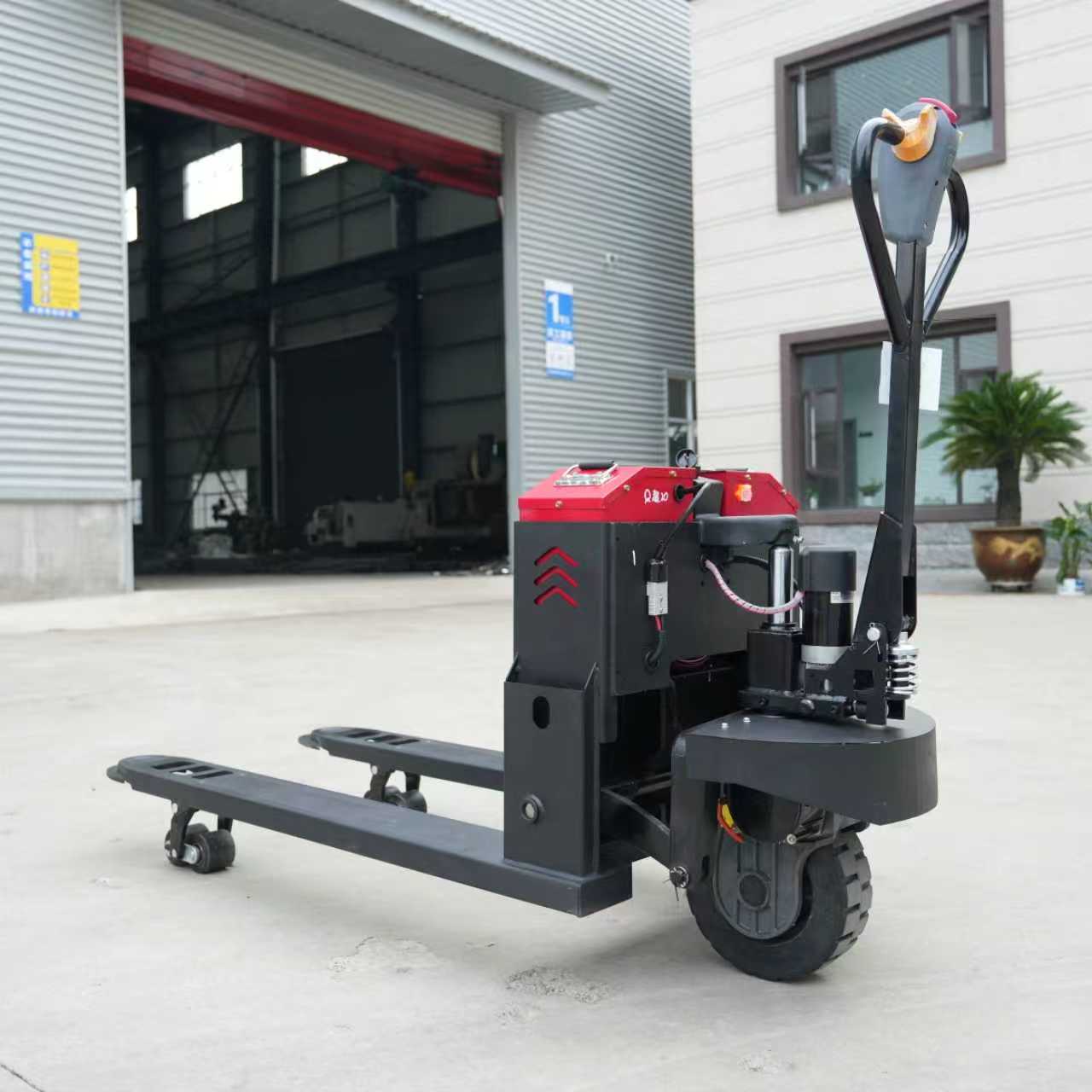

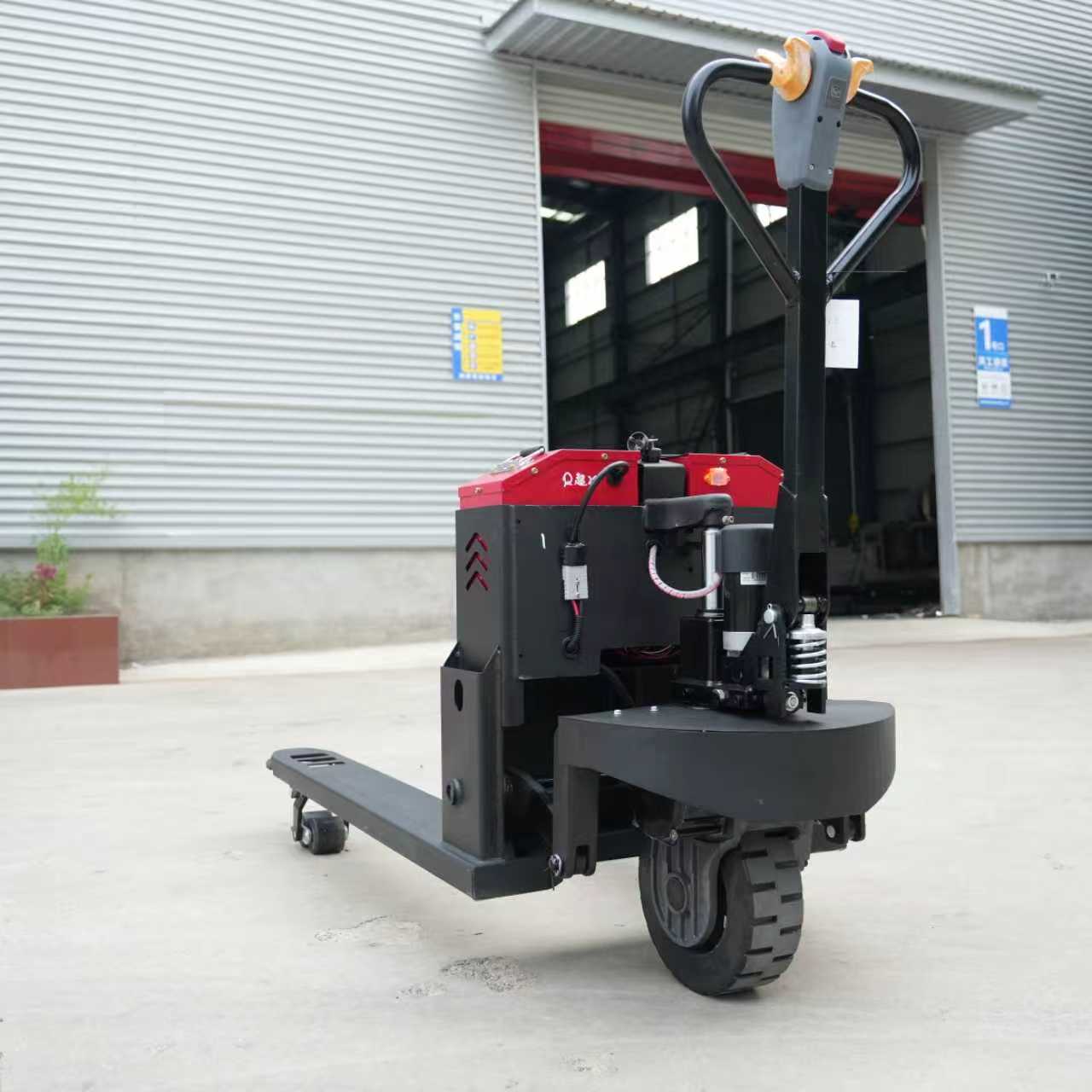

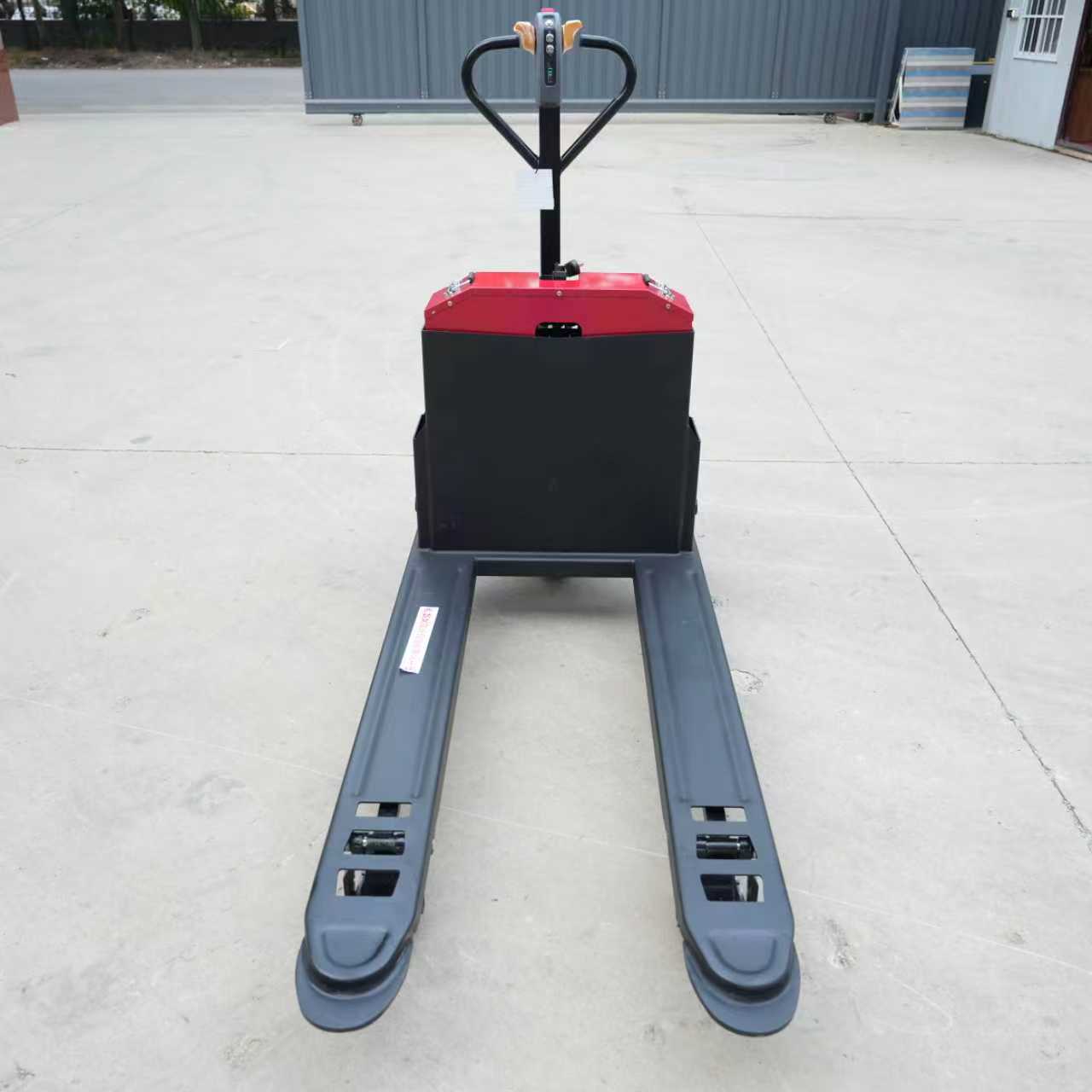

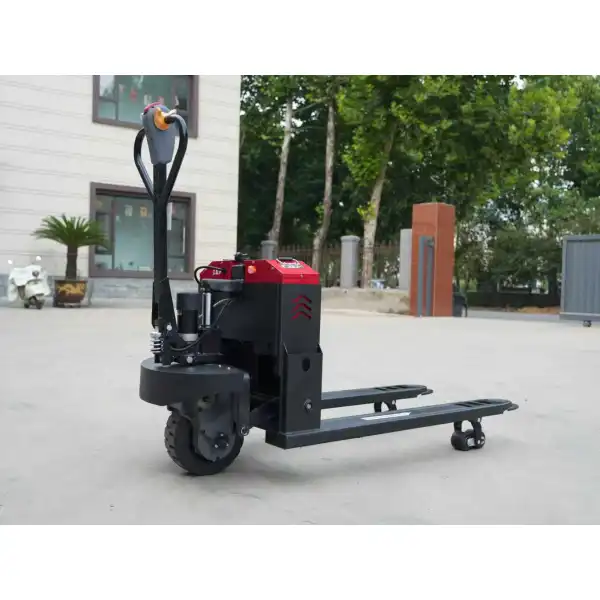

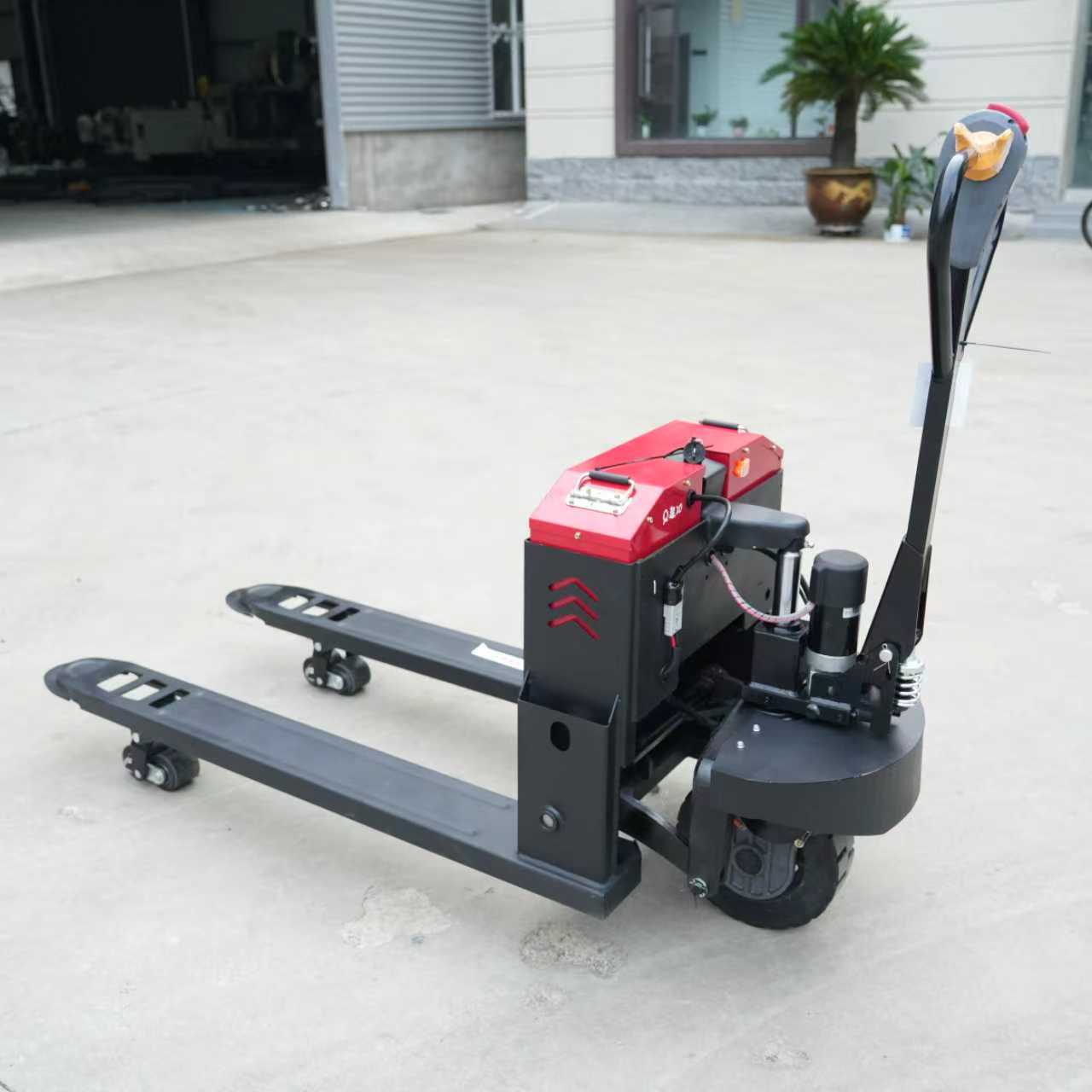

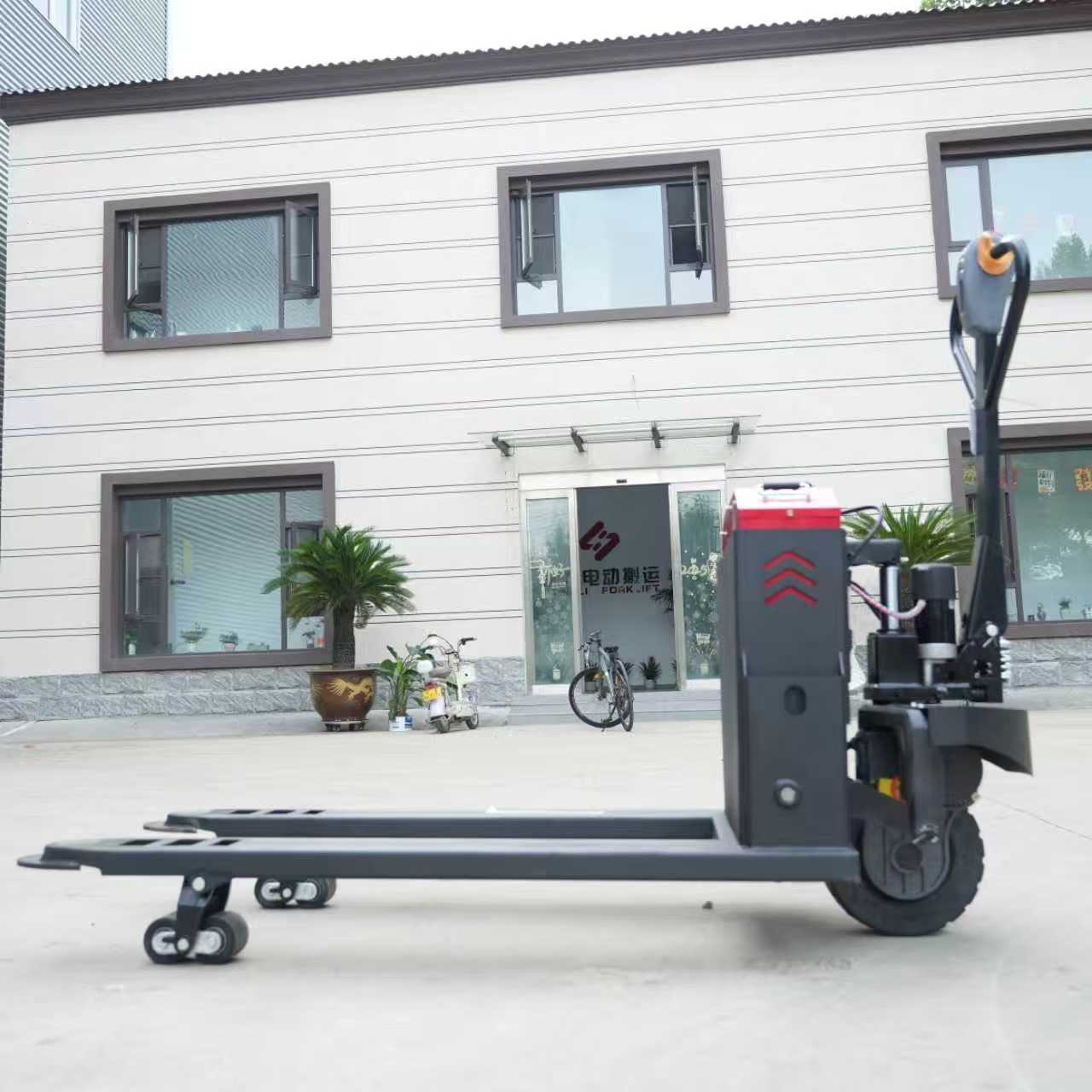

Economy Type Big Wheel 3T Pallet Truck

The power-off plug can be disconnected when not in use to ensure maximum service life.

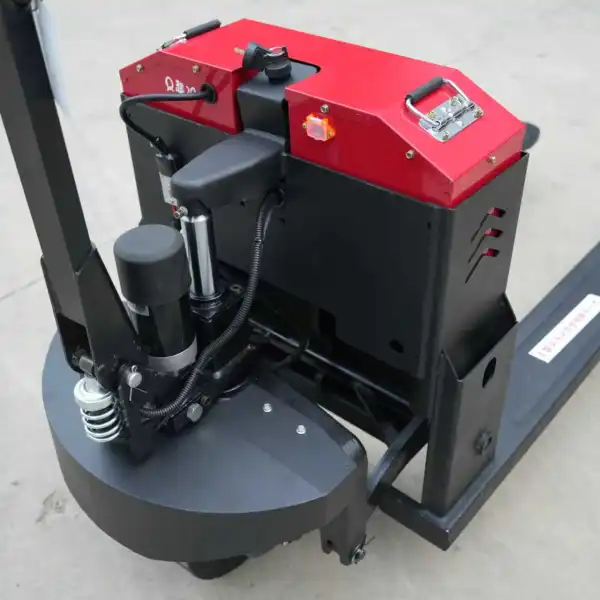

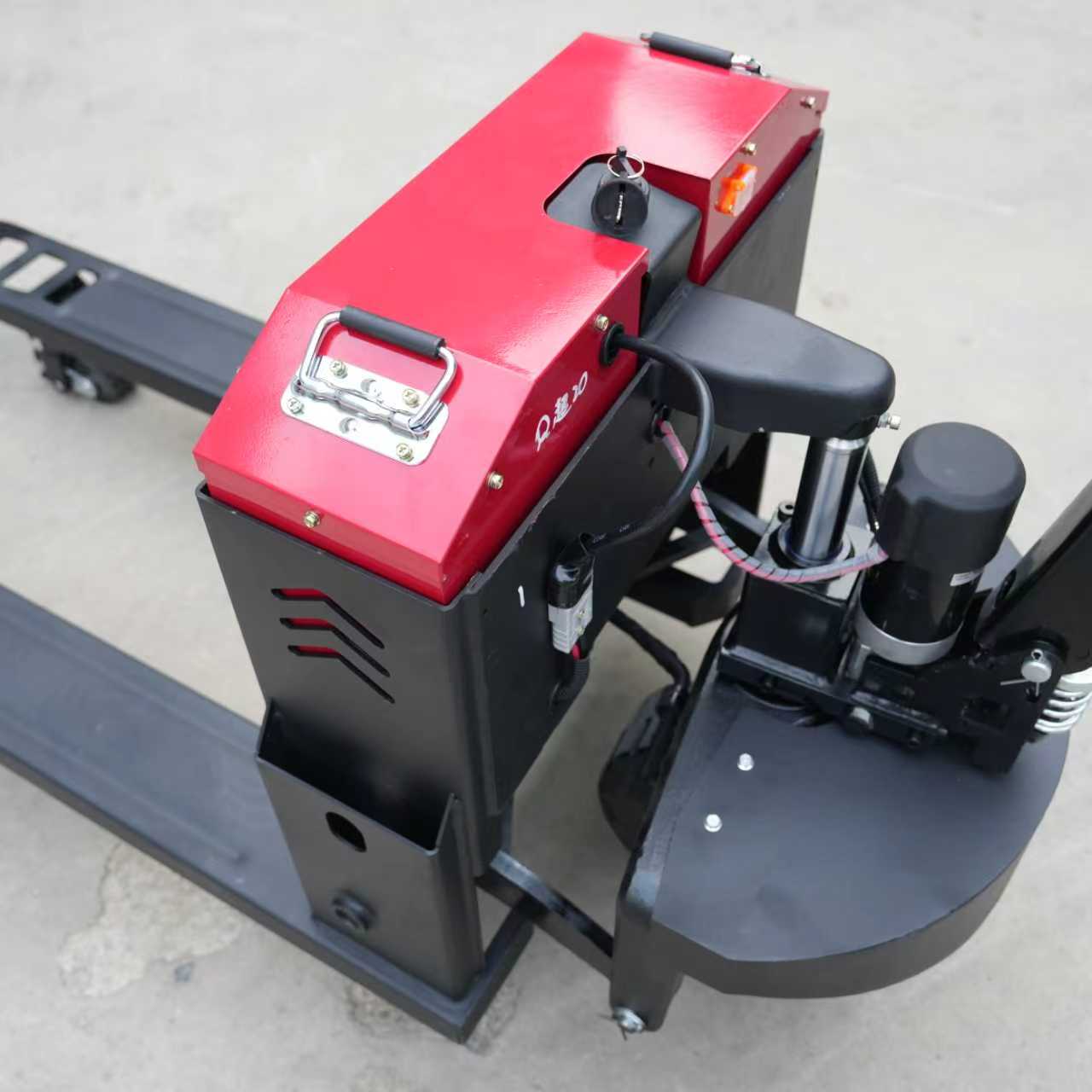

The battery pack can be charged on the truck or removed for charging anywhere, solving the trouble of no on-site power supply for charging.
48V permanent magnet brushless motor with maintenance-free performance and high torque.
300x100mm heavy-duty wear-resistant solid rubber drive wheels; 100mm ground clearance for excellent passability, suitable for complex road conditions.
Patent-designed fully sealed gear transmission with high speed ratio, large modulus and high torque, ensuring stability and reliability.

Model	Full-Electric (Big-Wheel Version)	Rated Load	2000/3000KG
Load Center Distance	500mm	Lifting Method	Electric Lifting
Wheel Type	Front: Rubber; Rear: UP/Nylon	Drive Wheel Size	Φ300*100mm

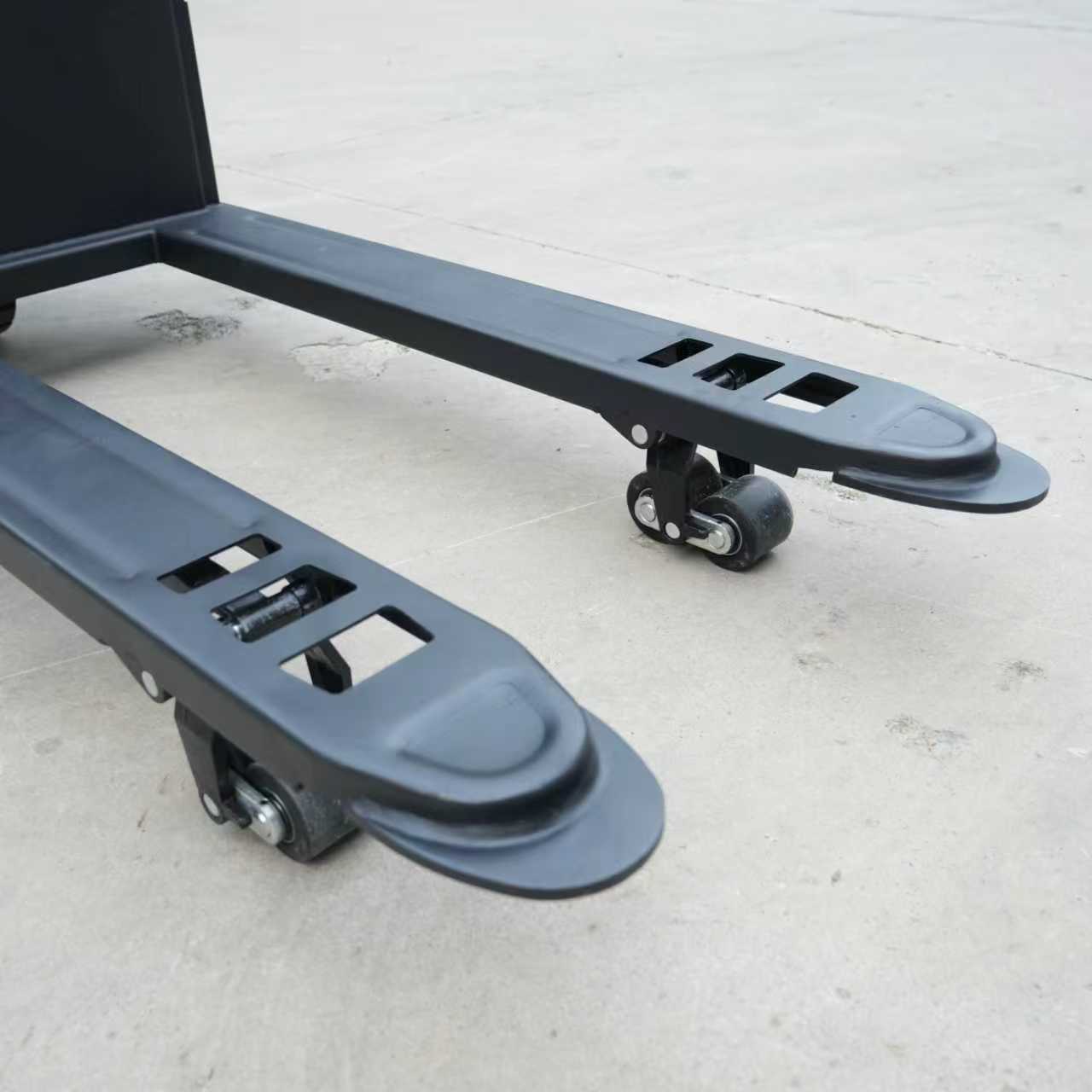

Load-Bearing Wheel Size	Φ80*70mm	Minimum Fork Height from Ground	85mm
Maximum Fork Lifting Height	200mm	Inner Fork Spacing	230/365mm
Outer Fork Spacing	550/685mm	Fork Width	160mm
Fork Length	1160mm	Overall Vehicle Length	1750mm
Fork Thickness	40mm	Overall Vehicle Height (Including Handle)	1380mm
Overall Vehicle Width	685mm	Minimum Turning Radius	1550mm
Overall Vehicle Height (Excluding Handle)	700mm	Climbing Capacity (Full Load/No Load)	7/16%
Maximum Travel Speed (Full Load/No Load)	4/4.5km/h	Storage Battery	48V/20A Lead-Acid Battery
Drive Motor Power	1200W	Overall Vehicle Weight	195KG
Lifting Motor Power	2200W	Lifting Speed (Full Load/No Load)	2.2/3.3cm/s
