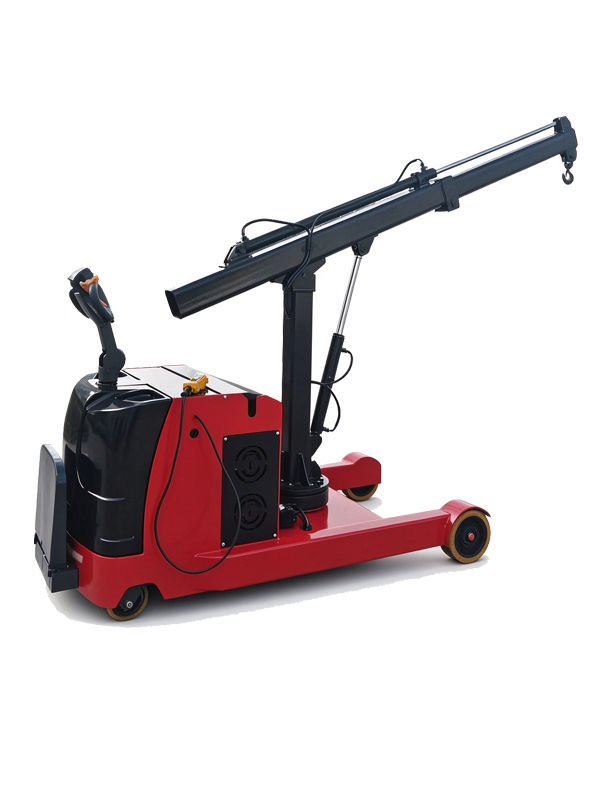

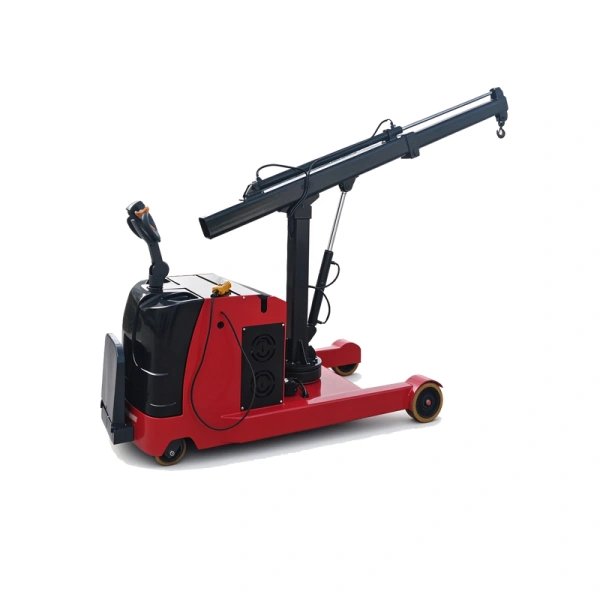

Electric Mobile Floor Crane for Workshop Engine and Material Handling
The electric mobile floor crane is a compact lifting solution designed for workshops, warehouses, maintenance facilities and other industrial environments where materials need to be lifted and moved without installing a fixed crane system.
With a mobile design, hydraulic lifting system and telescopic crane boom, the machine can move directly to the working position and handle lifting tasks in areas where conventional overhead cranes or large mobile cranes are not practical.
Typical applications include moving engines in maintenance workshops, positioning machinery components, handling industrial materials and transporting loads over short distances inside facilities.
Compact Design for Workshop Lifting
For maintenance workshops, engine repair areas and equipment service centers, moving heavy components manually can require several workers and additional lifting equipment.
The compact design of this mobile floor crane allows operators to move the crane close to the load before lifting. This makes it suitable for applications such as engine removal, engine installation, machinery maintenance and component positioning.
The hydraulic mini crane boom uses a telescopic structure to extend the working range. Depending on the boom position, the lifting height can reach more than 3.3 meters on the listed models.
Telescopic Boom for Flexible Lifting
The telescopic boom is designed to provide different working positions for lifting and positioning loads.
When the boom is retracted, the crane provides a higher rated capacity. When the boom is extended, the working radius increases while the allowable lifting capacity decreases.
For example, the EFSC-25 has:
Rated capacity with boom retracted: 1,000 kg
Rated capacity with boom extended: 250 kg
Maximum lifting height: 2,220 mm / 3,310 mm
Maximum crane boom extension: 813 mm
This configuration allows buyers to select the lifting position according to the actual load and working distance.
Designed for 200–300 kg Workshop Loads
Although some models have a 1,000 kg maximum capacity when the boom is retracted, this type of compact crane is particularly suitable for lighter loads when the boom is extended.
For applications involving approximately 200–300 kg loads, the crane can be used for tasks such as:
Engine lifting and positioning
Motor and gearbox handling
Machinery component replacement
Workshop equipment maintenance
Industrial parts handling
Short-distance material movement
For heavier loads, buyers should provide the required load weight, lifting height and working radius to the supplier before selecting the crane model.
Easy Operation and Optional Configuration
The machine can be equipped with an intelligent control handle to make operation more convenient for workers.
For customers who frequently move the crane around workshops or production areas, customized pedals can also be considered to improve operating convenience.
The exact configuration can be adjusted according to the customer's application, including lifting requirements, working space and operating method.
Suitable for Multiple Industrial Applications
The mobile floor crane for sale can be used in a variety of indoor material-handling applications.
Automotive and Maintenance Workshops
The crane can help maintenance technicians lift engines, motors and other components during repair and replacement operations.
Machinery Maintenance
For machinery service departments, the crane can be positioned close to equipment and used to remove or install heavy components.
Warehouses and Industrial Facilities
The compact mobile structure makes it suitable for moving selected materials and components over short distances inside warehouses and production facilities.
Equipment Assembly
During equipment assembly, the crane can help position motors, mechanical components and other parts at the required installation height.
Technical Data
| Model | EFSC-25 | EFSC-25-AA | EFSC-CB-15 |
|---|---|---|---|
| Capacity — Retracted | 1,000 kg | 1,000 kg | 650 kg |
| Capacity — Extended | 250 kg | 250 kg | 150 kg |
| Max. Lifting Height — Retracted | 2,220 mm | 2,260 mm | 2,250 mm |
| Max. Lifting Height — Extended | 3,310 mm | 3,350 mm | 3,340 mm |
| Max. Crane Boom Extension | 813 mm | 1,220 mm | 813 mm |
| Max. Leg Extension | 600 mm | 500 mm | 813 mm |
| Retracted Size (W × L × H) | 762 × 2,032 × 1,600 mm | 762 × 2,032 × 1,600 mm | 889 × 2,794 × 1,727 mm |
| Net Weight | 500 kg | 480 kg | 770 kg |
How to Select the Right Mobile Floor Crane
When purchasing an electric mobile floor crane, buyers should provide several key operating requirements to the supplier:
Maximum load weight — What is the heaviest component that needs to be lifted?
Working radius — How far does the load need to be positioned from the crane?
Required lifting height — What is the maximum installation or lifting height?
Boom extension requirement — Does the application require a longer working reach?
Working environment — Is the crane used in a workshop, warehouse, factory or maintenance area?
Mobility requirements — How frequently does the crane need to be moved?
Operating method — Does the customer require a standard control handle or customized operating configuration?
These details help the supplier recommend a configuration that matches the actual working conditions rather than selecting a crane based only on its maximum rated capacity.
A Practical Solution for Compact Industrial Lifting
For workshops and industrial facilities that do not require a large fixed overhead crane, a compact hydraulic mini crane can provide a practical alternative for selected lifting and positioning jobs.
Its telescopic boom, mobile structure and hydraulic lifting system make it suitable for engine handling, machinery maintenance, component installation and other short-distance lifting applications.
For an accurate model recommendation, buyers should provide the expected load weight, lifting height and required working reach. The supplier can then confirm the appropriate capacity under both retracted and extended boom conditions.
