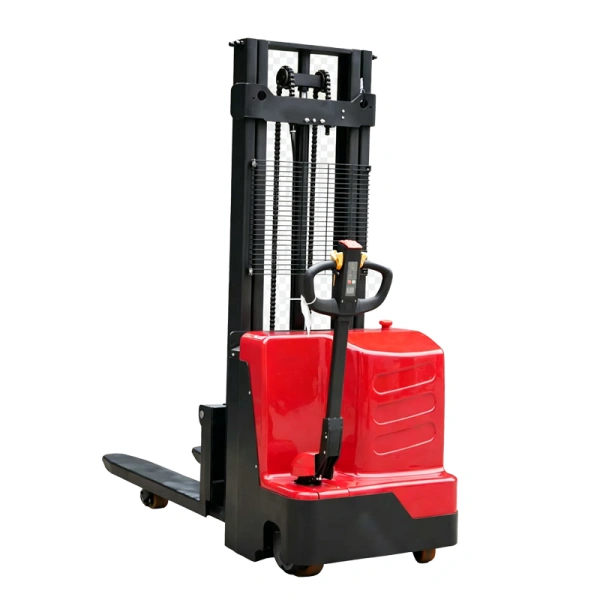

1.5 Ton Full Electric Dual-Lifting Walkie Stacker
The 1.5 Ton Full Electric Dual-Lifting Walkie Stacker is an efficient and reliable material handling solution designed for factories, warehouses, storage facilities, logistics centers, and distribution operations.
With a rated load capacity of 1.5 tons and a standard 500 mm load center, this electric stacker combines full-electric travel and lifting with an innovative dual-lifting system. The system integrates body lifting and fork lifting, providing greater flexibility for transporting, positioning, and stacking goods.
Compared with conventional electric stackers, the dual-lifting design allows operators to adapt the equipment to different working conditions and material handling requirements. It helps reduce repetitive manual handling, improve stacking efficiency, save labor costs, and increase overall warehouse productivity.
Dual-Lifting System
The key feature of this 1.5 ton electric stacker is its dual-lifting system.
The equipment combines body lifting and fork lifting, providing two lifting functions within one machine.
The fork lifting system is used for lifting, transporting, and stacking pallets and goods, while the body lifting function provides additional flexibility during material handling and operation.
This design is particularly suitable for factories and warehouses where operators need to move, position, and stack goods efficiently in different working areas.
The dual-lifting structure provides greater flexibility than a conventional single-lifting stacker and helps operators complete material handling tasks more efficiently.
Full Electric Drive and Lifting
The stacker uses a full electric operating system for both travel and lifting.
Electric travel reduces the physical effort required from the operator, while the electric lifting system provides smooth and efficient lifting performance.
Compared with manual or semi-electric handling equipment, the full-electric design is better suited to frequent material transportation and stacking operations.
The walkie design allows the operator to control the equipment while walking behind or alongside the machine, making it suitable for warehouses, workshops, production areas, and internal material transportation.
It is ideal for businesses looking to reduce manual handling, improve productivity, and lower long-term labor costs.
1.5 Ton Load Capacity
With a rated load capacity of 1,500 kg, this electric walkie stacker is designed for medium-duty and relatively heavy material handling applications.
It can be used to transport and stack:
Palletized goods
Raw materials
Finished products
Industrial components
Cartons and packaged goods
Warehouse inventory
Production materials
The standard load center is 500 mm.
The actual allowable load depends on the lifting height, mast configuration, load center, pallet dimensions, and operating conditions.
Operators should always refer to the official load curve before lifting goods.
Load Capacity & 500 mm Load Center
The load capacity of an electric stacker is directly related to the load center and lifting height.
This model uses a standard 500 mm load center for its rated load capacity.
As the lifting height increases, the available load capacity may decrease depending on the mast configuration and equipment stability.
Load Capacity Chart
| Lifting Height | Load Center | Maximum Load Capacity |
|---|---|---|
| 2000 mm | 500 mm | 1500 kg |
| 2500 mm | 500 mm | 1200 kg |
| 3000 mm | 500 mm | 800 kg |
| 3500 mm | 500 mm | 600 kg |
Standard Load Center: 500 mm
The above values should be confirmed according to the actual mast configuration and official load curve.
The final load capacity depends on:
Lifting height
Load center
Mast configuration
Pallet dimensions
Load distribution
Equipment configuration
For safety, the actual load curve supplied with the selected machine should always be followed.
Mast Configurations & Lifting Heights
Different warehouses and factories require different lifting heights.
The 1.5 Ton Full Electric Dual-Lifting Walkie Stacker can be configured with different mast types and lifting heights to meet different storage and stacking requirements.
The selection of mast configuration should consider the required stacking height, ceiling height, door clearance, pallet size, load capacity, and working environment.
Mast Configuration and Application
| Mast Configuration | Lifting Height | Mast Height Lowered | Application Level |
|---|---|---|---|
| Duplex Mast | 2000 mm | 1560 mm | Low-Level Stacking |
| Duplex Mast | 2500 mm | 1760 mm | Low-Level Stacking |
| Duplex Mast | 3000 mm | 2000 mm | Standard Warehouse Stacking |
| Triplex Mast | 3500 mm | 1800 mm | Standard Warehouse Stacking |
Actual mast configurations and lifting heights may vary according to the selected model.
Low-Level Lifting Applications
Lower lifting heights are suitable for:
Production workshops
Low-clearance warehouses
Material transfer areas
Low-level pallet stacking
Internal factory transportation
Medium-Level Lifting Applications
Medium lifting heights are suitable for:
Standard warehouse racks
Pallet storage
Factory warehouses
Logistics centers
Production material storage
High-Level Lifting Applications
Higher mast configurations are suitable for:
High-level pallet racking
High-bay warehouses
Distribution centers
Intensive warehouse storage
Vertical material handling
When selecting a lifting height, customers should consider both the required stacking height and the Mast Height Lowered to ensure that the equipment can safely operate under doors, ceilings, and other height restrictions.
Mechanical Steering
The mechanical steering system provides comfortable, economical, and reliable operation.
Its practical structure is designed for frequent material handling applications and helps simplify maintenance.
The operator can control the stacker smoothly during travel, turning, positioning, and stacking operations.
The mechanical steering system provides a balance between operating comfort, reliability, and cost-effectiveness.
High-Performance Pump Station
The stacker is equipped with a high-performance hydraulic pump station that provides strong and stable lifting power.
The optimized hydraulic system provides smooth lifting performance while maintaining very low operating noise.
The low-noise pump station makes the equipment suitable for indoor applications such as warehouses, factories, workshops, and logistics centers.
The combination of strong hydraulic power and low-noise operation provides reliable performance while creating a more comfortable working environment.
Strong and Reliable Mast Structure
The mast adopts a strong and durable structural design.
The reinforced mast provides excellent resistance to impact and deformation, helping maintain structural stability during repeated lifting and stacking operations.
A reliable mast structure is particularly important when handling medium and heavy loads at higher lifting heights.
The robust design helps improve equipment durability and provides operators with greater confidence during daily warehouse operations.
Walkie Operating Design
Unlike a stand-on stacker, the walkie configuration is designed for operators who control the machine while walking behind or alongside it.
The walkie design provides a compact and flexible operating solution for warehouses, production workshops, storage areas, and internal material transportation.
It is particularly suitable for applications where operators frequently need to move between different handling locations and where maneuverability and simple operation are important.
The ergonomic control arrangement allows the operator to control travel, steering, lifting, and lowering functions conveniently during daily material handling operations.
This design also avoids the need for a dedicated standing platform, helping keep the machine structure practical and suitable for confined working areas.
Stable Chassis and Multi-Surface Operation
The stacker is designed for use on a variety of common factory and warehouse floor surfaces.
Its stable chassis provides reliable support during travel, turning, and lifting operations.
The walkie operating design allows the operator to move efficiently between different handling locations while maintaining direct control of the machine.
The actual wheel and chassis configuration can be selected according to the working environment and floor conditions.
Battery & Power System
The electric stacker is equipped with a [Lead Acid Battery] [48V / 20Ah] battery system, providing reliable power for daily material handling operations.
Battery configuration can be selected according to working intensity, lifting height, travel distance, load requirements, and required operating hours.
Battery Specifications
| Item | Specification |
|---|---|
| Battery Type | [Lead-Acid ] |
| Battery Voltage | [48 V] |
| Battery Capacity | [20 Ah] |
| Battery Location | [Built-in] |
| Charger | [48 V / 8 A] |
| Charging Time | Approximately [6–8 hours] |
| Working Time | Approximately [2–3 hours] |
The actual working time depends on:
Load weight
Lifting frequency
Lifting height
Travel distance
Floor conditions
Working temperature
Operating intensity
Battery condition
For applications requiring longer working hours, higher-capacity batteries or alternative battery configurations can be provided according to customer requirements.
Working Time & Charging
The 1.5 Ton Full Electric Dual-Lifting Walkie Stacker is designed for repeated daily material handling operations.
Under normal operating conditions, the equipment can provide approximately 3 hours of working time per charge.
Actual working time may vary according to the load, lifting frequency, travel distance, operating conditions, and duty cycle.
The charging system provides convenient battery charging between working cycles.
For multi-shift operations, customers can choose suitable battery capacities or additional battery solutions to reduce downtime.
Safety Features
Safety is an important consideration when transporting and stacking heavy loads.
The stacker incorporates a number of structural and operational features designed to improve stability and operator safety.
Key safety features include:
Reinforced mast structure
Stable chassis design
Reliable hydraulic lifting system
Controlled electric travel
Mechanical steering
Load capacity chart
Emergency stop function [if equipped]
Braking system [if equipped]
Safety protection system [if equipped]
The final safety configuration depends on the selected model and customer requirements.
Efficient Labor-Saving Solution
Manual handling can require significant labor, especially when goods need to be moved and stacked repeatedly throughout the working day.
The full-electric drive and lifting system allow the operator to move and stack goods with much less physical effort.
The walkie operating design provides direct and convenient control while allowing the operator to move naturally with the equipment.
The dual-lifting system provides additional flexibility for different handling requirements.
Together, these features help businesses:
Reduce manual labor
Reduce operator fatigue
Improve handling efficiency
Increase warehouse productivity
Reduce repetitive physical work
Improve stacking efficiency
Lower operating costs
Applications
The 1.5 Ton Full Electric Dual-Lifting Walkie Stacker is suitable for a wide range of material handling applications.
Warehouse & Storage
Suitable for pallet transportation, stacking, storage, loading, unloading, and internal warehouse handling.
Manufacturing
Suitable for moving raw materials, components, semi-finished products, and finished products between production and storage areas.
Logistics & Distribution
Suitable for distribution centers and logistics operations requiring frequent pallet transportation and stacking.
Retail & Wholesale
Suitable for stockrooms, wholesale warehouses, and distribution facilities where goods need to be organized and moved efficiently.
Other Applications
The stacker can also be used in:
Production workshops
Industrial warehouses
Parts warehouses
Packaging facilities
Material storage areas
Factory logistics
Internal transportation
Pallet stacking operations
Key Advantages
1. Dual-Lifting Design
Combines body lifting and fork lifting, providing greater flexibility for different material handling requirements.
2. 1.5 Ton Load Capacity
Designed for medium-duty and relatively heavy warehouse and factory material handling.
3. 500 mm Load Center
Provides a clear reference for rated capacity and load curve evaluation.
4. Full Electric Operation
Electric travel and lifting reduce manual effort and improve handling efficiency.
5. Mechanical Steering
Comfortable, economical, and reliable steering system for daily warehouse operation.
6. High-Performance Pump Station
Strong lifting power with smooth performance and very low operating noise.
7. Reinforced Mast
Strong and reliable structure with excellent resistance to impact and deformation.
8. Walkie Operating Design
Provides flexible operation and easy maneuverability without requiring a dedicated standing platform.
9. Multiple Mast Configurations
Different lifting heights are available for low-level, medium-level, and high-level warehouse applications.
10. Labor Saving
Reduces repetitive manual handling and helps improve overall warehouse productivity.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 1.5 Ton Full Electric Dual-Lifting Walkie Stacker |
| Rated Load Capacity | 1,500 kg |
| Load Center | 500 mm |
| Operation Type | Walkie |
| Lifting System | Dual Lifting |
| Drive System | Full Electric |
| Steering System | Mechanical Steering |
| Mast Configuration | Simplex / Duplex / Triplex |
| Lifting Height | [2–5.5 mm] |
| Mast Height Lowered | [1560 mm] |
| Fork Dimensions | [1150 × 190 × 60 mm] |
| Fork Outside Width | [700 mm] |
| Overall Length | [2440 mm] |
| Overall Width | [850 mm] |
| Travel Speed | [6 km/h] |
| Lifting Speed | [100 mm/s] |
| Battery Type | [Lead-Acid] |
| Battery Voltage | [48 V] |
| Battery Capacity | [20 Ah] |
| Working Time | [3 h] |
| Charging Time | [6–8 h] |
| Net Weight | [650 KG] |
| Hydraulic System | High-Performance Pump Station |
| Mast | Reinforced Heavy-Duty Structure |
| Application | Warehouse / Factory / Logistics |
| Customization | Available |
Customization Options
Different warehouses and factories have different requirements for lifting height, pallet dimensions, battery capacity, working hours, and operating conditions.
We can provide customized configurations according to the customer's application requirements.
Customization options may include:
Lifting height
Mast configuration
Fork dimensions
Fork width
Battery type
Battery capacity
Charger
Load capacity
Overall dimensions
Wheel configuration
Other application-specific requirements
Customers can provide the following information for configuration recommendations:
Load capacity + lifting height + pallet size + working hours + floor conditions + application environment
Based on these requirements, the appropriate electric stacker configuration can be recommended.
Why Choose This 1.5 Ton Dual-Lifting Electric Stacker?
The 1.5 Ton Full Electric Dual-Lifting Walkie Stacker combines lifting flexibility, electric operation, reliable construction, and easy operation in one machine.
Its biggest advantage is the dual-lifting system, which combines body lifting and fork lifting to provide greater flexibility than a conventional single-lifting electric stacker.
The 500 mm load center and corresponding load curve provide a clear reference for selecting the correct configuration at different lifting heights.
Different Simplex, Duplex, and Triplex mast configurations allow the stacker to adapt to different warehouse rack heights and operating environments.
At the same time, the full-electric drive and lifting system reduce manual effort, while mechanical steering, the high-performance low-noise pump station, and reinforced mast provide a comfortable and reliable operating experience.
For factories, warehouses, logistics centers, and storage facilities looking to improve material handling efficiency while reducing labor requirements, this 1.5 ton dual-lifting walkie electric stacker provides a practical and cost-effective solution.
Get the Right Configuration for Your Application
Choosing the correct stacker configuration depends on more than rated capacity.
The load center, lifting height, mast configuration, battery capacity, working time, pallet dimensions, floor conditions, and warehouse clearance should all be considered before selecting the equipment.
If you are looking for a 1.5 ton full electric dual-lifting walkie stacker, send us your required load capacity, lifting height, pallet size, and working conditions.
We can recommend the appropriate mast configuration, load capacity, battery system, fork dimensions, and other specifications for your application.
