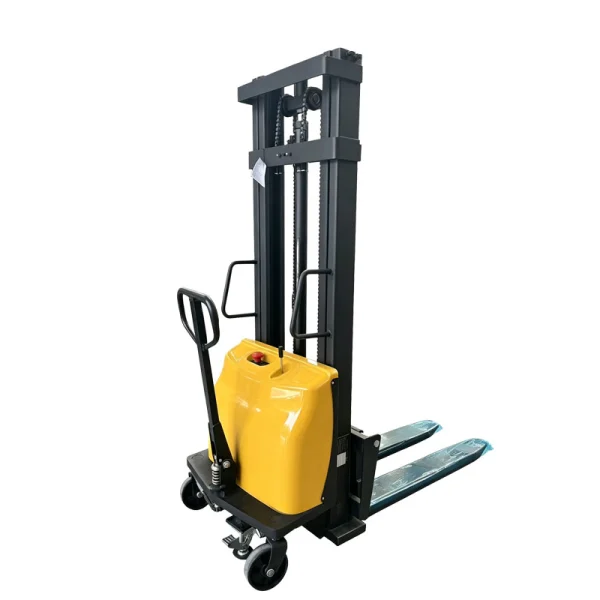

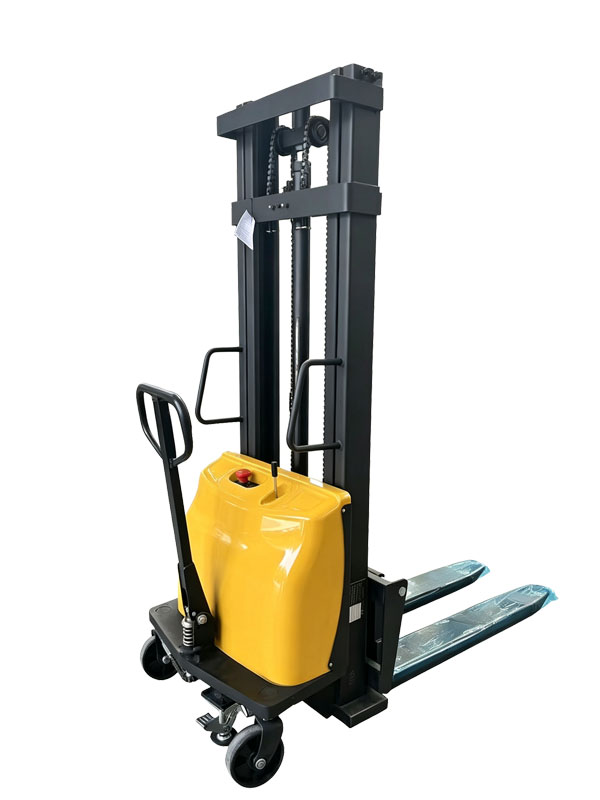

2 Ton Semi-Electric Walkie Stacker for Economical Material Handling
The 2 Ton Semi-Electric Walkie Stacker is designed for customers who need a practical and economical solution for pallet stacking and short-distance material handling.
Its operating principle is simple: electric lifting and manual travel.
The electric hydraulic system powers the lifting and lowering functions, while the operator manually pushes or pulls the stacker during transportation. This configuration provides powered lifting where it is most needed while keeping the travel system simple and easy to operate.
With a rated load capacity of up to 2,000 kg, the stacker is suitable for handling heavier palletized goods in warehouses, workshops, production areas, retail back rooms and other indoor applications.
Compared with a fully electric stacker, the semi-electric design can offer a more economical equipment solution, lower energy consumption and simpler maintenance. It is particularly suitable for applications involving short-distance transportation and frequent pallet stacking.
Electric Lifting and Manual Travel
The main feature of the semi-electric walkie stacker is its electric lifting and manual travel system.
The operator does not need to manually pump the hydraulic system repeatedly when lifting a pallet. Instead, the electric pump station provides powered lifting and lowering at the push of a control button.
Travel is performed manually by pushing or pulling the machine.
This configuration is particularly suitable for applications where:
Pallets need to be lifted frequently
Travel distances are relatively short
The working environment is mainly flat and indoors
Customers want to reduce equipment investment
Electric lifting is required but powered travel is not necessary
Key Benefits
Electric pallet lifting
Reduced manual lifting effort
Manual travel for flexible short-distance movement
Simple operating principle
Lower energy consumption
Economical equipment configuration
Easy maintenance
For frequent long-distance transportation or multi-shift high-intensity material handling, a fully electric stacker may be more suitable.
2,000 kg Load Capacity
The 2 Ton Semi-Electric Walkie Stacker provides a rated load capacity of up to 2,000 kg, making it suitable for heavier pallet handling and stacking applications.
Compared with lower-capacity models, the 2 ton configuration provides greater capacity for customers handling heavier palletized goods while maintaining the economical advantages of a semi-electric design.
It is suitable for handling:
Heavy palletized goods
Warehouse materials
Production components
Raw materials
Finished products
Retail and wholesale goods
The actual allowable load depends on the lifting height, load center, mast configuration, pallet dimensions and operating conditions.
Load Capacity Chart
| Lifting Height | Allowable Load Capacity |
|---|---|
| 1600 mm | [1000] kg |
| 2000 mm | [1000] kg |
| 2500 mm | [1000] kg |
| 3000 mm | [1000] kg |
| 3500 mm | [1000] kg |
Note: Actual allowable load capacity should be confirmed according to the manufacturer's final load capacity chart and selected configuration.
Reinforced C-Shaped Mast
The stacker uses a thickened C-shaped mast made from reinforced steel.
The thicker steel construction helps improve mast rigidity, structural strength and durability during repeated lifting operations.
For a 2 ton stacker, a reinforced mast provides reliable structural support when handling heavier palletized loads.
Key Benefits
Reinforced mast structure
Improved structural strength
Reliable pallet lifting
Better durability
Longer service life
Stable lifting performance
The reinforced C-shaped mast works together with the hydraulic lifting system to provide smooth and stable lifting performance.
Adjustable Forks for Different Pallet Sizes
The stacker is equipped with adjustable forks, allowing the fork spacing to be adjusted according to different pallet dimensions.
This makes the machine more flexible for customers who handle different pallet sizes in the same working area.
Adjustable forks can help:
Accommodate different pallet widths
Improve pallet compatibility
Increase equipment flexibility
Reduce the need for different machines
Adapt to changing warehouse requirements
The actual adjustment range should be confirmed according to the selected fork configuration.
Reinforced Forks for Reliable Load Handling
The forks feature welded reinforcing ribs designed to improve the structural strength of the fork assembly.
The reinforced fork design provides reliable support for palletized goods and helps reduce deformation when operating within the rated load capacity.
Key Benefits
Reinforced fork structure
Improved structural strength
Better resistance to deformation
Reliable pallet support
Increased fork durability
The actual load capacity must always remain within the rated capacity of the machine and corresponding load chart.
1244 Plate-Type Lifting Chain
The stacker uses a 1244 plate-type lifting chain for the lifting system.
The plate-type chain provides reliable load transmission between the lifting mechanism and forks and is designed to withstand repeated lifting operations.
Key Benefits
Reliable lifting transmission
Strong load-bearing structure
Suitable for repeated lifting
Improved lifting system durability
Supports longer equipment service life
The actual chain specification should be confirmed according to the final machine configuration.
Brand Maintenance-Free Battery
The stacker can be equipped with a branded maintenance-free battery designed to provide reliable power for the electric lifting system.
Because the semi-electric stacker uses battery power primarily for lifting rather than travel, its overall energy consumption is relatively low.
The maintenance-free battery helps provide reliable lifting power while reducing routine battery maintenance requirements.
Key Benefits
Reliable lifting power
Long operating duration
Low maintenance requirements
Reduced battery maintenance work
Lower operating costs
Battery and Charging
| Item | Specification |
|---|---|
| Battery Type | Maintenance-Free Battery |
| Battery Brand | TIANNENG / CHAOWEI |
| Battery Voltage | 12 V |
| Battery Capacity | 70 Ah |
| Charger | Available |
| Charging Time | 6–8 Hours |
| Operating Time | 2–3 Hours |
Note: Final battery specifications should be confirmed according to the actual 2 ton configuration.
Discharge Protection for Longer Battery Life
The electric system incorporates a battery discharge protection device designed to help prevent excessive battery discharge.
By helping protect the battery from over-discharge, the system can contribute to longer battery service life and more reliable daily operation.
Key Benefits
Battery discharge protection
Helps extend battery service life
Reduces battery damage caused by excessive discharge
Improves battery reliability
Helps reduce battery replacement costs
The actual battery protection system should be confirmed according to the selected electrical configuration.
Brand Hydraulic Pump Station for Smooth Lifting
The stacker uses a branded high-capacity hydraulic pump station to provide stable lifting performance.
The hydraulic system is designed to provide smooth lifting and lowering while helping reduce vibration and operating noise.
Key Advantages
Smooth lifting
Stable lowering
Low vibration
Low operating noise
Reliable hydraulic performance
Efficient electric lifting
The combination of the electric motor and hydraulic pump station provides convenient powered lifting without requiring manual pumping.
Foot-Operated Braking System
The foot-operated brake provides a simple and convenient way to secure the stacker during operation.
The operator can quickly apply the foot brake when the machine needs to remain stationary during loading, unloading or stacking.
Key Benefits
Simple brake operation
Quick engagement
Convenient parking
Improved control during pallet handling
The actual braking configuration should be confirmed according to the selected model.
Compact Design for Narrow Working Areas
The semi-electric walkie stacker features a compact structure designed for environments where space is limited.
Because travel is manually controlled, the machine does not require a powered travel system, helping maintain a relatively simple and compact structure.
It can be suitable for:
Small and medium-sized warehouses
Narrow warehouse aisles
Workshops
Production lines
Retail back rooms
Loading and unloading areas
Storage facilities
Its compact design also makes it easier to move the equipment between different working areas.
Economical and Low-Energy Operation
One of the main advantages of the semi-electric configuration is its economical operating concept.
Unlike a fully electric stacker, the battery is primarily used to power the electric lifting system rather than the travel system.
This helps reduce energy consumption and makes the equipment suitable for applications where powered travel is not necessary.
Economic Advantages
Lower equipment investment
Low energy consumption
Simple mechanical structure
Easy maintenance
Lower maintenance requirements
Reduced operating costs
For customers who mainly require electric lifting but only need to move pallets short distances, the semi-electric configuration can provide a cost-effective alternative to a fully electric stacker.
Safety Design
The stacker incorporates several structural and operational features designed to support safe pallet handling.
| Safety Feature | Function |
|---|---|
| Discharge Protection | Helps protect the battery from excessive discharge |
| Foot Brake | Provides convenient parking and braking |
| Reinforced C-Shaped Mast | Supports stable lifting |
| Reinforced Forks | Improves fork structural strength |
| Adjustable Forks | Helps accommodate different pallet sizes |
| Controlled Lifting & Lowering | Provides smooth load movement |
| Rated Load Capacity | Helps ensure operation within specified limits |
Actual safety equipment and configuration should be confirmed according to the selected model.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Semi-Electric Walkie Stacker |
| Model | CTD-20 |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Lifting Height | 3500 mm |
| Overall Length | 1750 mm |
| Overall Width | 800 mm |
| Overall Height | 2350 mm |
| Fork Type | Reinforced Forks |
| Fork Length | 1100 mm |
| Adjustable Fork Width | 680 mm |
| Minimum Turning Radius | 1500 mm |
| Fork Min Ground Clearance | 90 mm |
| Mast Size | 120 × 50 mm |
| Motor | 1.6 kW |
| Hydraulic Pump Station | Branded High-Capacity Pump Station |
| Battery Type | Maintenance-Free Battery |
| Battery Brand | TIANNENG / CHAOWEI |
| Battery Voltage | 12 V |
| Battery Capacity | 70 Ah |
| Charger | Available |
| Charging Time | 6–8 Hours |
| Operating Time | 2–3 Hours |
| Brake System | Foot-Operated Brake |
| Lifting Chain | 1244 Plate-Type Chain |
| Mast Type | Reinforced C-Shaped Mast |
| Travel Mode | Manual |
| Lifting Mode | Electric |
| Net Weight | [550] kg |
Important: The dimensions, motor, battery and other specifications above are based on the 1.5 ton configuration you provided as a reference. Before publishing the 2 ton product page, the actual 2 ton machine data should be confirmed and replaced where necessary.
Core Advantages
1. 2,000 kg Load Capacity
Provides a rated load capacity of up to 2,000 kg for heavier pallet handling and stacking applications.
2. Electric Lifting + Manual Travel
Electric lifting reduces manual effort, while manual travel provides flexible short-distance movement.
3. Thickened C-Shaped Mast
Reinforced steel construction improves mast strength, durability and lifting stability.
4. Reinforced Forks
Welded reinforcing ribs improve fork structural strength and help reduce deformation under rated loads.
5. Adjustable Forks
Adjustable fork spacing allows the machine to accommodate different pallet sizes.
6. 1244 Plate-Type Lifting Chain
Provides reliable lifting transmission and supports repeated lifting operations.
7. Maintenance-Free Battery
Provides reliable lifting power with low maintenance requirements and long operating duration.
8. Battery Discharge Protection
Helps protect the battery from excessive discharge and contributes to longer battery service life.
9. Foot-Operated Brake
Simple and convenient foot braking helps secure the machine during loading and stacking.
10. Low Vibration and Low Noise
The branded high-capacity pump station provides smooth lifting and lowering with reduced vibration and operating noise.
11. Economical Operation
Low energy consumption, simple construction and easy maintenance make the semi-electric configuration a cost-effective choice.
Why Choose the 2 Ton Semi-Electric Walkie Stacker?
The 2 Ton Semi-Electric Walkie Stacker is an economical choice for customers who need higher load capacity with electric pallet lifting but do not require powered travel.
Compared with a 1.5 ton model, the 2 ton configuration provides a higher rated load capacity of 2,000 kg, making it suitable for heavier palletized goods while maintaining the simple and economical semi-electric operating concept.
It is particularly suitable when:
Pallets are relatively heavy
Electric lifting is required
Travel distances are short
The working floor is flat
Equipment investment needs to be controlled
Low energy consumption is important
Simple maintenance is preferred
The machine is used in warehouses, workshops or production areas
The combination of 2,000 kg load capacity, electric lifting, manual travel, reinforced C-shaped mast, adjustable forks, reinforced forks, maintenance-free battery and economical operation makes it a practical solution for heavier pallet stacking applications.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, loading and unloading, short-distance material handling and storage operations in small and medium-sized warehouses.
Manufacturing
Suitable for moving heavier raw materials, components and finished products between storage areas and production lines.
Logistics & Distribution
Suitable for short-distance pallet handling and stacking where powered travel is not essential.
Retail & Wholesale
Ideal for back-room warehouses, stockrooms and storage areas handling heavier palletized goods.
Working Environment
The 2 ton semi-electric walkie stacker is mainly designed for flat indoor working environments.
It is suitable for:
Indoor warehouses
Workshops
Production facilities
Retail back rooms
Storage rooms
Flat concrete floors
Because travel is manually operated, it is not recommended for rough outdoor terrain, steep slopes or long-distance heavy-load transportation.
For frequent long-distance transportation, uneven floors or multi-shift high-intensity applications, a fully electric stacker may be a more suitable solution.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available options may include:
Machine color
Logo and branding
Nameplate and labels
Fork dimensions
Adjustable fork configuration
Lifting height
Mast configuration
Battery type and capacity
Charger configuration
Wheel configuration
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on model and order requirements.
FAQ
What is a semi-electric walkie stacker?
A semi-electric walkie stacker uses electric power for lifting and manual force for traveling. The operator pushes or pulls the machine while the electric hydraulic system raises and lowers the forks.
What is the load capacity of the 2 Ton Semi-Electric Walkie Stacker?
The rated load capacity is 2,000 kg / 2 tons under the specified working conditions.
Is the travel system electric?
No. The travel function is manually operated. The electric system is primarily used for lifting and lowering.
Why choose a 2 ton semi-electric stacker instead of a fully electric stacker?
A semi-electric stacker can provide a more economical solution when electric lifting is required but pallets only need to be moved short distances. It also has relatively low energy consumption and a simpler operating structure.
What is the difference between the 1.5 ton and 2 ton models?
The main difference is load capacity. The 2 ton model provides a rated load capacity of 2,000 kg, compared with 1,500 kg for the 1.5 ton model, making it more suitable for heavier palletized goods.
Is it suitable for long-distance pallet transportation?
It is mainly designed for short-distance transportation. Long-distance movement of heavy loads can increase operator effort. For frequent long-distance transportation, a fully electric stacker is generally more suitable.
Can the forks be adjusted?
Yes. The stacker can be equipped with adjustable forks to accommodate different pallet sizes. The actual adjustment range depends on the selected configuration.
Are the forks reinforced?
Yes. The forks feature welded reinforcing ribs designed to improve structural strength and help reduce deformation under rated loads.
What is the function of the 1244 plate-type lifting chain?
The 1244 plate-type lifting chain provides reliable load transmission for the lifting system and supports repeated lifting operations.
Does the battery require maintenance?
The machine can be equipped with a maintenance-free battery, which reduces routine battery maintenance requirements.
Does it have battery discharge protection?
Yes. The discharge protection device helps prevent excessive battery discharge and can contribute to longer battery service life.
Is the machine suitable for outdoor use?
It is mainly recommended for flat indoor floors. It is not designed for rough terrain, steep slopes or demanding outdoor conditions.
Is it suitable for high-frequency operations?
It is suitable for normal pallet stacking and short-distance handling. For continuous multi-shift or high-frequency transportation, a fully electric stacker may provide higher efficiency.
Can the 2 ton semi-electric stacker be customized?
Yes. Depending on the model and order requirements, customization can include color, logo, fork configuration, lifting height, mast configuration, battery, charger and packaging.
Product Summary
The 2 Ton Semi-Electric Walkie Stacker combines electric lifting with manual travel to provide an economical and practical solution for heavier pallet stacking and short-distance material handling.
With a 2,000 kg rated load capacity, reinforced C-shaped mast, adjustable forks, reinforced fork structure, 1244 plate-type lifting chain, maintenance-free battery, discharge protection, foot-operated brake and low-vibration hydraulic lifting system, the machine provides reliable performance for everyday warehouse and industrial handling.
Its low energy consumption, simple operating principle and relatively easy maintenance make it particularly suitable for warehouses, workshops, production lines, logistics areas and retail back rooms where electric lifting is required but powered travel is not necessary.
For customers looking for a higher-capacity, economical alternative to a fully electric stacker, the 2 Ton Semi-Electric Walkie Stacker provides a practical solution for pallet stacking and short-distance material handling.
Request a Quote
Looking for a 2 Ton Semi-Electric Walkie Stacker for heavier pallet stacking and short-distance material handling?
Send us your requirements, including:
Required lifting height
Pallet size
Pallet weight
Required fork width
Warehouse aisle width
Daily operating frequency
Travel distance
Battery requirements
Working environment
Our team can recommend the appropriate configuration and provide a quotation.
