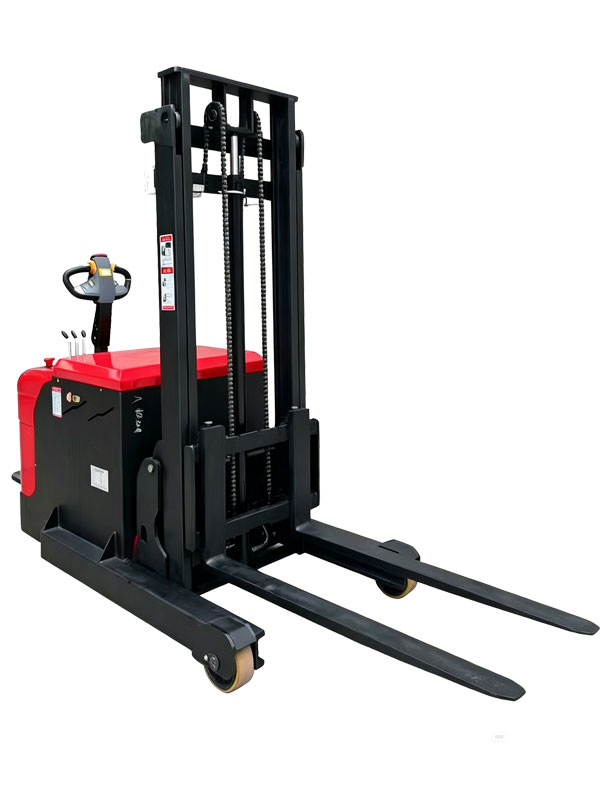

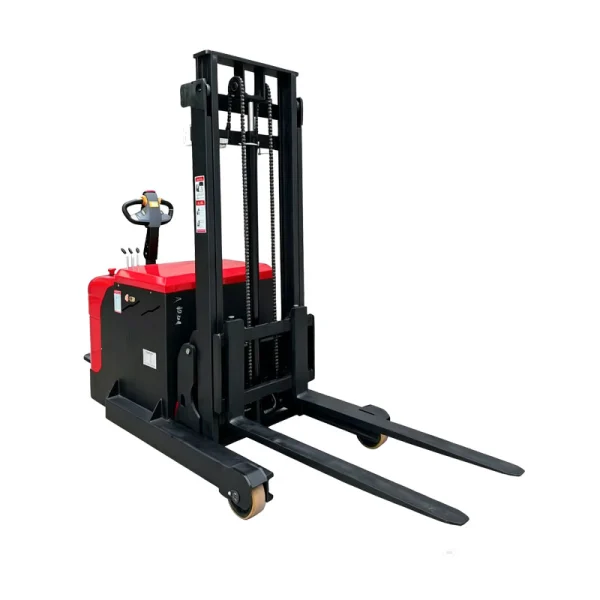

2 Ton Fully Electric Stand-On Reach Stacker for Efficient Material Handling
The 2 Ton Fully Electric Stand-On Reach Stacker is designed for efficient pallet handling, stacking, loading and short-distance material transportation in warehouses, manufacturing facilities, logistics centers and other industrial environments.
With a rated load capacity of 2,000 kg and a standard 500 mm load center, this fully electric reach stacker combines electric travel and lifting with a comfortable stand-on operating platform and forward-reach function.
Its no-leg design allows the machine to handle both single-sided and double-sided pallets, providing greater flexibility for different pallet handling requirements.
The machine features integrated forged forks, a high-strength steel mast, solid rubber drive tires, a maintenance-free AC drive motor, electric power steering and a forward-reach structure, providing a practical combination of strength, flexibility, comfort and operating efficiency.
Through continuous technical development and product optimization, the machine improves handling performance while maintaining a competitive market price, providing customers with an efficient alternative to manual material handling.
Fully Electric Travel and Lifting
The stacker features a fully electric travel and lifting system, eliminating the need for manual lifting and reducing operator effort.
The electric lifting system provides efficient pallet raising and lowering, while the electric travel system enables smooth transportation between storage areas, production lines, loading zones and other working areas.
The optimized electric system provides:
Smooth electric travel
Efficient lifting performance
Low operating noise
Reduced operator effort
Improved handling efficiency
Lower energy consumption
This makes the 2 ton electric reach stacker suitable for frequent pallet handling, stacking and repetitive internal transportation.
Comfortable Stand-On Operation
The stand-on operating platform allows the operator to ride on the machine instead of walking behind it throughout the operation.
This is particularly useful for warehouses and logistics facilities where pallets need to be transported repeatedly over longer internal distances.
The stand-on design helps:
Reduce unnecessary walking
Reduce operator fatigue
Improve transportation efficiency
Increase productivity
Improve operator comfort during repetitive handling
The operator can control travel, lifting and reach functions while remaining on the machine.
2,000 kg Rated Load Capacity
With a rated load capacity of 2,000 kg / 2 tons, the machine is designed for medium- to heavy-duty pallet handling and stacking operations.
The standard load center is 500 mm.
The actual allowable load depends on:
Lifting height
Load center
Mast configuration
Reach position
Fork configuration
Pallet dimensions
Load distribution
Operating conditions
As the lifting height and reach distance increase, the allowable residual load may decrease. Customers should therefore refer to the corresponding load capacity chart for the selected configuration.
Load Capacity Chart
The load capacity chart shows the relationship between lifting height, reach position and allowable load capacity.
| Lifting Height | Allowable Load Capacity |
|---|---|
| 2,000 mm | 2,000 kg |
| 3,000 mm | 1,500 kg |
| 4,000 mm | 1,000 kg |
| 4,500 mm | 800 kg |
| 5,000 mm | 300 kg |
| 5,500 mm | 200 kg |
Load Center: 500 mm
*Final load capacity should be confirmed according to the selected mast, lifting height, reach position, fork configuration and actual load chart.
Forward-Reach Design
The forward-reach mechanism is one of the key features of this model.
The mast and fork assembly can move forward to provide additional flexibility when picking up and positioning pallets.
The reach function is particularly useful for:
Picking up pallets
Positioning loads
Rack loading
Rack unloading
Loading and unloading operations
Handling pallets in different working conditions
The reach distance can reach approximately 685 mm, depending on the selected configuration.
Combined with the stand-on operating position, the forward-reach structure provides greater flexibility during pallet handling and storage operations.
No-Leg Design for Single-Sided and Double-Sided Pallets
The no-leg design allows the machine to handle different pallet structures without the fixed supporting legs found on conventional leg-type stackers.
It is suitable for:
Single-sided pallets
Double-sided pallets
This makes the machine more adaptable to warehouses where different pallet types are used.
The no-leg structure is an important advantage when customers require a flexible solution for different pallet handling applications.
Integrated Forged Forks
The machine is equipped with integrated forged forks designed for strength, durability and reliable load support.
For the 2 ton configuration, the recommended fork specification is approximately:
40 × 122 × 1,070 mm
The 1,070 mm fork length provides suitable support for standard pallet handling applications.
Key advantages include:
High structural strength
Durable forged construction
Reliable load support
Good resistance to deformation
Suitable for frequent pallet handling
The fork width can be adjusted according to the selected configuration and pallet requirements.
High-Strength Steel Mast
The machine uses a high-strength steel mast designed to provide stable lifting and reliable load support.
The mast can be configured with different numbers of sections according to the required lifting height.
Duplex Mast
A 2-section mast is suitable for low- to medium-level lifting applications.
Typical lifting heights include:
2,000 mm
2,500 mm
3,000 mm
3,500 mm
Triplex Mast
A 3-section mast is designed for higher lifting applications.
Typical lifting heights include:
4,000 mm
4,500 mm
5,000 mm
5,500 mm
Different mast configurations allow the machine to adapt to different warehouse rack heights while maintaining an appropriate static height.
Mast Quantity, Lifting Height and Static Height
The mast configuration should be selected according to required lifting height and available operating space.
| Mast Type | Mast Sections | Lifting Height | Static / Closed Height | Application |
|---|---|---|---|---|
| Duplex | 2 | 2,000 mm | 1610mm | Low-Level Stacking |
| Duplex | 2 | 2,500 mm | 1810mm | Standard Warehouse Stacking |
| Duplex | 2 | 3,000 mm | 2050mm | Standard Warehouse Stacking |
| Triplex | 2 | 3,500 mm | 1850mm | Rack Stacking |
| Triplex | 3 | 4,000 mm | 2010mm | High-Level Rack Stacking |
| Triplex | 3 | 4,500 mm | 2150mm | High-Bay Storage |
| Triplex | 3 | 5,000 mm | 2380mm | High-Bay Storage |
| Triplex | 3 | 5,500 mm | 2550mm | Very High-Bay Storage |
Static Height
The static height, also called the mast closed height, refers to the overall height of the machine when the mast is lowered.
This is an important parameter when checking whether the machine can pass through:
Warehouse doors
Container entrances
Loading doors
Low-ceiling areas
Other height-restricted spaces
The actual static height depends on mast configuration and lifting height and should be confirmed according to the final machine configuration.
Ground Clearance
The machine provides a ground clearance of approximately 50–55 mm, depending on the selected configuration.
Adequate ground clearance helps the machine travel over common warehouse and industrial floor surfaces while maintaining a stable operating position.
The final ground clearance should be confirmed according to the actual wheel, chassis and mast configuration.
Solid Rubber Drive Tires
The drive system uses solid rubber tires, providing good durability and passability across different working environments.
Key advantages include:
Strong wear resistance
Good durability
Stable driving performance
Good passability
Reduced risk of puncture
Suitable for different working surfaces
The solid tire configuration is particularly suitable for warehouses, workshops, logistics areas and loading zones.
Forward and Backward Fork Tilt
The fork system features forward and backward tilt, helping the operator pick up, stabilize and position loads.
The tilt function can help:
Improve pallet picking
Stabilize loads during transportation
Improve fork insertion
Facilitate load positioning
Improve handling flexibility
This feature is particularly useful during pallet loading, unloading and stacking operations.
Maintenance-Free AC Drive Motor
The machine uses a maintenance-free AC drive motor with approximately 1.5 kW output, providing smooth and reliable driving performance.
The AC drive system helps provide:
Smooth acceleration
Stable travel
Efficient power transmission
Long service life
Reduced maintenance requirements
The maintenance-free design is particularly suitable for frequent warehouse operation.
Efficient Electric Lifting System
The lifting system uses an electric hydraulic drive with a recommended 3 kW lifting motor.
The approximate lifting performance is:
| Performance | With Load | Without Load |
|---|---|---|
| Lifting Speed | 90 mm/s | 100 mm/s |
| Lowering Speed | 90 mm/s | 100 mm/s |
Actual lifting and lowering speeds may vary according to hydraulic system configuration, load, lifting height and operating conditions.
Travel Performance
The fully electric drive system provides smooth and efficient transportation.
Recommended performance parameters:
| Performance | With Load | Without Load |
|---|---|---|
| Travel Speed | 5 km/h | 6.0 km/h |
The travel speed provides a balance between handling efficiency, operator control and warehouse safety.
Electric Power Steering
The machine uses EPS electric power steering, reducing steering effort and improving maneuverability.
Electric steering provides:
Low steering effort
Smooth steering response
Improved maneuverability
Comfortable stand-on operation
Better control during repeated handling
The EPS system is particularly useful for frequent pallet transportation and turning operations in warehouse environments.
Battery and Charging
The battery provides the energy required for electric travel and lifting.
A typical configuration may include:
| Item | Specification |
|---|---|
| Battery Type | Lead Acid |
| Battery Voltage | 48V |
| Battery Capacity | 32 Ah |
| Charger | Available |
| Charging Time | 6-8 hour |
| Operating Time | 4 hour |
Battery capacity and configuration can be selected according to daily operating hours, workload and charging conditions.
Safety Design
The machine combines structural and operational features designed to support safe material handling.
| Safety Feature | Function |
|---|---|
| Emergency Stop | Quickly stops machine operation when required |
| Electromagnetic Brake | Provides controlled braking during travel |
| High-Strength Mast | Supports stable lifting |
| Forged Forks | Provides reliable load support |
| Solid Rubber Tires | Provides stable ground contact |
| Forward / Backward Tilt | Helps stabilize and position loads |
| Controlled Lifting & Lowering | Supports smooth load movement |
| Battery Protection | Helps protect the electrical system |
| Load Protection | Supports operation within rated capacity |
Actual safety equipment and configuration should be confirmed according to the selected model.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Fully Electric Stand-On Reach Stacker |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Operation Type | Stand-On |
| Power Type | Battery Electric |
| Mast Type | Duplex / Triplex |
| Mast Quantity | 2 / 3 Sections |
| Lifting Height | 2,000–5,500 mm |
| Static / Closed Height | According to Configuration |
| Reach Distance | Up to 700 mm |
| Fork Type | Integrated Forged Forks |
| Fork Length | 1,070 mm |
| Fork Dimensions | 40 × 122 × 1,070 mm |
| Fork Adjustable Width | 264–732 mm |
| Ground Clearance | Approx. 50–55 mm |
| Fork Tilt | Forward / Backward |
| Drive Tire | Solid Rubber Tire |
| Travel Speed, Laden | 5km/h |
| Travel Speed, Unladen | 6.0 km/h |
| Lifting Speed, Laden | 90 mm/s |
| Lifting Speed, Unladen | 100 mm/s |
| Lowering Speed, Laden | 100 mm/s |
| Lowering Speed, Unladen | 90 mm/s |
| Drive Motor | AC 2 kW |
| Lift Motor | 3 kW |
| Steering Type | Mechanical Electric Steering |
| Brake System | Electromagnetic Brake |
| Battery | 48 V / 32 Ah* |
| Net Weight | Approx. 1,400–1,500 kg* |
*Battery and net weight depend on the selected configuration.
Core Advantages
1. 2,000 kg Load Capacity
Designed for heavier pallet handling, stacking and internal transportation.
2. Fully Electric Operation
Electric travel and lifting reduce manual effort and provide smooth, efficient and low-noise operation.
3. Stand-On Operating Design
Allows the operator to ride on the machine, reducing unnecessary walking and fatigue.
4. Forward-Reach Function
Provides greater flexibility for pallet picking, rack loading and load positioning.
5. No-Leg Design
Suitable for both single-sided and double-sided pallets.
6. Integrated Forged Forks
Strong and durable forks provide reliable support for heavy pallet loads.
7. High-Strength Steel Mast
Provides stable lifting performance and reliable load support.
8. Solid Rubber Tires
Provide durability, passability and stable operation on different working surfaces.
9. Maintenance-Free AC Drive Motor
Provides efficient and reliable driving performance with reduced maintenance requirements.
10.Mechanical Electric Steering
Reduces steering effort and improves maneuverability and operator comfort.
11. Flexible Mast Configurations
Duplex and Triplex mast configurations provide lifting heights from approximately 2,000 mm to 5,500 mm.
12. Competitive Operating Cost
The fully electric system and optimized machine design help reduce labor requirements and overall operating costs.
Why Choose the 2 Ton Fully Electric Stand-On Reach Stacker?
The 2 Ton Fully Electric Stand-On Reach Stacker is designed for customers who require higher load capacity, flexible pallet handling and efficient internal transportation.
Its combination of 2,000 kg load capacity, 500 mm load center, forward-reach function, no-leg design, integrated forged forks, high-strength mast, solid rubber tires, maintenance-free AC drive motor and Mechanical steering makes it suitable for demanding warehouse and industrial applications.
Compared with manual handling, the machine can help reduce labor requirements and improve material handling efficiency.
Compared with conventional stackers with fixed legs, the no-leg design provides greater flexibility for handling both single-sided and double-sided pallets.
The available Duplex and Triplex mast configurations also allow customers to select suitable lifting heights according to warehouse rack height and static-height restrictions.
With efficient electric operation, durable components and competitive pricing, the 2 ton model provides a practical solution for modern warehouse and material handling operations.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, rack loading, unloading, internal transportation and warehouse organization.
Manufacturing
Used for moving raw materials, components, finished products and production-line supplies.
Logistics & Distribution
Suitable for frequent pallet transportation, loading-area handling and distribution center operations.
Retail & Wholesale
Used for moving palletized goods between storage areas, warehouse zones and order preparation areas.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available customization options may include:
Machine color
Logo and branding
Nameplate and labels
Fork dimensions
Fork configuration
Lifting height
Mast configuration
Mast quantity
Battery type and capacity
Charger configuration
Tire configuration
Operating platform
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on model and order requirements.
FAQ
Is the 2 Ton Stand-On Reach Stacker fully electric?
Yes. The machine uses electric travel and lifting systems, reducing manual effort and providing efficient material handling performance.
What is the rated load capacity?
The rated load capacity is 2,000 kg / 2 tons under the specified working conditions.
What is the load center?
The standard load center is 500 mm.
What is the maximum reach distance?
The reach distance can be approximately 685 mm, depending on the selected configuration.
What is the fork length?
The recommended standard fork length is 1,070 mm.
What is the ground clearance?
The ground clearance is approximately 50–55 mm, depending on the final configuration.
What lifting heights are available?
The machine can be configured with different lifting heights, typically from approximately 2,000 mm to 5,500 mm.
What is the difference between Duplex and Triplex mast?
A Duplex mast uses two mast sections and is suitable for low- to medium-level lifting.
A Triplex mast uses three mast sections and is suitable for higher lifting applications while helping maintain a relatively compact static height.
Does load capacity change at different lifting heights?
Yes. Allowable load capacity may decrease as lifting height and reach distance increase. Load center, mast configuration, fork configuration and operating conditions also affect residual capacity.
What type of steering system does the machine use?
The machine uses EPS electric power steering, providing low steering effort and smooth maneuverability.
What motor is used for driving?
The recommended configuration uses a 2 kW AC maintenance-free drive motor.
What is the lifting motor power?
The recommended lifting motor is 3 kW.
What type of tires does the machine use?
The machine uses solid rubber drive tires, providing good durability and passability.
Can it handle single-sided and double-sided pallets?
Yes. The no-leg design allows the machine to handle both single-sided and double-sided pallets.
Can the machine be customized?
Yes. Customization can include color, logo, forks, lifting height, mast configuration, battery, charger, tires, platform and packaging, depending on the model and order requirements.
Product Summary
The 2 Ton Fully Electric Stand-On Reach Stacker combines 2,000 kg load capacity, 500 mm load center, fully electric travel and lifting, stand-on operation, forward-reach function, no-leg design, integrated forged forks, high-strength steel mast, solid rubber tires, Mechanical steering and a maintenance-free AC drive motor.
With 1,070 mm forged forks, approximately 685 mm reach distance, 50–55 mm ground clearance, 5.5–6.0 km/h travel speed and flexible Duplex/Triplex mast configurations, the machine provides a versatile solution for modern pallet handling and stacking operations.
It is suitable for warehouses, manufacturing facilities, logistics and distribution centers, and retail storage operations where higher load capacity and flexible pallet handling are required.
Request a Quote
Looking for a 2 Ton Fully Electric Stand-On Reach Stacker?
Send us your requirements, including:
Required lifting height
Mast type
Required static height
Pallet type
Pallet dimensions
Load weight
Load center
Required reach distance
Warehouse aisle width
Daily operating hours
Travel distance
Battery requirements
Working environment
Our team can recommend the appropriate configuration, confirm the load capacity chart and provide a quotation.
