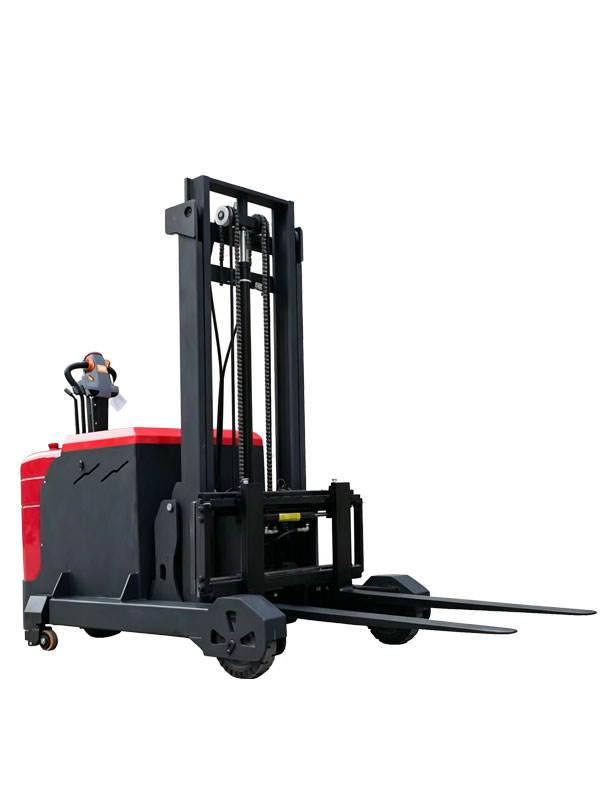

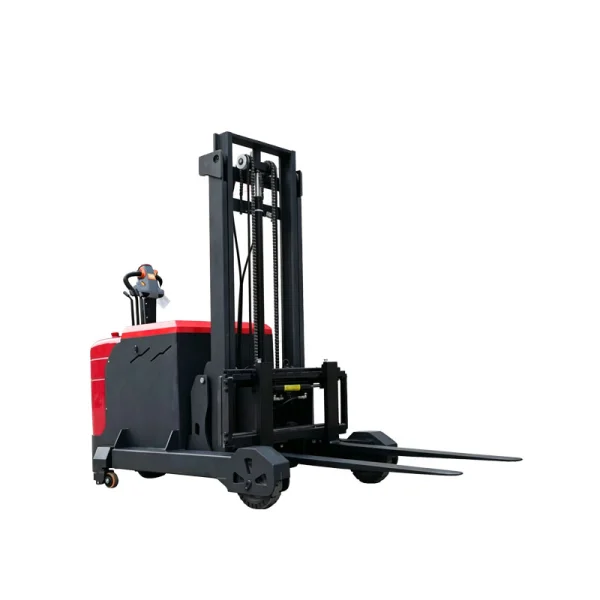

2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker
The 2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker combines the high load capacity and flexible reach function of an electric reach stacker with a larger-wheel rough-terrain design.
With a rated load capacity of 2,000 kg and a standard 500 mm load center, the machine is designed for medium- to heavy-duty pallet handling, stacking and short-distance transportation.
The fully electric travel and lifting system reduces manual effort, while the stand-on platform improves operator comfort during repeated transportation.
The forward-reach structure allows the forks and mast assembly to move forward for more flexible pallet positioning, loading and unloading.
Unlike conventional warehouse stackers equipped with relatively small wheels, this rough-terrain version uses larger solid rubber tires to improve ground clearance, passability and stability when operating on uneven or rugged surfaces.
The combination of 2-ton load capacity, forward reach, no-leg design, forged forks, high-strength mast and larger solid rubber tires makes this machine suitable for a wider range of material handling environments.
Fully Electric Travel and Lifting
The machine features a fully electric travel and lifting system, eliminating the need for manual lifting and reducing operator effort.
The electric lifting system provides efficient pallet raising and lowering, while the electric travel system enables smooth transportation between storage areas, production lines, loading zones and other working areas.
The optimized electric system provides:
Smooth electric travel
Efficient lifting performance
Low operating noise
Reduced operator effort
Improved handling efficiency
Lower energy consumption
This configuration is suitable for frequent pallet handling, stacking and repetitive internal transportation.
Comfortable Stand-On Operation
The stand-on operating platform allows the operator to ride on the machine instead of walking behind it throughout the operation.
This is particularly useful when pallets need to be transported repeatedly over longer distances.
The stand-on design helps:
Reduce unnecessary walking
Reduce operator fatigue
Improve transportation efficiency
Increase productivity
Improve operator comfort
The operator can control travel, lifting and reach functions while remaining on the machine.
2,000 kg Rated Load Capacity
The machine has a rated load capacity of 2,000 kg / 2 tons, making it suitable for heavier pallet handling and stacking operations.
The standard load center is 500 mm.
The actual allowable load depends on:
Lifting height
Load center
Mast configuration
Reach position
Fork configuration
Pallet dimensions
Load distribution
Ground conditions
Operating conditions
As lifting height and reach distance increase, the allowable residual load may decrease.
Customers should therefore refer to the corresponding load capacity chart for the selected configuration.
Load Capacity Chart
The current 2-ton product data provides the following load capacity reference:
| Lifting Height | Allowable Load Capacity |
|---|---|
| 2,000 mm | 2,000 kg |
| 3,000 mm | 1,500 kg |
| 4,000 mm | 1,000 kg |
| 4,500 mm | 800 kg |
| 5,000 mm | 300 kg |
| 5,500 mm | 200 kg |
Load Center: 500 mm
The final allowable load capacity should be confirmed according to the selected mast, lifting height, reach position, fork configuration and actual load chart.
Forward-Reach Design
The forward-reach mechanism is one of the key features of this model.
The mast and fork assembly can move forward to provide additional flexibility when picking up and positioning pallets.
The reach function is particularly useful for:
Picking up pallets
Positioning loads
Rack loading
Rack unloading
Loading and unloading operations
Handling pallets in different working conditions
The reach distance can reach approximately 685 mm, depending on the selected configuration.
Combined with the stand-on operating position, the forward-reach structure provides greater flexibility during pallet handling and storage operations.
No-Leg Design for Single-Sided and Double-Sided Pallets
The no-leg design allows the machine to handle different pallet structures without the fixed supporting legs found on conventional leg-type stackers.
It is suitable for:
Single-sided pallets
Double-sided pallets
This makes the machine more adaptable to warehouses and material handling environments where different pallet types are used.
The no-leg structure is an important advantage when customers require a flexible solution for different pallet handling applications.
Integrated Forged Forks
The machine is equipped with integrated forged forks designed for strength, durability and reliable load support.
For the 2-ton configuration, the recommended fork specification is approximately:
40 × 122 × 1,070 mm
The 1,070 mm fork length provides suitable support for standard pallet handling applications.
Key advantages include:
High structural strength
Durable forged construction
Reliable load support
Good resistance to deformation
Suitable for frequent pallet handling
The fork width can be adjusted according to the selected configuration and pallet requirements.
High-Strength Steel Mast
The machine uses a high-strength steel mast designed to provide stable lifting and reliable load support.
The mast can be configured with different numbers of sections according to the required lifting height.
Duplex Mast
A 2-section mast is suitable for low- to medium-level lifting applications.
Typical lifting heights include:
2,000 mm
2,500 mm
3,000 mm
3,500 mm
Triplex Mast
A 3-section mast is designed for higher lifting applications.
Typical lifting heights include:
4,000 mm
4,500 mm
5,000 mm
5,500 mm
Different mast configurations allow the machine to adapt to different rack heights while maintaining an appropriate static height.
Mast Quantity, Lifting Height and Static Height
The mast configuration should be selected according to required lifting height and available operating space.
| Mast Type | Mast Sections | Lifting Height | Static / Closed Height | Application |
| Duplex | 2 | 2,000 mm | 1,610 mm | Low-Level Stacking |
| Duplex | 2 | 2,500 mm | 1,810 mm | Standard Warehouse Stacking |
| Duplex | 2 | 3,000 mm | 2,050 mm | Standard Warehouse Stacking |
| Triplex | 2* | 3,500 mm | 1,850 mm | Rack Stacking |
| Triplex | 3 | 4,000 mm | 2,010 mm | High-Level Rack Stacking |
| Triplex | 3 | 4,500 mm | 2,150 mm | High-Bay Storage |
| Triplex | 3 | 5,000 mm | 2,380 mm | High-Bay Storage |
| Triplex | 3 | 5,500 mm | 2,550 mm | Very High-Bay Storage |
*The source data lists the 3,500 mm configuration as Triplex with 2 mast sections. This should be confirmed against the final machine configuration before publication.
Static Height
Static height, also called mast closed height, refers to the overall height of the machine when the mast is lowered.
This is an important parameter when checking whether the machine can pass through:
Warehouse doors
Container entrances
Loading doors
Low-ceiling areas
Other height-restricted spaces
The actual static height depends on the selected mast configuration and lifting height and should be confirmed according to the final machine configuration.
Larger Solid Rubber Tires for Rough Terrain
The larger solid rubber tires are the defining feature of this rough-terrain version.
Compared with standard electric reach stackers designed mainly for smooth warehouse floors, the larger tires provide improved:
Ground clearance
Passability
Stability
Wear resistance
Surface adaptability
The larger wheel configuration helps the machine travel more effectively across uneven, rugged and challenging surfaces.
This makes the machine particularly suitable for applications where standard warehouse stackers with smaller wheels may have limited mobility.
Rough-Terrain Mobility
The rough-terrain design expands the operating range of the 2-ton electric reach stacker.
The machine is designed for suitable working environments where the ground is not always perfectly flat or smooth.
Potential applications include:
Uneven factory yards
Outdoor storage areas
Loading and unloading zones
Rough industrial surfaces
Uneven paved areas
Suitable gravel or imperfect ground
The larger solid rubber tires improve the machine's ability to travel across uneven surfaces while maintaining stable operation.
Actual suitability should be evaluated according to ground conditions, slope, surface material, load weight and operating requirements.
Ground Clearance
The machine provides approximately 50–55 mm ground clearance, depending on the selected configuration.
The larger tire configuration is designed to improve the machine's ability to pass over uneven surfaces compared with conventional small-wheel warehouse stackers.
Ground clearance should be confirmed according to the final wheel, chassis and mast configuration.
Solid Rubber Drive Tires
The drive system uses solid rubber tires, providing durability and passability across different working environments.
Key advantages include:
Strong wear resistance
Good durability
Stable driving performance
Good passability
Reduced risk of puncture
Suitable for different working surfaces
For the rough-terrain version, the larger tire size further enhances terrain adaptability.
Forward and Backward Fork Tilt
The fork system features forward and backward tilt, helping the operator pick up, stabilize and position loads.
The tilt function can help:
Improve pallet picking
Stabilize loads during transportation
Improve fork insertion
Facilitate load positioning
Improve handling flexibility
This feature is particularly useful during pallet loading, unloading and stacking operations.
Maintenance-Free AC Drive Motor
The machine uses a maintenance-free AC drive motor.
The recommended configuration provides approximately 2 kW drive motor output according to the current product specifications.
The AC drive system helps provide:
Smooth acceleration
Stable travel
Efficient power transmission
Long service life
Reduced maintenance requirements
The maintenance-free design is particularly suitable for frequent material handling operations.
Efficient Electric Lifting System
The lifting system uses an electric hydraulic drive with a recommended 3 kW lifting motor.
The approximate lifting performance is:
| Performance | With Load | Without Load |
| Lifting Speed | 90 mm/s | 100 mm/s |
| Lowering Speed | 90 mm/s | 100 mm/s |
Actual lifting and lowering speeds may vary according to hydraulic system configuration, load, lifting height and operating conditions.
Travel Performance
The fully electric drive system provides smooth and efficient transportation.
Recommended performance parameters:
| Performance | With Load | Without Load |
| Travel Speed | 5 km/h | 6.0 km/h |
The travel speed provides a balance between handling efficiency, operator control and operating safety.
Electric Power Steering
The machine uses electric power steering, reducing steering effort and improving maneuverability.
Electric steering provides:
Low steering effort
Smooth steering response
Improved maneuverability
Comfortable stand-on operation
Better control during repeated handling
The electric steering system is particularly useful for frequent pallet transportation and turning operations.
Battery and Charging
A typical configuration may include:
| Item | Specification |
| Battery Type | Lead Acid |
| Battery Voltage | 48 V |
| Battery Capacity | 32 Ah |
| Charger | Available |
| Charging Time | 6–8 Hours |
| Operating Time | Approx. 4 Hours |
Battery capacity and configuration can be selected according to daily operating hours, workload and charging conditions.
Safety Design
The machine combines structural and operational features designed to support safe material handling.
| Safety Feature | Function |
| Emergency Stop | Quickly stops machine operation when required |
| Electromagnetic Brake | Provides controlled braking during travel |
| High-Strength Mast | Supports stable lifting |
| Forged Forks | Provides reliable load support |
| Large Solid Rubber Tires | Provide stable ground contact and passability |
| Forward / Backward Tilt | Helps stabilize and position loads |
| Controlled Lifting & Lowering | Supports smooth load movement |
| Battery Protection | Helps protect the electrical system |
| Load Protection | Supports operation within rated capacity |
Actual safety equipment and configuration should be confirmed according to the selected model.
Product Specifications
| Specification | Details |
| Product Type | Fully Electric Rough Terrain Stand-On Reach Stacker |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Operation Type | Stand-On |
| Power Type | Battery Electric |
| Mast Type | Duplex / Triplex |
| Mast Quantity | 2 / 3 Sections |
| Lifting Height | 2,000–5,500 mm |
| Static / Closed Height | According to Configuration |
| Reach Distance | Up to 700 mm |
| Fork Type | Integrated Forged Forks |
| Fork Length | 1,070 mm |
| Fork Dimensions | 40 × 122 × 1,070 mm |
| Fork Adjustable Width | 264–732 mm |
| Ground Clearance | Approx. 50–55 mm |
| Fork Tilt | Forward / Backward |
| Drive Tire | Large Solid Rubber Tire |
| Travel Speed, Laden | 5 km/h |
| Travel Speed, Unladen | 6.0 km/h |
| Lifting Speed, Laden | 90 mm/s |
| Lifting Speed, Unladen | 100 mm/s |
| Lowering Speed, Laden | 100 mm/s |
| Lowering Speed, Unladen | 90 mm/s |
| Drive Motor | AC 2 kW |
| Lift Motor | 3 kW |
| Steering Type | Electric Power Steering |
| Brake System | Electromagnetic Brake |
| Battery | 48 V / 32 Ah* |
| Net Weight | Approx. 1,400–1,500 kg* |
*Battery and net weight depend on the selected configuration. The source specification provides these as approximate/configuration-dependent values.
Core Advantages
1. 2,000 kg Load Capacity
Designed for heavier pallet handling, stacking and internal transportation.
2. Fully Electric Operation
Electric travel and lifting reduce manual effort and provide smooth, efficient and low-noise operation.
3. Rough-Terrain Capability
Larger solid rubber tires provide improved passability and adaptability to uneven and rugged surfaces.
4. Stand-On Operating Design
Allows the operator to ride on the machine, reducing unnecessary walking and fatigue.
5. Forward-Reach Function
Provides greater flexibility for pallet picking, rack loading and load positioning.
6. No-Leg Design
Suitable for both single-sided and double-sided pallets.
7. Integrated Forged Forks
Strong and durable forks provide reliable support for heavy pallet loads.
8. High-Strength Steel Mast
Provides stable lifting performance and reliable load support.
9. Large Solid Rubber Tires
Provide stronger passability, durability and stability on different working surfaces.
10. Maintenance-Free AC Drive Motor
Provides efficient and reliable driving performance with reduced maintenance requirements.
11. Electric Power Steering
Reduces steering effort and improves maneuverability and operator comfort.
12. Flexible Mast Configurations
Duplex and Triplex mast configurations provide lifting heights from approximately 2,000 mm to 5,500 mm.
13. Competitive Operating Cost
The fully electric system and optimized machine design help reduce labor requirements and overall operating costs.
Why Choose the 2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker?
The 2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker is designed for customers who require higher load capacity, forward-reach flexibility and stronger mobility on uneven working surfaces.
Its biggest difference from the standard 2-ton electric reach stacker is the larger solid rubber tire configuration.
The larger wheels provide improved ground clearance, passability and terrain adaptability, allowing the machine to operate more effectively in working environments where the ground may be uneven, rugged or less suitable for conventional small-wheel stackers.
At the same time, the machine retains the main advantages of a modern electric reach stacker:
2,000 kg rated load capacity
500 mm load center
Forward reach
No-leg design
Single-sided and double-sided pallet compatibility
Fully electric travel and lifting
Stand-on operation
Integrated forged forks
High-strength steel mast
Electric power steering
This combination makes the machine suitable for warehouses, manufacturing facilities, logistics areas, loading zones, outdoor storage areas and other applications where customers need both high-capacity pallet handling and stronger terrain adaptability.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, rack loading, unloading, internal transportation and warehouse organization.
Manufacturing
Used for moving raw materials, components, finished products and production-line supplies.
Logistics & Distribution
Suitable for frequent pallet transportation, loading-area handling and distribution center operations.
Retail & Wholesale
Used for moving palletized goods between storage areas, warehouse zones and order preparation areas.
Outdoor Storage & Loading Areas
The larger solid rubber tires make the machine suitable for appropriate outdoor storage yards, loading zones and other uneven working environments.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available customization options may include:
Machine color
Logo and branding
Nameplate and labels
Fork dimensions
Fork configuration
Lifting height
Mast configuration
Mast quantity
Battery type and capacity
Charger configuration
Tire configuration
Wheel size
Operating platform
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on model and order requirements.
FAQ
Is the 2 Ton Rough Terrain Reach Stacker fully electric?
Yes. The machine uses electric travel and lifting systems, reducing manual effort and providing efficient material handling performance.
What is the rated load capacity?
The rated load capacity is 2,000 kg / 2 tons under the specified working conditions.
What is the load center?
The standard load center is 500 mm.
What makes this model suitable for rough terrain?
The main difference is the larger solid rubber tires, which provide improved ground clearance, stronger passability and better adaptability to uneven and rugged surfaces.
Can it operate outdoors?
The machine can be used in suitable outdoor working environments such as factory yards, loading areas and outdoor storage areas, provided that the ground conditions, slope, load and operating environment are appropriate.
What is the maximum reach distance?
The reach distance can reach approximately 685 mm, depending on the selected configuration.
What is the fork length?
The standard recommended fork length is 1,070 mm.
What is the ground clearance?
The ground clearance is approximately 50–55 mm, depending on the final configuration.
What lifting heights are available?
The machine can be configured with lifting heights from approximately 2,000 mm to 5,500 mm using different Duplex and Triplex mast configurations.
Does load capacity change at different lifting heights?
Yes. Allowable load capacity may decrease as lifting height and reach distance increase. Load center, mast configuration, fork configuration and operating conditions also affect residual capacity.
What type of steering system does the machine use?
The machine uses electric power steering, providing low steering effort and smooth maneuverability.
What drive motor is used?
The recommended configuration uses a 2 kW AC maintenance-free drive motor.
What is the lifting motor power?
The recommended lifting motor is 3 kW.
What type of tires does the machine use?
The rough-terrain version uses larger solid rubber drive tires, providing better durability, passability and adaptability to uneven working surfaces.
Can it handle single-sided and double-sided pallets?
Yes. The no-leg design allows the machine to handle both single-sided and double-sided pallets.
Can the machine be customized?
Yes. Customization can include color, logo, forks, lifting height, mast configuration, battery, charger, tires, wheel size, platform and packaging, depending on the model and order requirements.
Product Summary
The 2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker combines 2,000 kg load capacity, 500 mm load center, fully electric travel and lifting, stand-on operation, forward-reach function, no-leg design, integrated forged forks and high-strength steel mast with a larger solid rubber tire configuration.
With 1,070 mm forged forks, approximately 685 mm reach distance, 50–55 mm ground clearance, 5–6 km/h travel speed, 2 kW AC drive motor, 3 kW lifting motor and flexible Duplex/Triplex mast configurations, the machine provides a versatile solution for pallet handling and stacking.
Its defining advantage is the larger wheels, which improve ground clearance, passability and terrain adaptability, making it more suitable for uneven and rugged working environments than conventional small-wheel electric stackers.
Request a Quote
Looking for a 2 Ton Fully Electric Rough Terrain Stand-On Reach Stacker for your warehouse, factory, logistics center or uneven working environment?
Tell us your application requirements, and our team can recommend the appropriate configuration based on your load capacity, lifting height, pallet type, reach distance, tire requirements, ground conditions and operating environment.
Please provide:
Required lifting height
Mast type
Required static height
Pallet type
Pallet dimensions
Load weight
Load center
Required reach distance
Required tire size
Ground conditions
Warehouse or outdoor working environment
Warehouse aisle width
Daily operating hours
Travel distance
Battery requirements
Quantity required
Our team can help you select the appropriate mast configuration, lifting height, tire size, battery and other options, confirm the applicable load capacity chart and provide a competitive quotation.
Contact us today for product specifications, configuration recommendations and a quotation.
