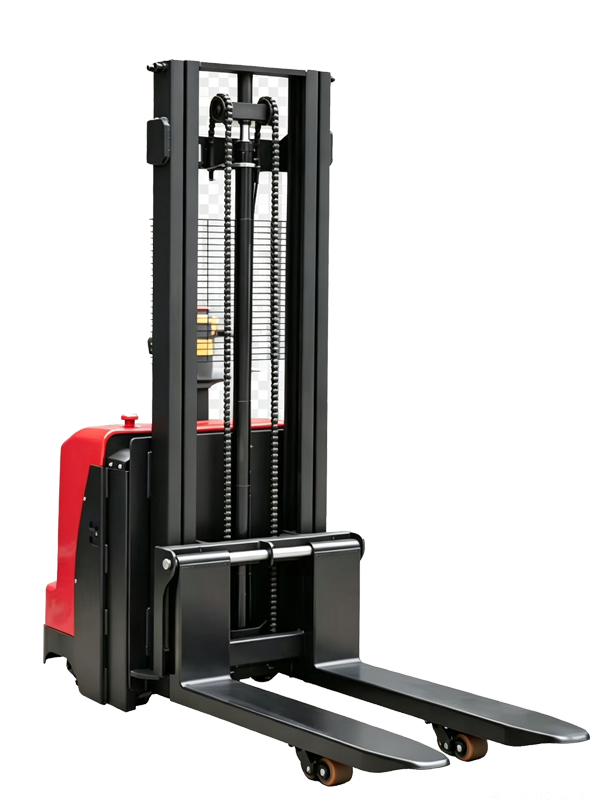

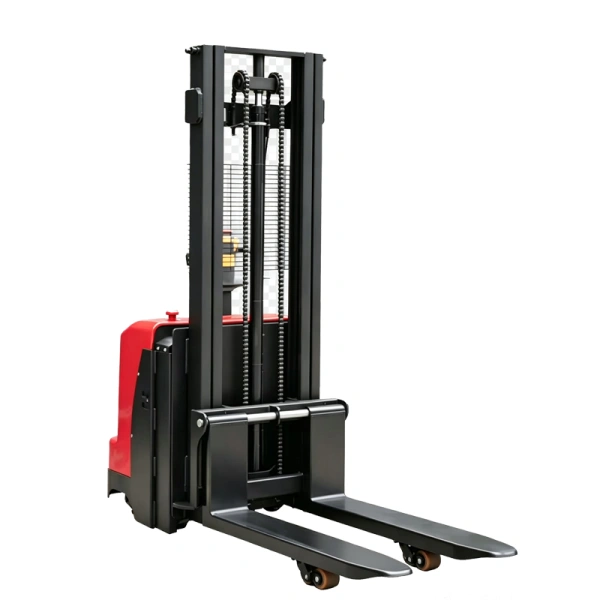

2 Ton Full Electric Dual-Lifting Walkie Stacker
The 2 Ton Full Electric Dual-Lifting Walkie Stacker is an efficient and reliable material handling solution designed for factories, warehouses, storage facilities, logistics centers, and distribution operations.
With a rated load capacity of 2 tons and a standard 500 mm load center, this electric stacker combines full-electric travel and lifting with an innovative dual-lifting system. The system integrates body lifting and fork lifting, providing greater flexibility for transporting, positioning, and stacking goods.
Compared with conventional electric stackers, the dual-lifting design allows operators to adapt the equipment to different working conditions and material handling requirements. It helps reduce repetitive manual handling, improve stacking efficiency, save labor costs, and increase overall warehouse productivity.
Dual-Lifting System
The key feature of this 2 ton electric stacker is its dual-lifting structure, which combines body lifting and fork lifting in one machine.
The body lifting function provides additional flexibility when handling materials at different working heights, while the fork lifting system is designed for pallet lifting and stacking operations.
This configuration allows the operator to handle different types of loads more efficiently and adapt to a wider range of material handling tasks.
Key benefits include:
Body lifting and fork lifting in one machine
Greater flexibility for different handling conditions
Efficient pallet stacking and material positioning
Reduced repetitive manual handling
Improved operator productivity
Lower overall labor costs
Full Electric Travel and Lifting
The stacker uses a full-electric drive and lifting system, eliminating the need for manual pushing and manual lifting.
Electric travel provides smooth and efficient movement, while the electric lifting system delivers fast and stable pallet lifting and stacking performance.
The full-electric system makes the 2 Ton Full Electric Dual-Lifting Walkie Stacker suitable for intensive material handling operations where productivity, operating comfort, and energy efficiency are important.
The walkie configuration allows the operator to control the stacker while walking behind or alongside the machine, providing direct control and flexible maneuverability in warehouses, workshops, production areas, and storage facilities.
2 Ton Load Capacity with 500 mm Load Center
The stacker is designed with a maximum rated load capacity of 2,000 kg at a standard 500 mm load center.
Its strong chassis, mast, hydraulic system, and lifting structure are designed to provide stable handling performance when transporting and stacking heavy loads.
Load Capacity Chart
| Lifting Height | Load Center | Maximum Load Capacity |
|---|---|---|
| 2,000 mm | 500 mm | 2,000 kg |
| 2,500 mm | 500 mm | 1,500 kg |
| 3,000 mm | 500 mm | 1,000 kg |
| 3,500 mm | 500 mm | 700 kg |
| 4,000 mm | 500 mm | 500 kg |
| 4,500 mm | 500 mm | 300 kg |
| 5,000 mm | 500 mm | 200 kg |
Actual load capacity depends on mast configuration, lifting height, load center, pallet dimensions, load distribution, and other operating conditions. Please refer to the official load curve for the selected configuration.
Mast Configurations & Lifting Heights
Different warehouses and factories require different lifting heights.
The 2 Ton Full Electric Dual-Lifting Walkie Stacker can be configured with different mast types and lifting heights to meet different storage and stacking requirements.
Mast Configuration and Lifting Height
| Mast Configuration | Lifting Height | Mast Height Lowered | Typical Application |
|---|---|---|---|
| Duplex Mast | 2,000 mm | 1560 mm | Low-level stacking and low-clearance areas |
| Duplex Mast | 2,500 mm | 1760 mm | Low-level stacking and low-clearance areas |
| Duplex Mast | 3,000 mm | 2000 mm | Standard Warehouse Stacking |
| Triplex Mast | 3,500 mm | 1800 mm | Standard Warehouse Stacking |
| Triplex Mast | 4,000 mm | 1960 mm | Medium-Height Stacking |
| Triplex Mast | 4,500 mm | 2100 mm | Medium-Height Stacking |
| Triplex Mast | 5,000 mm | 2330 mm | High-Level Stacking |
| Triplex Mast | 5,500 mm | 2500 mm | Extra-High Stacking |
Actual mast configurations and lifting heights may vary according to the selected model.
Stacking Applications by Lifting Height
| Lifting Height | Application Level | Typical Applications |
|---|---|---|
| 2.0–2.5 m | Low-Level Stacking | Production workshops, low-level storage, material transfer |
| 2.5–3.5 m | Standard Warehouse Stacking | Standard warehouses, pallet storage, standard racking |
| 3.5–4.5 m | Medium-Height Stacking | Medium-height racking, factory warehouses, logistics centers |
| 4.5–5.0 m | High-Level Stacking | High-level racking, high-bay storage, distribution centers |
| 5.0–5.5 m | Extra-High Stacking | High-density storage, high-bay warehouses, vertical storage |
Mechanical Steering
The stacker is equipped with a mechanical steering system designed to provide a comfortable and reliable operating experience.
Compared with more complex steering systems, mechanical steering offers a straightforward structure, easy operation, and dependable performance.
It is suitable for daily warehouse and factory operations where reliability, economical operation, and easy maintenance are important.
High-Performance Pump Station
The hydraulic lifting system uses a high-performance pump station to provide strong lifting power and stable lifting performance.
The optimized hydraulic system operates with ultra-low noise, helping create a more comfortable working environment while maintaining efficient lifting performance.
The pump station is designed for frequent pallet handling and stacking operations and provides reliable power for the dual-lifting system.
Strong and Reliable Mast
The mast is manufactured with a strong structural design to provide reliable support during lifting and stacking operations.
Its robust construction helps improve:
Structural strength
Impact resistance
Deformation resistance
Lifting stability
Long-term durability
The reinforced mast structure is suitable for frequent material handling operations in warehouses, factories, logistics centers, and distribution facilities.

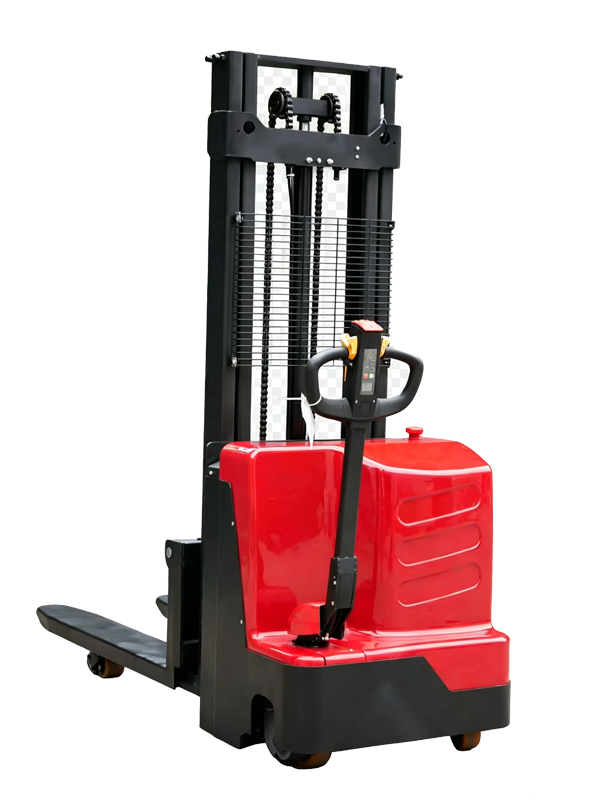

Walkie Operating Design
The walkie operating design is one of the main differences between this model and the stand-on version.
Instead of standing on an integrated platform, the operator controls the machine while walking behind or alongside the stacker.
This configuration provides several advantages for applications where the operator frequently moves between different handling points.
The walkie design offers:
Flexible operation
Easy maneuverability
Direct operator control
Convenient forward and reverse movement
Suitability for confined warehouse areas
Reduced need for manual pushing and lifting
Combined with full-electric travel and lifting, the walkie design significantly reduces the physical effort required compared with traditional manual stackers.
Stable Chassis and Multi-Surface Operation
The stacker's reinforced chassis provides stable support for heavy-load transportation and stacking.
The machine is designed to operate on a variety of common industrial floor surfaces, making it suitable for different working environments such as:
Warehouse floors
Factory floors
Distribution centers
Logistics facilities
Storage areas
Production workshops
The stable chassis and optimized weight distribution help improve handling stability during transportation and stacking.
Battery & Power System
The electric power system provides reliable energy for daily material handling operations.
Depending on the selected configuration, the stacker can be equipped with different battery capacities to meet different working requirements.
Battery options can be selected according to:
Daily operating hours
Workload
Charging conditions
Working environment
Required working time
Battery Type: [Lead Acid]
Battery Capacity: [48V 20A]
Voltage: [48V]
Charger: [Available]
Working Time & Charging
The working time of the 2 Ton Full Electric Dual-Lifting Walkie Stacker depends on the battery capacity, operating intensity, load weight, lifting frequency, floor conditions, and working environment.
For operations requiring extended working hours, a higher-capacity battery configuration can be selected.
Working Time: [3 hours]
Charging Time: [6-8 hours]
The charging system can be configured according to customer requirements and local electrical standards.
Safety Features
Safety is an important part of the design of the 2 Ton Full Electric Dual-Lifting Walkie Stacker.
The equipment can be equipped with multiple safety features to help improve operating stability and protect both the operator and the load.
Typical safety features include:
Emergency stop system
Stable chassis design
Reliable mast structure
Controlled lifting and lowering
Safety protection system
Audible warning system
Smooth electric travel
Safety equipment and configurations can be customized according to customer requirements and applicable regulations.
Efficient Labor-Saving Material Handling
The 2 ton dual-lifting walkie stacker is designed to replace a large amount of repetitive manual handling work.
Full-electric travel and lifting reduce the physical effort required from operators, while the walkie configuration allows operators to move naturally with the machine and maintain direct control during handling operations.
The dual-lifting system further improves operational flexibility, making the machine suitable for businesses looking to increase productivity while reducing labor dependency and operating costs.
Applications
The 2 Ton Full Electric Dual-Lifting Walkie Stacker can be used in a wide range of material handling environments.
Warehouse & Storage
Suitable for pallet transportation, warehouse storage, pallet stacking, and vertical storage operations.
Manufacturing
Ideal for moving raw materials, components, finished products, and pallets between production and storage areas.
Logistics & Distribution
Suitable for distribution centers, logistics warehouses, loading areas, and high-frequency pallet handling.
Retail & Wholesale
Useful for warehouses, wholesale distribution centers, stockrooms, and back-of-house material handling.
Key Advantages
2 ton rated load capacity
500 mm standard load center
Full-electric travel and lifting
Dual-lifting system with body lifting and fork lifting
Mechanical steering
High-performance low-noise pump station
Strong and impact-resistant mast
Walkie operating design
Stable chassis for reliable handling
Multiple mast configurations available
Lifting heights from low-level to extra-high stacking
Suitable for warehouses, factories, logistics, and distribution
Reduces repetitive manual handling
Helps save labor and operating costs
Custom configurations available
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Full Electric Dual-Lifting Walkie Stacker |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Lifting Height | 2,000–5,500 mm |
| Mast Type | Duplex / Triplex |
| Mast Height Lowered | [1560 mm] |
| Lifting System | Electric Hydraulic Lifting |
| Travel System | Full Electric |
| Steering System | Mechanical Steering |
| Pump Station | High-Performance Low-Noise Pump Station |
| Battery Type | [Lead Acid] |
| Battery Capacity | [20 Ah] |
| Battery Voltage | [48 V] |
| Working Time | [3 h] |
| Charging Time | [6-8 h] |
| Fork Length | [1150 mm] |
| Overall Width | [850 mm] |
| Overall Length | [2400 mm] |
| Turning Radius | [1500 mm] |
| Service Weight | [610 kg] |
Customization Options
Different warehouses and material handling applications may require different configurations.
The 2 Ton Full Electric Dual-Lifting Walkie Stacker can be customized according to customer requirements, including:
Lifting height
Mast configuration
Battery capacity
Fork dimensions
Overall dimensions
Charger specification
Safety equipment
Operating environment
Our team can recommend the appropriate configuration according to the customer's load capacity, load center, lifting height, pallet size, aisle width, and working conditions.
Why Choose the 2 Ton Dual-Lifting Walkie Stacker?
The 2 Ton Full Electric Dual-Lifting Walkie Stacker combines high load capacity, full-electric operation, and a flexible dual-lifting structure in one practical material handling solution.
Its 2 ton capacity, 500 mm load center, mechanical steering, low-noise hydraulic system, and reinforced mast make it suitable for demanding warehouse and factory operations.
The dual-lifting system combines body lifting and fork lifting, providing greater flexibility than conventional single-lifting electric stackers.
At the same time, the full-electric travel and lifting system reduces manual effort, while the walkie operating design provides flexible maneuverability in warehouses, factories, workshops, and storage areas.
For companies looking to improve material handling efficiency, reduce manual labor, and optimize warehouse productivity, this electric walkie stacker provides a reliable and cost-effective solution.
Request a Quote
Looking for a 2 Ton Full Electric Dual-Lifting Walkie Stacker for your warehouse or factory?
Contact us for technical specifications, load curves, lifting height options, battery configurations, customization, and pricing.
Our team can recommend the most suitable configuration based on your load capacity, lifting height, pallet dimensions, load center, working conditions, and application requirements.
