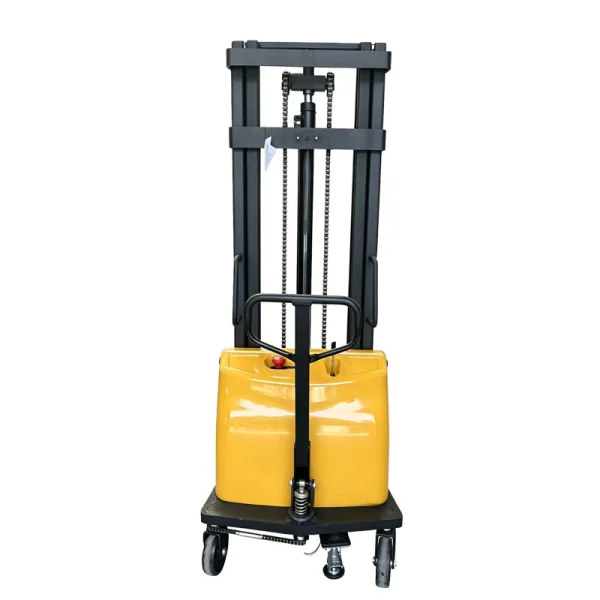

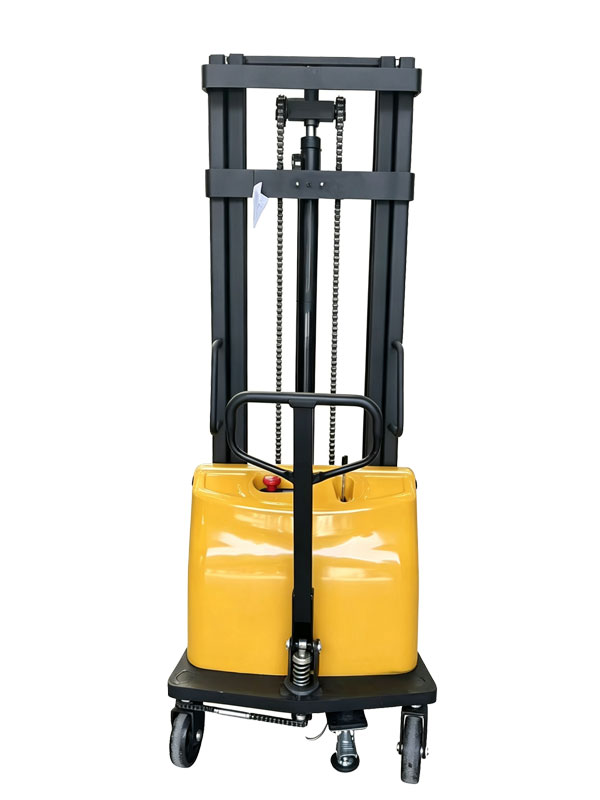

1.5 Ton Semi-Electric Walkie Stacker for Economical Material Handling
The 1.5 Ton Semi-Electric Walkie Stacker is designed for customers who need an economical and practical solution for pallet stacking and short-distance material handling.
Its operating principle is simple: electric lifting and manual travel.
The electric hydraulic system powers the lifting and lowering functions, while the operator manually pushes or pulls the stacker during transportation.
This combination provides the main advantages of both electric and manual handling equipment. Electric lifting significantly reduces the physical effort required to raise pallets, while manual travel keeps the machine structure simple, compact and cost-effective.
With a rated load capacity of up to 1,500 kg, the stacker is suitable for small and medium-sized warehouses, workshops, production lines, retail back rooms and other applications involving relatively short travel distances.
Compared with a fully electric stacker, the semi-electric design can offer a more economical purchase price, lower energy consumption and simpler maintenance.
Electric Lifting and Manual Travel
The main feature of the semi-electric walkie stacker is its electric lifting and manual travel system.
The operator does not need to manually pump the hydraulic system repeatedly when lifting a pallet. Instead, the electric pump station provides powered lifting and lowering.
Travel is performed manually by pushing or pulling the machine.
This configuration is particularly suitable for applications where:
Pallets need to be lifted frequently
Travel distances are relatively short
The working environment is mainly flat and indoors
Customers want to reduce equipment investment
Long-distance powered travel is not required
Key Benefits
Electric pallet lifting
Reduced manual lifting effort
Manual travel for flexible short-distance movement
Simple operating principle
Lower energy consumption
Economical equipment configuration
Easy maintenance
For frequent long-distance transportation or multi-shift high-intensity material handling, a fully electric stacker may be more suitable.
1,500 kg Load Capacity
The 1.5 Ton Semi-Electric Walkie Stacker provides a rated load capacity of up to 1,500 kg for general pallet handling and stacking applications.
It is suitable for handling:
Palletized goods
Warehouse materials
Production components
Raw materials
Finished products
Retail and wholesale goods
The actual allowable load depends on the lifting height, load center, mast configuration and operating conditions.
Load Capacity Chart – Reserved for Actual Manufacturer Data
| Lifting Height | Allowable Load Capacity |
|---|---|
| [1600] mm | [1000] kg |
| [2000] mm | [1000] kg |
| [2500] mm | [1000] kg |
| [3000] mm | [1000] kg |
| [3500] mm | [1000] kg |
Note: Actual allowable load capacity should be confirmed according to the manufacturer's load capacity chart and the selected configuration.
Reinforced C-Shaped Mast
The stacker uses a thickened C-shaped mast made from reinforced steel.
The thicker steel structure helps improve mast rigidity and durability during repeated lifting operations.
Key benefits include:
Reinforced mast structure
Improved structural strength
Reliable pallet lifting
Better durability
Longer service life
Stable lifting performance
The reinforced C-shaped mast is particularly valuable for a stacker that is frequently used for pallet stacking and lifting operations.
Adjustable Forks for Different Pallet Sizes
The stacker is equipped with adjustable forks, allowing the fork spacing to be adjusted according to different pallet dimensions.
This makes the equipment more flexible for customers handling different pallet sizes.
Adjustable forks can help:
Accommodate different pallet widths
Improve pallet compatibility
Increase equipment flexibility
Reduce the need for different machines
Adapt to changing warehouse requirements
The actual adjustable range should be confirmed according to the selected fork configuration.
Reinforced Forks for Reliable Load Handling
The forks feature reinforcing ribs welded onto the fork structure to improve structural strength during load handling.
The reinforced fork design helps reduce deformation under rated loading conditions and provides reliable support for palletized goods.
Key benefits include:
Reinforced fork structure
Improved load-bearing capability
Better resistance to deformation
Reliable pallet support
Increased fork durability
The actual load capacity must always remain within the rated capacity of the machine.
1244 Plate-Type Lifting Chain
The stacker uses a 1244 plate-type lifting chain designed for lifting applications.
The plate-type chain provides reliable load transmission between the lifting system and forks.
Its robust construction helps support repeated lifting operations and contributes to the durability of the lifting system.
Key benefits include:
Reliable lifting transmission
Strong load-bearing structure
Suitable for repeated lifting
Improved lifting system durability
Supports longer equipment service life
The actual chain specification should be confirmed according to the final machine configuration.
Brand Maintenance-Free Battery
The stacker can be equipped with a branded maintenance-free battery designed to provide reliable power for the electric lifting system.
Because the semi-electric stacker only uses battery power for lifting rather than electric travel, its overall energy consumption is relatively low.
The maintenance-free battery provides:
Reliable lifting power
Long operating duration
Low maintenance requirements
Reduced battery maintenance work
Lower operating costs
The actual battery brand, voltage and capacity can be selected according to the machine configuration.
Battery and Charging
| Item | Specification |
|---|---|
| Battery Type | Maintenance-Free Battery |
| Battery Brand | [TIANNENG/CHAOWEI] |
| Battery Voltage | [12] V |
| Battery Capacity | [70] Ah |
| Charger | [Availbable] |
| Charging Time | [6-8Hour] |
| Operating Time | [2-3Hour] |
Discharge Protection for Longer Battery Life
The electric system incorporates a battery discharge protection device designed to help prevent excessive battery discharge.
By helping protect the battery from over-discharge, the system can contribute to longer battery service life and more reliable daily operation.
Key benefits include:
Battery discharge protection
Helps extend battery service life
Reduces battery damage caused by excessive discharge
Improves battery reliability
Helps reduce replacement costs
The actual battery protection system should be confirmed according to the selected electrical configuration.
Brand Hydraulic Pump Station for Smooth Lifting
The stacker uses a branded high-capacity hydraulic pump station to provide stable lifting performance.
The hydraulic system is designed to provide smooth lifting and lowering while keeping vibration and operating noise low.
Key advantages include:
Smooth lifting
Stable lowering
Low vibration
Low operating noise
Reliable hydraulic performance
Efficient electric lifting
This makes the stacker more comfortable to use in indoor warehouses, workshops and production environments.
Foot-Operated Braking System
The foot-operated brake provides a simple and convenient way to secure the stacker during operation.
The operator can quickly apply the foot brake when the machine needs to remain stationary during loading, unloading or stacking.
Key benefits include:
Simple brake operation
Quick engagement
Convenient parking
Additional control during pallet handling
The actual braking configuration should be confirmed according to the selected model.
Compact Design for Narrow Working Areas
The semi-electric walkie stacker features a compact structure designed for environments where space is limited.
Because travel is manually controlled, the equipment does not require a powered travel system, helping keep the machine structure relatively simple.
It can be suitable for:
Small warehouses
Narrow warehouse aisles
Workshops
Production lines
Retail back rooms
Loading and unloading areas
Small storage facilities
Its compact design also makes it easier to move the equipment between different working areas.
Economical and Low-Energy Operation
One of the main advantages of the semi-electric configuration is its economical operating concept.
Unlike a fully electric stacker, the battery only powers the electric lifting system. The machine does not use battery power for traveling.
This helps reduce energy consumption and makes the equipment suitable for applications where powered travel is not necessary.
Economic Advantages
Lower purchase cost
Low energy consumption
Simple mechanical structure
Easy maintenance
Lower maintenance requirements
Reduced operating costs
For customers who mainly require electric lifting but only need to move pallets short distances, the semi-electric configuration can provide a cost-effective alternative to a fully electric stacker.
Safety Design
The stacker incorporates several structural and operational features designed to support safe pallet handling.
| Safety Feature | Function |
|---|---|
| Discharge Protection | Helps protect the battery from excessive discharge |
| Foot Brake | Provides convenient parking and braking |
| Reinforced C-Shaped Mast | Supports stable lifting |
| Reinforced Forks | Improves fork structural strength |
| Adjustable Forks | Helps accommodate different pallet sizes |
| Controlled Lifting & Lowering | Provides smooth load movement |
| Rated Load Capacity | Helps ensure operation within specified limits |
Actual safety equipment and configuration should be confirmed according to the selected model.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Semi-Electric Walkie Stacker |
| Model | [CTD-15] |
| Rated Load Capacity | 1,500 kg |
| Load Center | [500] mm |
| Lifting Height | [3500] mm |
| Overall Length | [1750] mm |
| Overall Width | [800] mm |
| Overall Height | [2350] mm |
| Fork Type | Reinforced Forks |
| Fork Length | [1100] mm |
| Adjustable Fork Width | [680] mm |
| Minimum Turning Radius | [1500] mm |
| Fork Min Ground Clearance | [90] mm |
| Mast Size | [120*50] mm |
| Motor | [1.6]KW |
| Hydraulic Pump Station | Branded High-Capacity Pump Station |
| Battery Type | Maintenance-Free Battery |
| Battery Capacity | [70] Ah |
| Charger | [Available] |
| Brake System | Foot-Operated Brake |
| Lifting Chain | 1244 Plate-Type Chain |
| Mast Type | Reinforced C-Shaped Mast |
| Travel Mode | Manual |
| Lifting Mode | Electric |
| Net Weight | [500] kg |
Core Advantages
1. Electric Lifting + Manual Travel
Electric lifting reduces manual effort, while manual travel provides flexible short-distance movement.
2. 1,500 kg Load Capacity
Provides sufficient capacity for general warehouse, workshop and production material handling applications.
3. Thickened C-Shaped Mast
Reinforced steel construction improves mast strength, durability and lifting stability.
4. Reinforced Forks
Welded reinforcing ribs improve fork structural strength and help reduce deformation under rated loads.
5. Adjustable Forks
Adjustable fork spacing allows the machine to accommodate different pallet sizes.
6. 1244 Plate-Type Lifting Chain
Provides reliable lifting transmission and supports repeated lifting operations.
7. Maintenance-Free Battery
Provides reliable lifting power with low maintenance requirements and long operating duration.
8. Battery Discharge Protection
Helps protect the battery from excessive discharge and contributes to longer battery service life.
9. Foot-Operated Brake
Simple and convenient foot braking helps secure the machine during loading and stacking.
10. Low Vibration and Low Noise
The branded high-capacity pump station provides smooth lifting and lowering with reduced vibration and operating noise.
11. Economical Operation
Low energy consumption, simple construction and easy maintenance make the semi-electric configuration a cost-effective choice.
Why Choose the 1.5 Ton Semi-Electric Walkie Stacker?
The 1.5 Ton Semi-Electric Walkie Stacker is an economical choice for customers who need electric pallet lifting without powered travel.
Compared with a fully electric stacker, it has a simpler operating system and lower energy requirements because the battery is primarily used for the lifting system.
It is particularly suitable when:
Pallets need to be lifted frequently
Travel distances are short
The working floor is flat
Equipment investment needs to be controlled
Low energy consumption is important
Simple maintenance is preferred
The machine is used in small or medium-sized warehouses
The combination of electric lifting, manual travel, reinforced C-shaped mast, adjustable forks, reinforced forks, maintenance-free battery and economical operation makes it a practical solution for everyday pallet stacking.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, loading and unloading, short-distance material handling and storage operations in small and medium-sized warehouses.
Manufacturing
Suitable for moving raw materials, components and finished products between storage areas and production lines.
Logistics & Distribution
Suitable for short-distance pallet handling and stacking where powered travel is not essential.
Retail & Wholesale
Ideal for back-room warehouses, stockrooms and storage areas handling palletized goods.
Working Environment
The semi-electric walkie stacker is mainly designed for flat indoor working environments.
It is suitable for:
Indoor warehouses
Workshops
Production facilities
Retail back rooms
Storage rooms
Flat concrete floors
Because travel is manually operated, it is not recommended for rough outdoor terrain, steep slopes or long-distance heavy-load transportation.
For frequent long-distance transportation, uneven floors or multi-shift high-intensity applications, a fully electric stacker may be a more suitable solution.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available options may include:
Machine color
Logo and branding
Nameplate and labels
Fork dimensions
Adjustable fork configuration
Lifting height
Mast configuration
Battery type and capacity
Charger configuration
Wheel configuration
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on model and order requirements.
FAQ
What is a semi-electric walkie stacker?
A semi-electric walkie stacker uses electric power for lifting and manual force for traveling. The operator pushes or pulls the machine while the electric hydraulic system raises and lowers the forks.
What is the load capacity of this model?
The rated load capacity is 1,500 kg / 1.5 tons under the specified working conditions.
Is the travel system electric?
No. The travel function is manually operated. The electric system is primarily used for lifting and lowering.
Why choose a semi-electric stacker instead of a fully electric stacker?
A semi-electric stacker can provide a more economical solution when electric lifting is required but the pallets only need to be moved short distances. It also has relatively low energy consumption and a simpler structure.
Is it suitable for long-distance pallet transportation?
It is mainly designed for short-distance transportation. Long-distance movement of heavy loads can increase operator effort. For frequent long-distance transportation, a fully electric stacker is generally more suitable.
Can the forks be adjusted?
Yes. The stacker can be equipped with adjustable forks to accommodate different pallet sizes. The actual adjustment range depends on the selected configuration.
Are the forks reinforced?
Yes. The forks feature welded reinforcing ribs designed to improve structural strength and help reduce deformation under rated loads.
What is the function of the 1244 plate-type lifting chain?
The 1244 plate-type lifting chain provides reliable load transmission for the lifting system and supports repeated lifting operations.
Does the battery require maintenance?
The machine can be equipped with a maintenance-free battery, which reduces routine battery maintenance requirements.
Does it have battery discharge protection?
Yes. The discharge protection device helps prevent excessive battery discharge and can contribute to longer battery service life.
Is the machine suitable for outdoor use?
It is mainly recommended for flat indoor floors. It is not designed for rough terrain, steep slopes or demanding outdoor conditions.
Is it suitable for high-frequency operations?
It is suitable for normal pallet stacking and short-distance handling. For continuous multi-shift or high-frequency transportation, a fully electric stacker may provide higher efficiency.
Can the semi-electric stacker be customized?
Yes. Depending on the model and order requirements, customization can include color, logo, fork configuration, lifting height, mast configuration, battery, charger and packaging.
Product Summary
The 1.5 Ton Semi-Electric Walkie Stacker combines electric lifting with manual travel to provide an economical and practical solution for pallet stacking and short-distance material handling.
Its key advantages include a 1,500 kg load capacity, reinforced C-shaped mast, adjustable forks, reinforced fork structure, 1244 plate-type lifting chain, maintenance-free battery, discharge protection, foot-operated brake, and low-vibration hydraulic lifting system.
With low energy consumption, simple operation and relatively easy maintenance, it is particularly suitable for small and medium-sized warehouses, workshops, production lines, retail back rooms and other flat indoor environments.
For customers who need electric lifting but do not require powered travel, this semi-electric configuration offers a cost-effective alternative to a fully electric stacker.
Request a Quote
Looking for a 1.5 Ton Semi-Electric Walkie Stacker for economical pallet stacking and short-distance material handling?
Send us your requirements, including:
Required lifting height
Pallet size
Pallet weight
Required fork width
Warehouse aisle width
Daily operating frequency
Travel distance
Battery requirements
Working environment
Our team can recommend the appropriate configuration and provide a quotation.
