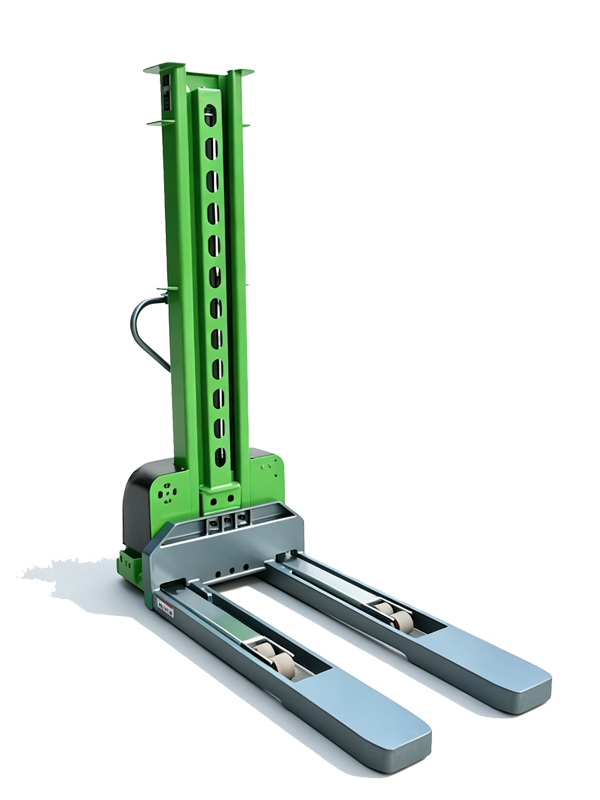

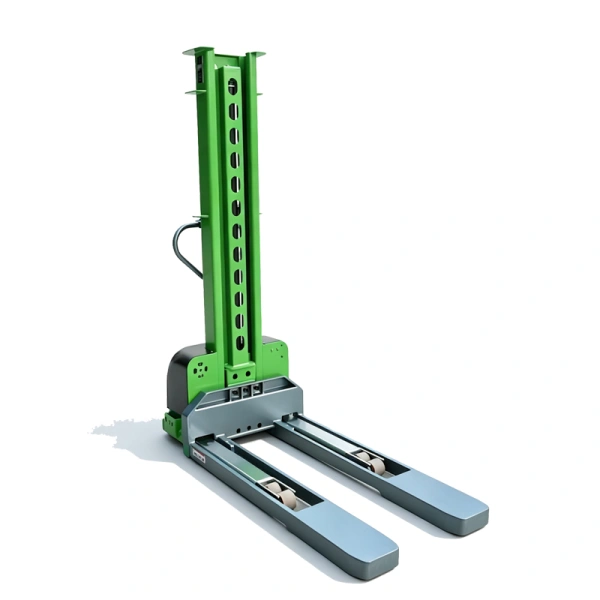

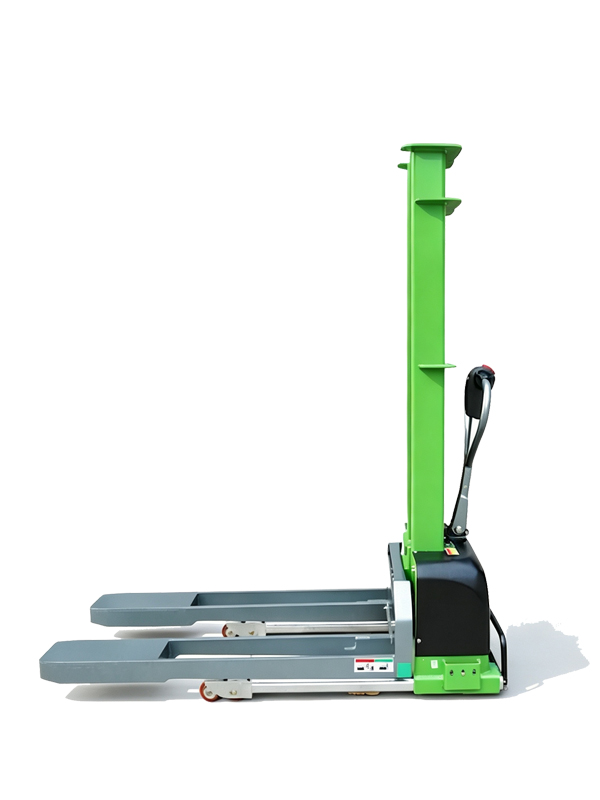

1.5 Ton Fully Electric Truck Mounted Stacker & Self-Loading Stacker
The 1.5 Ton Fully Electric Truck Mounted Stacker is a heavy-duty mobile pallet handling solution designed for delivery vehicles, logistics operations and self-loading applications.
Unlike conventional warehouse stackers, this machine is designed to travel with the delivery truck and provide pallet handling capability when the truck reaches its destination.
As a Self-Loading Stacker, it allows delivery operators to carry their own pallet handling equipment instead of depending entirely on forklifts, loading docks or unloading equipment at customer locations.
With a rated load capacity of 1,500 kg, the 1.5 Ton model is positioned for applications requiring higher pallet handling capacity.
It combines:
Fully electric travel and lifting
48V DC brushless drive
1,500 kg load capacity
Widened shock-absorbing universal wheels
Movable center wheel
Free lifting height
Compact split design
Lightweight construction
High-position speed limitation
Center wheel anti-disengagement protection
These features make the machine suitable for heavy pallet delivery, mobile material handling, logistics distribution and last-mile delivery.
The overall design focuses on providing higher load capacity while maintaining the compactness and mobility required for a Truck Mounted Stacker.
Heavy-Duty Truck Mounted Stacker for Higher-Capacity Delivery
The main advantage of the 1.5 Ton model is its 1,500 kg rated load capacity.
Compared with lower-capacity truck mounted stackers, the 1.5 Ton model is designed for heavier palletized goods and delivery applications where a 1 Ton or 1.3 Ton machine may not provide sufficient capacity.
It is suitable for handling palletized:
Industrial products
Manufacturing components
Building materials
Machinery parts
Retail goods
Carton products
Warehouse cargo
General heavy palletized goods
The actual load capacity depends on the lifting height, load center, mast configuration and working conditions.
For this reason, the actual load chart should always be checked before operation.
Self-Loading Stacker for Independent Pallet Delivery
The Self-Loading Stacker concept allows the delivery vehicle to carry its own pallet handling equipment.
This is particularly useful when customers do not have:
Forklifts
Loading docks
Pallet handling equipment
Suitable unloading facilities
Instead of arranging additional unloading equipment at every destination, the delivery truck can carry the stacker with it.
After arriving at the destination, the operator can use the 1.5 Ton Self-Loading Stacker to unload and move palletized goods.
This makes the machine particularly suitable for:
Last-Mile Delivery
Unload pallets directly at customer locations.
Distribution
Support pallet delivery across multiple destinations.
Industrial Delivery
Handle heavier industrial products and components.
Retail Distribution
Unload palletized products at stores and distribution points.
Building Material Delivery
Handle suitable palletized construction and building materials.
The result is a more independent truck-to-customer pallet delivery process.
Fully Electric Travel and Lifting
The 1.5 Ton Truck Mounted Stacker uses a fully electric travel and lifting system.
Both travel and fork lifting are electrically powered.
The operator can control:
Forward movement
Reverse movement
Fork lifting
Fork lowering
Direction
Braking
through the electric control system.
Unlike manually pushed stackers, the operator does not need to physically push the machine or manually pump the forks.
This helps reduce physical effort during repeated loading and unloading operations.
For delivery companies making multiple stops during a working day, fully electric operation provides a more convenient way to handle palletized cargo.
48V DC Brushless Drive System
The machine uses a 48V DC brushless control system.
The brushless drive eliminates the need for regular carbon brush replacement, helping reduce maintenance requirements.
According to the product design, the brushless system can provide approximately 20% lower energy consumption compared with traditional brushed motors.
Key Advantages
48V DC brushless drive
No carbon brush replacement
Reduced maintenance requirements
Efficient electric travel
Lower energy consumption
Smooth operation
Suitable for repeated mobile handling
For a truck-mounted machine, reduced maintenance is particularly useful because the equipment is frequently transported between different delivery locations.
1,500 kg Load Capacity
The 1.5 Ton Truck Mounted Stacker provides a rated load capacity of:
1,500 kg / 1.5 tons
The higher capacity gives the machine a clear position within the product range.
Product Positioning
| Model | Main Positioning |
|---|---|
| 1 Ton | Compact & Lightweight |
| 1.3 Ton | Higher Capacity |
| 1.5 Ton | Heavy-Duty / Higher Capacity |
The 1.5 Ton model is therefore suitable for customers who need a truck-mounted solution but regularly handle heavier palletized goods.
Load Capacity Chart
| Lifting Height | Load Center | Maximum Load Capacity |
|---|---|---|
| [1300] mm | [400] mm | [1500] kg |
| [1500] mm | [400] mm | [1300] kg |
| [1600] mm | [400] mm | [1000] kg |
Actual load capacity varies according to lifting height, load center, mast configuration and operating conditions.
Widened Shock-Absorbing Universal Wheels
The machine adopts a widened shock-absorbing universal wheel configuration.
The wider wheel arrangement helps improve stability, while the shock-absorbing design supports smoother movement over suitable uneven surfaces.
Main Benefits
Improved stability
Better shock absorption
Improved maneuverability
Better ground adaptability
Improved passability
This is important because a Self-Loading Stacker may need to move between the delivery truck, loading area and customer location.
Movable Center Wheel for Better Passability
The movable center wheel improves the machine's maneuverability and passability.
It helps the stacker adapt to suitable operating surfaces such as:
Asphalt
Concrete
Warehouse floors
Loading areas
Suitable slopes
The center wheel works together with the widened shock-absorbing wheels to improve the overall movement of the machine.
This makes the 1.5 Ton model more suitable for mobile delivery applications than a conventional warehouse-only stacker.
Free Lifting Height
The free lifting height is an important feature for truck-mounted applications.
When the forks lift a pallet clear of the ground, the main body height remains unchanged within the designed free-lift range.
This helps reduce the vertical space required inside the delivery vehicle.
Benefits
Reduced vehicle space requirements
Better cargo compartment compatibility
Easier pallet handling
Improved truck space utilization
More convenient self-loading operation
For a Truck Mounted Stacker, minimizing the space required inside the truck is especially important.
Compact Split Design
The machine adopts a compact split design.
This reduces the amount of space occupied when the stacker is transported together with the delivery cargo.
The machine can also be disassembled for transportation according to the final packaging configuration.
Advantages
Compact structure
Reduced truck space occupation
Easier transportation
Convenient disassembly
Efficient packaging
Improved container utilization
The actual container loading quantity depends on the final machine configuration and packaging method.
Lightweight Design
Although the machine provides a 1,500 kg load capacity, its design remains focused on compact and mobile operation.
A lightweight structure makes the stacker easier to maneuver and reduces the additional load placed on the delivery vehicle.
Benefits
Easier maneuverability
Reduced operator effort
Easier transportation
Flexible mobile operation
Better compatibility with truck-mounted applications
The final machine weight should be confirmed according to the actual 1.5 Ton configuration.
Fork Tip Guide Angles
The fork tips feature three-sided guide angles.
These guide angles help the forks enter pallet openings more easily.
This is particularly useful when the operator is working in the restricted space around a delivery vehicle.
Benefits
Easier pallet entry
Faster fork positioning
Improved low-level passability
Easier pallet pickup
Better operation in restricted spaces
High-Position Forced Speed Limitation
For improved operating safety, the machine uses forced travel speed limitation when the forks are raised to a high position.
When the forks reach the specified high position, the travel speed is restricted.
This helps the operator maintain better control when transporting a raised load.
Safety Benefits
Reduced high-position travel speed
Better vehicle control
Improved load stability
Reduced operating risk
The exact speed limitation threshold should be confirmed according to the final electrical configuration.
Center Wheel Anti-Disengagement Design
The center wheel anti-disengagement design is specifically developed for truck-mounted applications.
When the machine is moved out of the delivery vehicle, the design helps prevent unintended rolling out of the truck.
This helps reduce the risk of the stacker accidentally leaving the vehicle during unloading.
It is an important safety feature for a dedicated Truck Mounted Stacker.
Chrome-Plated Support Legs
The support legs feature a chrome-plated surface treatment.
This provides:
Higher surface hardness
Better wear resistance
Improved corrosion resistance
Reduced rust risk
Improved appearance
The treatment helps the support legs withstand repeated use and transportation.
Alloy Steel Construction
The machine uses alloy steel for key structural components.
For a 1.5 Ton truck-mounted machine, structural strength is particularly important because the machine is designed to handle heavier palletized loads.
Main Benefits
High structural strength
Good durability
Better wear resistance
Reliable load support
Long service life
The final structural design should be evaluated according to the actual rated load and load center.
Energy-Efficient Hydraulic System
The hydraulic system uses an efficient gear pump and electric motor.
The lowering system uses:
Powered Lowering + Gravity Lowering
When gravity lowering is used, the lowering process does not require additional electrical power.
This can help reduce unnecessary battery consumption and improve energy efficiency.
Energy-Saving Features
Efficient gear pump
Efficient electric motor
Powered and gravity lowering
Lower energy consumption
Improved operating efficiency
Reduced operating costs
This is particularly useful for delivery applications involving repeated pallet handling.
Multiple Battery Options
The machine can be configured with different battery options according to the final product specification.
Maintenance-Free Lead-Acid Battery
48V / 25Ah
Suitable for customers looking for an economical and maintenance-free battery solution.
Quick-Change Battery
48V / 30Ah
The optional quick-change configuration supports battery replacement in approximately 10 seconds.
| Battery Option | Voltage | Capacity | Main Advantage |
|---|---|---|---|
| Maintenance-Free Lead-Acid Battery | 48V | 25Ah | Economical and maintenance-free |
| Quick-Change Battery | 48V | 30Ah | Approx. 10-second replacement |
Battery specifications should be confirmed according to the final 1.5 Ton configuration.
Safety Design
The 1.5 Ton Truck Mounted Stacker incorporates multiple safety-oriented design features.
| Safety Feature | Function |
|---|---|
| High-Position Speed Limitation | Restricts travel speed when forks are raised |
| Center Wheel Anti-Disengagement | Helps prevent unintended roll-out from the truck |
| Widened Wheel Configuration | Improves stability |
| Movable Center Wheel | Improves passability |
| Alloy Steel Structure | Provides structural support |
| Fork Tip Guide Angles | Facilitates pallet entry |
| Controlled Lowering | Supports controlled fork movement |
| Electric Control System | Provides convenient operation |
Specific electrical protection functions should be confirmed according to the final configuration.
Product Specifications
1.5 Ton Fully Electric Truck Mounted Stacker Specifications
| Item | Specification |
|---|---|
| Product Type | Fully Electric Truck Mounted Stacker / Self-Loading Stacker |
| Model | [CDD-15E] |
| Rated Load Capacity | 1,500 kg |
| Load Center | [400] mm |
| Lifting Height | [1500] mm |
| Overall Length | [1603] mm |
| Overall Width | [852] mm |
| Overall Height | [1866] mm |
| Fork Length | [1195] mm |
| Fork Width | [190] mm |
| Minimum Turning Radius | [1500] mm |
| Travel Speed | [3.5] km/h |
| Lifting Speed | [55] mm/s |
| Lowering Speed | [100] mm/s |
| Drive System | 48V DC Brushless Control System |
| Driving Motor | [2] kW |
| Lifting Motor | [1.5] kW |
| Hydraulic Pump | Efficient Gear Pump |
| Battery Type | [Lead Acid] |
| Battery Voltage | [48] V |
| Battery Capacity | [25] Ah |
| Charger | [Available] |
| Brake System | [Electronic] |
| Wheel Configuration | Widened Shock-Absorbing Universal Wheels + Movable Center Wheel |
| Mast Type | [Duplex] |
| Travel Mode | Electric |
| Lifting Mode | Electric |
| Free Lift | Available |
| Net Weight | [382] kg |
| Container Loading | [36] units / 20ft Container |
Actual specifications may vary according to the final 1.5 Ton configuration.
Core Advantages
Heavy-Duty 1,500 kg Capacity
Designed for heavier palletized goods and higher-capacity mobile delivery applications.
Purpose-Built Truck Mounted Design
Designed to travel with delivery vehicles and provide pallet handling capability at customer locations.
Self-Loading Capability
Allows delivery operators to carry their own pallet handling equipment.
48V Brushless Drive
Provides efficient electric travel without regular carbon brush replacement.
Excellent Passability
Widened shock-absorbing wheels and movable center wheel improve maneuverability.
Free Lifting Height
Helps reduce vertical space requirements inside the delivery vehicle.
Compact Split Design
Reduces truck space occupation and supports convenient transportation.
Fast Battery Replacement
Optional quick-change battery supports approximately 10-second replacement.
Truck Unloading Safety
Center wheel anti-disengagement design helps reduce unintended roll-out risk.
Energy Efficient
Efficient hydraulic components and gravity lowering help reduce energy consumption.
Why Choose the 1.5 Ton Truck Mounted Self-Loading Stacker?
Higher Capacity for Heavy Pallet Delivery
The 1.5 Ton Truck Mounted Stacker is designed for customers who need more than a compact 1 Ton or 1.3 Ton solution.
With a 1,500 kg rated capacity, it is suitable for heavier palletized goods while retaining the mobility required for truck-mounted operation.
Your Forklift Travels With Your Truck
The biggest advantage of the Truck Mounted Stacker is simple:
Your pallet handling equipment travels with your delivery truck.
This means the operator does not need to rely on a forklift at every customer location.
Ideal for Last-Mile Pallet Delivery
For delivery businesses serving multiple destinations, the Self-Loading Stacker provides pallet handling capability wherever the truck goes.
This can simplify unloading at locations without forklifts or loading docks.
Reduce Dependence on Customer Equipment
Not every customer has suitable pallet handling equipment.
Carrying a 1.5 Ton Self-Loading Stacker provides greater independence and flexibility during delivery.
Handle Heavier Palletized Goods
The 1.5 Ton capacity makes this model particularly suitable for applications where pallet weights are higher.
This gives the product a clear advantage within the truck-mounted stacker product range.
Save Valuable Truck Space
The compact split design and free lifting structure help reduce the space required to transport the machine.
This is important when the delivery truck needs to carry both the stacker and customer cargo.
Improve Mobile Handling Efficiency
Fully electric travel and lifting reduce manual effort during repeated pallet handling.
Combined with the compact design and improved passability, the machine provides a practical solution for mobile material handling.
Typical Applications
Logistics & Distribution
Mobile pallet handling for distribution fleets and delivery vehicles.
Last-Mile Delivery
Unloading palletized products directly at customer locations.
Retail Distribution
Delivering heavier palletized goods from distribution centers to retail stores.
Manufacturing Delivery
Transporting components, raw materials and finished products between facilities.
Building Material Distribution
Handling suitable palletized building materials during delivery.
Warehouse-to-Customer Delivery
Providing mobile pallet handling from warehouse to final destination.
Truck Mounted Stacker vs Self-Loading Stacker
Truck Mounted Stacker describes the equipment's vehicle-mounted application, while Self-Loading Stacker emphasizes its ability to travel with a delivery truck and provide independent pallet loading and unloading at the destination.
The 1.5 Ton model combines both concepts, providing a higher-capacity solution for mobile pallet delivery.
Frequently Asked Questions
What is a 1.5 Ton Truck Mounted Stacker?
A 1.5 Ton Truck Mounted Stacker is a fully electric pallet handling machine designed to travel with a delivery truck and provide unloading and material handling capability at customer locations.
What is a Self-Loading Stacker?
A Self-Loading Stacker is a mobile pallet handling machine that allows a delivery vehicle to carry its own loading and unloading equipment.
What is the load capacity?
The rated load capacity is 1,500 kg / 1.5 tons.
Actual capacity depends on lifting height, load center, mast configuration and operating conditions.
Is the 1.5 Ton model fully electric?
Yes. Both travel and lifting are electrically powered.
Why choose 1.5 Ton instead of 1 Ton or 1.3 Ton?
The main advantage is the higher 1,500 kg load capacity, making it more suitable for heavier palletized cargo.
Does it use a brushless motor?
The truck-mounted design uses a 48V DC brushless control system, subject to the final configuration.
Can it operate on asphalt?
Yes. It is designed for suitable asphalt, concrete and other appropriate surfaces.
Can it operate on slopes?
It can operate on suitable slopes within the manufacturer's specified limits. Actual performance depends on load, gradient and surface conditions.
What is free lifting height?
Free lifting allows the forks to raise the pallet clear of the ground while keeping the main body height unchanged within the designed free-lift range.
Can the machine be disassembled?
Yes. The compact split design allows disassembly for transportation and packaging.
How fast can the battery be replaced?
The optional quick-change battery can be replaced in approximately 10 seconds, subject to the final configuration.
Does it have protection when unloading from the truck?
Yes. The center wheel anti-disengagement design helps prevent unintended roll-out from the truck.
Does travel speed change when the forks are raised?
Yes. Forced speed limitation is provided when the forks reach a high position.
A Heavy-Duty Solution for Self-Loading Pallet Delivery
The 1.5 Ton Fully Electric Truck Mounted Stacker is designed for customers who need a higher-capacity mobile pallet handling solution.
With its 1,500 kg load capacity, fully electric travel and lifting, 48V brushless drive, free lifting height, movable center wheel, widened shock-absorbing wheels, compact split design and truck-mounted safety features, it provides a practical solution for heavy pallet delivery.
As a Self-Loading Stacker, it allows delivery companies to carry their own pallet handling equipment with the truck and reduce dependence on forklifts at customer locations.
Whether you are looking for a 1.5 Ton Truck Mounted Stacker, 1500kg Self-Loading Stacker, Fully Electric Truck Mounted Stacker or mobile pallet handling solution, this model is designed for logistics, distribution, manufacturing and last-mile delivery applications.
Request a Quote
Looking for a 1.5 Ton Truck Mounted Stacker or Self-Loading Stacker?
Tell us your:
Truck type
Cargo compartment dimensions
Pallet size
Pallet weight
Required lifting height
Load center
Daily operating frequency
Battery requirements
Road conditions
We can recommend the appropriate 1.5 Ton Fully Electric Truck Mounted Stacker configuration and provide technical specifications, battery options, customization solutions and a quotation.
Contact us today to find the right Truck Mounted Stacker and Self-Loading Stacker for your mobile material handling needs.
