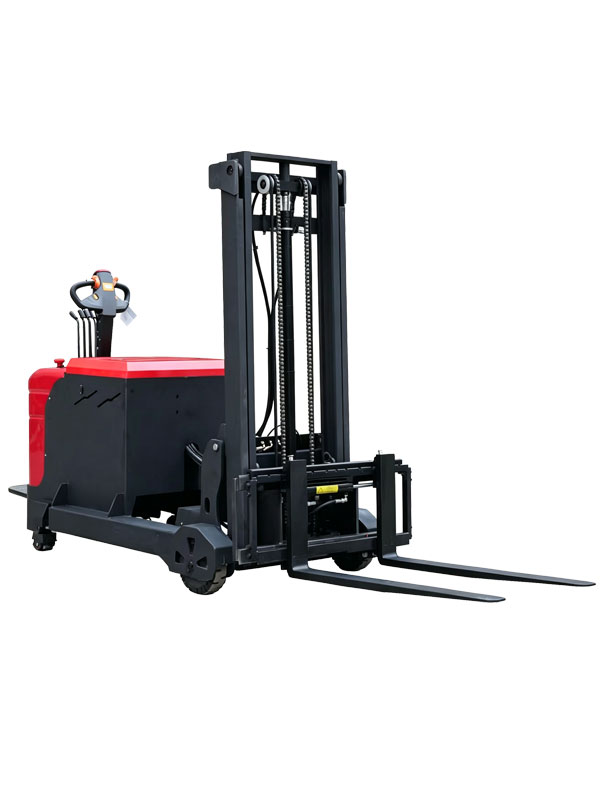

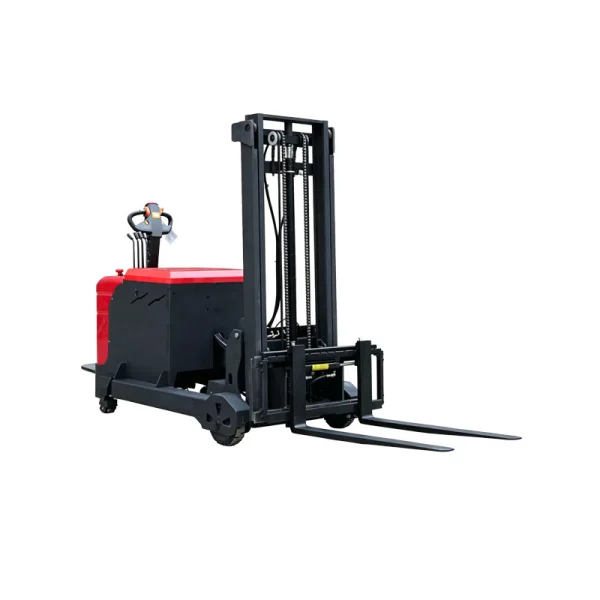

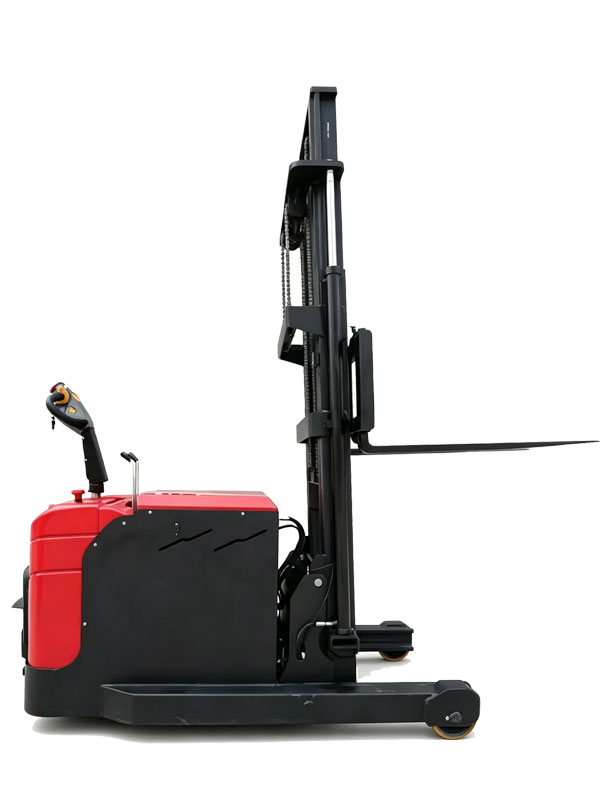

1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker
The 1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker is designed for efficient pallet handling, stacking, loading and short-distance transportation in warehouses, manufacturing facilities, logistics centers and working environments with uneven or challenging ground conditions.
With a rated load capacity of 1,500 kg and a standard 500 mm load center, the machine combines fully electric travel and lifting, stand-on operation and forward-reach functionality.
Unlike standard electric reach stackers designed mainly for smooth warehouse floors, this model is equipped with larger solid rubber tires to improve ground clearance, passability and stability when operating on uneven, rugged or less-than-perfect surfaces.
Its combination of rough-terrain mobility, forward reach, no-leg design, integrated forged forks, high-strength steel mast and fully electric operation provides a flexible material handling solution for both indoor and suitable outdoor applications.
Fully Electric Travel and Lifting
The machine uses a fully electric travel and lifting system, reducing manual effort while improving handling efficiency.
The electric travel system provides smooth movement, while the electric lifting system allows efficient pallet lifting and lowering.
Key advantages include:
Fully electric travel
Fully electric lifting
Smooth operation
Low operating noise
Reduced operator effort
Efficient pallet handling
Lower manual handling requirements
This configuration is particularly suitable for repetitive pallet handling, stacking and short-distance transportation.
Comfortable Stand-On Operation
The stand-on operating platform allows the operator to ride on the machine during transportation.
Instead of walking behind the machine throughout the operation, the operator can remain on the platform while controlling travel, lifting and reach functions.
The stand-on design helps:
Reduce unnecessary walking
Reduce operator fatigue
Improve transportation efficiency
Increase productivity
Improve comfort during repetitive operations
This configuration is particularly useful when pallets need to be transported repeatedly over longer internal distances.
1,500 kg Rated Load Capacity
The machine has a rated load capacity of 1,500 kg / 1.5 tons under specified operating conditions.
The standard load center is 500 mm.
The allowable load depends on:
Lifting height
Load center
Mast configuration
Fork configuration
Reach position
Pallet dimensions
Load distribution
Ground conditions
Operating conditions
As lifting height or reach distance increases, the allowable residual load may decrease.
Customers should refer to the corresponding load capacity chart for the selected mast, lifting height and working configuration.
Load Capacity Chart
The current product information provides the following load capacity reference:
| Lifting Height | Allowable Load Capacity |
|---|---|
| 2,000 mm | 1,500 kg |
| 3,000 mm | 1,200 kg |
| 4,000 mm | 800 kg |
| 4,500 mm | 600 kg |
Load Center: 500 mm
Actual allowable load capacity may vary according to lifting height, load center, mast configuration, fork configuration, reach position and operating conditions.
Forward-Reach Design
The forward-reach structure is one of the key features of this model.
The reach mechanism allows the forks to move forward when picking up or positioning pallets, providing greater flexibility during material handling and stacking operations.
The forward-reach function is particularly useful for:
Picking up pallets
Positioning loads
Stacking goods
Loading and unloading
Rack handling
Improving load positioning flexibility
Combined with the stand-on operating design, the reach function provides a practical and efficient solution for frequent pallet handling.
No-Leg Design for Single-Sided and Double-Sided Pallets
The no-leg structure provides greater flexibility when handling different pallet designs.
Unlike conventional stackers with fixed supporting legs, this configuration is designed to accommodate both:
Single-sided pallets
Double-sided pallets
This makes the machine suitable for warehouses and material handling environments where different pallet types are used.
Integrated Forged Forks
The machine uses integrated forged forks designed for strength, durability and reliable load support.
The forged fork structure is suitable for frequent pallet handling and repeated lifting operations.
Key advantages include:
High structural strength
Durable construction
Reliable load support
Good resistance to deformation
Suitable for repetitive material handling
The standard fork length is 1,070 mm.
High-Strength Steel Mast
The stacker uses a high-strength steel mast designed to provide reliable support during lifting operations.
The reinforced mast structure helps maintain stability when handling loads at different lifting heights.
Key advantages include:
High-strength steel construction
Stable lifting performance
Reliable load support
Controlled lifting and lowering
Durable structure
The machine can be configured with different mast types and lifting heights according to warehouse layout and storage requirements.
Mast Quantity and Lifting Height Options
Different mast configurations provide different lifting-height options for various warehouse and storage applications.
| Mast Type | Mast Quantity | Lifting Height | Static / Overall Height | Recommended Application |
|---|---|---|---|---|
| Duplex | 2 Sections | 2,000 mm | 1,610 mm | Low-Level Stacking |
| Duplex | 2 Sections | 2,500 mm | 1,810 mm | Standard Warehouse Stacking |
| Duplex | 2 Sections | 3,000 mm | 2,050 mm | Standard Warehouse Stacking |
| Triplex | 3 Sections | 3,500 mm | 1,850 mm | High-Level Rack Stacking |
What Is Mast Quantity?
Mast quantity refers to the number of mast sections used in the lifting system.
A Duplex mast generally uses two mast sections and is suitable for low-to-medium lifting heights.
A Triplex mast generally uses three mast sections and is suitable for higher lifting applications while helping maintain a relatively compact overall height when the mast is lowered.
The actual mast type and lifting height should be confirmed according to the selected configuration.
Static Height
Static height, also known as the lowered mast height or overall height with the mast lowered, is an important parameter when selecting a stacker.
It determines whether the machine can pass through:
Warehouse doors
Loading doors
Container entrances
Low-ceiling areas
Other height-restricted locations
The static height depends on:
Mast type
Lifting height
Mast configuration
Machine design
Optional equipment
Therefore, the static height should be confirmed together with the selected lifting-height configuration.
Large Solid Rubber Tires for Rough Terrain
One of the most important features of this model is its larger solid rubber tire configuration.
Compared with conventional warehouse stackers using smaller wheels, the larger tires provide improved:
Ground clearance
Passability
Stability
Wear resistance
Surface adaptability
The larger wheel design helps the machine travel more effectively across uneven, rugged and challenging surfaces.
This makes the stacker suitable for applications where the working environment may include uneven warehouse yards, factory yards, loading areas, outdoor storage areas and other suitable industrial surfaces.
Rough-Terrain Mobility
The rough-terrain design expands the operating range of the electric reach stacker.
The machine is designed for applications where the ground is not always perfectly flat or smooth.
Typical working surfaces may include:
Uneven factory yards
Outdoor storage areas
Loading and unloading zones
Rough industrial floors
Uneven paved surfaces
Suitable gravel or imperfect ground
The larger solid rubber tires improve the machine's ability to pass over uneven surfaces while maintaining stable travel.
Actual suitability should be evaluated according to ground conditions, slope, surface material, load weight and operating requirements.
Ground Clearance
The larger tires also contribute to improved ground clearance and terrain adaptability.
The current product specification lists a minimum fork ground clearance of 50 mm.
For the rough-terrain version, the larger tire configuration is intended to provide better passability than a standard warehouse stacker with smaller wheels.
Forward Tilt and Backward Tilt Function
The fork structure features forward and backward tilt, helping the operator pick up, stabilize and position loads more conveniently.
The tilt function can help:
Improve pallet picking
Stabilize loads during transportation
Facilitate load positioning
Improve fork insertion
Provide greater flexibility during pallet handling
Maintenance-Free AC Drive Motor
The machine uses a maintenance-free AC drive motor designed for reliable operation and long service life.
The AC motor provides:
Smooth travel
Efficient power output
Long service life
Reduced maintenance requirements
Reliable driving performance
Combined with the fully electric travel system, the AC drive motor provides reliable performance for frequent material transportation.
Efficient and Cost-Effective Design
The machine combines efficient electric operation with a practical rough-terrain design.
Through continuous technical development and structural optimization, the machine is designed to improve overall handling performance while maintaining a competitive market price.
The machine can help:
Reduce labor requirements
Improve handling efficiency
Reduce operator fatigue
Lower operating costs
Increase productivity
Improve material handling consistency
The combination of electric operation, reach functionality and larger rough-terrain tires provides customers with a practical alternative to manual material handling.
Battery and Charging
The current product configuration includes:
| Item | Specification |
|---|---|
| Battery Type | Lead Acid |
| Battery Voltage | 48 V |
| Battery Capacity | 32 Ah |
| Charger | Available |
| Charging Time | 6–8 Hours |
| Operating Time | Approx. 4 Hours |
Battery configuration can be adjusted according to:
Daily operating hours
Working intensity
Charging conditions
Required operating time
Customer application
For applications requiring longer operating periods, a higher-capacity battery configuration can be discussed.
Safety Design
The machine combines structural and operational features designed to support safe material handling.
| Safety Feature | Function |
|---|---|
| Emergency Stop | Quickly stops machine operation when required |
| Braking System | Provides controlled stopping during travel |
| High-Strength Mast | Supports stable lifting |
| Forged Forks | Provides reliable load support |
| Large Solid Rubber Tires | Improve stability and passability |
| Forward / Backward Tilt | Helps stabilize and position loads |
| Controlled Lifting & Lowering | Helps provide smooth load movement |
| Battery Protection | Helps protect the electrical system |
| Load Protection | Supports operation within rated capacity |
Actual safety equipment and configuration should be confirmed according to the selected model.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Fully Electric Rough Terrain Stand-On Reach Stacker |
| Rated Load Capacity | 1,500 kg |
| Load Center | 500 mm |
| Mast Type | Duplex / Triplex |
| Mast Quantity | 2 / 3 Sections |
| Lifting Height | 2,000–3,500 mm* |
| Static / Overall Height | 1,610–2,050 mm* |
| Fork Ground Clearance | 50 mm |
| Fork Length | 1,070 mm |
| Overall Length | 1,986 mm |
| Overall Width | 1,047 mm |
| Min. Turning Radius | 2,000 mm |
| Reach Function | Forward Reach |
| Fork Type | Integrated Forged Forks |
| Pallet Compatibility | Single-Sided & Double-Sided Pallets |
| Drive System | Fully Electric |
| Traveling Speed | 5 km/h |
| Lifting Speed | 155 mm/s |
| Lowering Speed | 144 mm/s |
| Drive Motor | Maintenance-Free AC Motor |
| Lifting System | Electric Hydraulic |
| Battery Type | Lead Acid |
| Battery Voltage | 48 V |
| Battery Capacity | 32 Ah |
| Tire Type | Large Solid Rubber Tires |
| Operating Type | Stand-On |
| Steering Type | Electric Steering |
| Fork Tilt | Forward & Backward Tilt |
| Brake System | Electronic |
| Net Weight | 1,200 kg |
*Available lifting heights and static heights should be confirmed according to the actual mast configuration.
Core Advantages
1. 1,500 kg Load Capacity
Designed for medium-duty pallet handling, stacking and short-distance transportation.
2. Fully Electric Operation
Electric travel and lifting reduce manual effort while providing efficient and low-noise operation.
3. Rough-Terrain Capability
Larger solid rubber tires provide improved ground clearance and stronger passability on uneven and rugged surfaces.
4. Stand-On Operating Design
Allows the operator to ride on the machine, reducing walking distance and fatigue during frequent transportation.
5. Forward-Reach Function
Provides greater flexibility when picking up, positioning and stacking pallets.
6. No-Leg Design
Suitable for both single-sided and double-sided pallets.
7. Integrated Forged Forks
Strong and durable forks provide reliable support during repeated pallet handling.
8. High-Strength Steel Mast
Provides stable lifting performance and reliable load support.
9. Large Solid Rubber Tires
Improve passability, durability and stability across different working surfaces.
10. Forward and Backward Tilt
Helps improve pallet picking, load stabilization and positioning.
11. Maintenance-Free AC Motor
Provides smooth driving performance, long service life and reduced maintenance requirements.
12. Flexible Mast Configurations
Duplex and Triplex mast configurations can be selected according to required lifting height and static-height limitations.
13. Competitive Price
Optimized engineering and manufacturing processes help provide a cost-effective material handling solution.
Why Choose the 1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker?
The 1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker is a practical solution for companies that need electric pallet handling performance while also requiring stronger mobility on uneven working surfaces.
Its key difference from a conventional electric stand-on reach stacker is the larger solid rubber tire configuration.
The larger wheels provide improved ground clearance, passability and terrain adaptability, making the machine suitable for working environments where standard warehouse stackers with smaller wheels may have limited mobility.
At the same time, it retains the key advantages of a reach stacker, including 1,500 kg load capacity, 500 mm load center, forward reach, no-leg design, single- and double-sided pallet compatibility, fully electric travel and lifting, stand-on operation and forged forks.
This combination makes it suitable for warehouses, manufacturing facilities, logistics areas, loading zones, outdoor storage areas and other applications where both pallet handling efficiency and stronger terrain adaptability are required.
Typical Applications
Warehouse & Storage
Suitable for pallet stacking, loading and unloading, internal transportation and warehouse organization.
Manufacturing
Used for moving raw materials, components, finished products and production-line supplies.
Logistics & Distribution
Suitable for frequent pallet transportation, loading-area handling and distribution center operations.
Retail & Wholesale
Used for moving palletized goods between storage areas, warehouse zones and order preparation areas.
Outdoor Storage & Loading Areas
Suitable for pallet handling in outdoor storage yards, loading zones and other appropriate uneven working environments.
OEM and Customization
We can provide customized configurations according to different material handling requirements.
Available customization options may include:
Machine color
Logo and branding
Nameplate and labels
Fork configuration
Fork dimensions
Lifting height
Mast configuration
Mast quantity
Battery type and capacity
Charger configuration
Tire configuration
Wheel size
Stand-on platform
Packaging
Other application-specific requirements
OEM and customized solutions are available depending on model and order requirements.
FAQ
Is the 1.5 Ton Rough Terrain Reach Stacker fully electric?
Yes. The machine uses a fully electric travel and lifting system, reducing manual handling effort and providing efficient operation.
What is the rated load capacity?
The rated load capacity is 1,500 kg / 1.5 tons under specified working conditions.
What is the load center?
The standard load center is 500 mm. Actual allowable load capacity should be confirmed according to lifting height, mast configuration, reach position and operating conditions.
What makes this stacker suitable for rough terrain?
The main feature is its larger solid rubber tires, which provide improved ground clearance, stronger passability and better adaptability to uneven and rugged surfaces.
Can it operate outdoors?
It can be used in suitable outdoor working environments such as factory yards, loading areas and outdoor storage areas, provided that the ground conditions, slope, load and operating environment are appropriate.
Can it handle both single-sided and double-sided pallets?
Yes. The no-leg design allows the machine to handle both single-sided and double-sided pallets.
Does load capacity change at different lifting heights?
Yes. The allowable load may decrease as lifting height or reach distance increases. Load capacity is also affected by load center, mast configuration, fork configuration and operating conditions.
What lifting heights are available?
The current configurations include lifting heights from approximately 2,000 mm to 3,500 mm, with different Duplex and Triplex mast options. Higher lifting heights may be available according to the actual configuration.
What type of tires does the machine use?
The rough-terrain version uses larger solid rubber tires designed to provide improved passability and durability on uneven working surfaces.
Does the machine have fork tilt?
Yes. The fork system features forward and backward tilt to help with pallet picking, load stabilization and positioning.
Can the machine be customized?
Yes. Customization can include color, logo, forks, lifting height, mast configuration, battery, charger, tire configuration, wheel size, platform and packaging, depending on the selected model and order requirements.
Product Summary
The 1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker combines 1,500 kg load capacity, 500 mm load center, fully electric travel and lifting, stand-on operation, forward-reach function, no-leg design, integrated forged forks and high-strength steel mast with larger solid rubber tires.
Its larger-wheel design provides improved ground clearance, passability and adaptability to uneven and rugged surfaces, making it different from standard warehouse-oriented electric reach stackers.
The machine provides a practical solution for customers who need electric pallet handling efficiency together with stronger mobility across challenging working environments.
Request a Quote
Looking for a 1.5 Ton Fully Electric Rough Terrain Stand-On Reach Stacker for your warehouse, manufacturing facility, logistics center or uneven working environment?
Tell us your application requirements, and our team can recommend the appropriate configuration based on your load capacity, lifting height, pallet type, reach distance, ground conditions and operating environment.
Please provide:
Required lifting height
Required load capacity
Pallet type and dimensions
Load center
Required reach distance
Working surface and ground conditions
Warehouse or outdoor working environment
Daily operating hours
Required battery configuration
Quantity required
Our team can help you select the right mast configuration, lifting height, tire size, battery and other options, confirm the applicable load capacity and provide a competitive quotation.
Contact us today for product specifications, configuration recommendations and a quotation.
