Key Features
1. Stable High-Level Operation
Side rollers are positioned above the main rollers to reduce lateral movement when the forks are raised. This improves stability during high-level operations and helps operators perform stacking tasks more accurately and efficiently.
2. Ergonomic Steering Wheel
The G Series uses a 320 mm diameter steering wheel with an ergonomically optimized and adjustable steering angle. The compact steering wheel provides a comfortable grip and helps reduce operator fatigue during long working periods.
3. Digital Instrument Panel
The digital instrument panel uses CAN bus communication technology to provide clear operating information. The human-machine interface monitors the forklift's operating status and provides fault alarms and diagnostic information for easier operation and maintenance.
4. Intelligent Control
The integrated control handle is designed according to ergonomic principles. Electrical switches are centrally arranged for convenient operation.
A standard USB fast-charging interface and conveniently positioned horn control are also provided for improved operator convenience.
5. Reliable Hydraulic System
The hydraulic system is designed for precise and stable operation. The hydraulic lines use 24° cone sealing, while hydraulic oil is filtered twice before reaching the actuators.
The improved filtration system helps maintain hydraulic oil cleanliness and protect hydraulic components during long-term operation.
6. Durable Stamped Engine Hood
The stamped engine hood provides a robust structure and reliable protection for internal components.
The hood features a large opening angle, making daily inspection, maintenance and servicing more convenient.
7. Centralized Electrical Box
Electrical components such as fuses and relays are centrally arranged inside the electrical box.
The sealed design helps protect electrical components against dust and water while making wiring inspection and maintenance easier.
8. Spacious Operator Area
The operator compartment provides increased legroom and a lower step height.
The anti-slip step and wide spring-assisted handrail make entering and exiting the forklift safer and more convenient.
9. Quanchai Diesel Engine
The G Series is equipped with a Quanchai V23-52V42 diesel engine.
With 36.8 kW rated power, 170 N·m maximum torque and four cylinders, the engine provides reliable power for lifting, traveling and heavy-duty material handling.
10. Wide-Visibility Mast
The mast structure has been optimized to provide a wider forward field of view.
The mast uses C-section steel, providing good bending characteristics and structural strength while helping the operator maintain better visibility of the load.
11. Two-Stage Air Filtration
The air intake system uses a paper air filter + air pre-filter to provide two-stage air purification.
This improves filtration efficiency and helps protect the diesel engine when operating in dusty environments.
12. Organized Electrical System
The electrical system adopts an H-type wiring layout.
Electrical components and wiring are arranged neatly for easier inspection and maintenance while reducing unnecessary wiring and improving system reliability.
13. Maintenance-Friendly Steering Axle
The integrated steering axle uses tapered bearings for the kingpin assembly, providing good impact resistance and flexible steering.
The design also improves stability and comfort during travel while reducing maintenance requirements for selected bearing areas.
4. Applications

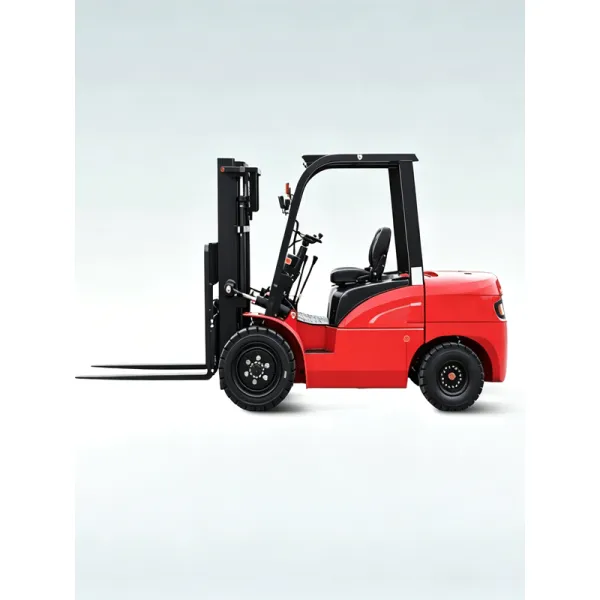

The G Series 2–4 ton diesel forklift is suitable for a variety of material handling environments.
Warehouses
For pallet transportation, loading, unloading and stacking operations.
Logistics Centers
For moving cargo, loading and unloading trucks and handling pallets.
Manufacturing Plants
For transporting raw materials, components, finished products and production supplies.
Construction Sites
Suitable for handling building materials, equipment and other heavy loads in outdoor environments.
Building Material Industry
Suitable for handling steel, wood, stone, machinery and other heavy materials.
Outdoor Material Handling
The diesel-powered design provides reliable performance for yards, loading areas and other outdoor applications.
5. G Series Model Range
Available Models
| Model | Rated Capacity | Load Center | Standard Lift Height |
|---|---|---|---|
| CPC(D)-G20 | 2,000 kg | 500 mm | 3,000 mm |
| CPC(D)-G25 | 2,500 kg | 500 mm | 3,000 mm |
| CPC(D)-G30 | 3,000 kg | 500 mm | 3,000 mm |
| CPC(D)-G35 | 3,500 kg | 500 mm | 3,000 mm |
| CPC(D)-G38 | 3,800 kg | 500 mm | 3,000 mm |
| CPC(D)-G40X | 4,000 kg | 500 mm | 3,000 mm |
Note: Specifications may vary depending on the selected model and configuration.
6. Technical Specifications
A. Basic Performance
Basic Specifications
| Specification | Unit | G20 | G25 | G30 | G35 | G38 | G40X |
|---|---|---|---|---|---|---|---|
| Model | – | CPC(D)-G20 | CPC(D)-G25 | CPC(D)-G30 | CPC(D)-G35 | CPC(D)-G38 | CPC(D)-G40X |
| Power Type | – | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Rated Load Capacity | kg | 2,000 | 2,500 | 3,000 | 3,500 | 3,800 | 4,000 |
| Load Center | mm | 500 | 500 | 500 | 500 | 500 | 500 |
| Battery | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 | 12/80 |
| Max. Lift Height | mm | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| Free Lift Height | mm | 130 | 130 | 130 | 130 | 130 | 240 |
| Mast Tilt Angle, Front/Rear | ° | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
7. Lifting & Traveling Performance
Performance Specifications
| Specification | Unit | G20 | G25 | G30 | G35 | G38 | G40X |
|---|---|---|---|---|---|---|---|
| Lift Speed, Loaded/Unloaded | mm/s | 500/600 | 500/600 | 455/480 | 455/480 | 370/400 | 370/400 |
| Lowering Speed, Loaded/Unloaded | mm/s | 540/450 | 540/450 | 450/410 | 450/410 | 350/310 | 350/310 |
| Travel Speed, Loaded/Unloaded | km/h | 17/19 | 17/19 | 18.5/19 | 18.5/19 | 18.5/19 | 19/19.5 |
| Min. Turning Radius | mm | 2,280 | 2,290 | 2,560 | 2,620 | 2,720 | 2,720 |
| Gradeability, Loaded/Unloaded | % | 15/20 | 15/20 | 15/20 | 15/20 | 15/20 | 15/20 |
| Max. Drawbar Pull | kN | 16 | 16.5 | 20 | 20 | 20 | 20 |
8. Dimensions & Weight
Dimensions
| Specification | Unit | G20 | G25 | G30 | G35 | G38 | G40X |
|---|---|---|---|---|---|---|---|
| Service Weight | kg | 3,400 | 3,760 | 4,320 | 4,800 | 4,860 | 5,000 |
| Length Without Fork | mm | 2,520 | 2,520 | 2,625 | 2,680 | 2,660 | 2,990 |
| Overall Width | mm | 1,170 | 1,170 | 1,220 | 1,330 | 1,230 | 1,340 |
| Mast Lowered Height | mm | 2,000 | 2,000 | 2,120 | 2,130 | 2,130 | 2,140 |
| Overhead Guard Height | mm | 2,110 | 2,110 | 2,145 | 2,145 | 2,145 | 2,155 |
| Fork Carriage Height | mm | 965 | 965 | 1,225 | 1,225 | 1,225 | 1,235 |
| Mast Extended Height | mm | 4,035 | 4,035 | 4,220 | 4,330 | 4,220 | 4,240 |
| Min. Ground Clearance | mm | 110 | 130 | 130 | 130 | 130 | 130 |
| Wheelbase | mm | 1,652 | 1,650 | 1,750 | 1,800 | 1,860 | 1,932 |
| Front Tread | mm | 970 | 970 | 1,000 | 1,000 | 1,000 | 1,032 |
| Rear Tread | mm | 960 | 980 | 970 | 970 | 970 | 970 |
| Front Overhang | mm | 462 | 462 | 475 | 480 | 492 | 450 |
| Rear Overhang | mm | 406 | 406 | 500 | 500 | 500 | 550 |
9. Tires & Forks
Tires and Fork Dimensions
| Specification | Unit | G20 | G25 | G30 | G35 | G38 | G40X |
|---|---|---|---|---|---|---|---|
| Front Tires | – | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-14PR | 28×9-15-14PR | 28×9-15-14PR | 250-15-16PR |
| Rear Tires | – | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR |
| Fork Size (L×W×T) | mm | 1070×120×40 | 1070×120×40 | 1070×122×45 | 1070×122×50 | 1070×122×50 | 1070×122×50 |
10. Engine Specifications
Diesel Engine
| Specification | Unit | G20 | G25 | G30 | G35 | G38 | G40X |
|---|---|---|---|---|---|---|---|
| Engine Model | – | Quanchai V23-52V42 | Quanchai V23-52V42 | Quanchai V23-52V42 | Quanchai V23-52V42 | Quanchai V23-52V42 | Quanchai V23-52V42 |
| Rated Power | kW/r/min | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 |
| Max. Torque | N·m/r/min | 170/1800 | 170/1800 | 170/1800 | 170/1800 | 170/1800 | 170/1800 |
| No. of Cylinders | – | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | L | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 | 2.85 |
11. FAQ
Frequently Asked Questions
What lifting capacities are available in the G Series?
The G Series covers 2,000 kg to 4,000 kg, including 2 ton, 2.5 ton, 3 ton, 3.5 ton, 3.8 ton and 4 ton models.
What is the standard load center?
The standard load center is 500 mm for the G20 through G40X models.
What engine does the G Series use?
The G Series uses a Quanchai V23-52V42 four-cylinder diesel engine with a rated power of 36.8 kW.
What is the standard lifting height?
The standard maximum lifting height listed for the series is 3,000 mm.
Can I choose a different mast height?
Yes. Different mast configurations and lifting heights can be discussed according to the customer's working environment and application requirements.
Is the G Series suitable for outdoor applications?
Yes. The diesel-powered counterbalance design makes the G Series suitable for outdoor material handling, construction sites, logistics yards and loading areas.
What materials can these forklifts handle?
Depending on the model and attachment configuration, the forklifts can handle pallets, machinery, building materials, steel products, wood and other industrial cargo.
Can attachments be installed?
Yes. Different attachments can be considered according to the load type and application. Please contact us with your specific requirements.
How do I choose between the G20, G25, G30 and G40X?
The main selection factor is the required load capacity. You should also consider load center, lifting height, cargo dimensions, working environment and attachment requirements.
