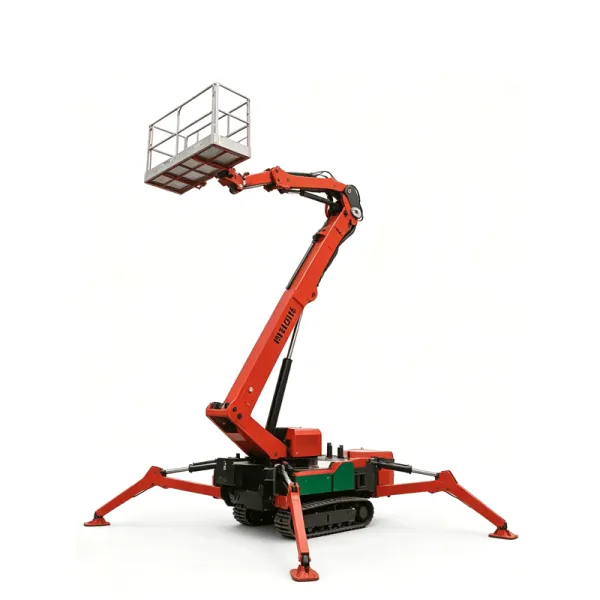

18m & 20m Dual Power Spider Aerial Work Platform
Dual-Power Spider Lift for Flexible Work at Height
The 18m and 20m Dual Power Spider Aerial Work Platforms are compact tracked aerial lifts designed for high-level construction, maintenance, installation and other elevated work applications.
The range includes two models:
THZ-18T – Maximum working height: 18m
THZ-20T – Maximum working height: 20m
Both models have a 230kg rated load capacity and an ultra-narrow 0.88m overall width.
The biggest feature of this series is its dual power system, which combines a KUBOTA D902-E3B diesel engine and an electric power system. The operator can switch between diesel and electric power according to the working environment and operating requirements.
This makes the dual power spider lift more flexible than a single-power aerial platform. It can be used in suitable outdoor environments while also providing an electric operating option for locations where reduced emissions and lower operating noise are important.
Combined with non-marking rubber crawler tracks, automatic outrigger leveling, wireless remote control, proportional hydraulic control and a telescopic aluminum boom, the machine provides a flexible solution for elevated work in confined and demanding environments.
Key Features
1. Dual Power: Diesel + Electric
The most important feature of the THZ-18T and THZ-20T is the dual power system.
The machine is equipped with:
KUBOTA D902-E3B diesel engine
Electric power system
Dual-power operating capability
Flexible power switching
The operator can select the appropriate power source according to the application.
Diesel Power
Diesel power is suitable for many outdoor applications where longer-duration operation and independent power supply are required.
It provides a practical power solution for construction sites, outdoor maintenance and other suitable working environments.
Electric Power
Electric operation can be used in suitable environments where lower operating emissions and reduced noise are preferred.
This can be particularly useful for indoor or semi-indoor maintenance projects, subject to site ventilation, floor conditions and other operating requirements.
Flexible Power Selection
The dual-power configuration allows users to adapt the machine to different job sites instead of relying on only one power source.
This provides greater operational flexibility for contractors, rental companies and equipment users who work across different environments.
2. 18m and 20m Working Height Options
Two working height options are available.
THZ-18T – 18m Spider Lift
The THZ-18T provides a maximum working height of 18m.
It is suitable for customers whose projects require approximately 18m of elevated access.
THZ-20T – 20m Spider Lift
The THZ-20T provides a maximum working height of 20m.
The additional working height makes it suitable for taller buildings, structures, trees and other applications requiring greater vertical access.
Both models provide a 230kg rated load capacity.
3. Ultra-Narrow 0.88m Body
The spider aerial work platform has an overall width of only 0.88m.
The ultra-narrow design allows the machine to pass through relatively restricted access areas.
It can be considered for projects involving:
Narrow entrances
Gates
Corridors
Building passages
Restricted construction areas
Indoor maintenance areas
The compact body is one of the major advantages of a spider lift compared with larger conventional aerial work platforms.
4. Non-Marking Rubber Crawler Tracks
The machine uses non-marking rubber crawler tracks.
The tracked chassis provides good mobility on suitable surfaces and can help the machine move through uneven outdoor working areas.
The rubber track design also helps reduce surface marking on suitable finished floors.
Before indoor operation, users should confirm that the floor structure, surface condition and floor load capacity are suitable for the machine.
5. Extendable Crawler Tracks
The crawler tracks can be extended and retracted from both sides.
The narrow configuration helps the spider lift pass through restricted access areas.
When traveling or positioning on suitable ground, the tracks can be extended to provide a wider and more stable configuration.
This provides a combination of:
Narrow Access + Flexible Mobility + Improved Stability
6. Automatic Outrigger Leveling
The machine is equipped with an automatic outrigger leveling system.
The system helps the operator establish a stable working position more conveniently.
Automatic leveling can reduce setup complexity and improve operating efficiency when the machine is deployed on suitable ground conditions.
The machine should always be operated according to its specified leveling, slope and ground-condition requirements.
7. Wireless Remote Control
The THZ-18T and THZ-20T are operated using a wireless remote control system.
Wireless control allows the operator to maintain a suitable position while controlling the machine.
Depending on the operating configuration, remote control provides flexible management of:
Machine travel
Boom movement
Platform positioning
Outrigger operation
Other machine functions
The remote control design is particularly useful when the operator needs a clear view of the machine and surrounding working area.
8. Precision Proportional Hydraulic System
The machine uses a precision proportional hydraulic control system.
The proportional hydraulic system provides smoother machine movements and better speed control.
This is important when performing precise elevated work near:
Building facades
Glass panels
Trees
Lighting systems
Industrial structures
Construction components
The good micro-movement performance allows the operator to position the platform more accurately.
9. High-Strength Telescopic Aluminum Boom
The spider lift is equipped with a single-stage telescopic aluminum boom.
The high-strength boom provides good structural rigidity while maintaining a compact machine configuration.
The telescopic structure allows the platform to reach high working positions while providing flexible positioning.
The boom system is designed to provide smooth and stable movement during elevated operation.
10. ±355° Turntable Rotation
The turntable provides ±355° non-continuous rotation.
This provides a wide operating range around the machine.
The operator can reposition the platform across a large working area without constantly moving the entire crawler chassis.
11. ±90° Platform Rotation
The working platform provides ±90° rotation.
Platform rotation allows the operator to adjust the working position according to the specific work area.
Combined with turntable rotation and boom movement, the system provides flexible positioning around buildings and other structures.
12. Dual-Screen Human-Machine Interface
The machine is equipped with a dual-screen human-machine interface.
The system supports functions such as:
Parameter setting
Fault diagnosis
Parameter reading and writing
System monitoring
Operating information display
This helps operators and maintenance personnel monitor machine status and troubleshoot potential problems more efficiently.
Main Equipment Configuration
The standard configuration includes:
Dual power system
KUBOTA D902-E3B diesel engine
Electric power system
Wireless remote control
Proportional hydraulic system
Emergency lowering system
Automatic outrigger leveling
Automatic braking system
Emergency stop button
Fault diagnosis system
Tilt protection system
Non-marking rubber crawler tracks
Extendable crawler chassis
Telescopic aluminum boom
Technical Specifications
THZ-18T & THZ-20T Dual Power Spider Lift
| Specification | THZ-18T | THZ-20T |
|---|---|---|
| Maximum Working Height | 18 m | 20 m |
| Overall Length | 5.2 m | 5.2 m |
| Overall Width | 0.88 m | 0.88 m |
| Overall Height | 1.95 m | 1.95 m |
| Rated Load | 230 kg | 230 kg |
| Turntable Rotation Angle | ±355° non-continuous | ±355° non-continuous |
| Platform Rotation Angle | ±90° | ±90° |
| Maximum Gradeability | 30% | 30% |
| Travel Speed | 2 km/h | 2 km/h |
| Operating Method | Wireless Remote Control | Wireless Remote Control |
| Battery | 12V/45Ah | 12V/45Ah |
| Diesel Engine | KUBOTA D902-E3B | KUBOTA D902-E3B |
| Track Specification | 200/72/55 | 200/72/55 |
| Machine Weight | 3,250 kg | 3,600 kg |
| Power Configuration | Dual Power | Dual Power |
THZ-18T – 18m Dual Power Spider Lift
The THZ-18T is an 18m dual power spider aerial work platform designed for customers who need a combination of high working height, compact dimensions and flexible power selection.
The machine provides:
18m maximum working height
230kg rated load
0.88m overall width
Diesel + electric dual power
Non-marking rubber crawler tracks
Automatic outrigger leveling
Wireless remote control
Proportional hydraulic control
Telescopic aluminum boom
The THZ-18T is suitable for general building maintenance, construction, tree care, facility maintenance and elevated installation applications.
THZ-20T – 20m Dual Power Spider Lift
The THZ-20T is the higher-reach model, offering a maximum working height of 20m.
It combines 20m working height with the same ultra-narrow 0.88m body width, providing high-level access while maintaining good access flexibility.
The THZ-20T is particularly suitable for projects requiring additional vertical reach, including taller building maintenance, tree care, industrial maintenance and elevated installation.
Main Advantages
20m maximum working height
230kg rated load
0.88m ultra-narrow width
Diesel + electric dual power
KUBOTA D902-E3B diesel engine
Non-marking rubber tracks
Automatic outrigger leveling
Wireless remote control
Precision proportional hydraulic control
±355° turntable rotation
±90° platform rotation
30% maximum gradeability
18m vs 20m Dual Power Spider Lift
The main difference between the two models is working height, overall length, machine weight and the corresponding operating requirements.
| Item | THZ-18T | THZ-20T |
|---|---|---|
| Working Height | 18m | 20m |
| Rated Load | 230kg | 230kg |
| Overall Width | 0.88m | 0.88m |
| Overall Height | 1.95m | 1.95m |
| Overall Length | 5.2m | 5.2m |
| Machine Weight | 3,250kg | 3,600kg |
| Power | Dual Power | Dual Power |
Choose THZ-18T if:
Your required working height is around 18m.
You mainly perform general building maintenance.
You want a compact dual-power spider lift.
18m working height is sufficient for your application.
You want a slightly lighter machine compared with the 20m model.
Choose THZ-20T if:
Your project requires up to 20m working height.
You need additional vertical access.
You work on taller buildings or structures.
You need greater reach for tree maintenance or high-level installation.
The additional machine weight and dimensions are acceptable for your site and transportation conditions.
Applications of Dual Power Spider Aerial Work Platforms
1. Building Maintenance
The 18m and 20m spider lifts can provide elevated access for:
Building facade maintenance
Exterior inspection
Wall maintenance
Roof-related maintenance
High-level repairs
Building decoration
The narrow 0.88m body makes the machine suitable for restricted-access projects.
2. Construction
Spider aerial work platforms can be used for suitable construction applications such as:
High-level installation
Structural inspection
Building finishing
Equipment installation
Exterior construction work
Maintenance during construction
The proportional hydraulic system helps operators position the platform accurately.
3. Tree Trimming and Arboriculture
The 18m and 20m working heights provide access for:
Tree pruning
Tree trimming
Branch cutting
Tree inspection
Landscape maintenance
Arboricultural work
The tracked chassis allows the machine to move across suitable outdoor terrain.
4. Glass and Facade Installation
The compact spider lift design is suitable for elevated installation and maintenance around buildings.
Applications may include:
Glass installation
Curtain wall work
Facade inspection
Exterior decoration
Sign installation
Building maintenance
The proportional hydraulic system provides precise platform positioning.
5. Industrial Facility Maintenance
The spider lift can be used for suitable maintenance applications in:
Factories
Workshops
Industrial facilities
Warehouses
Production buildings
Infrastructure facilities
Typical work includes high-level inspection, lighting maintenance and equipment installation.
6. Lighting and Electrical Maintenance
The machine can provide elevated access for:
Lighting installation
Lighting replacement
High-level electrical work
Cable-related work
Facility inspection
Outdoor lighting maintenance
7. Hotels, Commercial Buildings and Public Facilities
For suitable sites, the compact spider lift can be used for:
Lighting maintenance
Ceiling-related maintenance
Sign installation
Building decoration
Facility inspection
High-level maintenance
The ultra-narrow body is especially useful where access width is limited.
Why Choose a Dual Power Spider Lift?
Dual Power Flexibility
The diesel and electric power systems provide greater flexibility for different job-site requirements.
18m & 20m Working Heights
Two working height options are available for different elevated access requirements.
Ultra-Narrow 0.88m Body
The compact width provides excellent access to restricted areas.
Tracked Chassis
Non-marking rubber crawler tracks provide flexible mobility on suitable surfaces.
Automatic Leveling
Automatic outrigger leveling simplifies machine setup.
Precise Hydraulic Control
Proportional hydraulic operation provides smooth and precise movement.
Remote Operation
Wireless remote control gives the operator greater flexibility.
High Working Range
±355° non-continuous turntable rotation and ±90° platform rotation provide flexible positioning.
Multiple Safety Systems
Emergency stop, emergency lowering, automatic braking, tilt protection and fault diagnosis provide additional operational support.
Frequently Asked Questions
1. What is a dual power spider aerial work platform?
A dual power spider aerial work platform is a compact tracked aerial lift equipped with both diesel and electric power systems.
The operator can select the appropriate power source according to the working environment and operating requirements.
2. What is the working height of the THZ-18T?
The THZ-18T has a maximum working height of 18m.
3. What is the working height of the THZ-20T?
The THZ-20T has a maximum working height of 20m.
4. What is the rated load capacity?
Both models have a rated load capacity of 230kg.
5. How wide is the machine?
Both the THZ-18T and THZ-20T have an overall width of only 0.88m.
This ultra-narrow design is one of the main advantages of the spider aerial work platform.
6. Does the spider lift use diesel or electric power?
It uses dual power.
The machine is equipped with a KUBOTA D902-E3B diesel engine and an electric power system.
This allows flexible power selection according to the working environment.
7. What are the advantages of dual power?
Dual power provides greater flexibility.
For suitable outdoor applications, diesel power can provide an independent power source.
For suitable environments where reduced operating emissions and noise are preferred, electric operation can be selected.
The actual power mode should be selected according to the application, ventilation conditions and manufacturer's operating requirements.
8. Does the machine use rubber tracks?
Yes.
The machine uses non-marking rubber crawler tracks.
9. Can the tracks be extended?
Yes.
The crawler tracks can be extended and retracted from both sides to provide flexibility between narrow access and a wider traveling configuration.
10. Does the machine have automatic leveling?
Yes.
The spider aerial work platform is equipped with an automatic outrigger leveling system.
11. How is the machine controlled?
The machine uses wireless remote control combined with a precision proportional hydraulic system.
12. What is the turntable rotation range?
The turntable provides ±355° non-continuous rotation.
13. What is the platform rotation range?
The platform provides ±90° rotation.
14. What is the maximum gradeability?
The maximum gradeability is 30%.
Actual operation should always follow the machine operating manual and site safety requirements.
15. What battery does the machine use?
The specified battery configuration is:
12V/45Ah
16. What engine does the machine use?
The diesel power system uses a:
KUBOTA D902-E3B diesel engine
17. What industries can use a spider lift?
The machine can be used for suitable applications in:
Construction
Building maintenance
Facility maintenance
Tree care
Glass installation
Electrical work
Lighting maintenance
Industrial maintenance
Sign installation
High-level inspection
18. How do I choose between the 18m and 20m model?
Choose according to the required working height.
The THZ-18T provides 18m maximum working height.
The THZ-20T provides 20m maximum working height and is suitable when additional vertical access is required.
You should also consider site access width, ground conditions, transportation requirements and machine operating space.
Get a Quote for Your Dual Power Spider Lift
Looking for an 18m or 20m Spider Aerial Work Platform with flexible diesel and electric power?
The THZ-18T and THZ-20T Dual Power Spider Lifts combine:
18m/20m Working Height + 0.88m Ultra-Narrow Body + Diesel/Electric Dual Power + Tracked Mobility + Automatic Leveling + Wireless Remote Control
They provide a flexible solution for contractors, rental companies, construction companies, maintenance service providers and other professional users.
Contact Us for More Information
Send us the following information:
Required working height
Application
Indoor or outdoor use
Minimum access width
Ground conditions
Required quantity
Destination country or port
We can provide:
Product specifications
Technical drawings
Machine photos and videos
Model recommendations
Factory quotation
Shipping solutions
Configuration options
Tell us your required working height and application, and we will recommend the right 18m or 20m dual power spider aerial work platform for your project.
