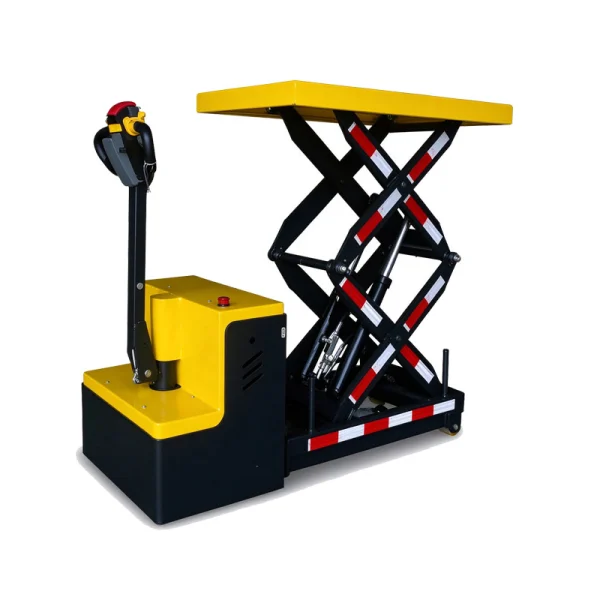

1500kg Fully Electric Hydraulic Lifting Platform
The 1500kg electric hydraulic lifting platform is a compact material handling solution designed for warehouses, workshops, production areas and other industrial applications. It combines an electric drive system with hydraulic lifting to provide stable and convenient platform lifting for loading, positioning and handling operations.
With a 1500kg maximum load capacity and a lifting range from 460mm to 1550mm, the platform can be used for both low-level loading and elevated material positioning. Its compact 700mm × 1200mm platform is suitable for applications where working space is limited.
Key Features
1500kg maximum load capacity for medium-duty material handling
460mm minimum platform height for easier loading and unloading
1550mm maximum lifting height for elevated work and material positioning
700 × 1200mm platform size for practical loading space
Fully electric operation for convenient daily use
Hydraulic lifting system for stable and controlled lifting
48V battery system with different battery capacity options
Compact 1700 × 700 × 1200mm body size for use in relatively narrow working areas
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | Fully Electric Hydraulic Lifting Platform |
| Maximum Load Capacity | 1500 kg |
| Minimum Platform Height | 460 mm |
| Maximum Lifting Height | 1550 mm |
| Platform Width | 700 mm |
| Platform Length | 1200 mm |
| Battery | 48V, optional capacity |
| Overall Dimensions | 1700 × 700 × 1200 mm |
Applications
This electric hydraulic lifting platform can be used for a range of material handling tasks, including:
Warehouse material handling
Production line material positioning
Workshop loading and unloading
Parts handling and assembly
Pallet and container lifting
Material height adjustment
Industrial maintenance and handling operations
For example, a workshop can use the platform to raise a 500–1000kg component from 460mm to a working height of up to 1550mm, allowing operators to position materials at a more convenient height during assembly or processing.
Compact Design for Industrial Use
With an overall size of 1700 × 700 × 1200mm, the platform is designed for applications where floor space is limited. The 700mm platform width provides a relatively compact footprint while maintaining a 1200mm platform length for material handling.
The electric hydraulic lifting system eliminates the need for manual lifting and provides a practical solution for repetitive lifting and positioning operations.
Battery Options
The platform uses a 48V battery system, with battery capacity options available according to the customer's operating requirements. Buyers can select a suitable configuration based on working frequency, lifting requirements and expected operating time.
Why Choose This Electric Lifting Platform?
For warehouses and industrial facilities that frequently need to raise and position materials, a compact electric hydraulic platform can reduce manual lifting work and make material positioning more convenient. With a 1500kg load capacity and 1550mm maximum lifting height, this model is suitable for applications requiring more lifting capacity than a small manual lift table while remaining compact enough for workshop and warehouse environments.
For larger or smaller load capacities, platform dimensions and lifting heights, different configurations can be discussed according to the application.
